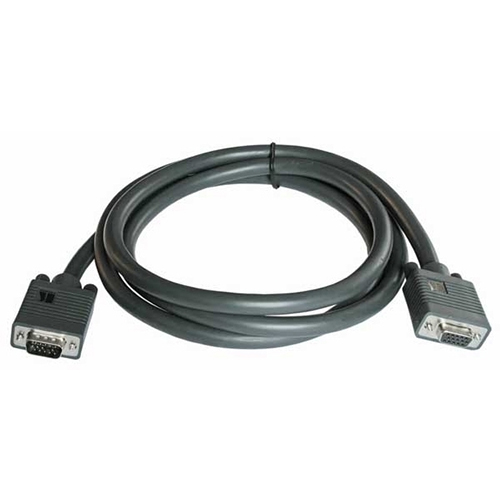

C-GM/GF-25 Molded 15-pin HD (Male - Female) Cable, 7.6 m
Please sign in so that we can notify you about a reply
Kramer’s C−GM/GF computer graphics video cable is a high−performance cable with molded 15−pin HD connectors on both ends. It is used for connecting computer graphics video signals between computers or video scalers and plasma, LCD or other popular display technologies.
Features
- Quality Construction -High-resolution 26 gauge mini coax for video.
- Easy Installation -Pre-terminated with molded 15-pin HD connectors, gold plated pins and thumbscrews for easy connection.
- Varied Selection of Lengths -Available in versions of 3 to 100ft (0.9 to 30.5m).
- Cable Specs -See Kramer BC-3X2T7S for detailed cable specs.
Brand:
Kramer
Part number:
92-6101025
Specifications
Product Type:
VGA/UXGA HD to VGA/UXGA HD Cable
Wire Gauge:
26AWG
Coaxial Diameter:
0.26cm
Connector A Type:
VGA
Connector A Gender:
Male
Connector B Type:
VGA
Connector B Gender:
Female
Conductor Diameter:
0.048cm
Conductor Material:
Tinned Copper
Outer Diameter:
1cm
Jacket Material:
PVC
Shielding Material:
Aluminium Mylar Foil
Colour:
Black
Shielding Type:
Spiral
Performance
Impedance Rating:
75Ω
Attenuation:
-14.0dB@400MHz
Capacitance:
57pF
Dimensions
Length:
7.6m
Other
Standards Met:
CL2 UL, c(UL) CL2 CSA
