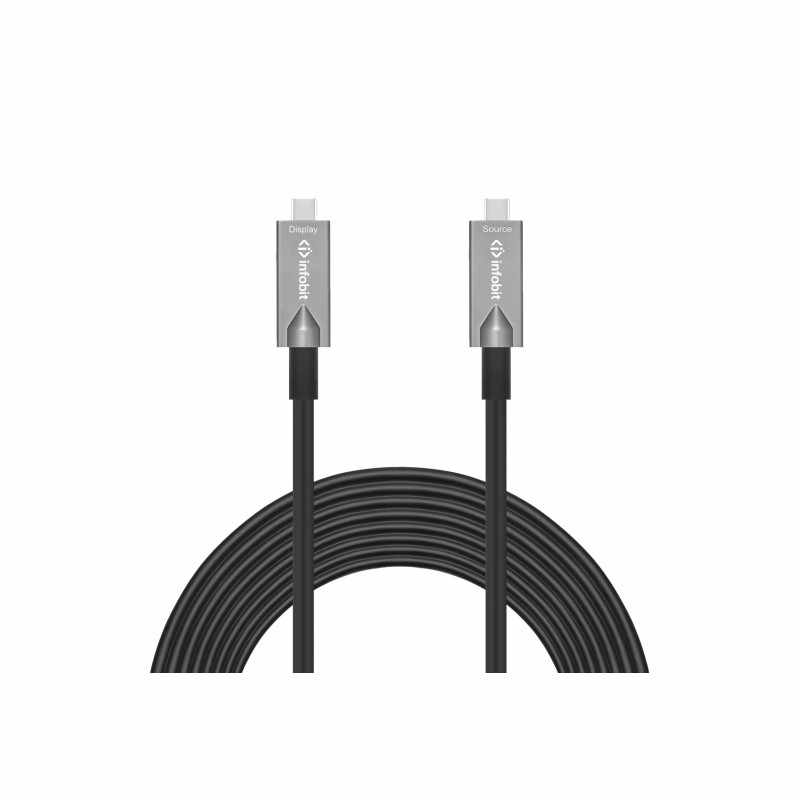

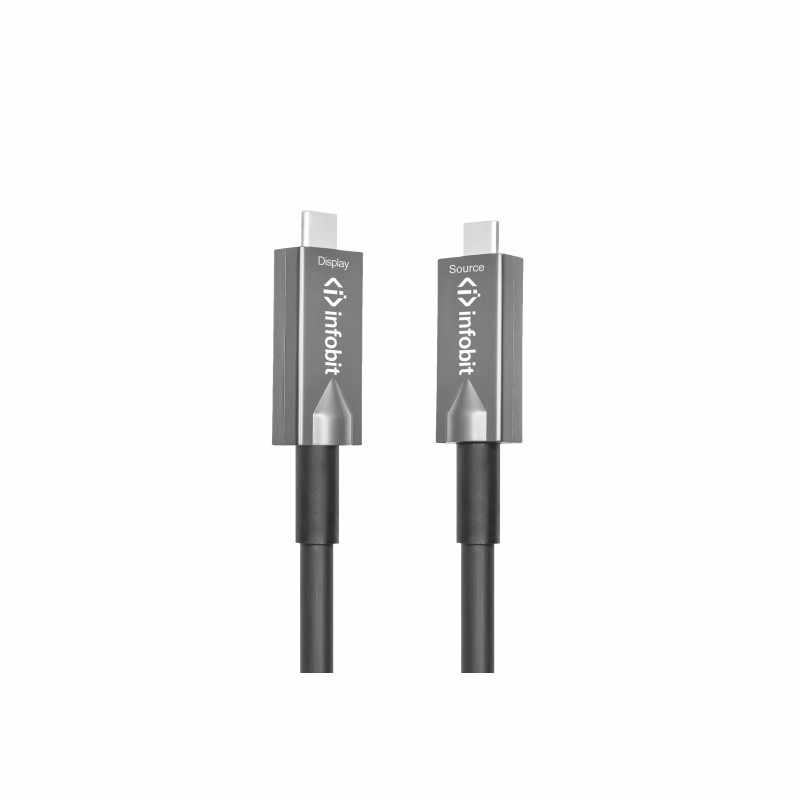

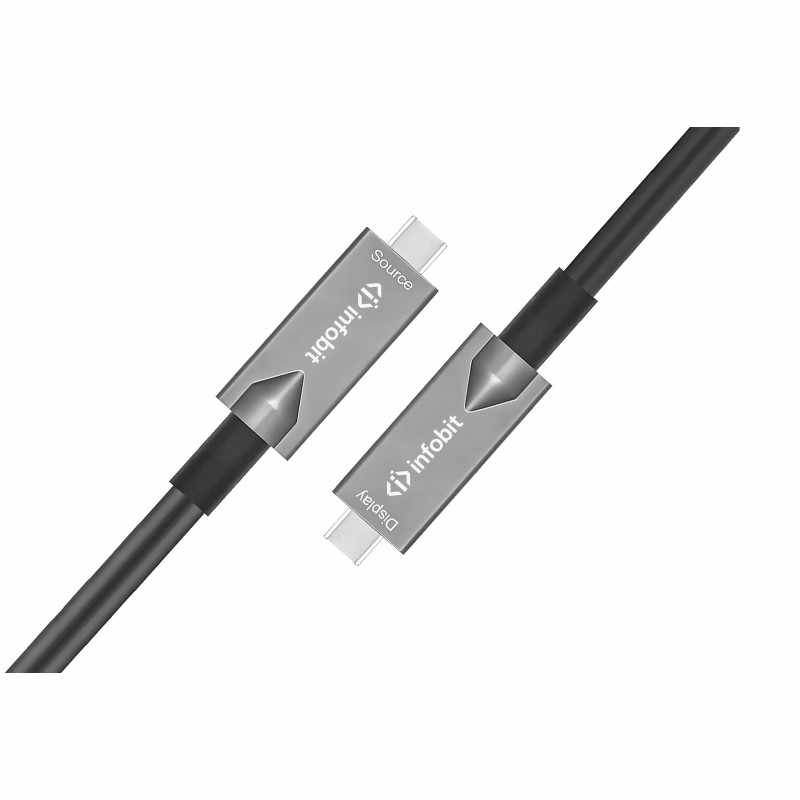

AOC-USB31-CCDV-10 USB 3.1 Cable, 10m, Type-C to Type-C, 10Gbps
Please sign in so that we can notify you about a reply
With no external power needed, its built–in active circuitry is powered by both ends of the cable, eliminating external power supply costs. With power delivery of up to 60 watts, the next-gen AOC supports various voltage profiles up to 20 Volts at 3 Amps and is thus able to charge a wide range of devices. With a strong zinc alloy metal shell, the attractive gold-plated contacts maintain a long-lasting, reliable electrical connection. The next-gen cable is conveniently backwards compatible with previous USB standards and also works with Thunderbolt devices (With DP Alt Mode) and is available in 3, 5, 7, and 10 meter (33 feet) lengths, with support available for extra customization
Features- Support USB 3.1 Gen2
- Support USB 2.0 high speed and full speed
- Support 2-lane DP 1.4
- Plug and play without driver dependent
- High reliability
- Thinner, lighter and softer than conventional copper cable
- Highly resistant to EMI and RFI
- USB 3.2 Gen 2 compliant with SuperSpeed+ transfer rates up to 10 Gbps
- USB-C compliance with DisplayPort 1.4 Alternate Mode (DP Alt Mode) for resolutions up to 8K@60Hz on supported devices and displays
- Supports pass-through of EDID and HDCP-encrypted signals.
- Ultra-flexible, ultra-thin 0.25 (6.5 mm) diameter cable — a narrow bend radius facilitates easier installation and reduces the possibility of cable damage.
- Bidirectional USB power flow — when connected to USB devices that support USB PD (Power Delivery), power flows both ways, enabling both host and peripheral devices to provide power to the far-end device.
- Supports USB Power Delivery (PD) and Quick Charge™ (QC) up to 60 W, 20V 3A Charges a USB-C powered device such as a notebook, Macbook Pro® or tablet from a USB-C PD wall charger or powerbank
- Highly resistant to EMI/RFI Interference, the USB C full function (Data + Video + PD) can be used in high-interference environments, such as data centers and manufacturing facilities
- USB-C male to USB-C male for connecting a USB-C device to a USB-C port
- Bi-directional design, can be plugged in both directions
- Overcomes the USB-C distance limitation for power, data, and video at a range up to 10m without signal loss
Brand:
Infobit
Product Type:
USB 3.1 Cable
Specifications
Connector A Type:
USB Type-C
Connector A Gender:
Male
Connector B Type:
USB Type-C
Connector B Gender:
Male
Connector Plating:
Gold
Outer Diameter:
0.6cm
Colour:
Black, Grey
Series:
AOC-USB31-CCDV
Power Rating:
60W
Applicable Devices:
Notebook, Macbook Pro®, Tablet from a USB-C PD Wall Charger, Powerbank
Performance
Data Transfer Rate:
10Gbps
Dimensions
Length:
10m
Other
Warranty:
2yrs
