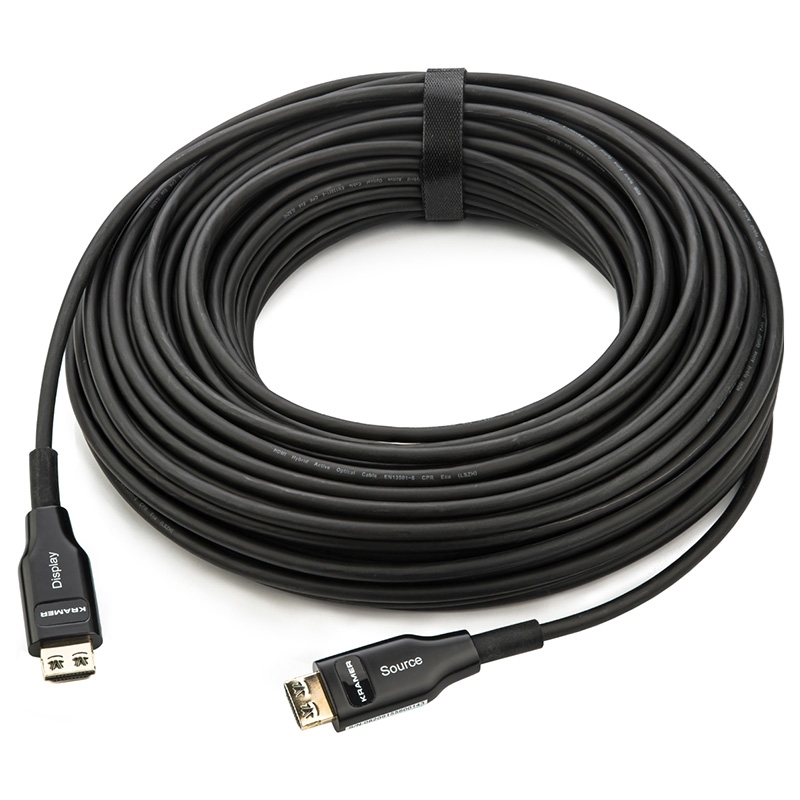

CLS-AOCH/60F-262 High-Speed HDMI Optic Hybrid Cable - LSHF, 80 m
Please sign in so that we can notify you about a reply
CLS−AOCH/60F is an innovative active optical HDMI cable for 4K signals up to 90 meters (295ft). CLS−AOCH/60F cables are thinner, lighter, and more flexible than copper or even standard optical cables. They offer transparent EDID and HDCP support with no signal attenuation and reduced risk of EMI and RFI interference. CLS−AOCH/60F cables are an ideal solution for maximizing signal integrity in critical AV installations.
Features
- Video Resolution -Up to 4K@60Hz (4:4:4).
- High Data Transfer Rate -Up to 18Gbps.
- Embedded Audio -PCM 8-channel, Dolby Digital True HD and DTS-HD Master Audio.
- HDMI Support -HDCP 2.2/1.4, HDR, EDID, ARC and CEC.
- High-Quality Connectors -24K gold-plated, corrosion-resistant and best possible connectivity.
- Reduced EMI & RFI.
- Thin Construction -4.5mm diameter.
- Jacket Construction -Low smoke & halogen free.
- RoHS 2011/65/EU;CE,FCC Compliant.
- Varied Selection of Lengths -Available in versions from 10 to 90m (33 to 295ft).
Brand:
Kramer
Part number:
97-04160262
Specifications
Product Type:
High Speed HDMI Optic Hybrid Cable
Connector A Type:
HDMI
Connector A Gender:
Male
Connector B Type:
HDMI
Connector B Gender:
Male
Connector Plating:
Gold
Outer Diameter:
0.45cm
Cable Bend Radius:
2cm
Maximum Operating Temperature:
+50°C
Colour:
Black
Performance
Data Transfer Rate:
18Gbps
Maximum Resolution:
4K@60Hz (4:4:4)
Supported Audio Formats:
PCM 8-Channel, Dolby TrueHD™, DTS−HD Master Audio™
Dimensions
Length:
80m
Other
Standards Met:
RoHS 2011/65/EU, CE,FCC Compliant, REACH
