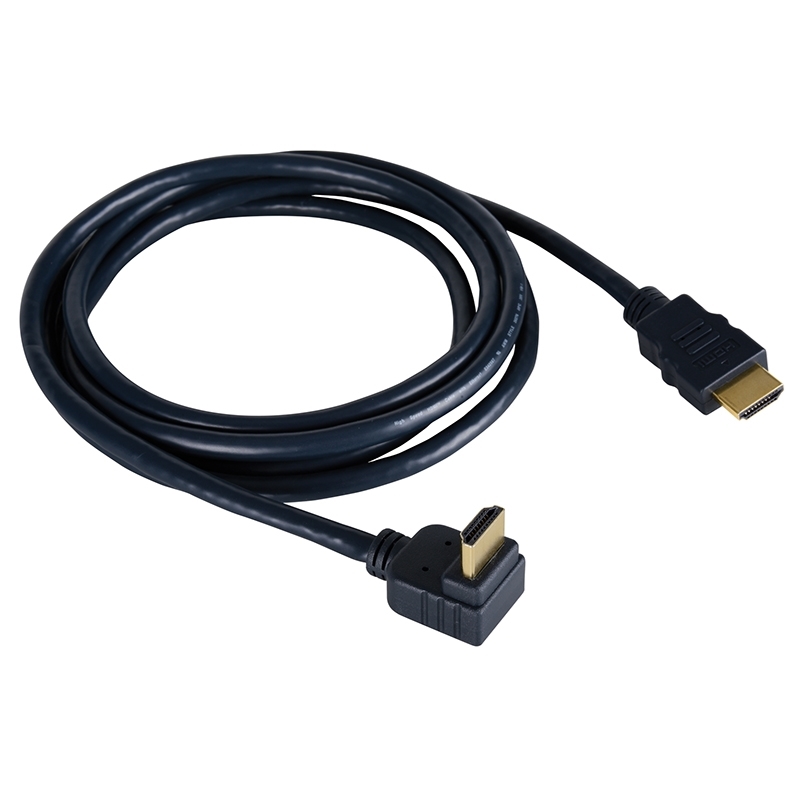

C-HM/RA2-6 High-Speed HDMI Right Angle Cable with Ethernet, 1.8 m
Please sign in so that we can notify you about a reply
C−HM/RA2 is a high−speed, 4K@60Hz (4:4:4) HDMI, cable that supports Ethernet over the HDMI line. Both ends of the cable are right angle connectors.
Features
- Max. Resolution -4K@60Hz (4:4:4).
- High-Quality Connectors -24K gold-plated connectors resist corrosion, and offer the best possible connectivity.
- Minimizes Installation Depth -The right angle design makes it the perfect cable for connecting a flat panel display to a Kramer low profile wall-plate extender when the extender is installed behind the display.
- Supports HDCP 2.2, HDR, deep color, x.v.Color™, Lip Sync, 7.1 PCM, Dolby TrueHD, DTS-HD, and CEC.
Brand:
Kramer
Part number:
97-0144006
Specifications
Product Type:
High Speed HDMI Right Angle Cable with Ethernet
Wire Gauge:
30AWG
Connector A Type:
HDMI
Connector A Gender:
Male
Connector B Type:
HDMI
Connector B Gender:
Male
Connector Plating:
Gold
Outer Diameter:
0.7cm
Cable Bend Radius:
6cm
Jacket Material:
PVC
Maximum Operating Temperature:
+80°C
Screening Type:
Triple Shielding
Colour:
Grey
Performance
Data Transfer Rate:
18Gbps
Maximum Resolution:
4K@60Hz (4:4:4)
Supported Audio Formats:
Dolby Digital Plus™, Dolby TrueHD™, DTS−HD Master Audio™, DVD Audio, SA−CD
Dimensions
Length:
1.8m
Other
Voltage Rating:
30V
Conductor Resistance:
381Ω/km
Standards Met:
NEC/UL/CSA Rating: VW-1, CEC, RoHS 2.0
