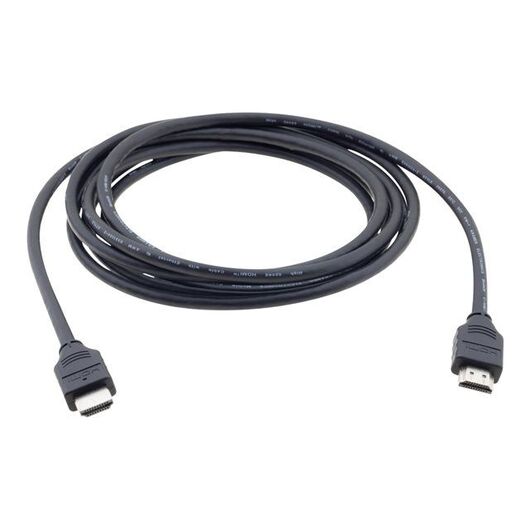

C-HM/EEP-6 High Speed HDMI cable with Ethernet Cable (6')
Please sign in so that we can notify you about a reply
C−HM/EEP is a high−performance, high−speed HDMI™ cable with Ethernet and enhanced EMI protection. C−HM/EEP is specially designed to be used with Kramer products for critical installations. The unique combination of a one piece die−cast HDMI connector, internal metal shell, triple shielded construction and small, lightweight design provides unrivaled installation flexibility and robustness.
Features
- High Performance Cable -Passes HDMI signal at up to 4K@60Hz (4:4:4) resolution and up to 18Gbps data rate.
- Embedded Audio -PCM 8-channel, Dolby Digital True HD and DTS-HD Master Audio.
- Supports HDCP 2.2,HDR10, HLG, EDID and CEC.
- RoHS 2011/65/EU Compliant.
- Varied Lengths -Available in versions of 0.9 to 3.0m (3 to 10ft).
Brand:
Kramer
Part number:
97-01414006
Specifications
Product Type:
High Speed HDMI Cable with Ethernet
Wire Gauge:
30AWG
Connector A Type:
HDMI
Connector A Gender:
Male
Connector B Type:
HDMI
Connector B Gender:
Male
Outer Diameter:
0.6cm
Jacket Material:
PVC
Maximum Operating Temperature:
+80°C
Screening Type:
Triple Shielding
Colour:
Black
Performance
Data Transfer Rate:
18Gbps
Maximum Resolution:
4K@60Hz (4:4:4)
Supported Audio Formats:
Dolby TrueHD™, DTS−HD Master Audio™
Dimensions
Length:
1.8m
Other
Voltage Rating:
30V
Conductor Resistance:
379.96Ω/km
Standards Met:
NEC/UL/CSA Rating: VW-1, CEC, RoHS 2011/65/EU
