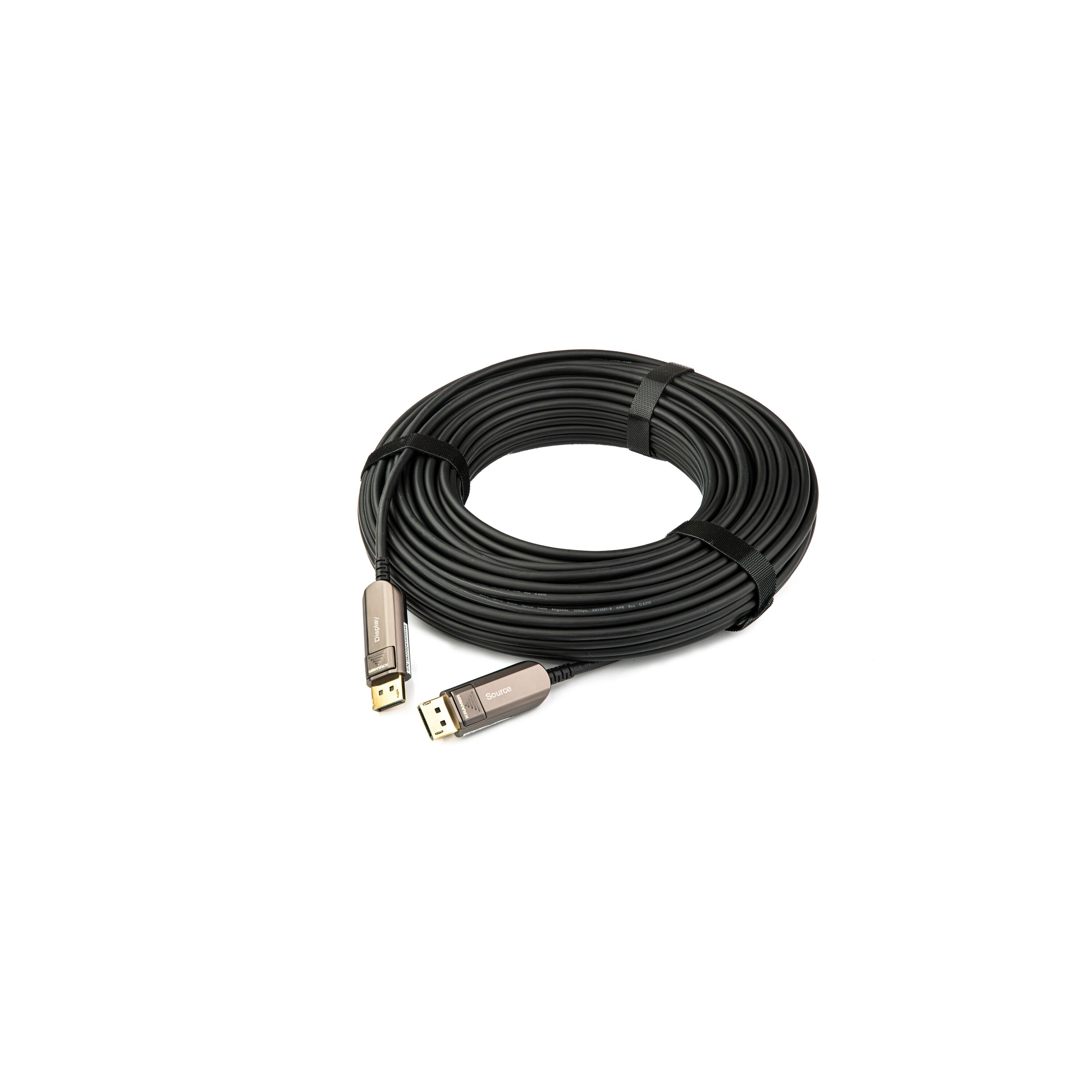

CLS-AOCDP/UF-50 DisplayPort (M) to DisplayPort (M) Hybrid Multi-Mode Fiber Low Smoke Cable, 15.2 m
Please sign in so that we can notify you about a reply
CLS−AOCDP/UF is a DisplayPort™ 1.4, 8K active optical cable (AOC) that features high resolution and data transfer rate. CLS−AOCDP/UF is thin and flexible and requires no external power. User experience is maximized with integrator−oriented features and the latest advances in DisplayPort1.4 technology.
Features
- Latest DisplayPort Technology -Supports 3D, HDCP, EDID, HBR3, DSC, and 8K@60Hz resolution.
- Streamlines Installations -Supports up to 8K@60Hz over long cable runs of up to 100 meters without the need for an external power supply or additional extenders.
- High Data Transfer Rate -Up to 32.4Gbps data rate with 8.1Gbps/lane (HBR3) link rate.
- Supports up to 8 channels of 16 or 24bits linear PCM & 32 to 192KHz sampling rate.
- No External Power Needed -Powers the active units via the DisplayPort connector.
- Thin Construction -4.8mm diameter.
- Safe Construction -Low smoke & halogen free.
- Compliance -RoHS 2011/65/EU compliant, CE/FCC.
Brand:
Kramer
Part number:
97-0415050
Specifications
Product Type:
Active Optical DisplayPort Cable
Wire Gauge:
2px26AWG + 4cx28AWG + 2cx24AWG
Connector A Type:
DisplayPort
Connector A Gender:
Male
Connector B Type:
DisplayPort
Connector B Gender:
Male
Outer Diameter:
0.48cm
Jacket Material:
PVC
Colour:
Black
Display Port Cable Version:
Version 1.4
Performance
Data Transfer Rate:
32.4Gbps
Maximum Resolution:
8K@60Hz
Dimensions
Length:
15.2m
Other
Standards Met:
LSHF EN 60332-1-2, EN 50399, RoHS 2011/65/EU, CE/FCC Compliant
