BCLS-11 CAT 5E U/UTP LSZH Bulk Cable-305m
Please sign in so that we can notify you about a reply

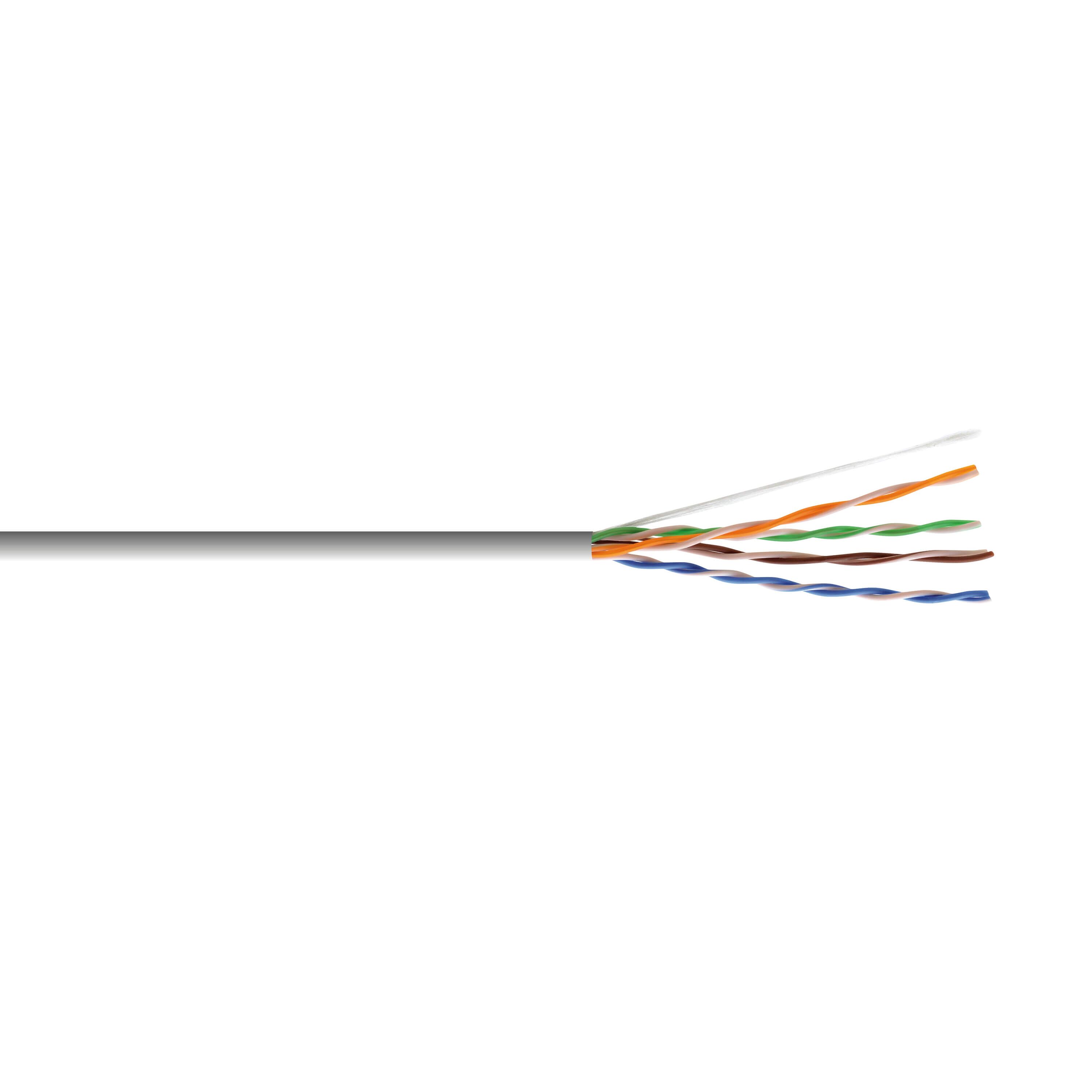

Kramer's BCLS−11 is a high−performance CAT 5E U/UTP cable designed for IT, LAN and Ethernet installations. BCLS−11 is constructed with four pairs of 24AWG solid bare copper conductors in an LSZH jacket with internal rip cord and sequential markings every meter. It is packed in a Reelex II carton for easy to pull−out. BCLS−11 exceeds CAT 5E specifications to provide additional performance and bandwidth beyond the basic standard.
Features
- High-Performance Transmission.
- High-Quality Safety Properties.
- Sweep Frequency up to 350 MHz.
- Length -Available in Reelex II Cartons of 305m (1000ft).
Brand:
Kramer
Part number:
99-45100305
Specifications
Product Type:
CAT 5E U/UTP 350MHz Bulk Cable
Wire Gauge:
24AWG
Conductor Type:
Solid
Conductor Material:
Bare Copper
Outer Diameter:
0.49cm
Colour:
Grey
Insulation Material:
Polyolefin
Resistant Properties:
Low Smoke, Halogen Free
Performance
Impedance Rating:
100Ω
Capacitance:
≤5.6nF/100m
Dimensions
Length:
305m
Other
Voltage Rating:
300V
Standards Met:
ANSI/TIA-568-C.2 (2009), ISO/IEC 11801 (Edition 2.2), IEC 61156-5 (Edition 2.0), EN 50288-6-1:2013, EN 50173-12011, IEC 60332-1-2, IEC 61034-1 / 61034-2, IEC 60754-2
