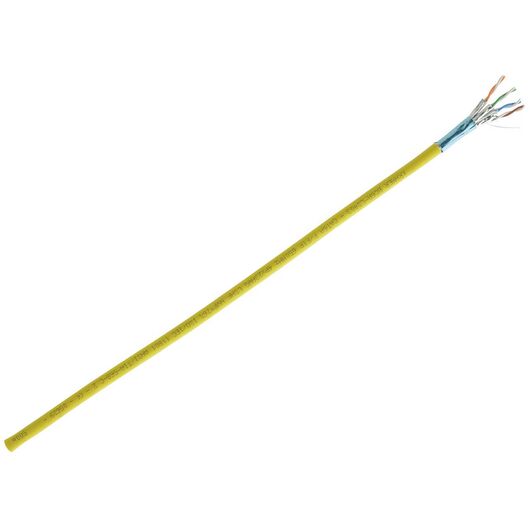

BC6A-LS403-D500M KLAN CAT 6A F/FTP 650MHz LSZH Bulk Cable-Yellow, Drum
Please sign in so that we can notify you about a reply
Kramer's BC6A−LS403 bulk cable is a high−quality CAT6A F/FTP low smoke & halogen free four pair twisted cable, designed for LAN applications that ensures optimum performance.
Features
- Quality Construction -4 shielded twisted pairs (F/FTP) of 23AWG solid copper conductors are cabled together in a shielded outer LSHF jacket.
- Performance -Tested up to 650MHz.
- RJ-45 Connector -The larger diameter 23AWG twisted pair cable requires a special RJ-45 connector. Use the K-LAN CON-RJ45-3
- Ideal for 10GbE and and legacy speeds applications.
- Length -Available in wooden drums of 305m & 500m (1000 & 1640ft).
Brand:
Kramer
Part number:
99-461400500
Specifications
Product Type:
CAT 6A U/FTP 650MHz Bulk Cable
Core Size:
0.056cm
Wire Gauge:
23AWG
Conductor Type:
Solid
Conductor Material:
Annealed Copper
Outer Diameter:
0.74cm
Shielding Material:
Aluminium/PET
Colour:
Yellow
Insulation Material:
HDPE
Resistant Properties:
Low Smoke, Halogen Free
Performance
Impedance Rating:
100Ω
Capacitance:
≤42pF/m
Dimensions
Length:
500m
Other
Voltage Rating:
30V
Standards Met:
EIA/TIA 568A, ISO/IEC 11801, Fire Performance: IEC 60332‑1, Smoke Density: IEC 61034, Halogen Free: IEC 60754, RoHS 2011/65/EU
