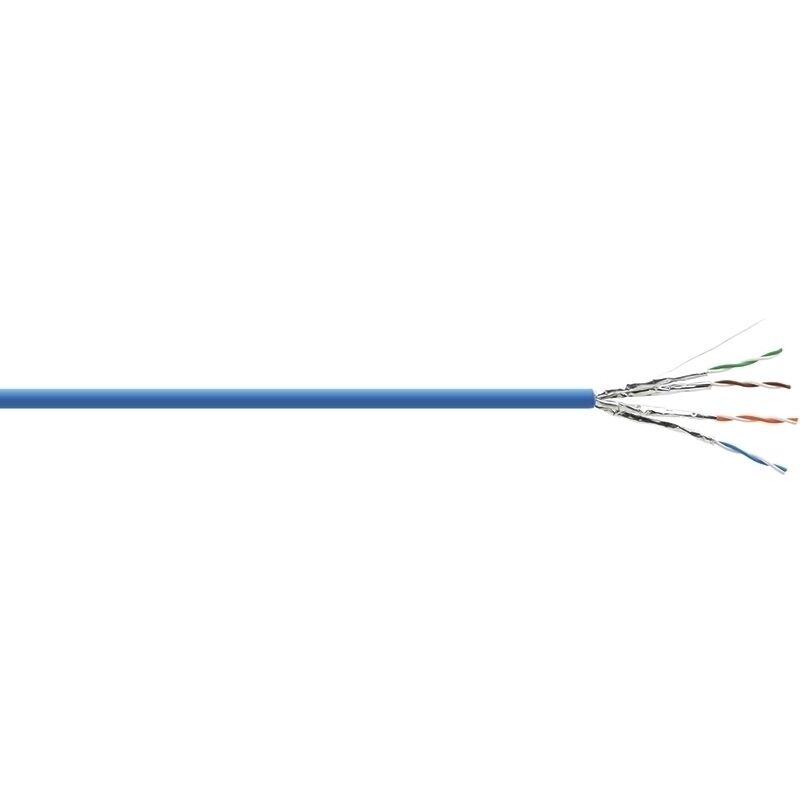

BC-UNIKat/LSHF-100M 23 AWG U/FTP CAT6A Bulk Cable Optimized for Kramer's DGKat, HDBaseT and LAN applications, 100 m
Please sign in so that we can notify you about a reply
Kramer's BC−UNIKAT cable is a unified CAT6a cable that handles all Pro AV and IT signals. Over four individually screened twisted pairs, this U/FTP CAT6A cable runs Kramer’s DGKat™ technology, 4K HDBaseT™ technology or LAN applications and ensures optimal signal performance.
Features
- Quality Construction -4 shielded twisted pairs (U/FTP) of 23AWG solid copper conductors are cabled together in an unshielded outer jacket.
- Optimized for Kramer Hardware -Use with any of Kramer’s wide range of twisted pair digital transmitter-receiver sets. Terminate with shielded transmitter-receiver sets (DGKat™ and HDBaseT) and shielded RJ-45 connectors.
- HDBaseT Recommended -www.hdbaset.org/hdbaset-recomm.
- Reaction to Fire Classification -Dca-s2,d1,a1 (optional: B2ca-s1,d1,a1).
- RJ-45 Connector -The larger diameter 23AWG twisted pair cable requires a suited RJ-45 connector. Use the K-LAN CON-RJ45-3.
- Length -Available in reel boxes of 100m (328ft) & wooden drums of 305/500m (1000/1640ft).
Brand:
Kramer
Part number:
99-0461100
Product Type:
CAT 6A U/FTP Video & LAN Bulk Cable
Specifications
Core Size:
0.056cm
Wire Gauge:
23AWG
Conductor Type:
Solid
Conductor Material:
Annealed Copper
Outer Diameter:
0.72cm
Shielding Material:
Aluminium/PET
Colour:
Blue
Insulation Material:
HDPE
Resistant Properties:
Low Smoke, Halogen Free
Performance
Impedance Rating:
100Ω
Capacitance:
≤42pF/m
Dimensions
Length:
100m
Other
Voltage Rating:
60V
Standards Met:
EIA/TIA 568A, ISO/IEC 11801, Fire Performance: IEC 60332‑1, Smoke Density: IEC 61034, Halogen Free: IEC 60754, RoHS 2011/65/EU, Reaction to Fire Classification: Dca-s2,d1,a1 (optional: B2ca-s1,d1,a1)
