VP-558/220V Presentation Boardroom Router / Scaler System, 220V
Please sign in so that we can notify you about a reply

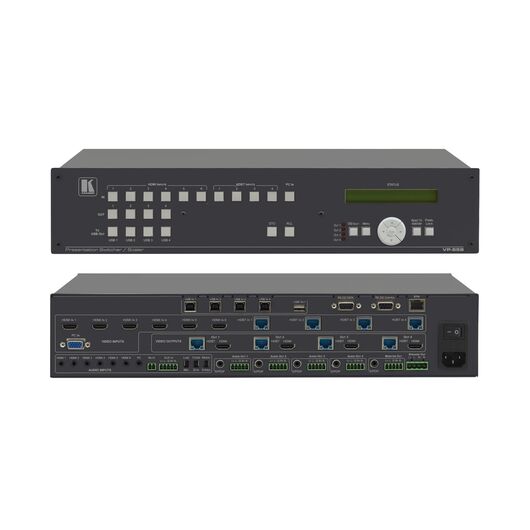

The VP−558 is a high−performance 11x4 ProScale presentation scaler/matrix switcher that can output four independent scaled images. Each output includes an HDMI and HDBaseT connector. The product supports analog, digital and embedded audio. VP−558 features six HDMI inputs, four HDBaseT inputs, an analog VGA input, and a 4x1 USB switcher. VP−558 also includes a microphone input, independent stereo audio outputs, a monitor output, an amplified speaker output, and audio DSP features.
Features
- Pix–Perfect™ Scaling Technology — Kramer’s precision pixel mapping and high–quality full up — and down–scaling technology.
- HDTV Compatible.
- HDCP Compliance — The HDCP (High Definition Content Protection) license agreement allows copy–protected data on the HDMI input to pass to HDCP compliant outputs.
- Output Resolutions — Up to 1080p/WUXGA.
- System Range — For the HDBT inputs and outputs — up to 70m (230ft).
- Cables — For optimum range and performance using HDBaseT™, use Kramer's BC–HDKat6a cable. Note that the transmission range depends on the signal resolution, source and display used. The distance using non–Kramer CAT 6 cable may not reach these ranges.
- 4x1 USB Switcher — Can be set to follow the switching of the video layer or as an independent switcher.
- OSD (On Screen Display) — For easy setup and adjustment, accessible via the front panel buttons.
- Audio DSP Features.
- Input/Output Audio Level Adjustment.
- Selectable Microphone Talkover or Mix Modes.
- Analog & Embedded Audio Support — For inputs and outputs.
- Built–in Power Amplifier — 2x10W power amplifier with speaker outputs on a 4–pin terminal block connector.
- Multiple Aspect Ratio Selections.
- Built–in ProcAmp — Color, hue, sharpness, noise, contrast and brightness.
- Built–in Web Pages — For easy setup and remote control.
- Firmware Upgrade via the Ethernet
- Multiple Control Options — Front panel buttons with OSD, RS–232, Ethernet and built–in Web pages.
Brand:
Kramer
Part number:
70-00558020
Product Type:
Presentation Scaler/Switcher
Specifications
Maximum Operating Temperature:
+40°C
Colour:
Black
Version:
220V
Special Features:
Pix-Perfect™ Scaling Technology, High-Performance Switcher/Scaler, Built-In Video Procamp-Color, Hue, Sharpness, Noise, Contrast, and Brightness, Multiple Aspect Ratio Selections, Advanced EDID Management Per Input, Efficient Power-Saving Features, Adva
Applications:
Projection Systems in Conference Rooms, Boardrooms, Hotels and Churches, Meeting Rooms with Video Conferencing Systems, that Require Multiple Screens with Various Sizes and Resolutions At Different Distances From the Cabinet or Rack
Humidity:
10 to 90%
Minimum Operating Temperature:
0°C
Includes:
Power Supply
Performance
Resolution:
NATIVE:640x480@60Hz, 800x600@60Hz, 1024x768@60Hz, 1280x768@60Hz, 1360x768@60Hz, 1280x720@60Hz, 1280x800@60Hz, 1280x1024@60Hz, 1440x900@60Hz, 1400x1050@60Hz, 1680x1050@60Hz, 1600x1200@60Hz, 1920x1080@60Hz, 1920x1200@60Hz, 720x480pixels@60Hz, 1280x720pixels
Signal Format:
HDMI
Inputs and Ports
Input Port Type:
6xHDMI Connector, 1xVGA on a 15-Pin HD Connector, 4xHDBT on RJ45 Connector, 4xUSB Ports, 6xUnbalanced Analog Audio on 3.5mm Mini Jacks for HDMI, 1xUnbalanced Analog Audio on a 3.5mm Mini Jack for PC, 1xAUXin/mic Balanced Stereo Audio on a 5-Pin Terminal B
Output Port Type:
4xHDBT on RJ45 Connector, 4xHDMI Connector, 1xUSB Port, 4xAudio Out Balanced Stereo on 5-Pin Terminal Block Connector, 4xAudio Out S/PDIF on RCA Connector, Monitor Out Balanced Stereo on a 5-Pin Terminal Block Connector, Monitor Out S/PDIF on an RCA Conne
Dimensions
Width:
43.6cm
Depth:
36.5cm
Height:
8.8cm
Weight:
5kg
Other
Voltage Rating:
100 TO 240V AC
