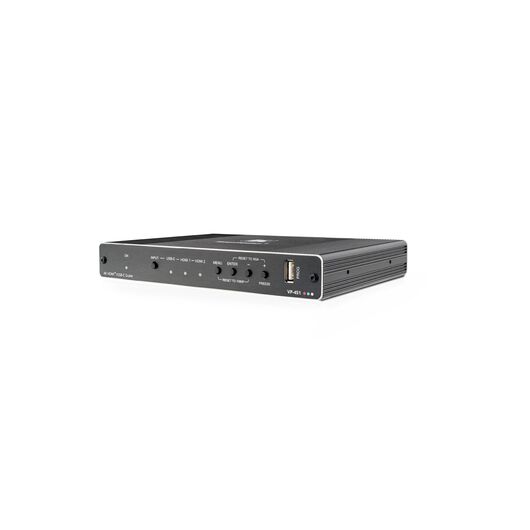

VP-451 18G 4K HDR HDMI ProScale™ Digital Scaler with HDMI and USB-C Inputs
Please sign in so that we can notify you about a reply
VP−451 is a high−performance 18G 4K digital scaler for HDMI and USB−C signals. The unit up−scales, down−scales, and cross−scales to resolutions up to 4K@60 (4:4:4). The output resolution can be set to automatically follow the native resolution of the sink or set manually to a custom resolution.
Features
- High–Performance Professional Scaler — Supports HDR10 and HDCP 2.2/1.4, and features input auto–switching, constant sync on the output even if the input video signal is lost or interrupted, and a built–in ProcAmp for convenient signal adjustment.
- Fast, Smooth Manual and Auto Switching Between Sources — Select the USB Type–C or one of the HDMI inputs, or configure the device to automatically select the active source.
- Flexible Analog Audio Embedding and Extraction (De–embedding) — The user can select the unbalanced analog audio input to embed into the HDMI output signal. On the output, the user can select to extract the audio signal and output it as balanced analog audio.
- USB–C Powering — Provides up to 60W of power via the USB–C input.
- Automatic Display Control — Supports CEC that enables automatically turning the display on and off.
- Convenient Unit Control — Control the unit using an OSD (On–Screen Display) via front panel buttons and input selector, video freeze and resolution reset front panel buttons. Additionally, connect to the contact closure connector for remote switching of sources. All settings are saved in non–volatile memory.
- User–Friendly Operation — LED indicator for each input and for power status. Local firmware upgrade via the USB type–A port ensures lasting, field–proven deployment.
- Easy Installation — Compact MegaTOOLS® fan–less enclosure for surface mounting or side–by–side mounting of 2 units in a 1U rack space with the recommended rack adapter.
Brand:
Kramer
Part number:
72-045190
Product Type:
Digital Scaler with HDMI
Specifications
Maximum Operating Temperature:
+40°C
Colour:
Black
Special Features:
High-Performance Professional Scaler, Fast, Smooth Manual and Auto Switching Between Sources, EDID Handling, Convenient Control, User-Friendly Operation, Easy Installation
Power Rating:
60W
Applications:
Meeting Rooms and Huddle Spaces, Conversion Between Video Formats, Charging USB-C Devices
Humidity:
10 to 90%
Minimum Operating Temperature:
0°C
Includes:
Power Adapter, Bracket Set, Rubber Feet
Performance
Resolution:
4K@60Hz (4:4:4) (Input), Latency:1-2 Frames (Output)
Graphic Resolution:
6Gbps
HDCP Compliance Type:
1.4, 2.2
Signal Format:
HDMI
Inputs and Ports
Input Port Type:
2xHDMI, 1xUSB-C (USB3.1/DP Alternate Mode), 1xUnbalanced Stereo Audio, 3.5mm Mini Jack
Output Port Type:
1xHDMI:On a Female HDMI Connector, 1xBalanced Analog Stereo Audio : On a 5-Pin Terminal Block
Power
Current Rating:
3.4A
Dimensions
Width:
18.75cm
Depth:
14.5cm
Height:
2.5cm
Weight:
0.7kg
Other
Voltage Rating:
24V DC
Voltage Rating:
24V DC
