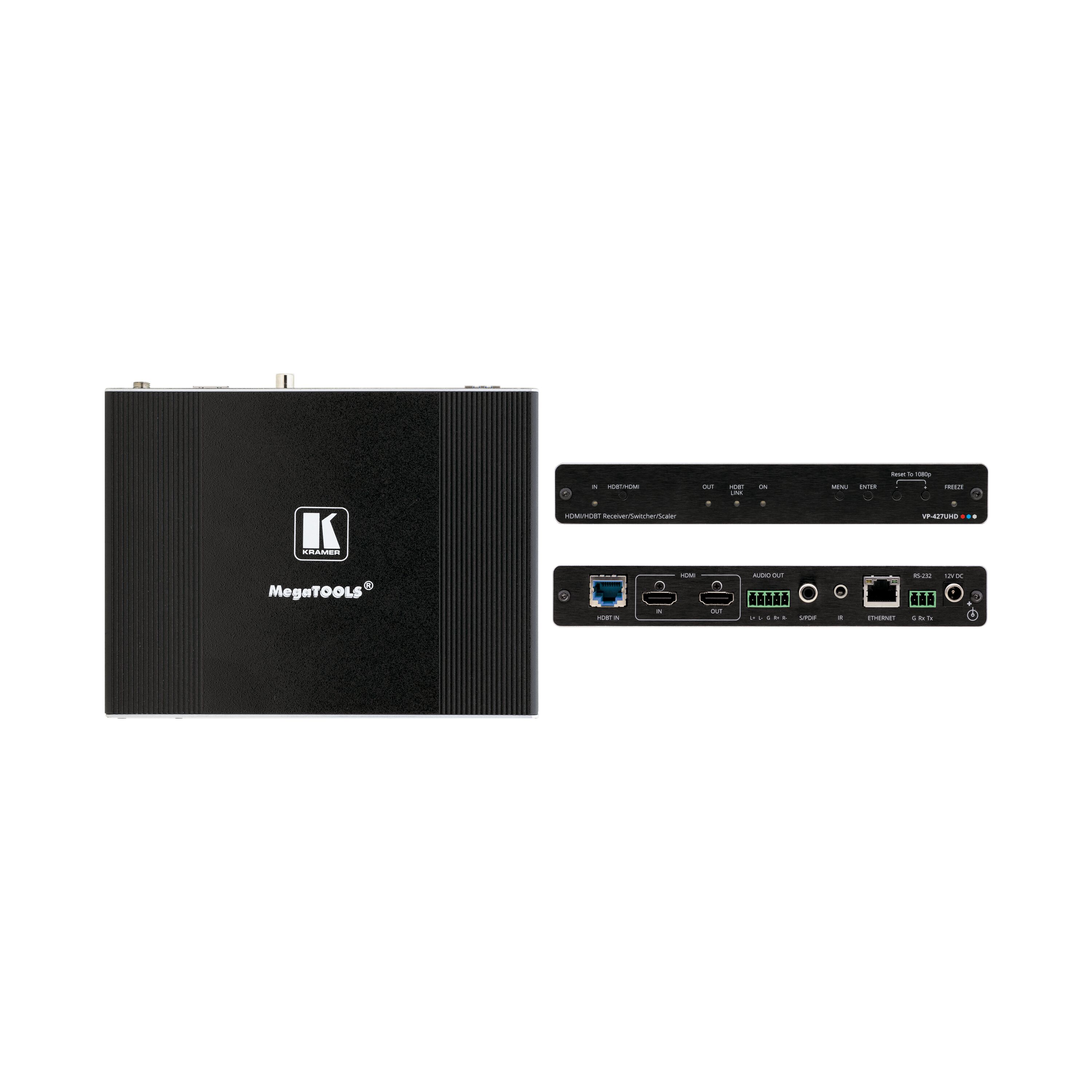

VP-427UHD 4K HDBT Receiver/Scaler Tool with HDBaseT and HDMI Inputs
Please sign in so that we can notify you about a reply
VP-427UHD is a comprehensive 4K HDBaseT receiver scaler with a local HDMI input. It supports automatic and manual switching between the 2 inputs, with fast and visually seamless transitions. The unit up-scales, down-scales, and cross-scales to resolutions up to 4K@60 (4:2:0). The output resolution is set by the user or follows the native resolution of the source.
Features- Comprehensive Receiver/Scaler - Scales signals of all standard resolutions up to 4K (4:2:0) for routing to the HDMI output. Constant output sync prevents signal disruption when switching between inputs and when no video is detected
- Flexible Audio Output - Analog balanced stereo and digital S/PDIF outputs for de-embedding the audio output
- Data Tunneling - Extend RS-232, IR, and Ethernet over the HDBaseT line
- Cost-Effective and Convenient Control Options - Ethernet and RS-232 serial ports, and local control via front panel input selection and OSD menu buttons
- Versatile Powering Options - Power the unit with PoE (Power over Ethernet) over the HDBaseT line or with the power adapter
- Easy Installation - Single cable connectivity for both the HDBaseT signal and PoE power. Compact MegaTOOLS fan-less enclosure for surface mounting or side-by-side mounting of 2 units in a 1U rack space with the recommended rack adapter
Brand:
Kramer
Part number:
50-80515090
Product Type:
HDMI/HDBaseT Scaler
Specifications
Maximum Operating Temperature:
+40°C
Colour:
Black
Control Port Type:
1XIR, 1XRS-232, 1xEthernet
Special Features:
Comprehensive Receiver/Scaler, Flexible Audio Output, Data Tunneling, Cost-Effective and Convenient Control Options, Versatile Powering Options, Easy Installation
Chassis Material:
Aluminium
Humidity:
10 to 90%
Minimum Operating Temperature:
0°C
Includes:
Power Adapter, Rubber Feet, Mounting Bracket
Performance
Resolution:
4K@60Hz 4:2:0
Graphic Resolution:
480i@60Hz, 576i@50Hz, 480pixels@60Hz, 576pixels@50Hz, 720pixels@50/59/60Hz, 1080i@50/59/60Hz, 1080pixels@23/24/25/29/30/50/59/60Hz, 1080psf@23/24/25/29/30Hz, 640x480@60/72/75/85Hz, 800x600/72/75/85Hz, 1024x768@60/70/75/85Hz, 1152x864@75Hz, 1280x768@60RB/6
HDCP Compliance Type:
1.4
Inputs and Ports
Input Port Type:
1xHDBaseT, 1xHDMI
Output Port Type:
1xHDMI, 1xBalanced Analog Stereo Audio, 1xDigital Audio
Power
Current Rating:
1A
Current Rating:
1A
Dimensions
Width:
18.7cm
Depth:
14.5cm
Height:
2.5cm
Weight:
0.7kg
Shipping Weight:
1.3kg
Other
Voltage Rating:
12V DC
