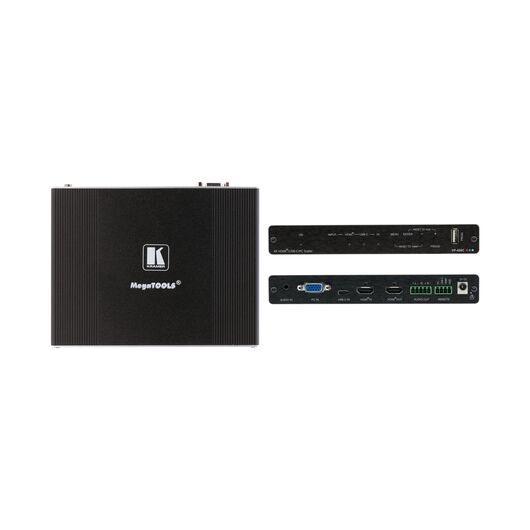

VP-426C 18G 4K HDR HDMI ProScale™ Digital Scaler with HDMI, USB-C and VGA Inputs
Please sign in so that we can notify you about a reply
VP−426C is a high−performance digital scaler for HDMI, USB Type−C and computer graphics signals. The unit up− or down−scales the selected video signal to resolutions up to 4K@60 (4:4:4) at a maximum data rate of 18Gbps (6Gbps per graphic channel). The user selects the HDMI, USB Type−C, or VGA input and the scaled output is sent to the HDMI output.
Features
- High–Performance Professional Scaler — Up–scales or down–scales HDMI, USB type–C and VGA signals to any resolution up to 4K@60 (4:4:4). The scaler supports HDR10 and CEC as specified in HDMI 2.0 and HDCP 2.2/1.4, and features Input Auto–Switching, Constant Sync on the output even if the input video signal is lost or interrupted, and a built–in ProcAmp for convenient signal adjustment.
- Fast, Smooth Manual and Auto Switching Between Sources — Select the HDMI, USB Type–C or VGA input, or configure the device to automatically select the active source.
- Flexible Analog Audio Embedding and Extraction (De–embedding) — The user can select the unbalanced analog audio input to embed into the HDMI output signal. On the output, the user can select to extract the audio signal and output it as balanced analog audio.
- EDID Handling — Reading and storage of the video acceptor's EDID.
- Convenient Control — Control the unit using an OSD (On–Screen Display) via front panel buttons and input selector, video freeze and resolution reset front panel buttons. Additionally, connect to the contact closure connector for remote switching of sources. All settings are saved in non–volatile memory.
- User–Friendly Operation — LED indicator for each input and for power status. Local firmware upgrade via the USB type–A port ensures lasting, field–proven deployment.
- Easy Installation — Compact MegaTOOLS® fan–less enclosure for surface mounting or side–by–side mounting of 2 units in a 1U rack space with the recommended rack adapter.
Brand:
Kramer
Part number:
72-042690
Specifications
Product Type:
Digital Scaler with HDMI
Maximum Operating Temperature:
+40°C
Colour:
Black
Special Features:
High-Performance Professional Scaler, Fast, Smooth Manual and Auto Switching Between Sources, EDID Handling, Convenient Control, User-Friendly Operation, Easy Installation
Applications:
Projection Systems in Conference Rooms, Boardrooms, Hotels and Churches, Home Theatre Up-Scaling
Humidity:
10 to 90%
Minimum Operating Temperature:
0°C
Includes:
Power Adapter, Bracket Set, Rubber Feet
Performance
Resolution:
4K@60Hz (4:4:4) (Input)
Graphic Resolution:
6Gbps
HDCP Compliance Type:
1.4, 2.2
Signal Format:
HDMI
Inputs and Ports
Input Port Type:
1xHDMI, 1 USB-C (USB3.1/DP Alternate Mode), 1xComputer Graphics (VGA), 1xUnbalanced Stereo Audio: 3.5mm Mini Jack
Output Port Type:
1xHDMI :On a Female HDMI Connector, 1xBalanced Analog Stereo Audio : On a 5-Pin Terminal Block
Power
Current Rating:
2.4A
Dimensions
Depth:
14.5cm
Weight:
0.7kg
Other
Voltage Rating:
5V DC
Voltage Rating:
5V DC
