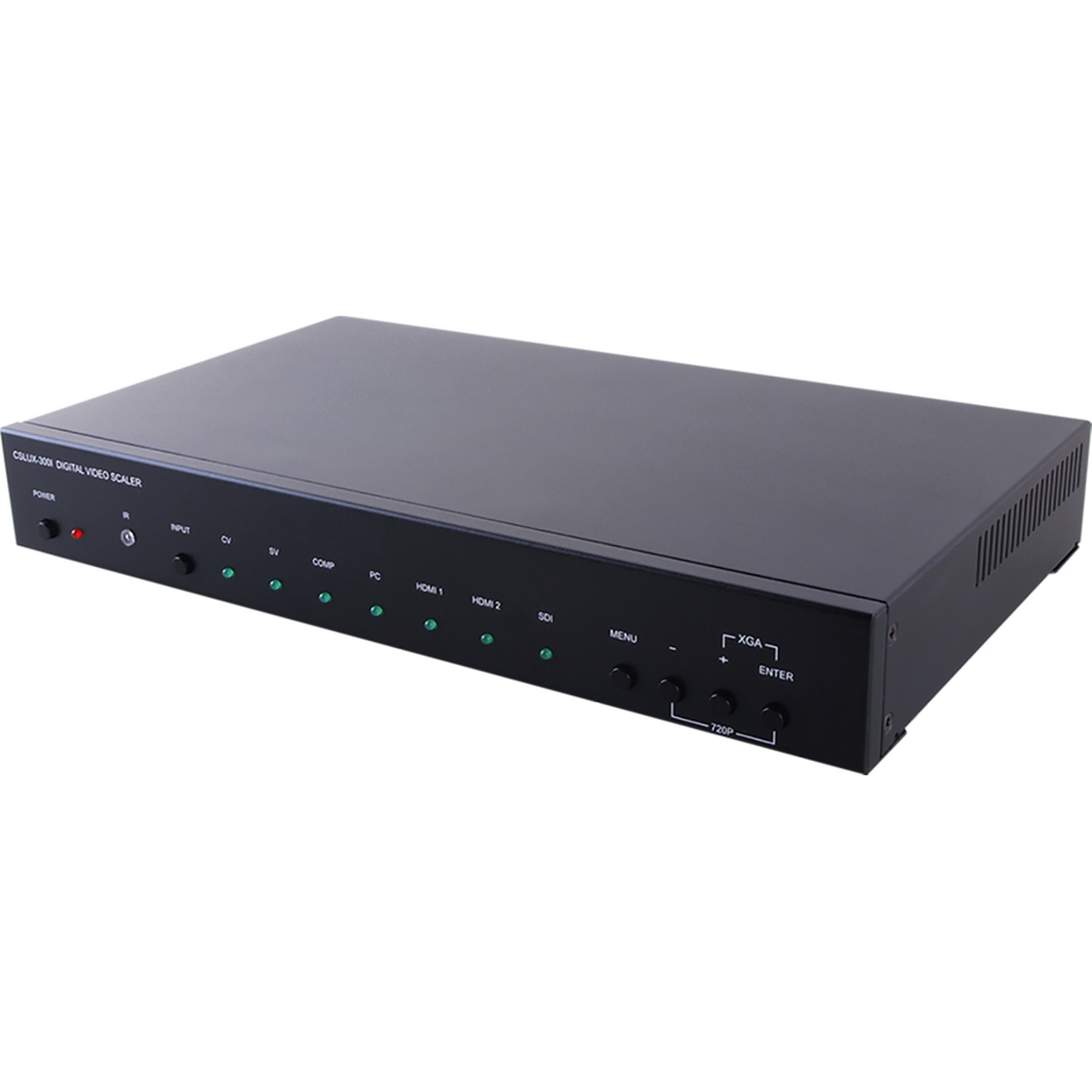

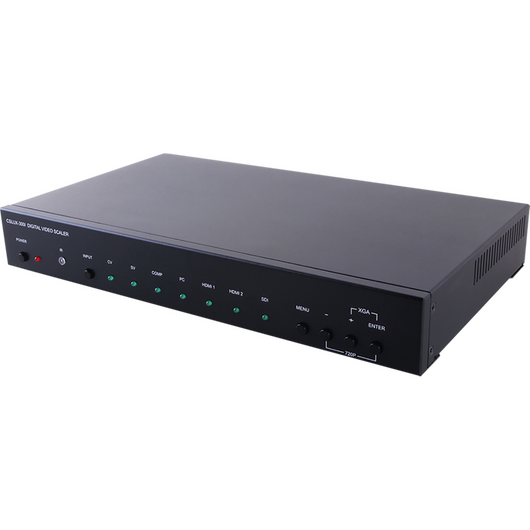

CSLUX-300I Multi-Format to HDMI Scaler (with SDI Loop-through Output)
Please sign in so that we can notify you about a reply
This Multi-Format to HDMI Scaler is an advanced HDMI, PC, SDI, Composite, S-Video and Component switcher/scaler. This device can scale and switch input sources and display them to its HDMI and VGA/HD outputs simultaneously, with their associated audio signals, at a wide range of output resolutions (up to 1080p or WUXGA(RB)). It also has the added benefit of an SDI Loop Out for monitoring or extending the SDI input signal. Control is via the IR remote, RS-232, or via front panel buttons and includes an on-screen menu providing settings and system information.
Features
- Supports HDMI, Composite Video, S-Video, PC (VGA)/HD (Component) and SDI inputs
- Supports HDMI and VGA/Component (with adaptor) outputs
- Supports SDI loop through output
- Supports analog stereo, optical and coaxial digital inputs and optical digital output, analog stereo output or embedding to HDMI output
- Supports conversion of multiple video formats and audio input to HDMI or PC/HD and analog stereo outputs
- Supports EDID and HDCPSupports 3D de-interlacing, noise reduction and 3D comb filter
- Supports frame rate conversion

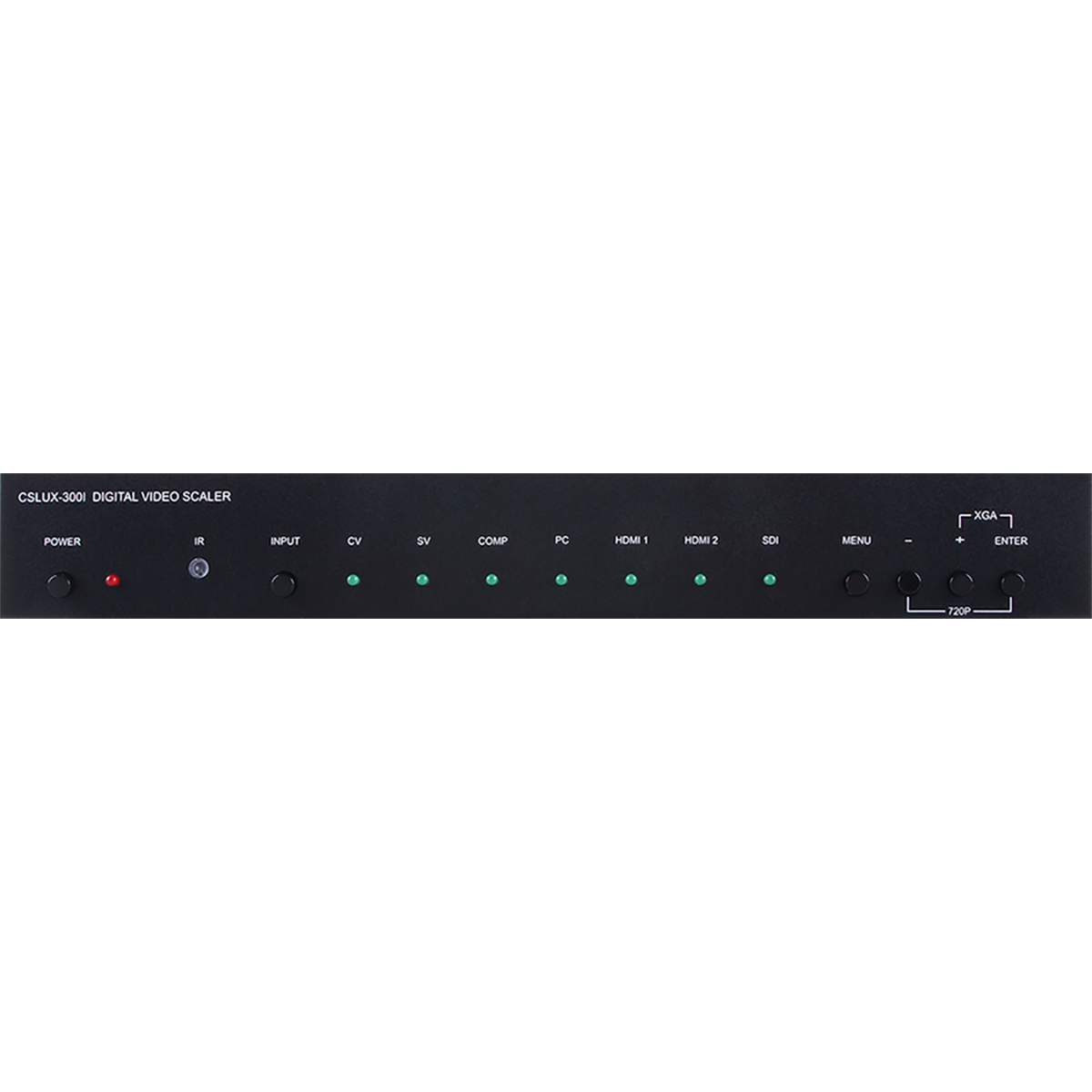

- Supports RS-232, remote handset, and front panel control
- Supports SDI Standards of SMPTE 425M (Level A and Level B), SMPTE 424M, SMPTE 292M, SMPTE 259M-C
- Supports SDI bit rates at 2.970 Gb/s, 2.970/1.001 Gb/s, 1.485 Gb/s,1.485/1.001 Gb/s and 270 Mb/s
- Supports SDI signal input and output distances of up to 300m for SD signals, 200m for HD signals and 100m for 3G signals
Brand:
Cypress Technology
Product Type:
Multi Format HDMI Scaler
Specifications
Maximum Operating Temperature:
+40°C
Colour:
Black
Special Features:
Supports EDID and HDCP, Supports 3D De-Interlacing, Noise Reduction and 3D Comb Filter
Power Rating:
10.5W
Chassis Material:
Metal
Applications:
Digital and Analog Signal Convergence, Convert Analog Video/Audio Signals for Use with Digital Displays, Integrate Multiple Sources and Signal Types to a Single Display in a Meeting Room or Conference Hall Environment
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
1xMulti-Format to HDMI Scaler, 1xRemote Control (CR-117), 1x5V/3A DC Power Adaptor, 1x15-Pin D-sub to 3 RCA Adaptor Cable, 1xOperation Manual
Performance
Video Bandwidth:
10.2Gbps
Signal Format:
HDMI
Inputs and Ports
Input Port Type:

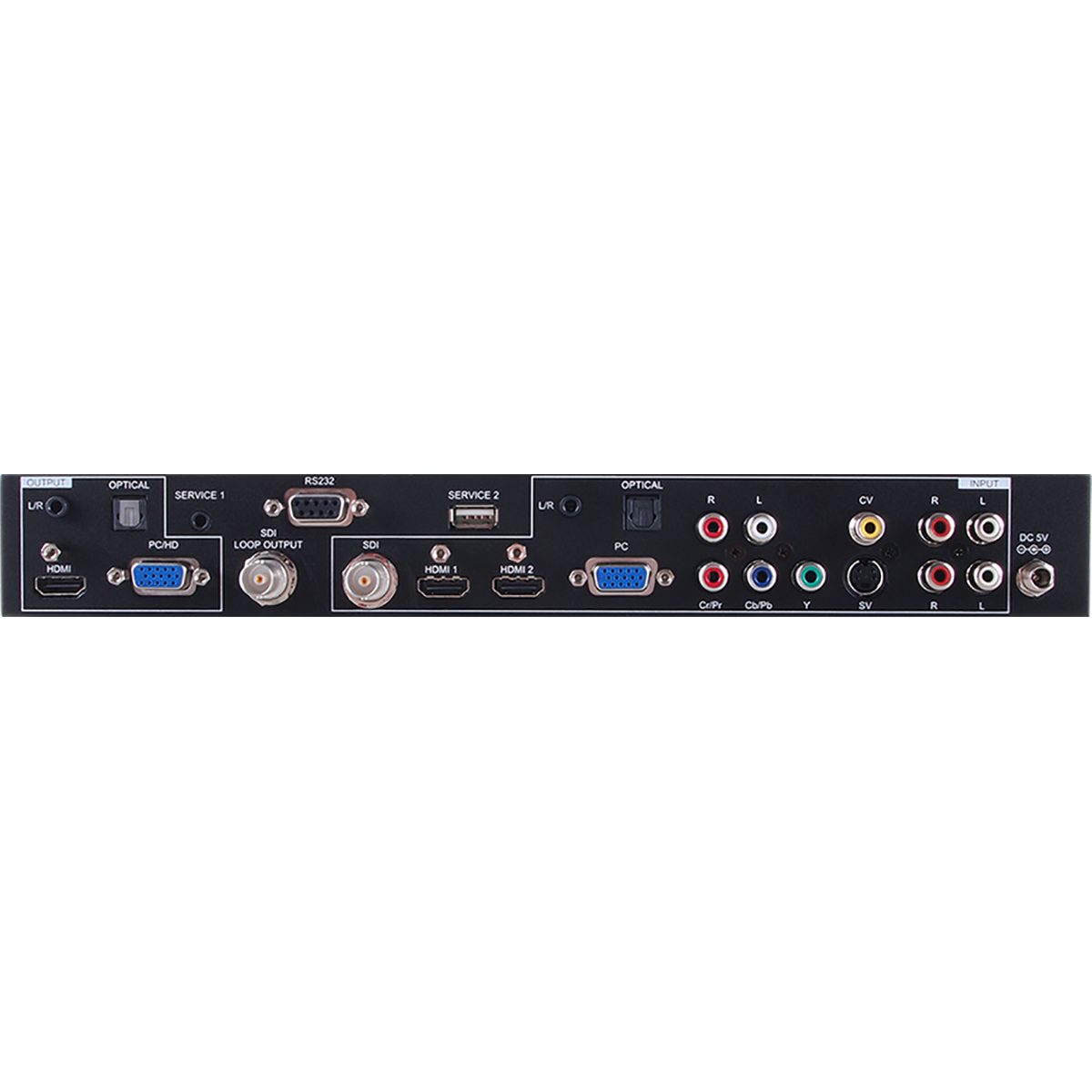

1xSDI, 2xHDMI, 1xVGA, 1xComponent Video, 1xComposite Video, 1xS-Video, 1xTOSLINK (S/PDIF), 6xRCA (Analog Stereo), 1x3.5mm (Analog Stereo)
Output Port Type:
1xSDI (Loop-Through), 1xHDMI, 1xVGA, 1xTOSLINK (S/PDIF), 1x3.5mm (Analog Stereo)
Power
Current Rating:
3A
Dimensions
Width:
32cm
Depth:
18.2cm
Height:
4.4cm
Weight:
1600g
Other
Voltage Rating:
5V
Voltage Rating:
5V
Standards Met:
UL Listed, CE, FCC Complaint
