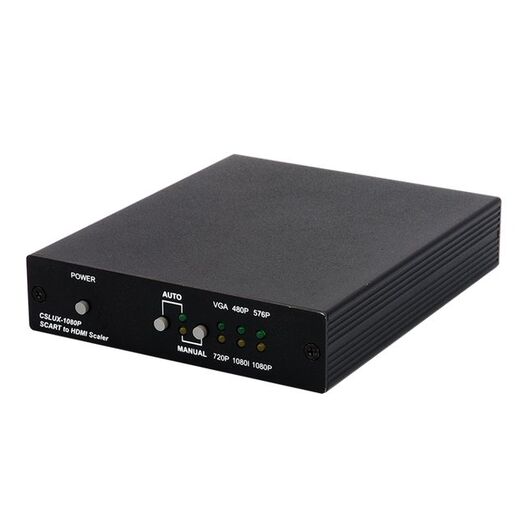

CSLUX-1080P SCART to HDMI 1.3 SD to Full HD Scaler Box
Please sign in so that we can notify you about a reply
The SCART to HDMI 1.3 SD to Full HD Scaler from Cypress Technology is designed to display your analog video/R.G.B images on the HDTV with better viewing resolutions. It can upscale any SCART'S input sources to HDMI output with wide-range resolutions. Furthermore, this Cypress device also can transfer sounds for user to enjoy both HD images and sounds consistently.
Features- HDMI 1.3 support deep color 12 bit, HDCP 1.1, DVI 1.0 compliance
- Scales up SCART to HDTV 1080p format
- Automatic lipsync (audio delay) ensures audio video synchronization
- Input video systems NTSC/PAL
- Support 8/10/12 bit deep color on HDMI output up to 6M long
- DVI compatible by using HDMI to DVI adaptor
- HQE (High Quality Image enhancer) function
- Digital Noise Reduction – Minimises picture noise, reproducing images true to the original
- Block Noise Reduction – Effectively minimizes all MPEG noise, Improving the digital quality of HDTV broadcasts in particular, where block noise happens most
- MPEG Noise Reduction – Reduce mosquito noise for MPEG video images without losing detail
- 3D (frame based) motion adaptive noise reduction
- Advanced 3D motion adaptive de-interlace
- Automatic 2:2/3:2 film mode detection
- Automatic resolution selection and individual resolution selection button
- HDMI output with RGB color space design
Brand:
Cypress Technology
Product Type:
SCART to HDMI 1.3 SD to Full HD Scaler Box
Specifications
Silkscreen Colour:
Black
Maximum Operating Temperature:
40°C
Colour:
Black (Silkscreen)
Special Features:
Input Video Systems NTSC/PAL, Support 8/10/12 Bit Deep Color on HDMI Output up to 6M long, DVI Compatible by Using HDMI to DVI Adapter, HQE (High Quality Image Enhancer) Function
Power Rating:
6W
Chassis Material:
Aluminium
Applications:
Convert Video to HDMI 1.3 at 1080P for HDMI LCD TV/LCD Monitor, To Improve Video Quality to HDMI Resolution
Minimum Operating Temperature:
0°C
Includes:
5VDC Power Supply Adaptor, Operation Manual
Performance
Resolution:
576Pixel, 720Pixel, 1080i, 1080Pixel@50/60Hz (Output)
HDMI Compliance Type:
HDMI 1.3
HDCP Compliance Type:
1.1
Signal Format:
Video:1Vp-p (75Ω), RGB: 0.7Vp-p (75Ω), Audio L/R: 0.5Vrms
Inputs and Ports
Input Port Type:
SCART
Output Port Type:
HDMI
Power
Current Rating:
2.6A
Dimensions
Width:
151cm
Depth:
12.5cm
Height:
3cm
Weight:
340g
Other
Voltage Rating:
5V DC
Standards Met:
US, EU, CE, FCC, UL
