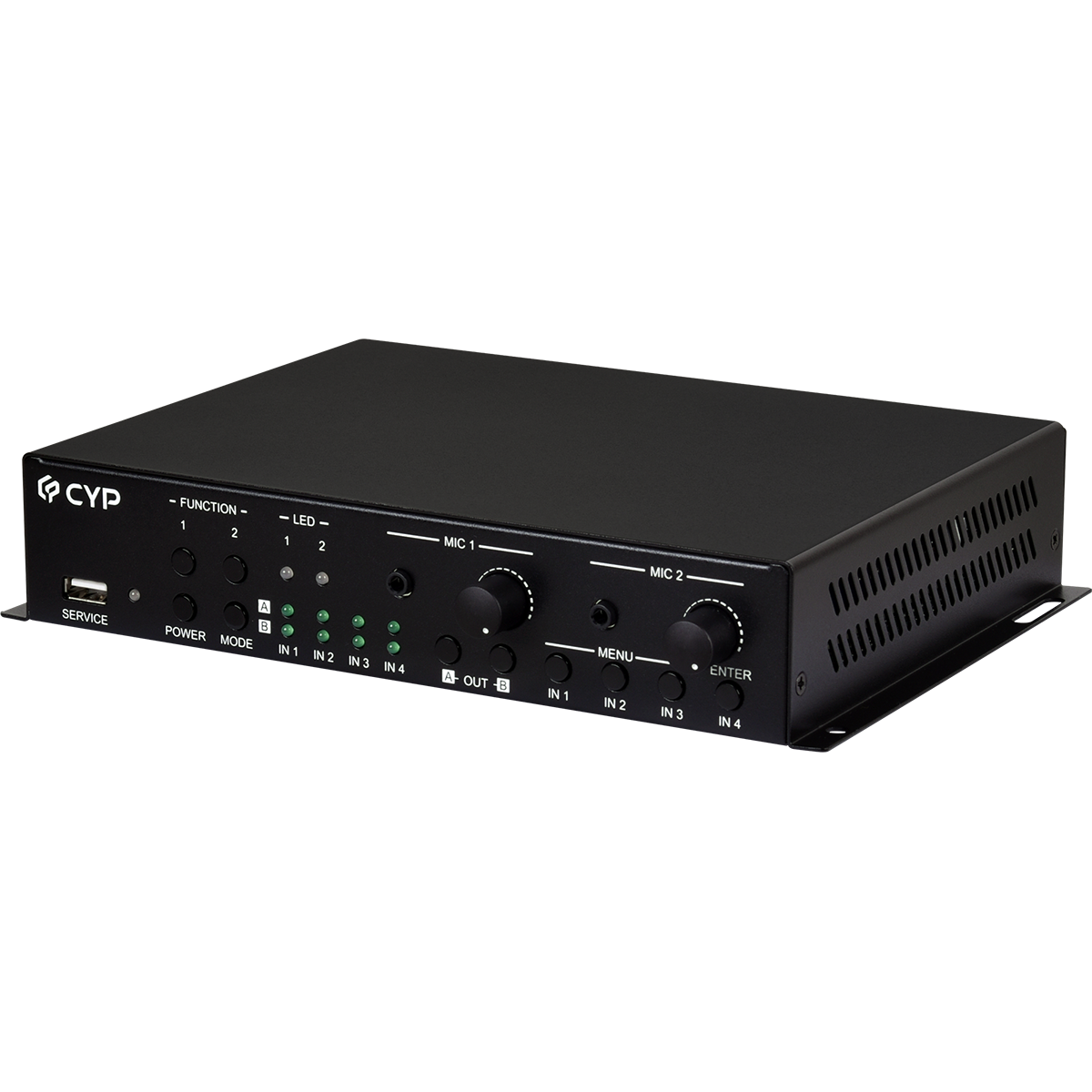

CSC-VPR-3421 UHD+ HDMI Multiview Processor with Multi-Function Extension Slot

Write a review
CSC-VPR-3421
Cypress Technology
Log in to see price Add to wish list Add to Project

CSC-VPR-3421 is a wonderful solution for streaming, because it offers more than streaming and recording functionality but also offers rich video processing functions. It makes online broadcasting of live video an easy and simple process. Video content up to 4K UHD+ is supported and is automatically scaled to a resolution that is more appropriate for efficient streaming. Both HDMI and VGA inputs are supported. An HDMI output is provided for local monitoring. An audio mixer function is included, allowing an external audio source to be mixed with the embedded audio of your HDMI source (LPCM 2.0 only) for your video stream. Comprehensive EDID management, intuitive WebGUI, and adjustable Audio functions make this unit a terrific tool for video streaming and recording. Besides high performance HDMI switch with integrated scaling, multiwindow Ing technology, multi-view and streaming are also supported. Any of 4 different HDMI sources may be displayed individually, full screen, or they can be displayed using a variety of multi-window modes including quad mode PiP, and PoP mode, which becomes splendid source for streaming.

Features

  • erves as a signage platform to couple with CYP modular solutions for multiple ProAV purposes
  • HDMI inputs and outputs with 18Gbps (600MHz) 4K UHD support
  • Seamless switching (no loss of sync to display) when switching sources in 4x2 matrix mode
  • Supports PiP (Picture-in-Picture), PoP, quad mode display options with independent audio source selection
  • Supports the ability to store a multi-window arrangement as a preset that can be recalled later
  • EDID management
  • Uploadable and freely positioned graphic logo support
  • Supports easy adjustment of window size, position and settings in the PiP windowing mode via the WebGUI
  • Controllable via front panel buttons, WebGUI, Telnet, RS-232
Brand:
Cypress Technology
Product Type:
Multiviewer
Specifications
Special Features:
EDID Management, Supports Easy Adjustment Of Window Size, Position and Settings in the PIP Windowing Mode Via The WEBGUI
Power Rating:
25.17W
Chassis Color:
Black
Chassis Material:
Steel
Performance
Resolution:
HDMI:4K@60Hz 8bits YUV 4:4:4 (Input), VGA: 1920x1200@60HzRB (Input), HDMI:4096x2160pixels@60Hz (Input), H.264 Streaming:1080pixels@60Hz (Output)
HDMI Compliance Type:
2.0 (DVI 1.0)
Signal Format:
HDMI
Inputs and Ports

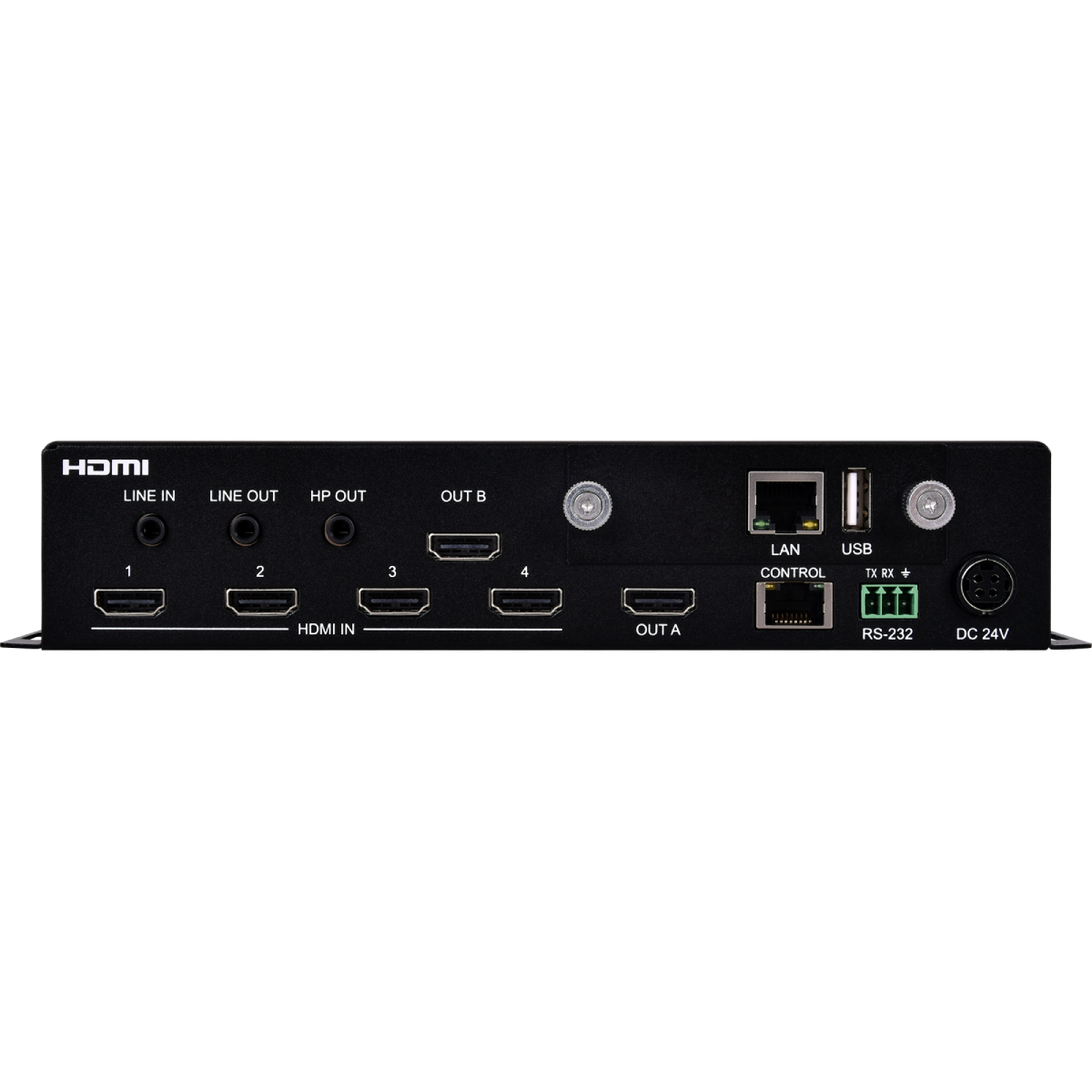

Input Port Type:
4xHDMI-Type A, 1 Stereo (3.5mm)
Output Port Type:
2xHDMI-Type A
Power
Current Rating:
2.7A
Dimensions
Width:
23.15cm
Depth:
15.8cm
Height:
4.4cm
Weight:
1257g
Other
Voltage Rating:
24V
Voltage Rating:
24V
