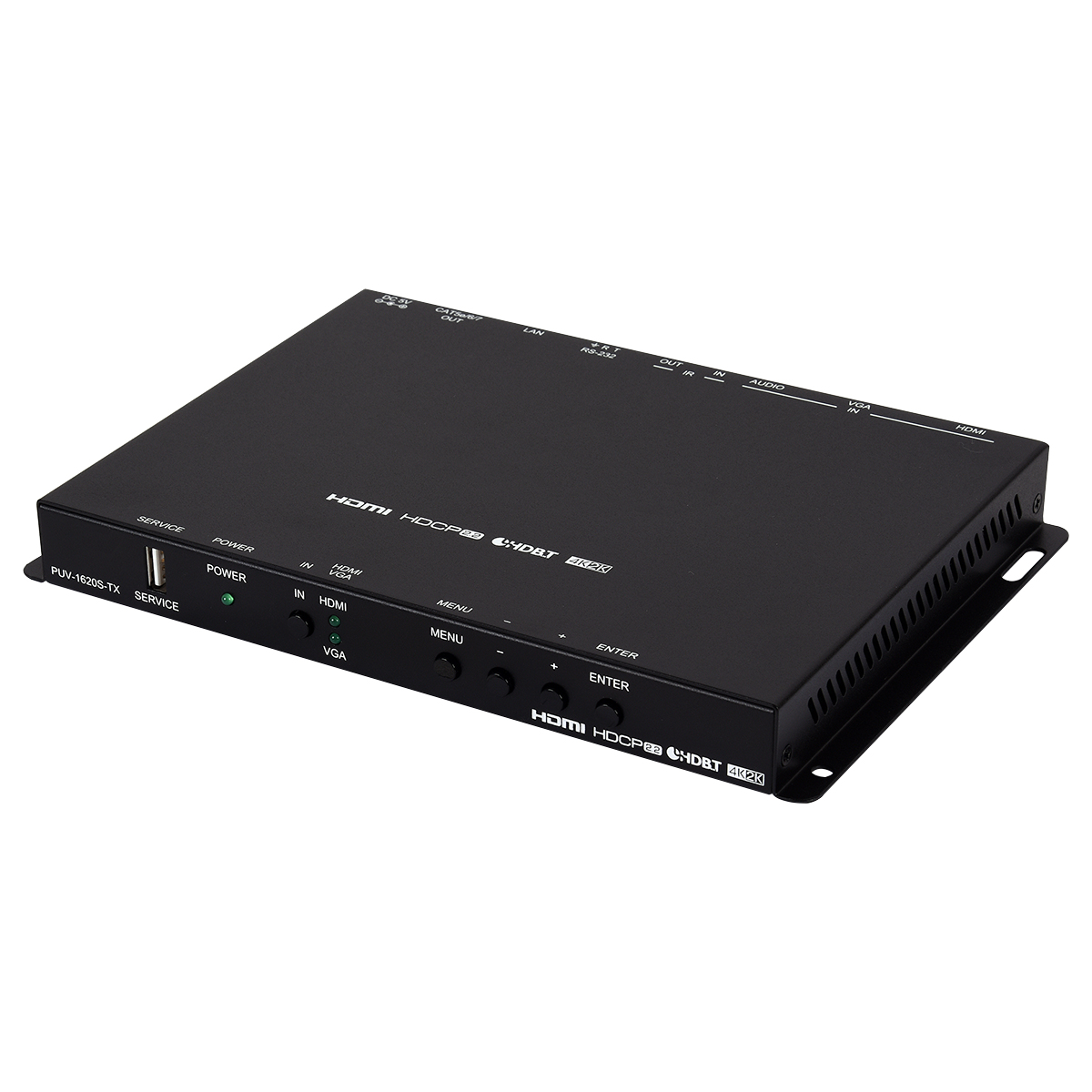

CSC-V101PTX 4K UHD+ HDMI/VGA to HDBaseT Scaler

Write a review
CSC-V101PTX
Cypress Technology
Log in to see price Add to wish list

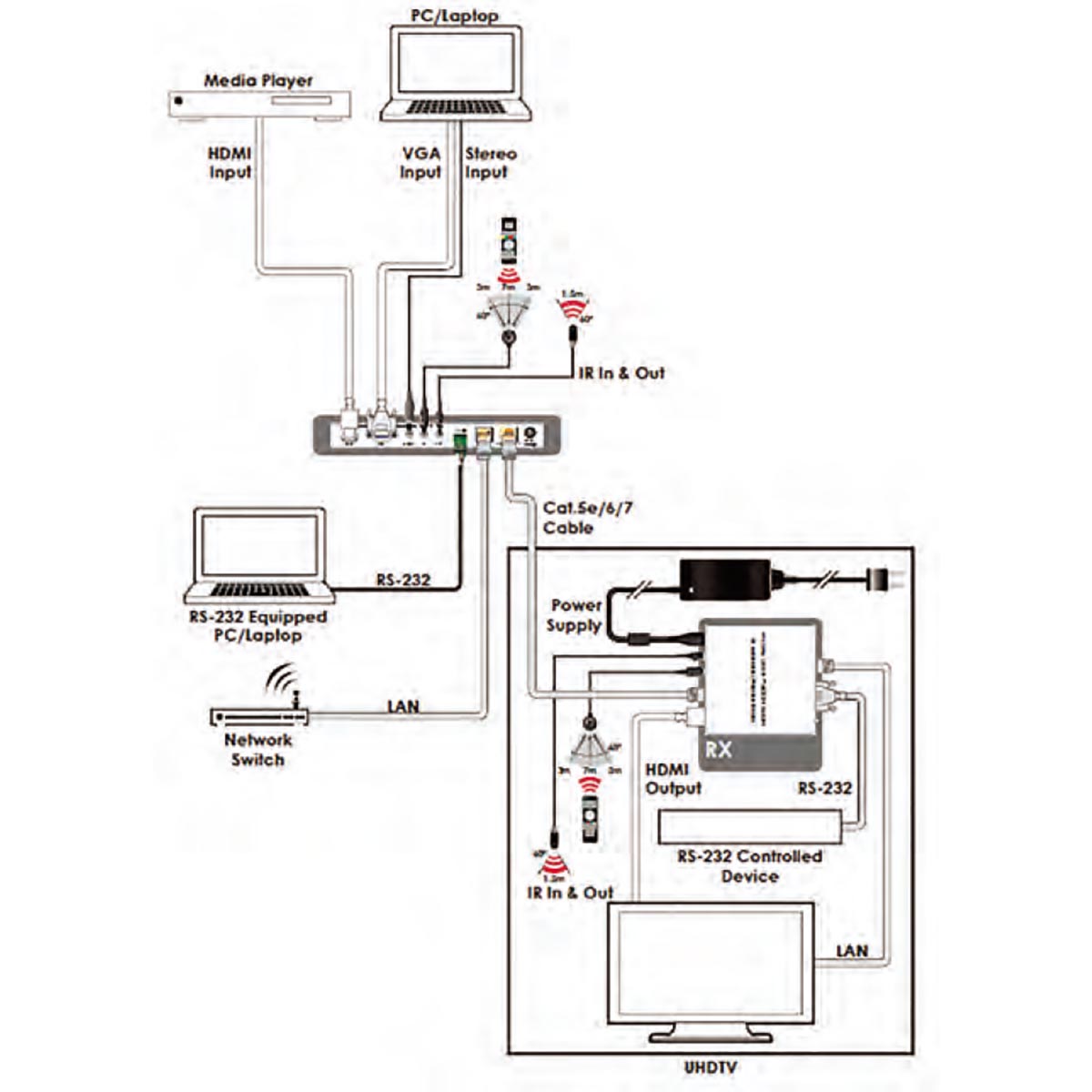

This Transmitter is designed to scale and convert HDMI and PC video, with optional analog audio embedding, for extension over long distances to standard HDBaseT Receivers. The HDMI input supports resolutions up to 4K@60Hz and the VGA input supports resolutions up to 1080p60/ WUXGA (RB). The scaled HDBaseT output supports resolutions from 640×480@60Hz up to 4K@60Hz (4:2:0, 8-bit) and provides the ability to adjust the image with a number of fine tuning options including: contrast, brightness, hue, saturation, sharpness, noise reduction, and RGB levels. Furthermore, this unit supports passing 7.1 channel LPCM digital audio as well as advanced Bitstream and HD Bitstream audio formats via the HDMI input, or analog stereo audio may be embedded from the provided stereo mini-jack connection. Shortcut keys are provided to quickly change the output resolution to 1080p60 or XGA when needed for quick connection to a display or for troubleshooting purposes. Additionally, the unit may be powered locally or via 48V PoH (Power over HDBaseT) from a compatible HDBaseT Receiver, which allows for greater flexibility in installations. The unit can be controlled via front panel buttons with a comprehensive OSD.

Features

  • Scaled HDBaseT output supports resolutions from 640×480@60Hz up to 4K@60Hz (4:2:0, 8-bit)
  • HDBaseT feature support: HD Video and Audio, 100BaseT Ethernet, 48V PoH, and Control (bidirectional IR/RS-232 pass-through)
  • Simultaneous transmission of uncompressed video, audio and data over a single 100m/328ft Cat.5e/6/7 cable at 1080p60 and 70m/230ft at 4K
  • Supports pass-through of LPCM 7.1, Bitstream and HD Bitstream audio formats
  • Analog stereo audio insertion support via stereo mini-jack
  • Unit may be powered locally or via 48V PoH from a compatible HDBaseT Receiver (PSE)

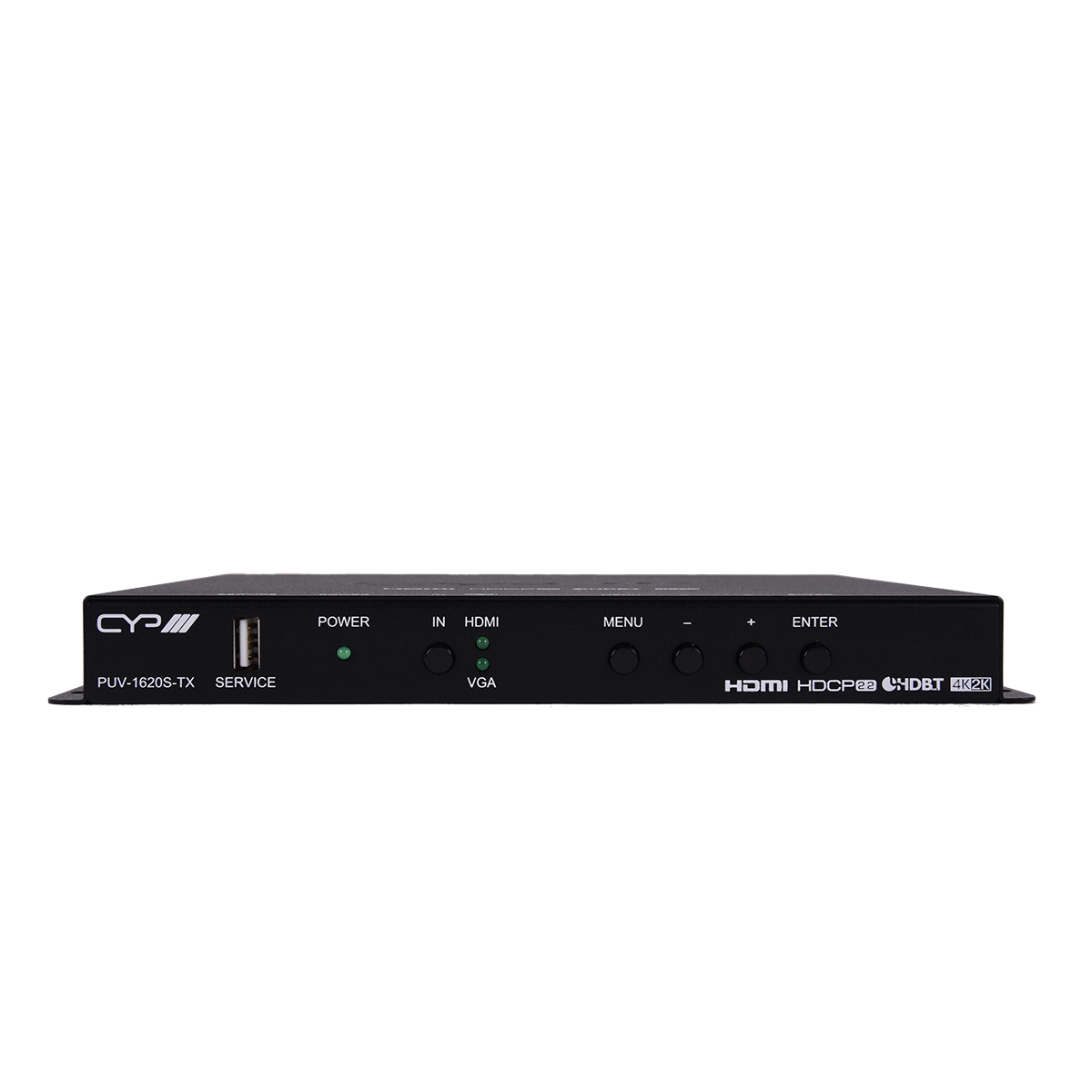

  • Controllable via front panel buttons with comprehensive OSD


Brand:
Cypress Technology
Specifications
Product Type:
HDMI/VGA to HDBaseT Scaler
Maximum Operating Temperature:
+40°C
Special Features:
Analog Stereo Audio Extraction Support via 5-Pin Terminal Block, Unit May Be Powered Locally Or Via 48V PoH From a Compatible HDBaseT Transmitter (PSE)
IR Frequency:
30 to 50kHz
Power Rating:
8.3, 19.6W
Chassis Color:
Black
Applications:
Presenter Device Display in Classroom and Lecture Halls, PC/Laptop Presentation Switching in Boardrooms, Using Classic Media Players with 4K HDMI Displays
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
1xHDMI/VGA to HDBaseT Scaler (PD), 1x5V/2.6A DC Power Adapter, 1x3.5mm to IR Extender Cable 1x3.5mm to IR Blaster Cable, 1x3-Pin Terminal Block to 9-Pin D-sub Adapter Cable, 1xShockproof Feet (Set of 4), 1xOperation Manual
Performance
Resolution:
HDMI:4096x2160pixels@60Hz (Input), VGA:1080p60/WUXGA (RB), HDMI:4096x2160pixels@60Hz (Output)
HDMI Compliance Type:
2.0
HDCP Compliance Type:
2.x
Video Bandwidth:
18Gbps (HDMI), 10.2Gbps (HDBaseT)
Signal Format:
HDMI
Baud Rate:
115200bps
Inputs and Ports
Input Port Type:

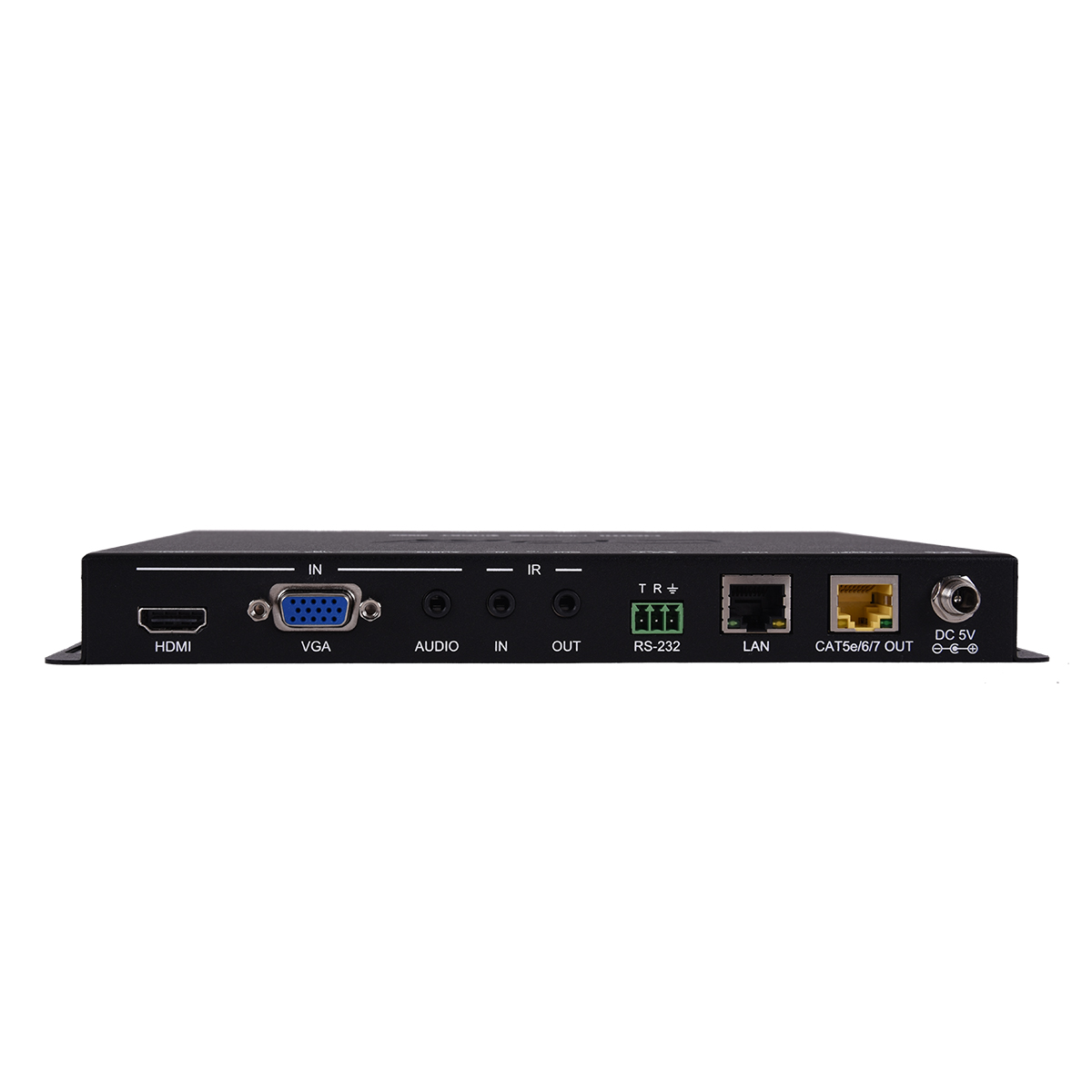

1xHDMI, 1xVGA, 1xStereo (3.5mm)
Output Port Type:
1xHDBaseT (RJ45)
Power
Current Rating:
2.6A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Width:
23.15cm
Depth:
15.8cm
Height:
2.5cm
Weight:
898g
Other
Voltage Rating:
5V
Voltage Rating:
5V
Standards Met:
UL Listed, CE, FCC Complaint
