CSC-V101PRX 4K UHD+ HDBaseT to HDMI Scaler

Write a review
CSC-V101PRX
Cypress Technology
Out of stock
Log in to see price Add to wish list

This Receiver is designed to scale and convert HDBaseT video and audio for local HDMI output. The HDBaseT input supports resolutions up to 4K@60Hz (4:2:0, 8-bit). The scaled HDMI output supports resolutions from 640×480@60Hz up to 4K@60Hz and provides the ability to adjust the image with a number of fine tuning options including: contrast, brightness, hue, saturation, sharpness, noise reduction, and RGB levels. Furthermore, this unit supports passing 7.1 channel LPCM digital audio as well as advanced Bitstream and HD Bitstream audio formats. Analog stereo audio breakout is also available (LPCM 2.0 sources only). Shortcut keys are provided to quickly change the output resolution to 1080p60 or XGA when needed for quick connection to a display or for troubleshooting purposes. Additionally, the unit may be powered locally or via 48V PoH (Power over HDBaseT) from a compatible HDBaseT Transmitter, which allows for greater flexibility in installations. The unit can be controlled via front panel buttons with a comprehensive OSD.

Features

  • Scaled HDMI output supports resolutions from 640×480@60Hz up to 4K@60Hz
  • HDBaseT feature support: HD Video and Audio, 100BaseT Ethernet, 48V PoH, and Control (bidirectional IR/RS-232 pass-through)
  • Simultaneous transmission of uncompressed video, audio and data over a single 100m/328ft Cat.5e/6/7 cable at 1080p60 and 70m/230ft at 4K
  • Supports pass-through of LPCM 7.1, Bitstream and HD Bitstream audio formats
  • Analog stereo audio extraction support via 5-pin terminal block
  • Unit may be powered locally or via 48V PoH from a compatible HDBaseT Transmitter (PSE)

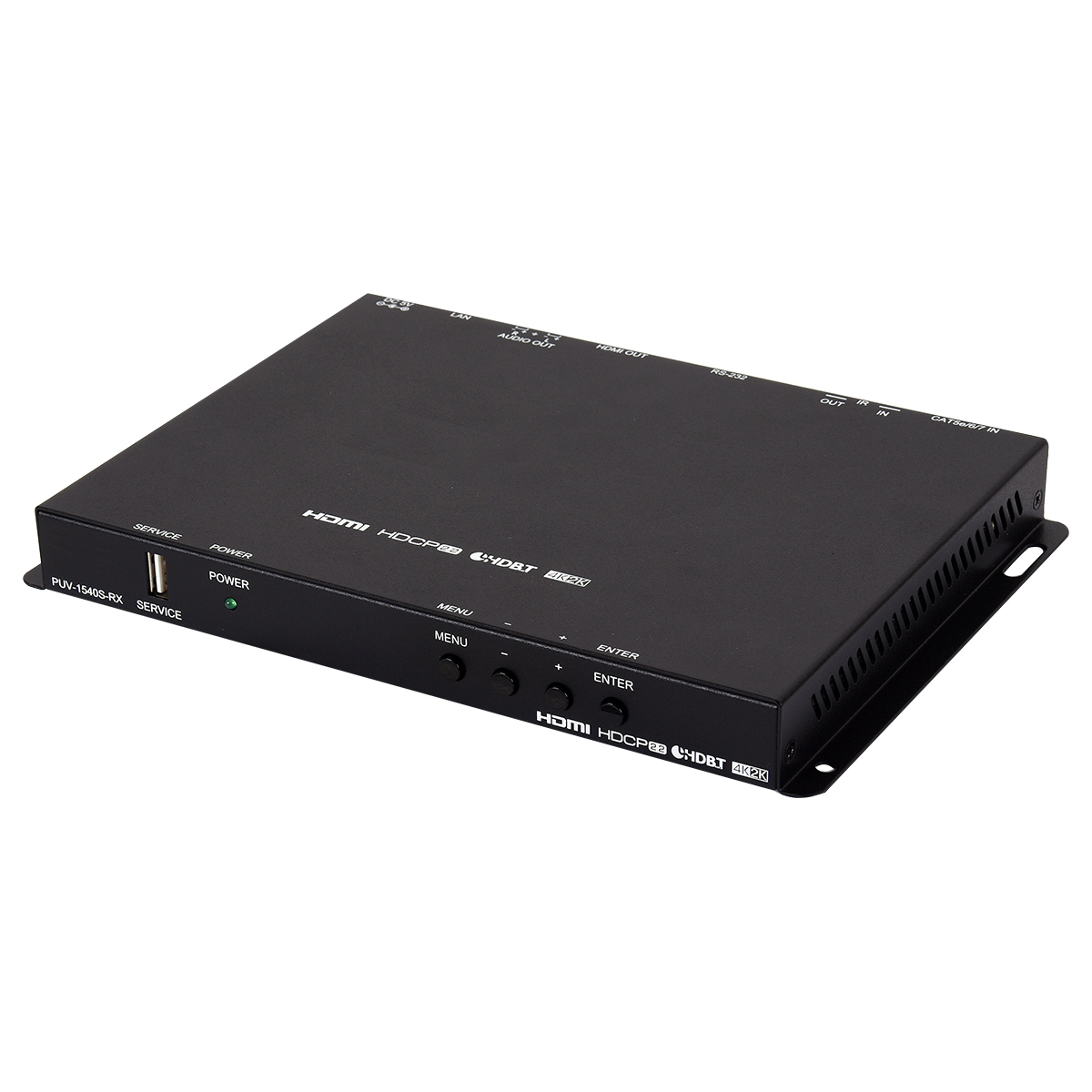

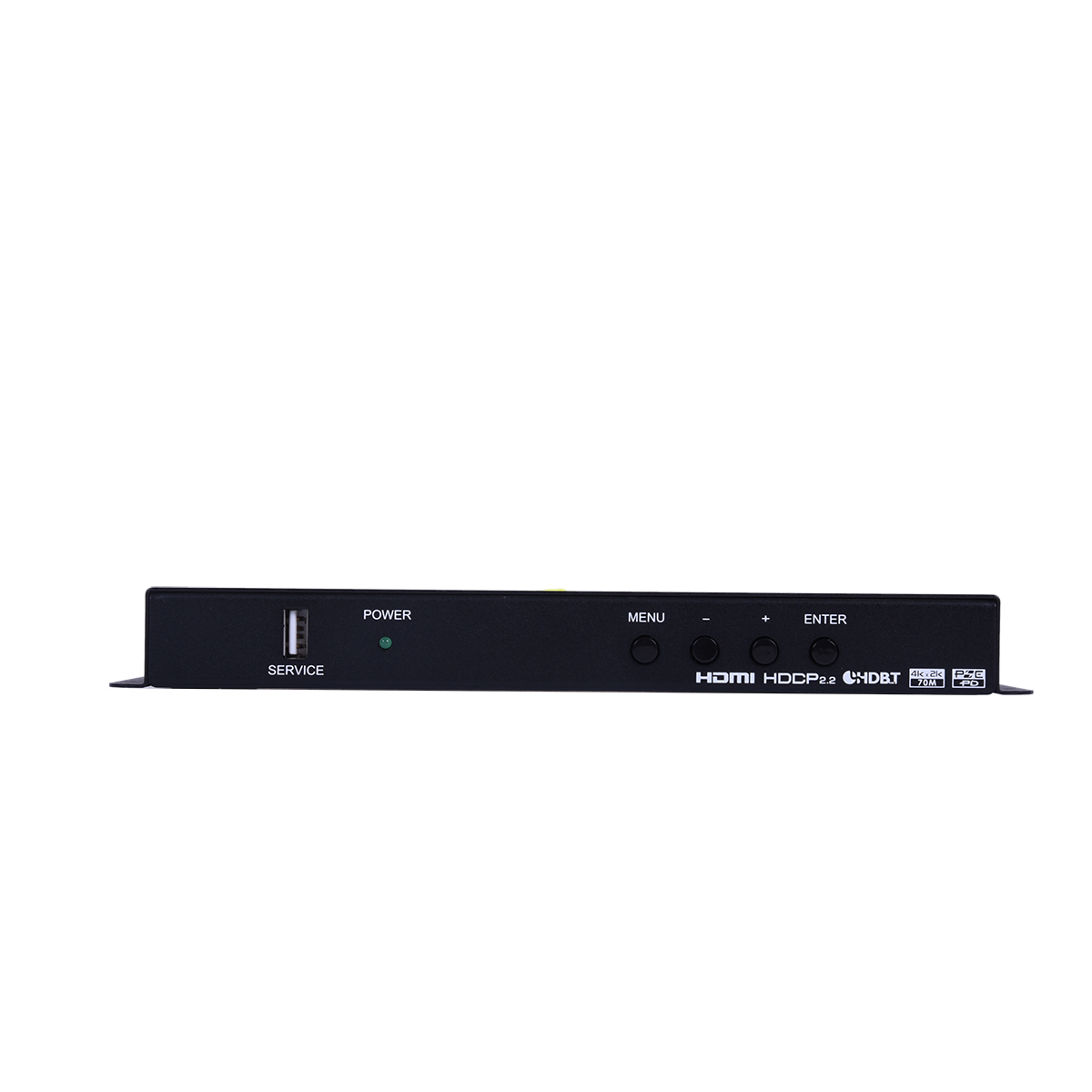

  • Controllable via front panel buttons with comprehensive OSD
Brand:
Cypress Technology
Specifications
Product Type:
HDBaseT to HDMI Scaler
Maximum Operating Temperature:
+40°C
Special Features:
Analog Stereo Audio Extraction Support via 5-Pin Terminal Block, Unit May Be Powered Locally Or Via 48V PoH From a Compatible HDBaseT Transmitter (PSE)
IR Frequency:
30 to 50kHz
Power Rating:
11.88, 19.03W
Chassis Color:
Black
Applications:
Presenter Device Display in Classroom and Lecture Halls, PC/Laptop Presentation Switching in Boardrooms, Using Classic Media Players with 4K HDMI Displays
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
1xHDBaseT to HDMI Scaler (PD), 1x5V/3A DC Power Adapter, 1x5-Pin Terminal Block, 1x3.5mm to IR Extender Cable, 1x3.5mm to IR Blaster Cable, 1xShockproof Feet (Set of 4), 1xOperation Manual
Performance
Resolution:
HDBaseT:4096x2160pixels@30Hz(Input), HDMI:3840x2160pixels@60Hz(Output)
HDMI Compliance Type:
2.0 (DVI 1.0)
HDCP Compliance Type:
1.x, 2.2
Video Bandwidth:
18Gbps (HDMI), 10.2Gbps (HDBaseT)
Signal Format:
HDMI
Baud Rate:
115200bps
Inputs and Ports
Input Port Type:
1xHDBaseT (RJ45)
Output Port Type:
1xHDMI, x Stereo (5-Pin Terminal Block)
Power
Current Rating:
3A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Width:
23.15cm
Depth:
15.8cm
Height:
2.5cm
Weight:
960g
Other
Voltage Rating:
5V
Voltage Rating:
5V
Standards Met:
UL Listed, CE, FCC Complaint
