CSC-6030HB HDMI/HDBaseT/USB-C/VGA to HDMI/HDBaseT Scaler

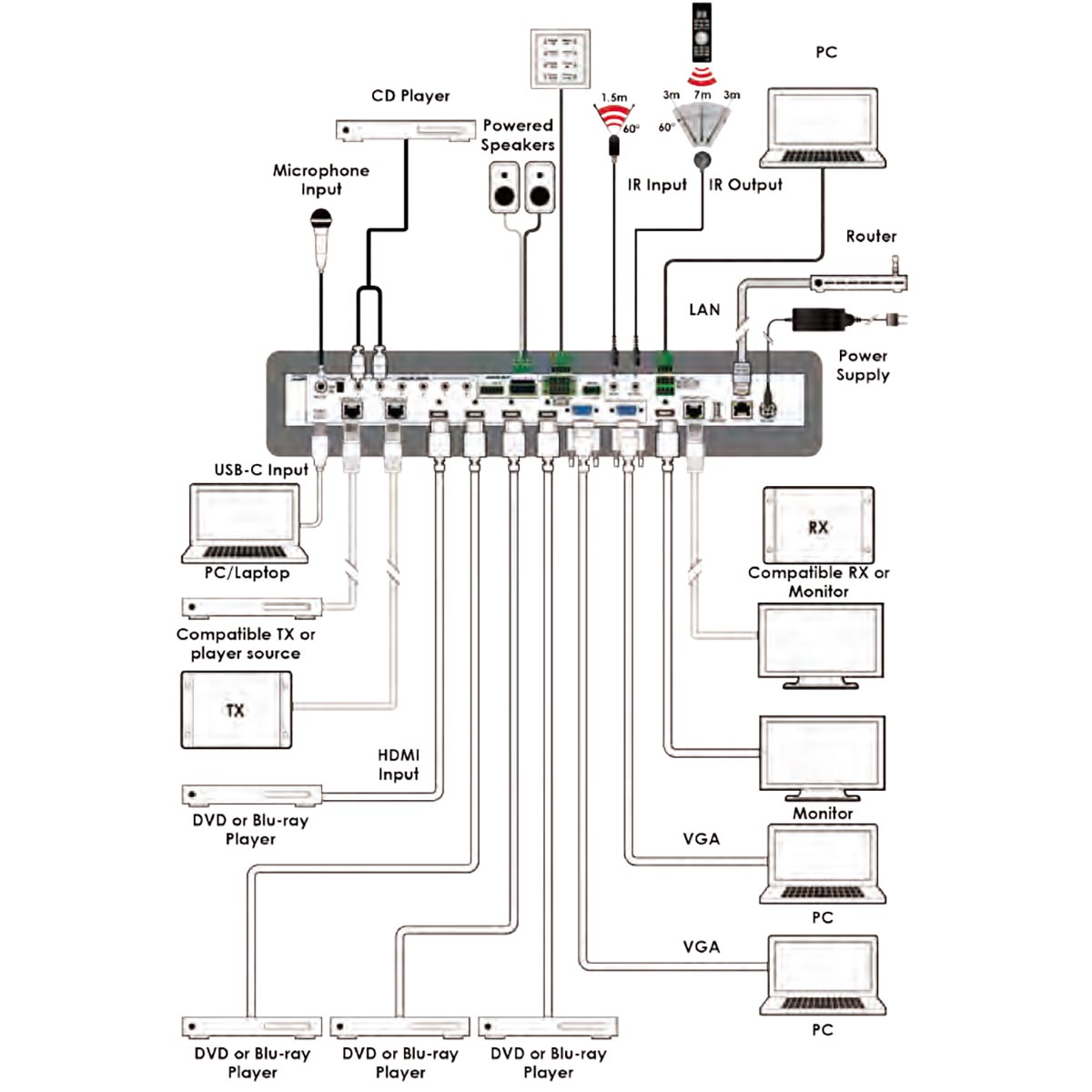

This 9 by 2 multi-format scaling switcher provides HDMI, USB Type C, HDBaseT, and VGA inputs which can be freely selected for output at a scaled resolution of the user’s choosing over the mirrored HDMI and HDBaseT outputs. The HDMI and USB-C ports support resolutions up to 4K@60 (4:4:4, 8-bit) while the HDBaseT output supports automatic down-conversion of 4K60(4:4:4) sources to 4K60(4:2:0). The VGA inputs support resolutions up to WUXGA. The HDBaseT output provides a great solution to extend your audio and video up to 70 meters (at 4K) over a single run of Cat.5e/6/7 cable as well as providing 48V PoH power to compatible HDBaseT Receivers.This unit also includes multiple analog stereo audio inputs and a microphone input along with an amplified analog stereo output to provide a range of audio routing and mixing flexibility. The built-in audio mixer function allows the user to mix audio from any analog input with the microphone input for presentation or lecture usage. The ability to switch back and forth between mixed and nonmixed audio greatly simplifies the presentation experience.A trigger input interface is also provided to allow the easy addition of a remote control keypad, or other trigger-supporting products, which can be installed within a podium or within a table in a conference room or classroom. This interface can allow the user to activate functions with the simple press of a button. Standard control is available via front panel buttons with an On-Screen Display (OSD), WebGUI, IR remote, Telnet, and RS-232 making it exceptionally versatile.

Features

• 9 video inputs (1xUSB-C, 2xHDBaseT, 4xHDMI, 2xVGA)
• 2 mirrored video outputs (1xHDMI, 1xHDBaseT)
• Supports switching and scaling of all AV inputs for display over the mirrored HDMI and HDBaseT outputs
• Supports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video input and output Note: The HDBaseT output will automatically down-convert 4K50/60(4:4:4) sources to 4K50/60(4:2:0) to maintain compatibility
• Supports Deep Color input and output up to 12-bit (Bypass only for output) Supports 10-bit and 12-bit HDR (High Dynamic Range) input/output (Bypass only for output)
• HDBaseT output transmits video and audio over a single Cat.5e/6/7 cable up to 100m/328ft at 1080p and 70m/230ft at 4K
• Supports pass-through of many audio formats including LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream
• Audio mixer function allows the mixing of audio from any analog input with the microphone input
• Trigger Control Keypad support for easy, single-button, function activation (Optional)
• Supports standard 48V PoH from the HDBaseT output (PSE) to a connected HDBaseT Receiver (PD) (compatible Receivers only)
• Comprehensive EDID and HDCP management
