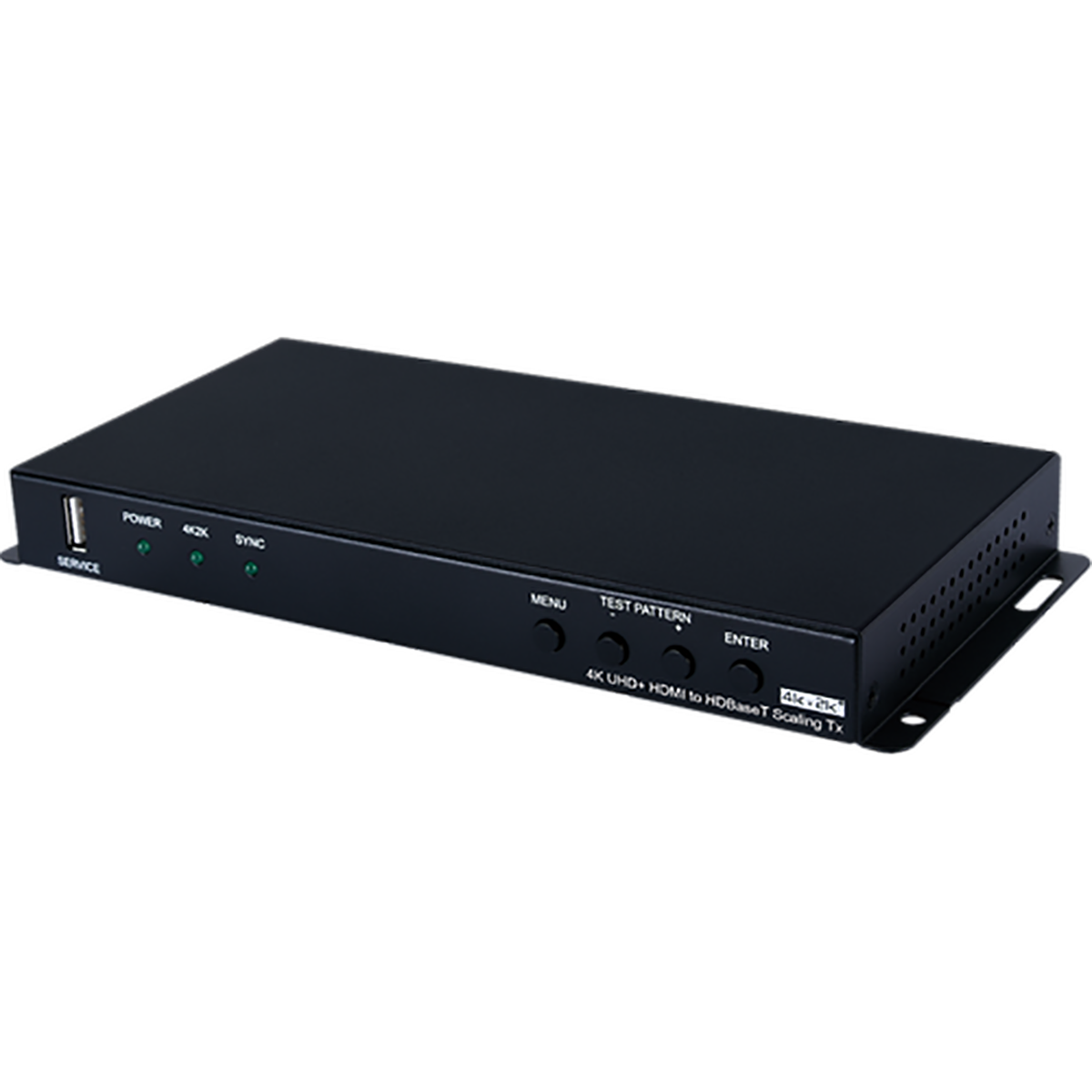

CSC-6012TX 4K60 (4:4:4) 1x2 HDMI over HDBaseT Scaler with IR, RS-232, PoH (PSE), LAN, OAR & Balanced Audio Extraction
Please sign in so that we can notify you about a reply
This HDMI to HDMI/HDBaseT Scaling Transmitter can send uncompressed audio/video along with control, Ethernet, and extra audio data over a single run of Cat.5e/6/7 cable up to 100m. Both the HDMI input and local HDMI output support video signals up to 4K@60Hz (4:4:4, 8-bit). For transmission over the HDBaseT output the signal can be converted to 4K@60Hz (4:2:0, 8-bit) or 1080p@60Hz, if necessary, in order to fit within HDBaseT bandwidth limitations.
Features
- Supports the HDBaseT 1.0 specification
- HDBaseT 5Play™ convergence: High-Definition (HD) Video and Audio, 100BaseT Ethernet, 48V PoH, and Control (Bi-directional IR/RS-232 pass-through)
- Supports UHD resolutions up to 3840×2160@50/60Hz (YUV 4:4:4) & 4096×2160@50/60Hz (YUV 4:4:4)
- Supports pass-through of all standard digital audio: LPCM 2.0/5.1/7.1, Bitstream & HD Bitstream
- Supports RS-232 baud rates from 110~115200bps
- 10/100 Ethernet network support
- Fully compliant with HDMI 1.4, and compatible with HDMI 2.0 (4K@60Hz, YUV 4:2:0)
- HDMI with 18Gbps (600MHz) 4K support and HDCP 2.2 compliant
- Supports Deep Color up to 1080p/12-bit
- Supports DVI to HDMI conversion
- Supports signal bypass on HDMI output (on the Transmitter)
- Transmitter can upscale 1080p signals to 4K over HDBaseT output or downscale 4K signal to 1080p (same framerate is maintained)
- Receiver supports signal bypass on both outputs or output B can upscale 1080p signals to 4K and output A can downscale a 4K signal to 1080p (same framerate is maintained)
- Supports 4K UHD (4:4:4) to 4K UHD (4:2:0) conversion
- Supports OAR (Optical Audio Return) and DAC balanced audio conversion
- Test pattern generation at select resolutions for on-site display testing
- Integrated EDID management

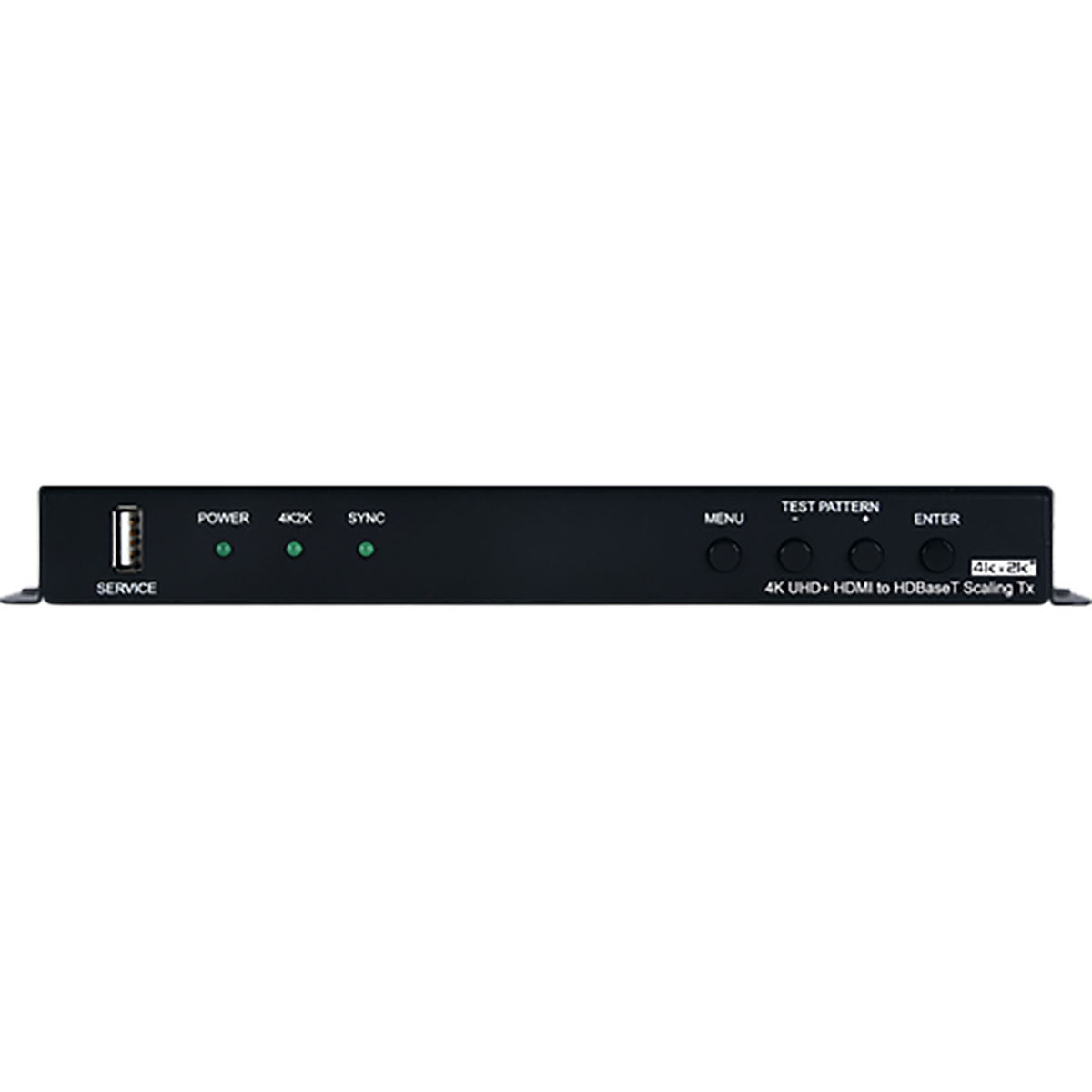

- OSD with instant I/O resolution display
Brand:
Cypress Technology
Product Type:
HDMI/HDBaseT Scaler
Specifications
Maximum Operating Temperature:
+40°C
Silkscreen Color:
Black
IR Frequency:
30 to 50kHz
Power Rating:
13.86W
Chassis Material:
Metal
Applications:
Live Events Needing Dual Output Formats and Signal Extension, Hotel Ball Room with Extension and Audio Breakout, Long Distance Extension with No Local Power, On-Site Equipment Testing
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
Transmitter, 1xHDMI Over HDBaseT Scaling Transmitter, 1xIR Blaster Cable, 1xIR Extender Cable, 1xTerminal Block (3-Pin), 1xTerminal Block (5-Pin), 1xPower Cord, 1x24V/2.7A DC Power Adaptor, 1xOperation Manual, Receiver, 1xHDMI Over HDBaseT Scaling Receive
Performance
HDMI Compliance Type:
1.4
HDCP Compliance Type:
2.2
Video Bandwidth:
18Gbps (HDMI), 10.2Gbps (HDBaseT)
Signal Format:
HDMI
Baud Rate:
115200bps
Inputs and Ports
Input Port Type:
1xHDMI
Output Port Type:

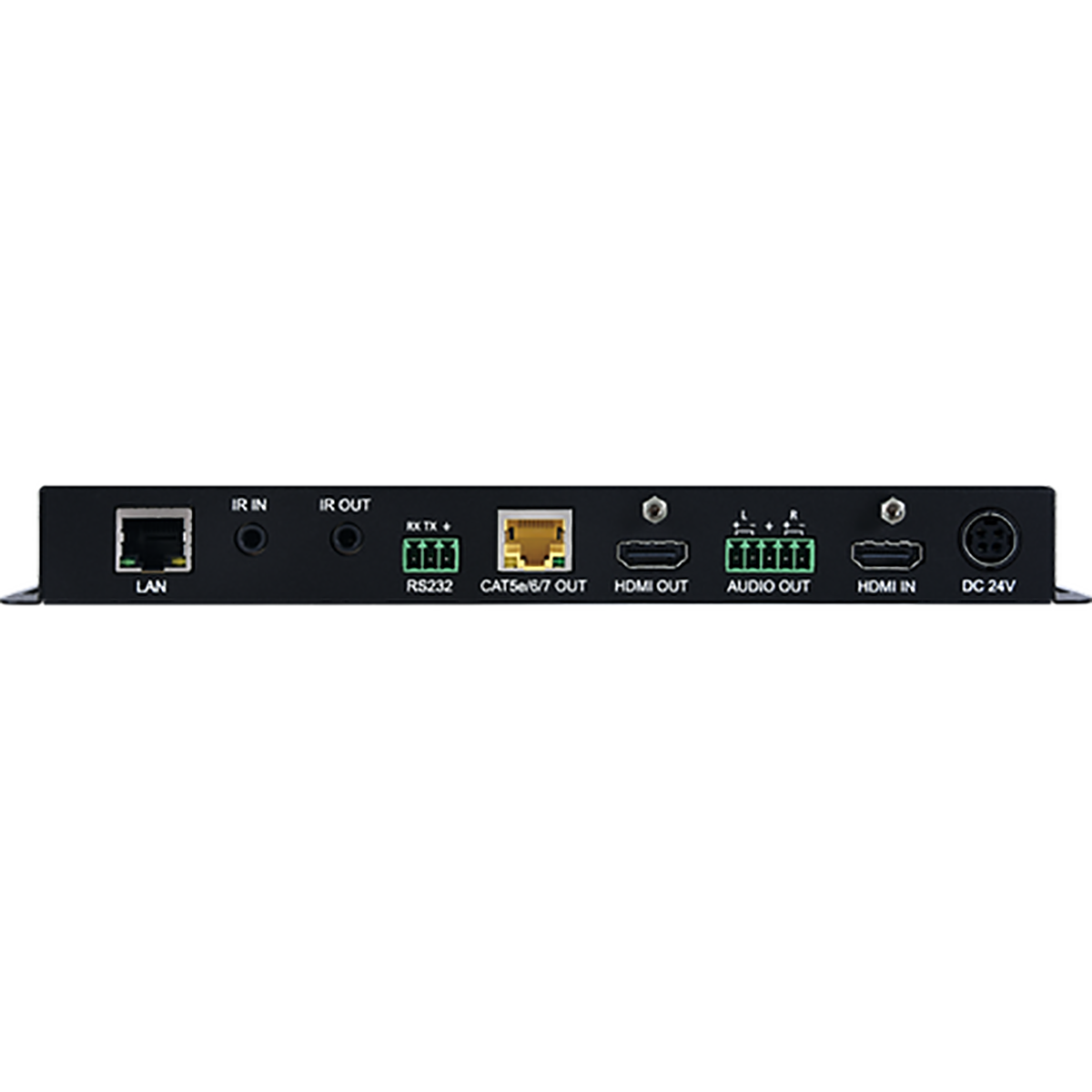

1xHDMI, 1xCAT.5e/6/7, 1xBalanced Stereo Audio (5-Pin Terminal Block)
Power
Current Rating:
2.7A
ESD Protection Rating:
±12kV (Air-Gap Discharge), ±8kV (Contact Discharge)
Dimensions
Width:
21.35cm
Depth:
10.8cm
Height:
2.5cm
Weight:
670g
Other
Voltage Rating:
24V
Voltage Rating:
24V
Standards Met:
UL Listed, CE, FCC Complaint
