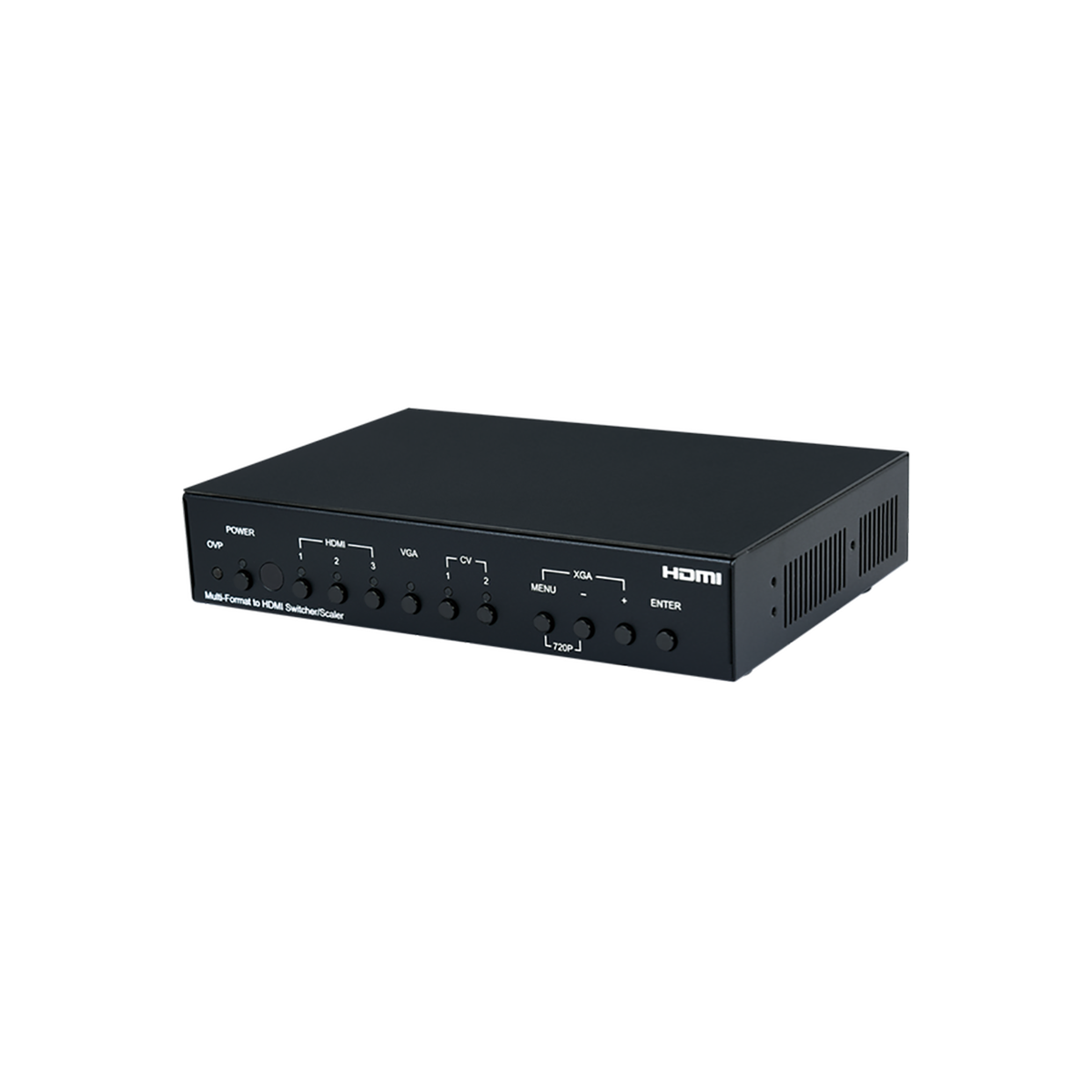

CSC-5500R Multi-Format to HDMI Scaler
Please sign in so that we can notify you about a reply
This unit has Composite Video, PC (VGA), and HDMI inputs which can be freely selected for output at a scaled resolution of the user’s choosing over the HDMI output. This unit also includes separate analog and digital audio outputs to provide additional playback flexibility. Support for HDMI output resolutions up to 1080p/WUXGA (RB) and Analog to Digital Conversion (ADC) functionality combine to allow for a wide range of AV signals to be displayed on the connected HDMI display. The unit can be controlled via front panel buttons with an On-Screen Display (OSD), WebGUI, Telnet, RS-232, and IR remote making it exceptionally versatile.
Features
- Supports switching and scaling of multiple AV inputs to HDMI output
- HDMI and DVI compatible
- Supports output resolutions up to 1080p/WUXGA(RB)
- Supports 3D de-interlace, noise reduction and 3D comb filtering for composite video sources
- Frame rate conversion support
- Quick output resolution switching via hot keys
- Supports analog to digital (ADC) and digital to analog (DAC) audio conversion, insertion and extraction
- Supports EDID and HDCP management
- HDCP management control improves display compatibility with certain sources

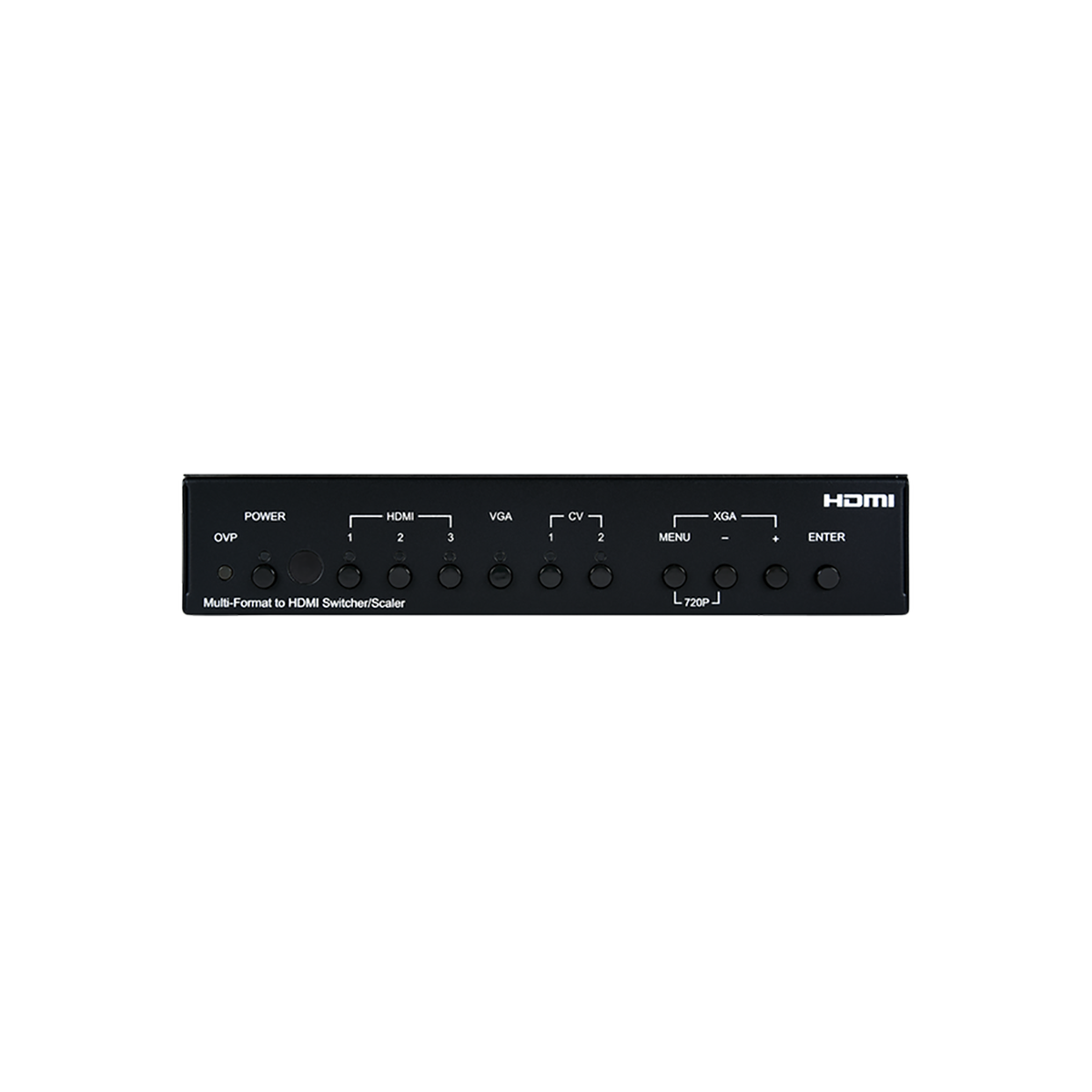

- Controllable via front-panel controls with OSD, RS-232, Telnet, WebGUI, and IR remote
Brand:
Cypress Technology
Product Type:
Multi Format HDMI Scaler
Specifications
Maximum Operating Temperature:
+40°C
Silkscreen Color:
Black
Special Features:
Quick Output Resolution Switching Via Hot Keys, Supports EDID and HDCP Management
IR Frequency:
30 to 50kHz
Power Rating:
4.8W
Chassis Material:
Metal
Applications:
Analog and Digital Source Integration, Upscaling Standard Definition Sources for High-Definition Displays, Conference Centres, Lecture Halls, Schools and Universities
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
Transmitter, 1xHDMI Over HDBaseT Scaling Transmitter, 1xIR Blaster Cable, 1xIR Extender Cable, 1xTerminal Block (3-Pin), 1xTerminal Block (5-Pin), 1xPower Cord, 1x24V/2.7A DC Power Adaptor, 1xOperation Manual, Receiver, 1xHDMI Over HDBaseT Scaling Receive
Performance
Resolution:
480i@60Hz-1080pixels@60Hz (12bits), VGA@60Hz-WUXGA@60Hz (RB)
Video Bandwidth:
10.2Gbps
Signal Format:
HDMI
Baud Rate:
115200bps

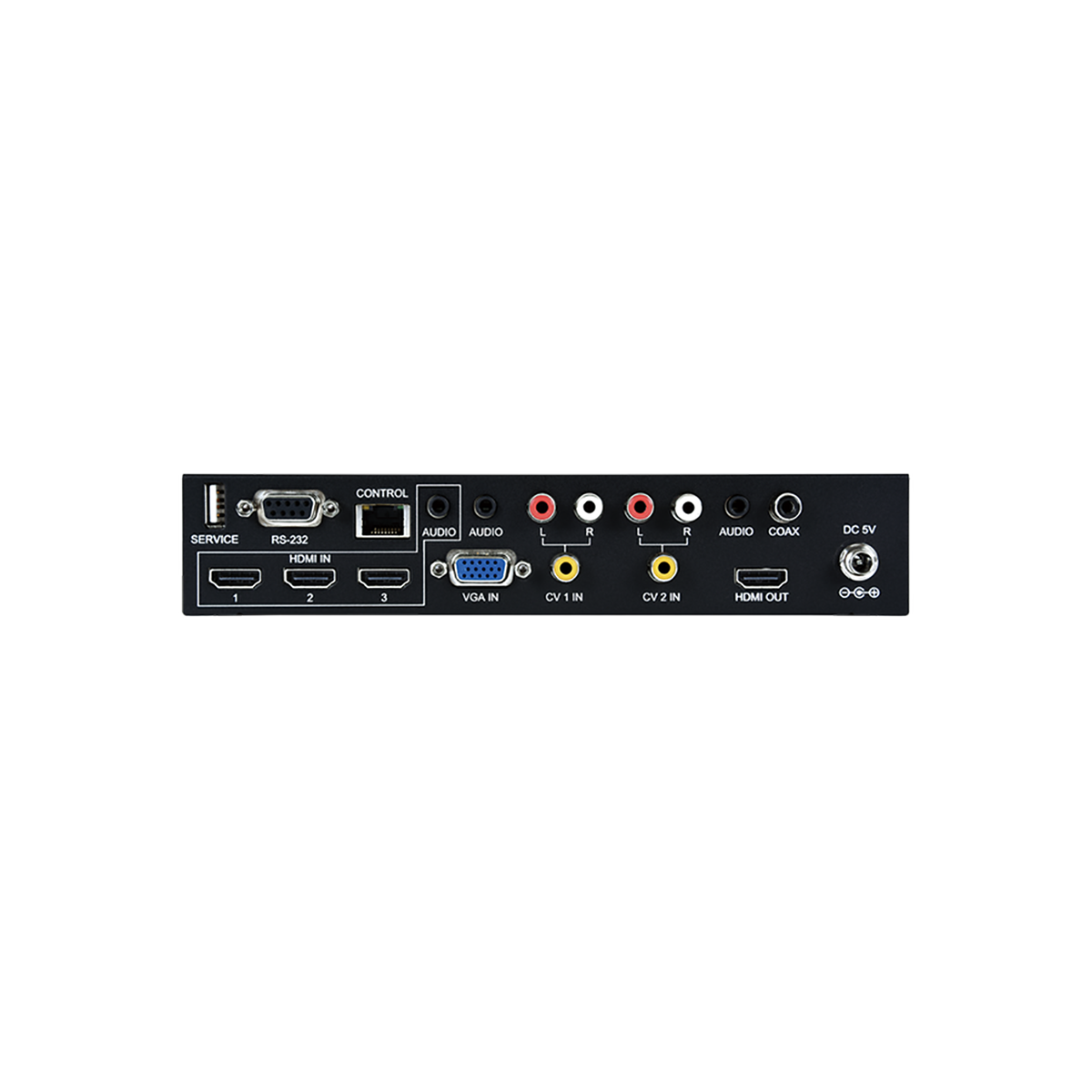

Inputs and Ports
Input Port Type:
3xHMDI, 1xVGA, 2xCV, 2x3.5mm (Analog Stereo), 4xRCA (Analog Stereo)
Output Port Type:
1xHDMI, 1x3.5mm (Analog Stereo), 1xRCA(S/PDIF Audio)
Power
Current Rating:
3A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Width:
21.5cm
Depth:
14.4cm
Height:
4.2cm
Weight:
1030g
Other
Voltage Rating:
5V
Voltage Rating:
5V
Standards Met:
UL Listed, CE, FCC Complaint
