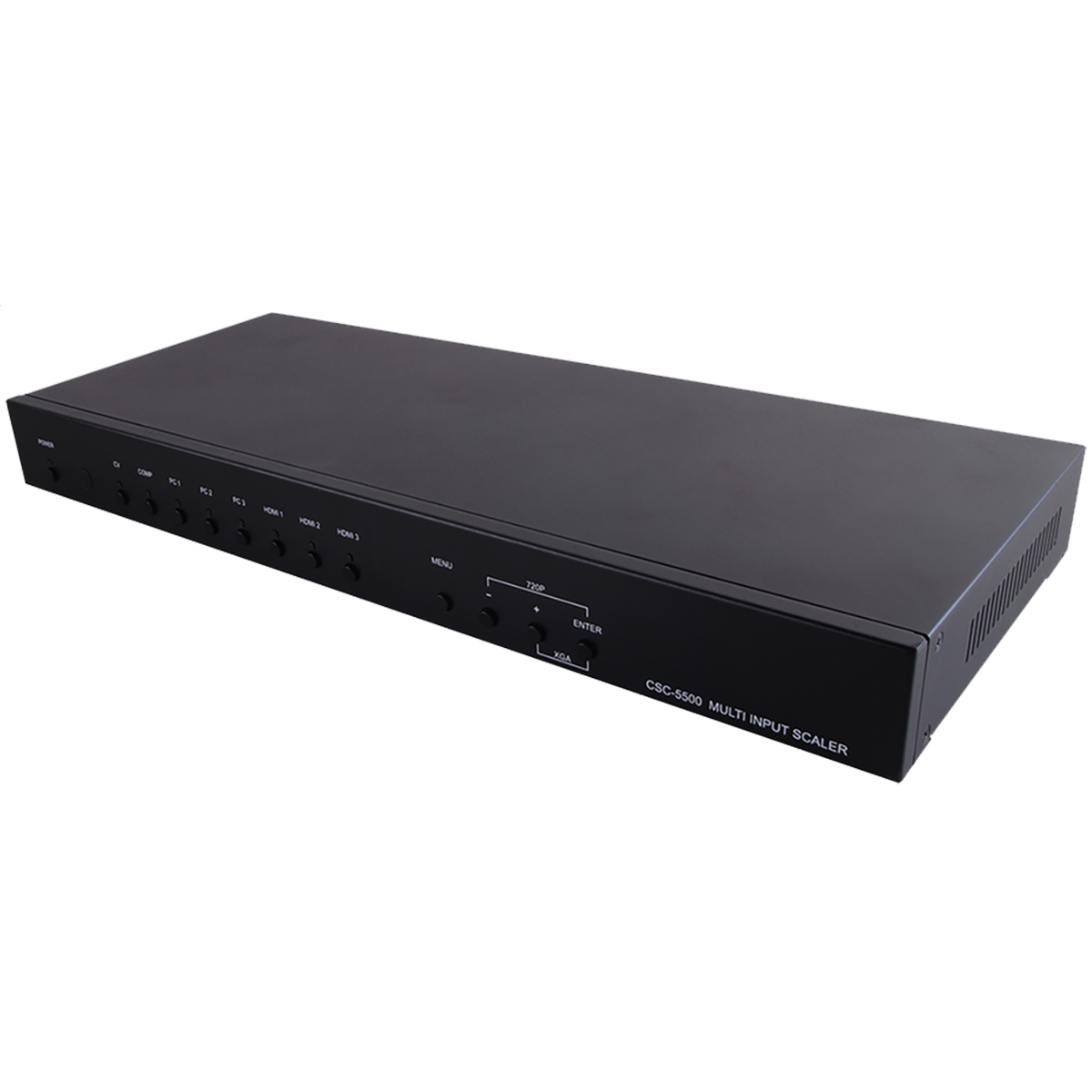

CSC-5500 Multiple Inputs to HDMI/VGA Scaler
Please sign in so that we can notify you about a reply
This Multi Input Scaler has Composite Video, Component Video, PC (VGA), and HDMI inputs and can switch and scale the signal to HDMI or VGA with audio outputs. It supports HDMI output resolutions up to 1080p/WUXGA and Analog Digital Conversion (ADC) and Digital Analog Conversion (DAC) allowing a wide range of AV signals to be displayed on a HDMI or VGA display. Further, the Onscreen Display(OSD), IR remote, RS-232, IP and on-panel controls make this product very versatile.
Features
- Supports switching and scaling of multiple AV inputs to HDMI or PC/HD outputs
- Supports EDID and HDCP
- Supports 3D de-interlace, noise reduction and 3D comb filter
- Supports frame rate conversio
- Supports RS-232, IP (Telnet/WebGUI) and IR controls
- Supports output timing hot keys switching
- Supports Digital to Analog (DAC) and Analog to Digital (ADC) Audio conversion
- Supports non-HDCP signal of Apple computers
Brand:
Cypress Technology
Specifications
Product Type:
Multi Format HDMI/VGA Scaler
Maximum Operating Temperature:
+40°C
Special Features:
Supports EDID and HDCP, Supports 3D De-Interlace, Noise Reduction and 3D Comb Filter, Supports Frame Rate Conversion
Power Rating:
11W
Chassis Color:
Black
Chassis Material:
Metal
Applications:
Analog and Digital Source Integration, Upscaling Standard Definition Sources for High-Definition Displays, Conference Centres, Lecture Halls, Schools and Universities
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
1xScaler Unit, 1xEar Phone to D-Sub Cable, 1x5V / 3A DC Power Adaptor, 1xRemote Control Unit (Model: CR-171), 1xOperation Manual
Performance
Resolution:
HDMI-1920x1080pixels@60Hz 1920x1200pixels@60HzRB (Input), CV/SV:480i@60Hz/576i@50Hz(Input), COMP:1920x1080pixels@60Hz(Input), PC:1920x1200@60HzRB(Input), HDM:1920x1080pixels@60Hz 1920x1200@60Hz (RB)(Input), PC:1920x1080pixels@60Hz
HDMI Compliance Type:
1.3 (DVI 1.0)
HDCP Compliance Type:
1.4
Signal Format:
HDMI
Inputs and Ports
Input Port Type:

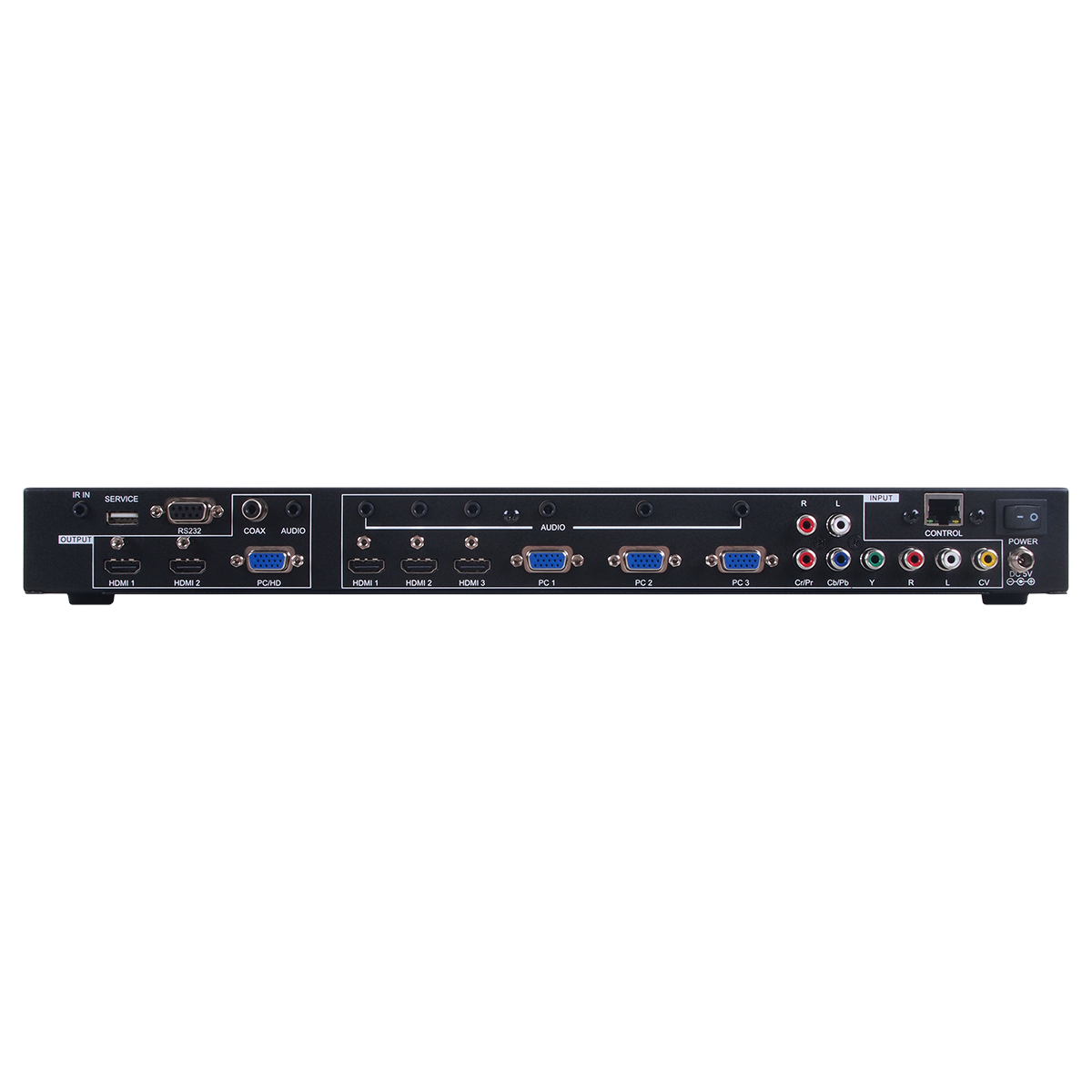

3xHDMI, 3xVGA (15-Pin D-Sub), 1xComponent Video, 1xComposite Video, 6x3.5mm Stereo Audio, 4xRCA Stereo Audio, 1xIR Extender (3.5mm), 1xRS-232 (9-Pin D-Sub), 1xIP Control (RJ45), 1xUSB (Service)
Output Port Type:
2xHDMI, 1xVGA (15-Pin D-sub), 1xCoaxial Audio, 1x3.5mm Stereo Audio
Power
Current Rating:
2.7A
Dimensions
Width:
43.2cm
Depth:
17.4cm
Height:
4.7cm
Weight:
2140g
Other
Voltage Rating:
24V
Voltage Rating:
24V
Standards Met:
UL Listed, CE, FCC Complaint
