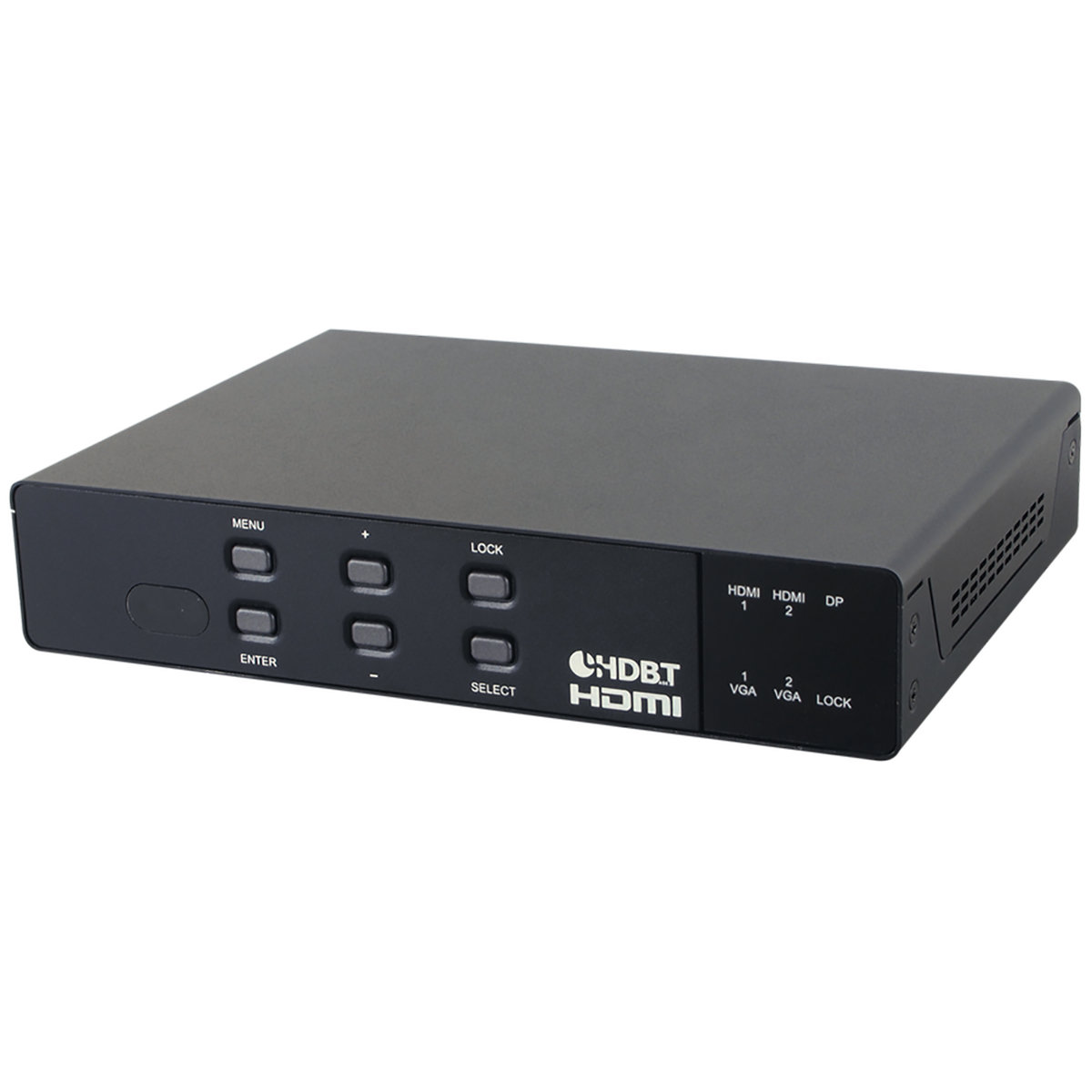

CSC-103TXPL HDMI/DP/VGA to HDMI/HDBaseT Scaler

Write a review
CSC-103TXPL
Cypress Technology
Out of stock
Log in to see price Add to wish list

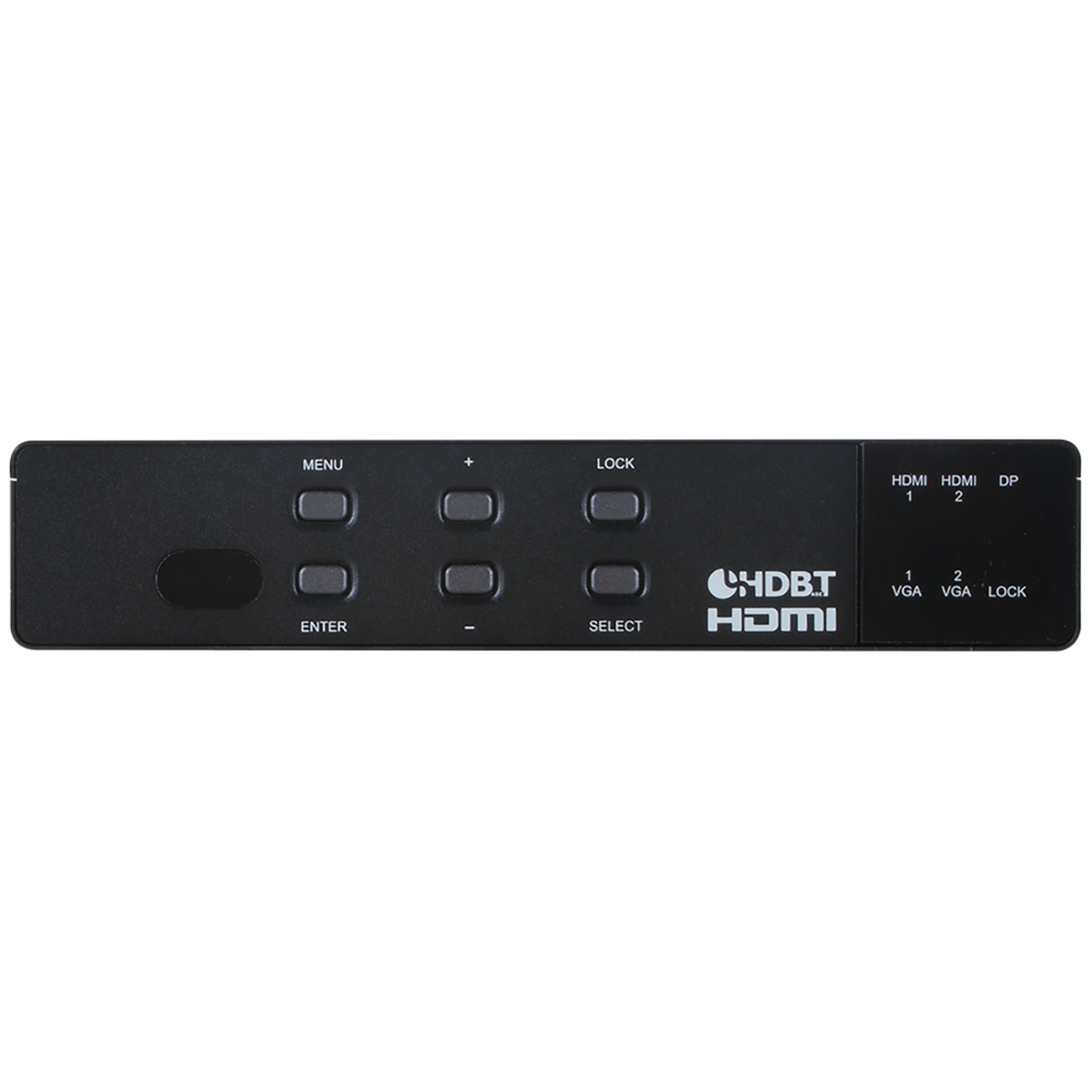

This HDMI/DP/HDBaseT to HDMI/HDBaseT Scaler supports five inputs including HDMI, VGA, and DisplayPort. Any selected source will be scaled to your preferred resolution for output over HDMI and HDBaseT. HD resolutions up to 1080p@60Hz are supported. This unit also provides audio application flexibility by including multiple unbalanced audio inputs, a 1/4” mic input (with support for optional 48V phantom power) and one line out port. This unit contains an audio DSP engine with auto-mixer and auto-gain functionality, allowing for the mic source to be mixed with the audio from one of the video sources while reducing the background audio in order to enhance the primary audio source. The HDBaseT output provides 24V PoC (Power over Cable) allowing compatible PoC powered HDBaseT Receivers to operate without needing a local power connection. This unit can be easily controlled and configured through the front panel with OSD, IR remote control, RS-232, Telnet, or WebGUI. This unit is an ideal solution for presentations in classrooms and conference rooms.

Features

  • HDMI, DVI and DisplayPort compliant
  • HDCP 1.4 compliant
  • Multiple video and audio inputs: 2×HDMI, 2×VGA,1×DisplayPort, 3×Unbalanced audio, 1×Mic audio (w/ 48V phantom power option)
  • HDMI and HDBaseT outputs (mirrored)
  • Inputs support HD resolutions up to 1080p@60Hz and PC resolutions from VGA to WUXGA
  • Outputs support resolutions up to 1080p@60Hz
  • Supports pass-through of LPCM 2.0 audio
  • Audio DSP with auto mixer and gain control for mixing audio and reducing background audio
  • HDBaseT feature support: High-Definition video and audio, 24V PoC (Power over Cable) and control (Bi-directional IR & RS-232 pass through)
  • HDBaseT output provides 24V PoC to power to compatible HDBaseT Receivers
  • EDID management support
  • Supports IR In and IR Out to receive or transmit IR signals from compatible Receivers with bi-directional IR
  • Remote control provides discrete input source selection
  • Supports control via WebGUI, Telnet, IR remote and RS-232
Brand:
Cypress Technology
Specifications
Product Type:
Multi Format HDMI Scaler
Maximum Operating Temperature:
+40°C
Silkscreen Color:
Black
Special Features:
EDID Management Support, Supports IR in and IR Out to Receive Or Transmit IR Signals From Compatible Receivers with Bidirectional IR, Remote Control Provides Discrete Input Source Selection
IR Frequency:
30 to 50kHz
Power Rating:
16/22W
Chassis Material:
Metal
Applications:
Analog and Digital Source Integration, Upscaling Standard Definition Sources for High-Definition Displays, Conference Centres, Lecture Halls, Schools and Universities
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
1xHDMI/DP/VGA to HDMI/HDBaseT Scaler, 1xRemote Control (CR-165), 1xIR Blaster Cable, 1xIR Extender Cable, 1x15-Pin D-sub Male to 3 RCA Cable, 1x3.5mm to 9-Pin D-sub Male Cable, 1x6-Pin Terminal Block, 1x24V/1.25A Power Adaptor, 1xOperation Manual
Performance
Resolution:
480i@60Hz-1080pixels@60Hz (12bits), VGA@60Hz-WUXGA@60Hz (RB)
HDCP Compliance Type:
1.4
Video Bandwidth:
10.2Gbps
Signal Format:
HDMI
Baud Rate:
9600bps
Inputs and Ports
Input Port Type:

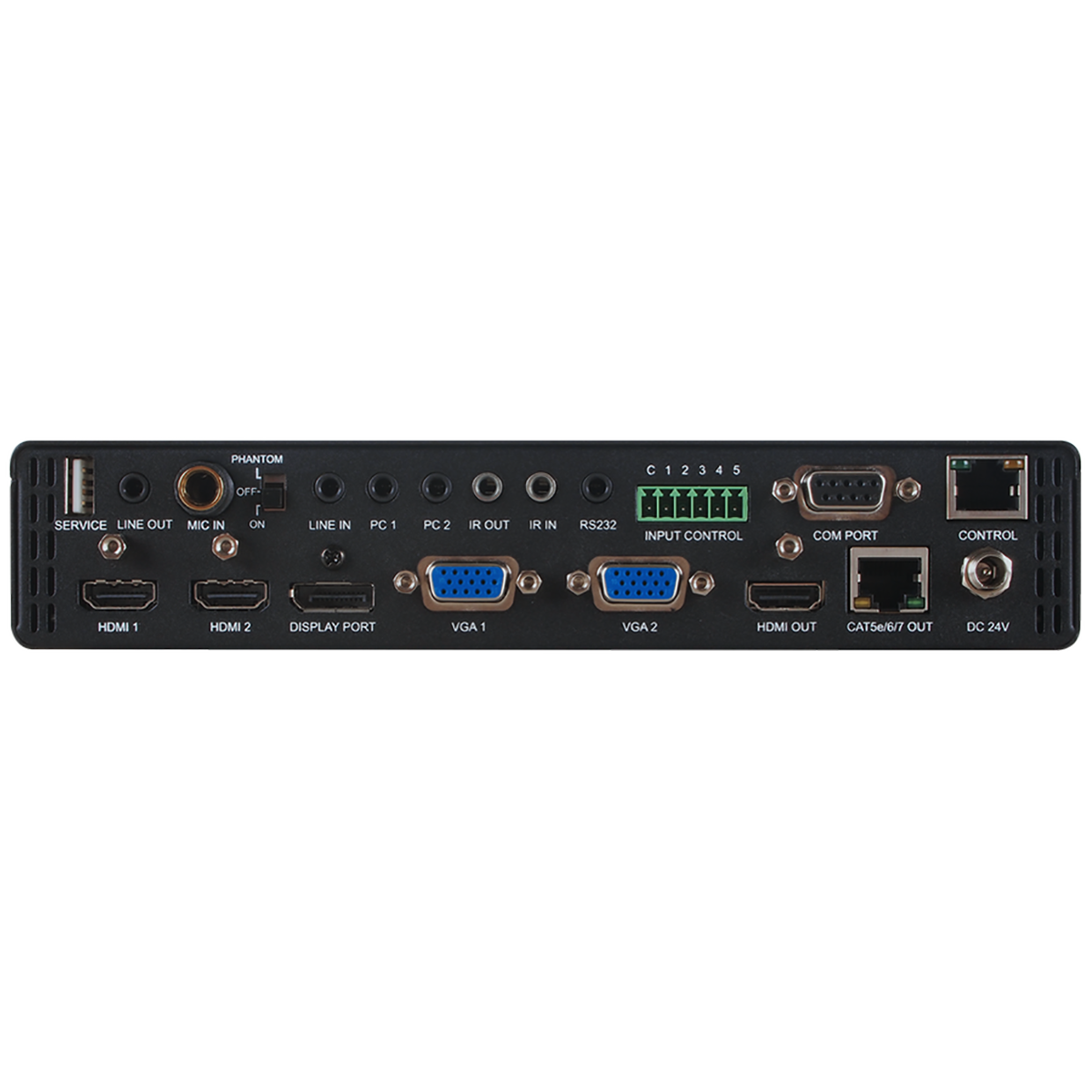

2xHDMI, 1xDisplay Port, 2xVGA (15-Pin D-Sub) 1xMicrophone Audio (6.35mm), 3xStereo Audio (3.5mm), 1xIR Extender (3.5mm)
Output Port Type:
1xHDMI, 1xCAT.5e/6/7, 1xStereo Audio (3.5mm), 1xIR Blaster (3.5mm), 1xRS-232 (3.5mm)
Power
Current Rating:
2.6A
ESD Protection Rating:
±12kV (Air-Gap Discharge), ±8kV (Contact Discharge)
Dimensions
Width:
21.9cm
Depth:
15.6cm
Height:
5.1cm
Weight:
1256g
Other
Voltage Rating:
5V
Voltage Rating:
5V
Standards Met:
UL Listed, CE, FCC Complaint
