CS-802D DVI-DL/mDP/VGA to HDMI Scaler
Please sign in so that we can notify you about a reply
CS-802D is a scaler and converter of VGA, DVI-D, mini-DisplayPort signals along with analog stereo and digital S/PDIF to HDMI 1080p/60 signal. In addition to processing the video signal, it captures sound from one of the audio inputs and embeds it into the HDMI output signal, and also supplies it to additional audio outputs (miniJack 3.5 mm, TOSLINK). Supports component video signal resolutions up to 1080p, DVI and DisplayPort up to 2560x1600, computer graphics signal up to 1920x1080/60.
- Input resolutions: DVI Dual Link and DisplayPort up to 2560x1600 at 60 Hz (RB), computer graphics up to 1920x1080, 60 Hz and component video up to 1080p, 50/60 Hz
- Bi-directional digital-to-analog and analog-to-digital conversion - de-embeds and embeds audio signals, has analog audio stereo input and output
- Additional output and TOSLINK digital audio output
- The VGA input can work as a component video input , which requires a 15-pin D-Sub D15 (male) adapter "tulip" RCA (socket)
- Control: using buttons on the device body, using an IR remote control and via the RS-232 interface
Brand:
Cypress Technology
Product Type:
Multi Format HDMI Scaler
Specifications
Maximum Operating Temperature:
+40°C
Colour:
Black
Special Features:
Scales Dual-link DVI, Mini Display Port and PC/Component Video Input Resolutions to HDMI Output Resolutions, Converts VGA, Component Video
Power Rating:
9W
Chassis Material:
Aluminium
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Performance
Resolution:
1080pixels@60Hz (Upscaled TV Res.), WYXGA@60Hz (RB)(Upscaled PC Res.), 480pixels, (Downscaled TV Res.), VGA@60Hz (Downscaled PC Res.)
Signal Format:
HDMI
Inputs and Ports
Input Port Type:

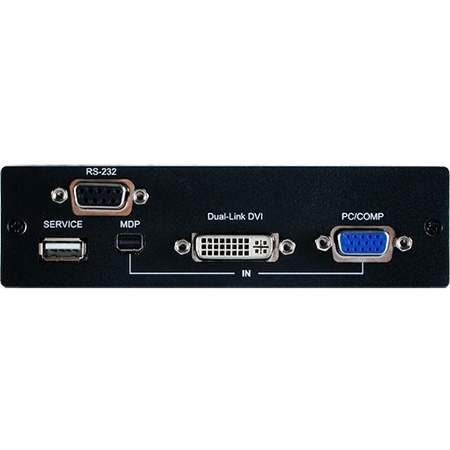

1xDual-Link DVI, 1xMini Display Port, 1xD-Sub 15-Pin, 1xOptical, 1x3.5mm Mini- Jack
Output Port Type:

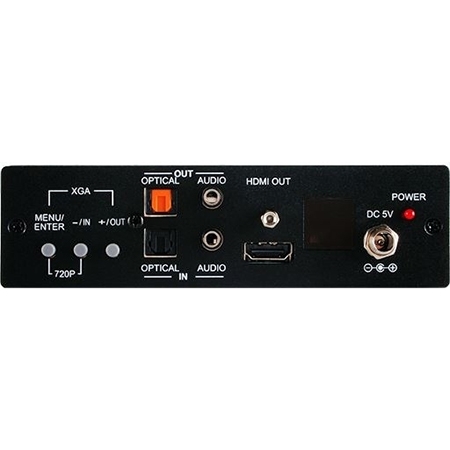

1xHDMI, 1xOptical, 1x3.5mm Mini-Jack
Power
Current Rating:
2.6A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Width:
14.1cm
Depth:
17.9cm
Height:
3.8cm
Weight:
700g
Other
Voltage Rating:
5V
Voltage Rating:
5V
Standards Met:
UL Listed, CE, FCC Complaint
