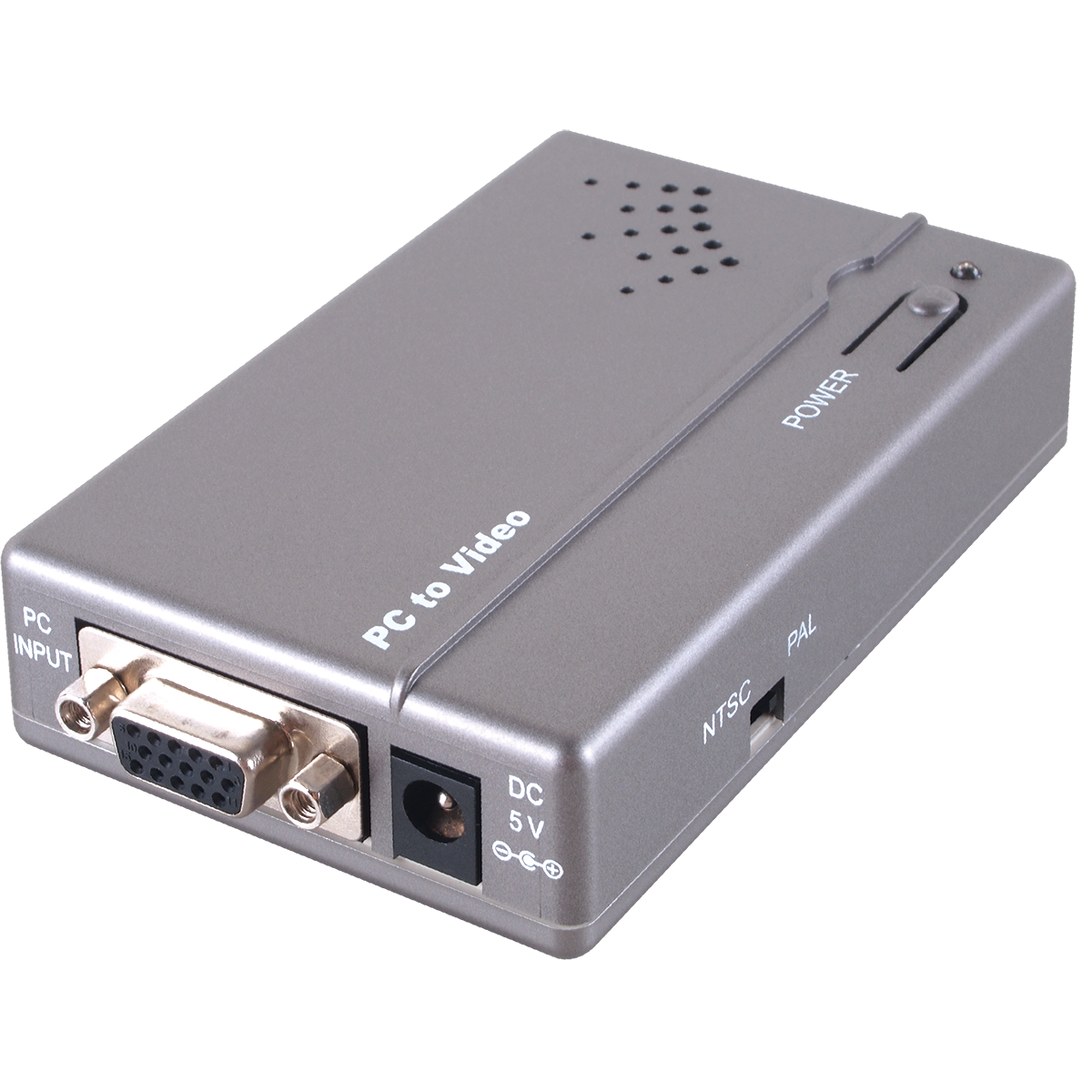

CPT-385AMN PC to Video
Please sign in so that we can notify you about a reply

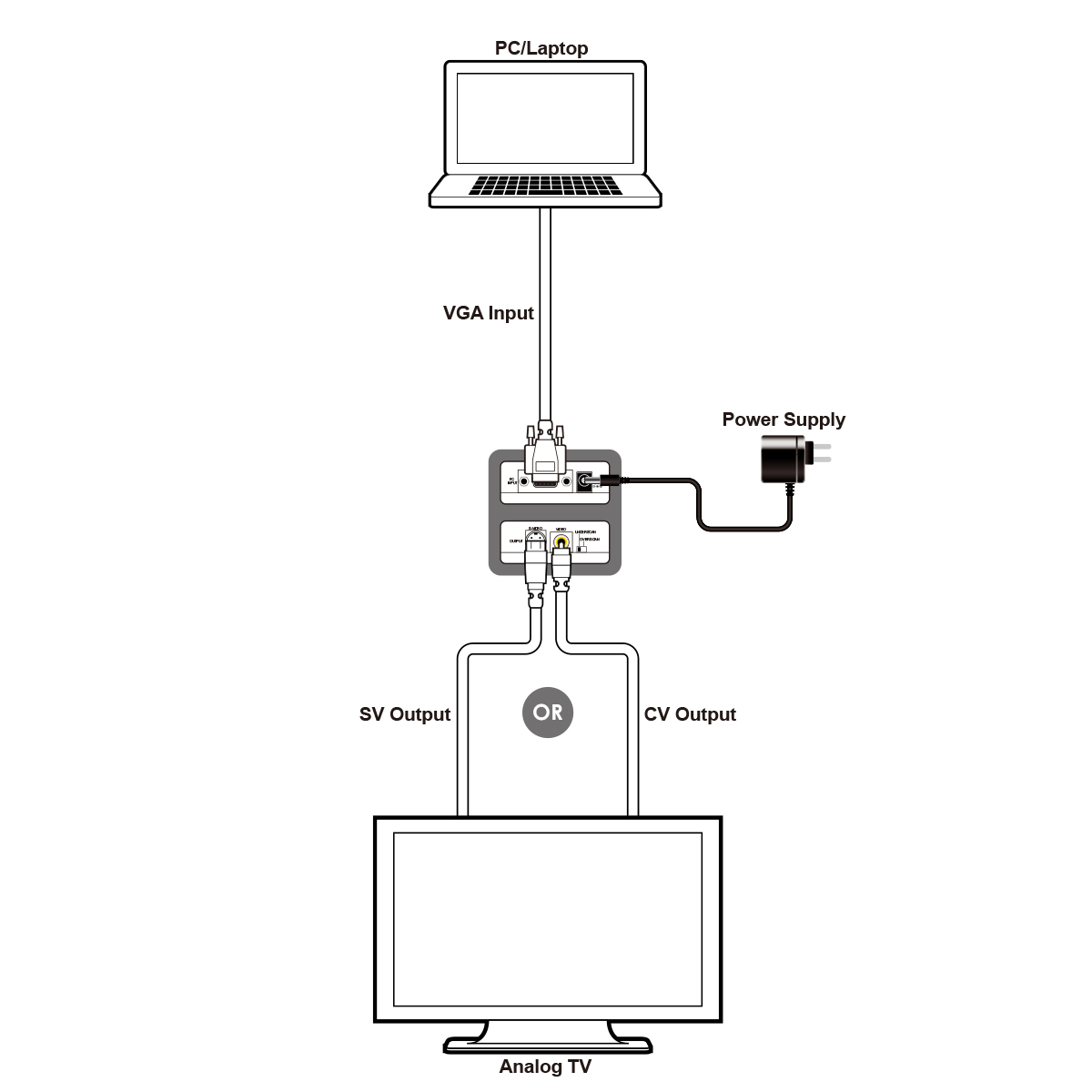

This VGA to CV/SV scaler is designed to convert and scale a variety of analog computer resolutions, from VGA to WUXGA (RB), into interlaced NTSC or PAL video. With frame rate conversion and Overscan/Underscan features that allow users to view a PC source on a Composite or S-Video monitor without the image extending beyond the edge of the screen and being cut off.
Features
- Automatically detects and down converts the incoming VGA signal to NTSC or PAL
- Supports high resolution PC input timings from VGA to WUXGA (RB)
- Scaled video is output simultaneously as Composite and S-Video signals
- Output format is switchable between NTSC/PAL
- Manual Overscan/Underscan selection
Brand:
Cypress Technology
Product Type:
VGA to CV/SV scaler
Specifications
Maximum Operating Temperature:
+40°C
Special Features:
Output Format is Switchable Between NTSC/PAL, Manual Overscan/Underscan Selection
Power Rating:
5W
Chassis Color:
Grey
Chassis Material:
Plastic
Applications:
Video Conference, Business Presentation, Lecture or Classroom
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
1xVGA to CV/SV Scaler, 1x5V/2.6A DC Power Adapter, 1xOperation Manual
Performance
Resolution:
VGA:1920x1200@60Hz (RB)(Input), SV:480i@60Hz/576i@50Hz(Output), CV:480i@60Hz/576i@50Hz (Output)
Inputs and Ports
Input Port Type:

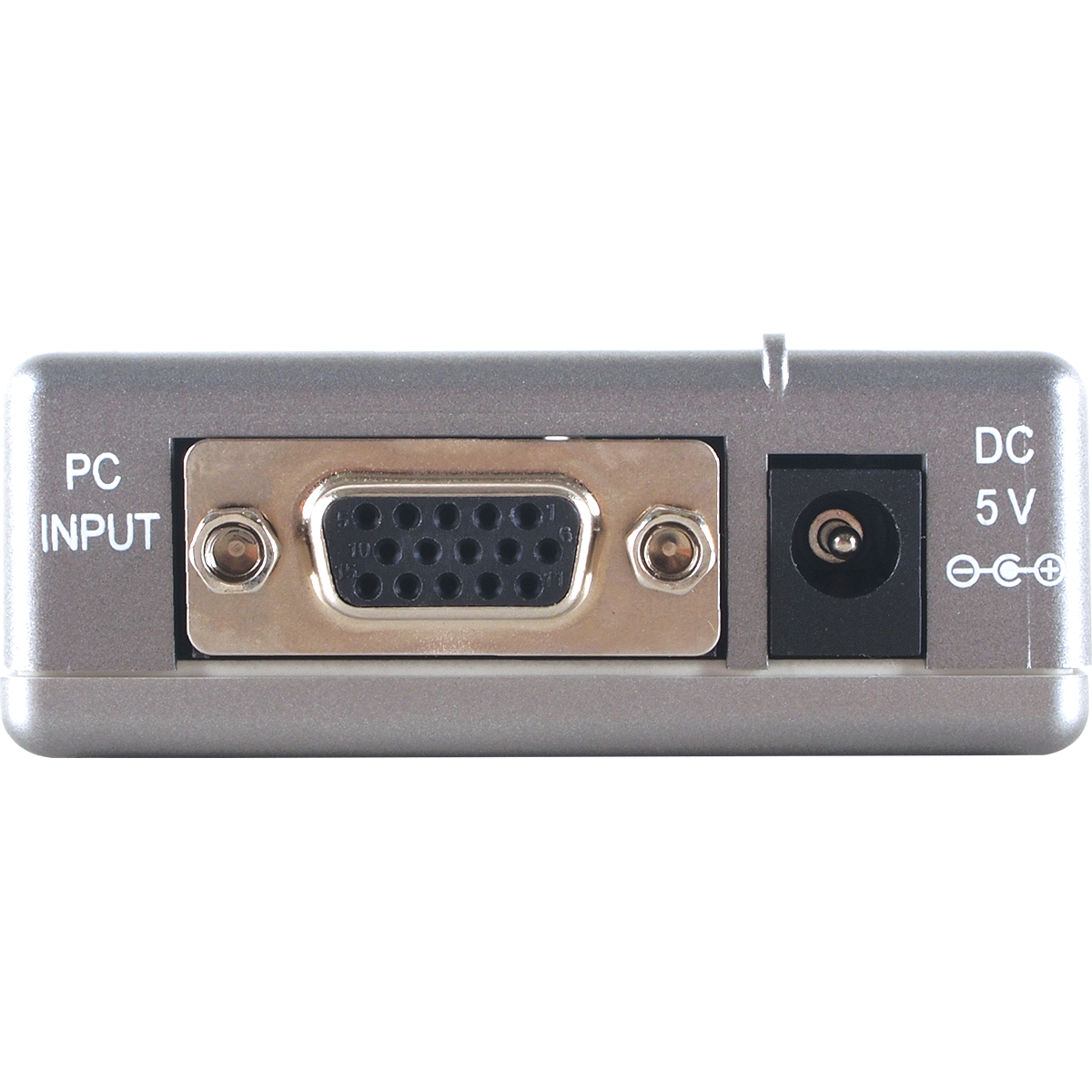

1xVGA (HD-15)
Output Port Type:

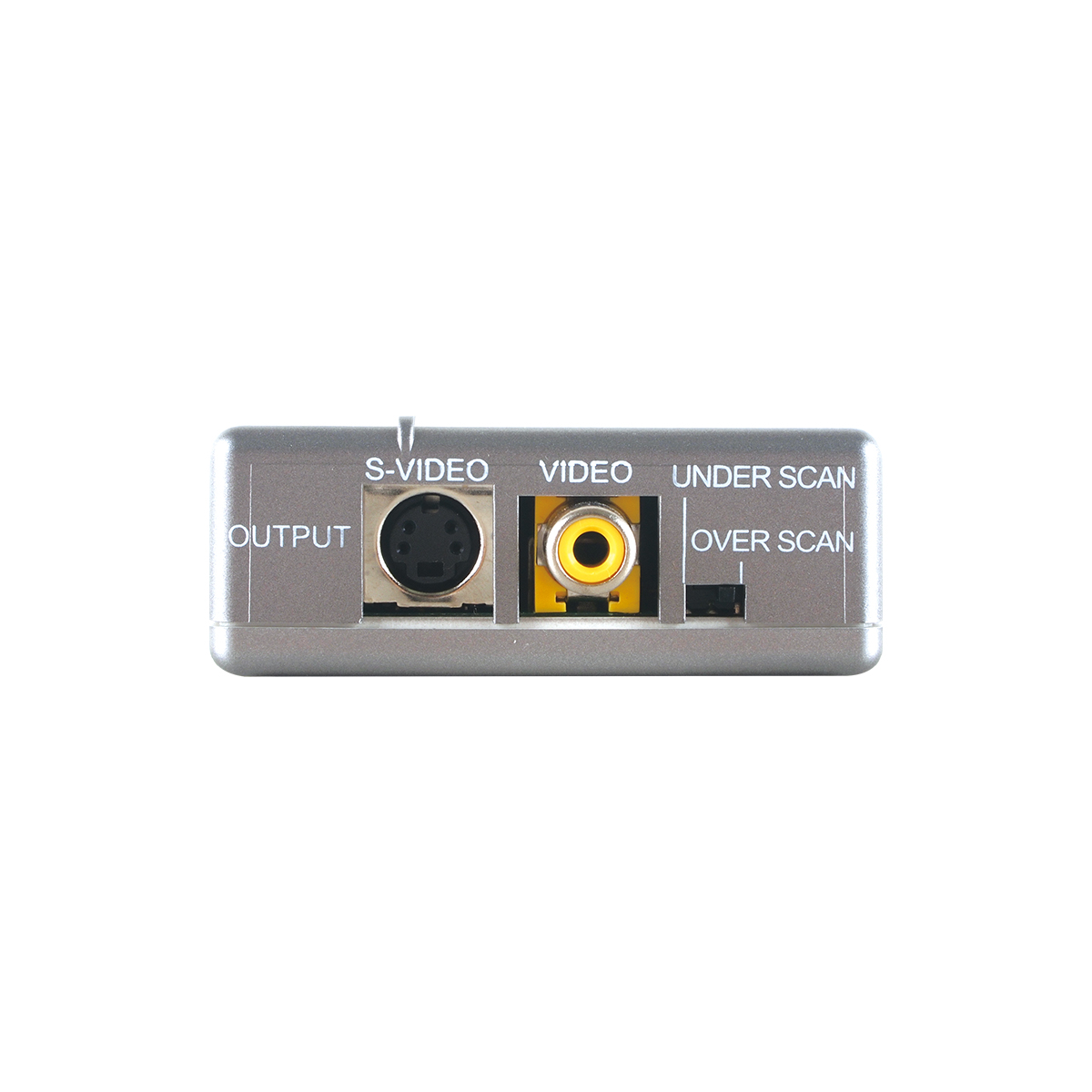

1xS-Video (4-Pin Mini-DIN), 1xComposite Video (RCA)
Power
Current Rating:
2.6A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Width:
11.3cm
Depth:
6.4cm
Height:
2.6cm
Weight:
90g
Other
Voltage Rating:
5V
Voltage Rating:
5V
Standards Met:
UL Listed, CE, FCC Complaint
