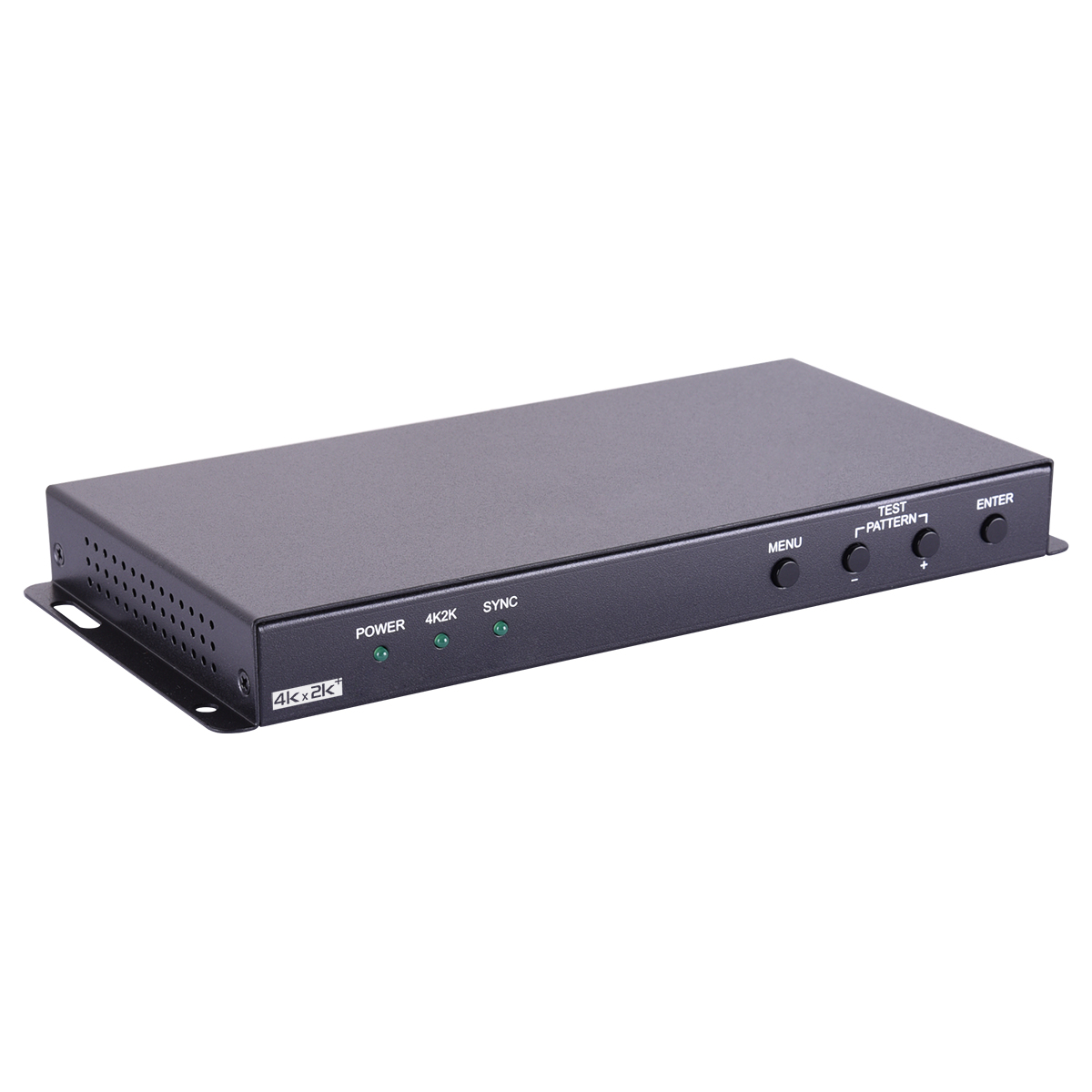

CPLUS-V2PE UHD+ HDMI to Dual HDMI Scaler with Audio De-Embedding & Test Patterns
Please sign in so that we can notify you about a reply
This HDMI to Dual HDMI Scaler with Audio De-Embedding & Test Patterns is designed to upscale 1080p signals into 4K UHD (18Gbps) or downscale 4K UHD (18Gbps) signals into 1080p with synchronized digital and analog audio output. A friendly and simple interface design allows the user to control the unit while viewing the OSD directly on the HDMI output. The input signal can be output to both HDMI outputs simultaneously with a different resolution on each or the unit can generate a test pattern at a preferred video resolution for easy on-site display testing and validation. This UHD Scaler is the best tool to use with your HD and UHD signals.
Features

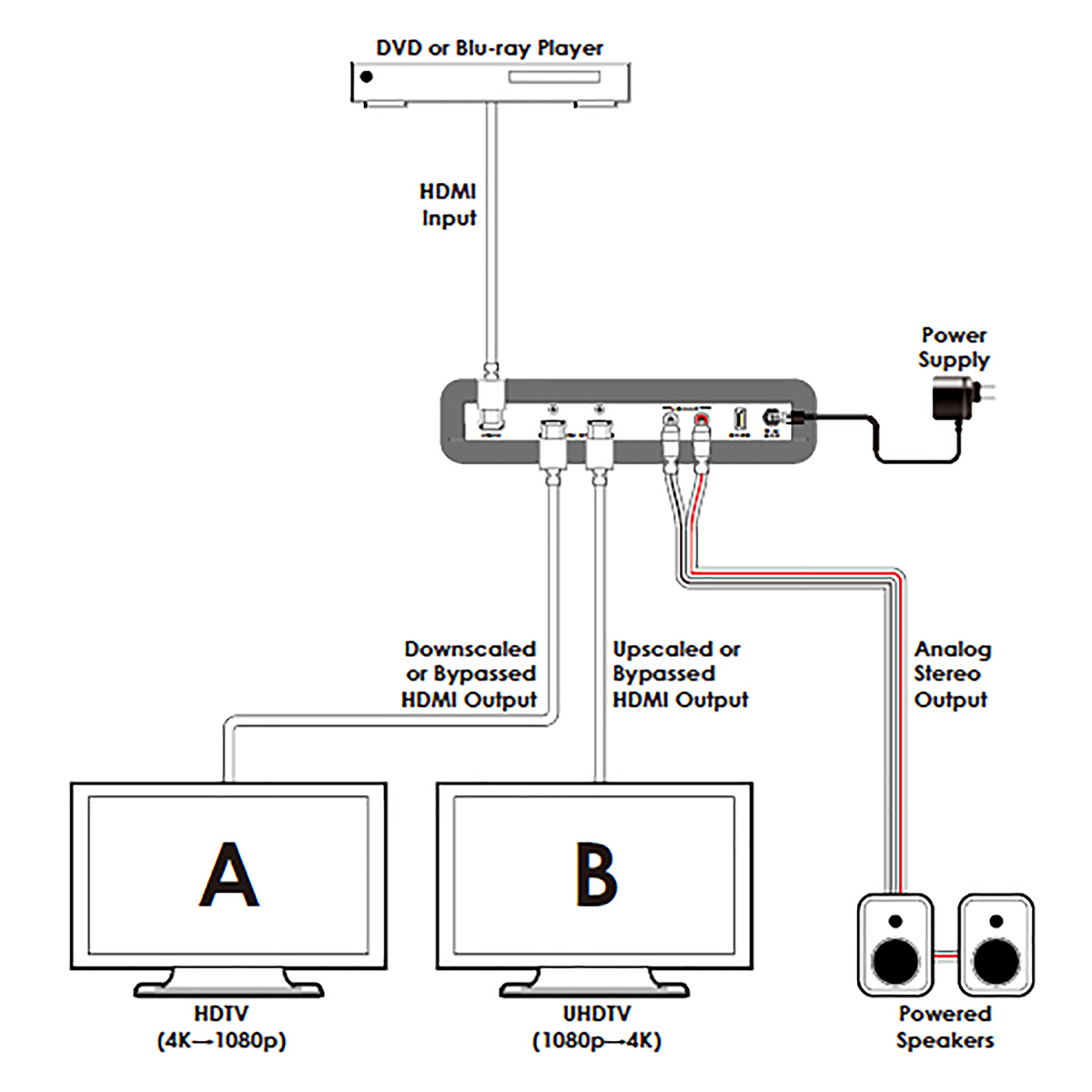

- HDMI signal bypass on both outputs or upscales 1080p signals to 4K on output B and downscales 4K signals to 1080p on output A
- 4K UHD (4:4:4) to 4K UHD (4:2:0) conversion
- Integrated EDID management
- Test pattern generation at selected resolutions for on-site display testing
- Supports High-Dynamic-Range (HDR) sources
- Supports data rates up to 18Gbps (600MHz) and Deep Color up to 1080p/16-bit
- Supports pass-through of HD audio formats including LPCM2.0/5.1/7.1, Bitstream, and HD Bitstream

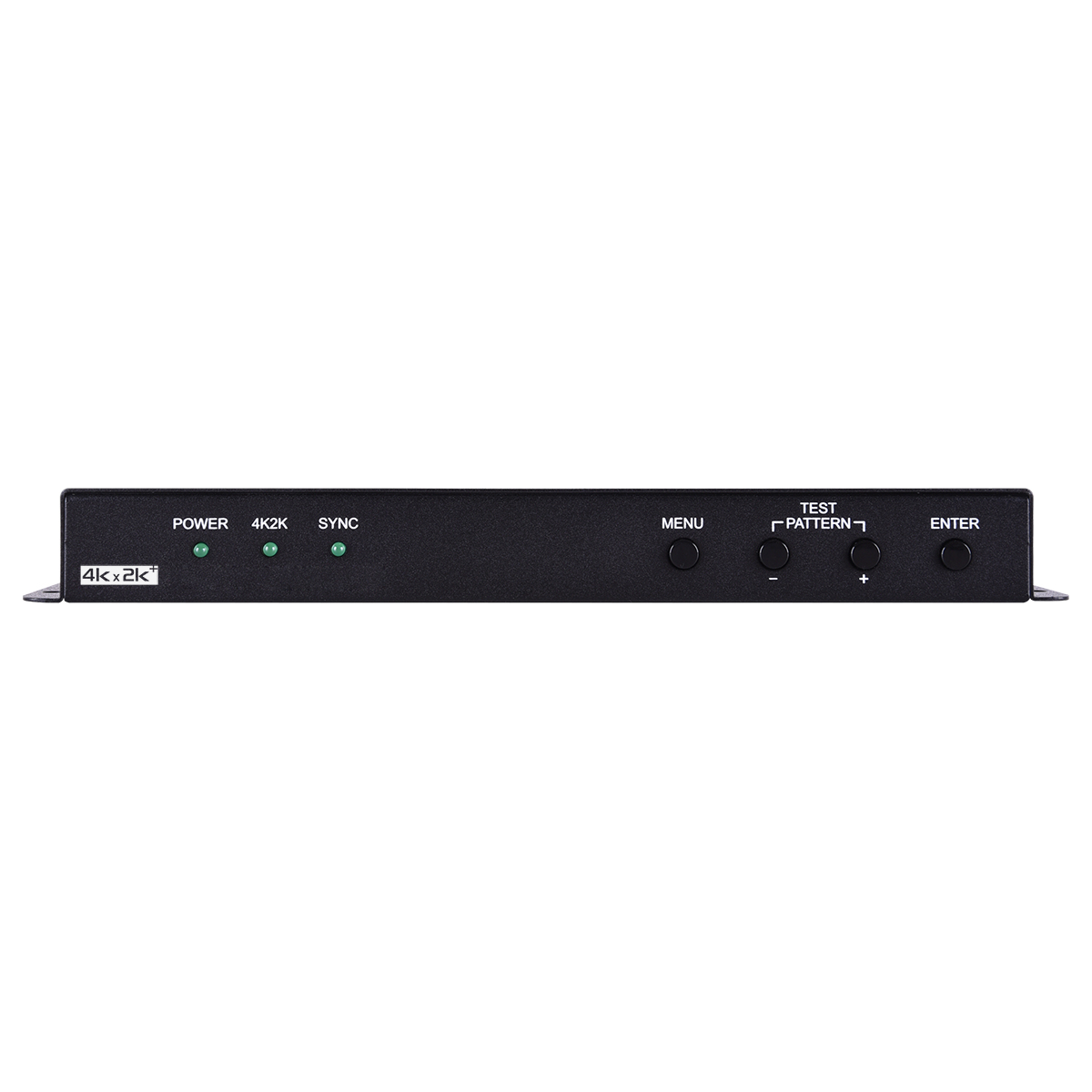

- OSD with instant I/O resolution display
- Supports the Apple source compatibility mode option
Brand:
Cypress Technology
Specifications
Product Type:
HDMI to HDMI Scaler
Maximum Operating Temperature:
+40°C
Special Features:
Supports High-Dynamic-Range (HDR) Sources, Supports the Apple Source Compatibility Mode Option
Power Rating:
5.8W
Chassis Color:
Black
Chassis Material:
Metal
Applications:
HDMI Signal Splitting, On-Site Equipment Testing, Production Testing, R&D Design and Testing
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
1xHDMI to Dual HDMI Scaler, 1x5V/2.6A DC Power Adaptor, 1xOperation Manual
Performance
Resolution:
VGA:WUXGA & 1920x1200@60HzRB (Input), HDMI:WUXGA & 1080pixels (Output)
HDMI Compliance Type:
2.0 (DVI 1.0)
HDCP Compliance Type:
2.3
Video Bandwidth:
18Gbps
Signal Format:
HDMI
Inputs and Ports

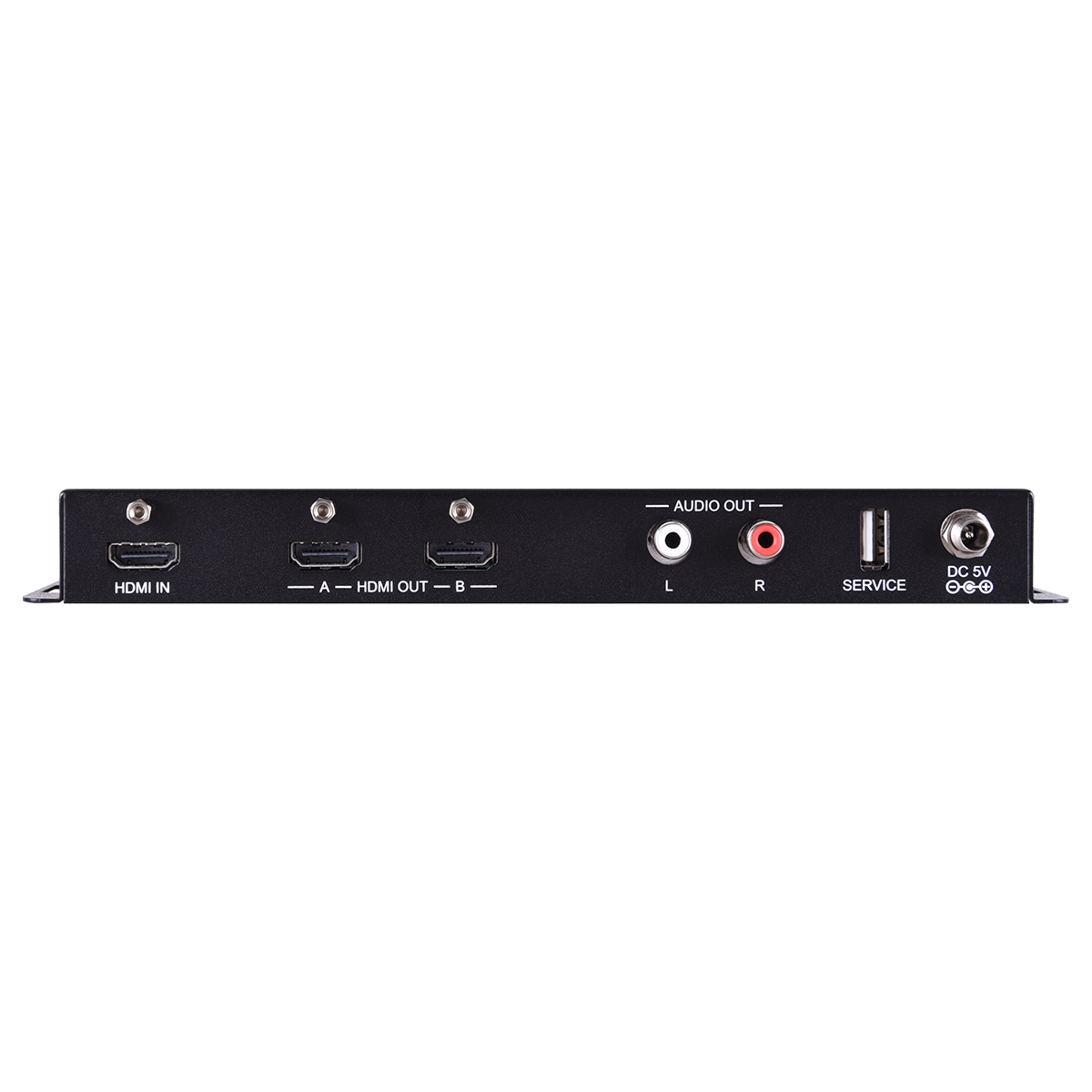

Input Port Type:
1xHDMI
Output Port Type:
2xHDMI, 2xRCA (Stereo Audio)
Power
Current Rating:
2.6A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Width:
23.15cm
Depth:
10.8cm
Height:
2.5cm
Weight:
616g
Other
Voltage Rating:
5V
Voltage Rating:
5V
Standards Met:
UL Listed, CE, FCC Complaint
