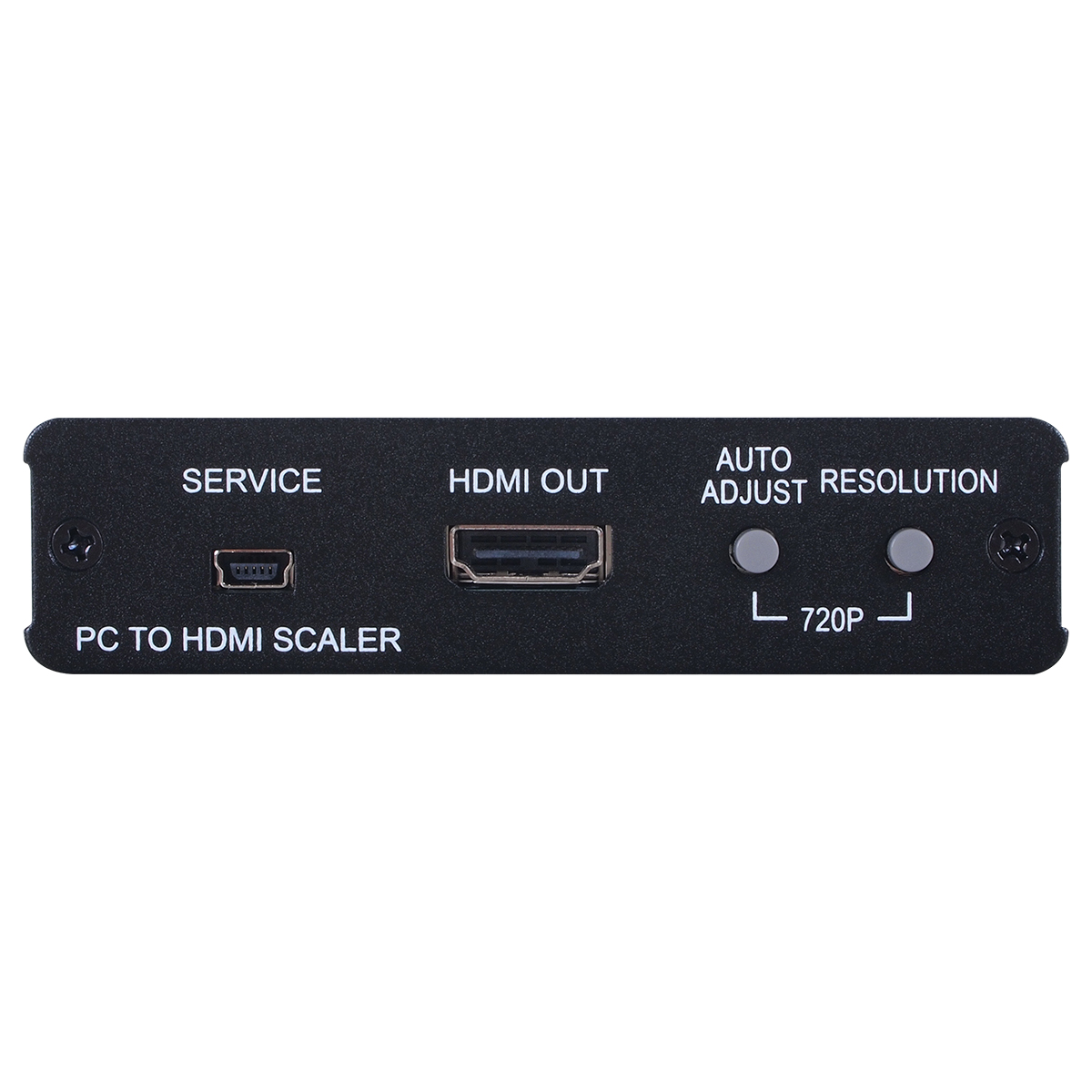

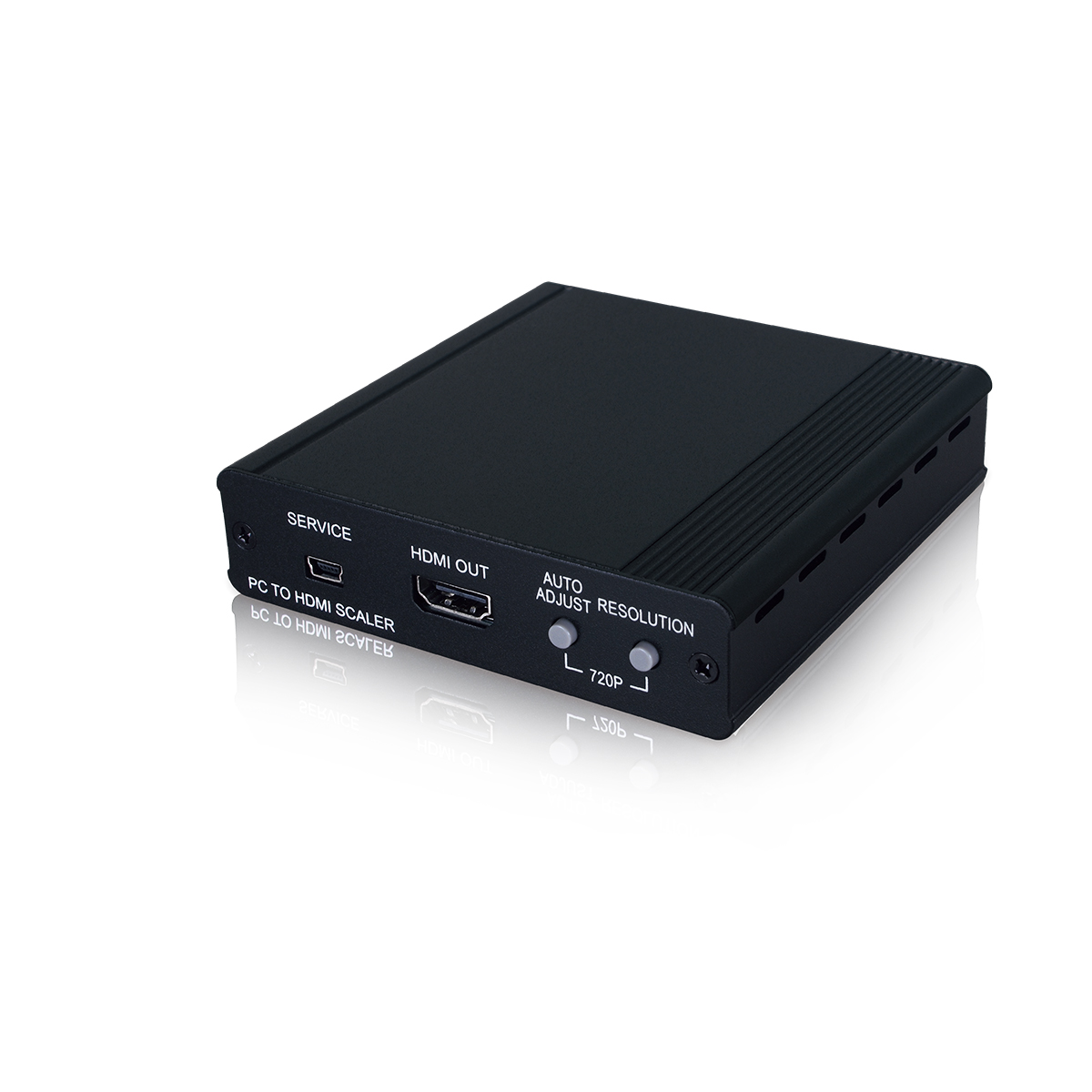

CP-304 VGA to HDMI Scaler
Please sign in so that we can notify you about a reply

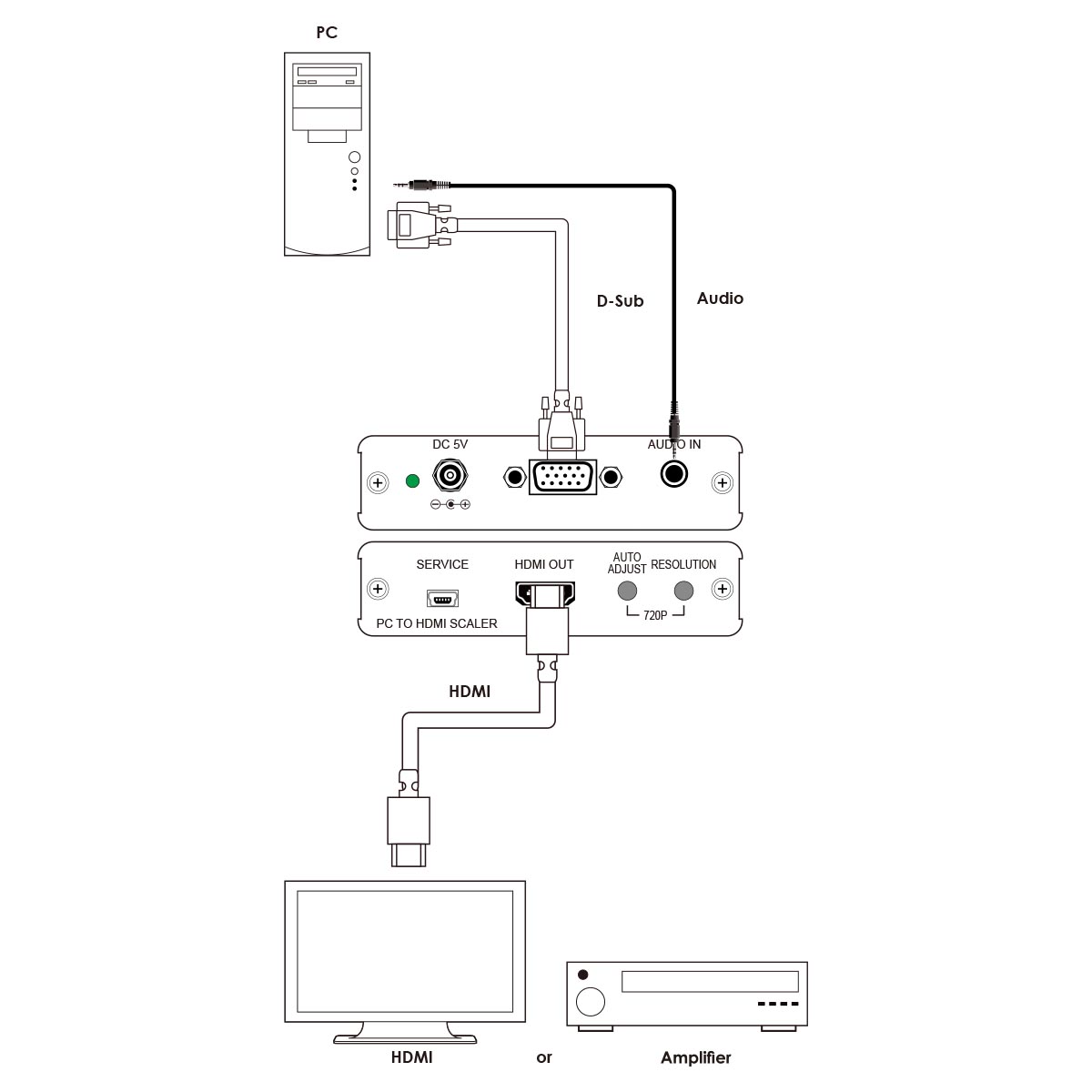

The VGA to HDMI Video Scaler Box is designed to upscale analog video from PC input source to digital HDMI output of wide-range HD/PC resolutions up to 1080p/WUXGA. Besides video scaling, the device can convert analog stereo audio input to digital format and embed it to HDMI output as 2-CH LPCM. This unit has a comprehensive resolution button that allows user to select a variety of output resolutions and adjust for best picture quality.
Features
- Scales any PC resolutions to HD (480i~1080p)/PC (VGA~WUXGA) resolutions
- Automatically detect the factory setting of the connected display and output the corresponding resolutions and refresh rate, when the NATIVE output is selected
- Support high resolution output PC: VGA, SVGA, XGA, SXGA, UXGA, WXGA, WSXGA, WUXGA. SD/HD: 480i, 576i, 480p, 576p, 720p, 1080i, 1080p
- Embeds stereo analog input with PC video to HDMI output
Brand:
Cypress Technology
Specifications
Product Type:
VGA to HDMI Scaler
Maximum Operating Temperature:
+40°C
Special Features:
Automatically Detect the Factory Setting of the Connected Display and Output the Corresponding Resolutions and Refresh Rate, When the NATIVE Output is Selected
Power Rating:
4.6W
Chassis Color:
Black
Chassis Material:
Aluminium
Applications:
Analog to Digital Video Signal Conversion, Displaying Low Resolution Video on High-Definition Display
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
VGA to HDMI Video Scaler, 5V/2.6A Power Adaptor, Operation Manual
Performance
Resolution:
VGA:WUXGA & 1920x1200@60HzRB (Input), HDMI:WUXGA & 1080pixels (Output)
HDMI Compliance Type:
1.3 (DVI 1.0)
HDCP Compliance Type:
1.4
Signal Format:
HDMI
Inputs and Ports
Input Port Type:

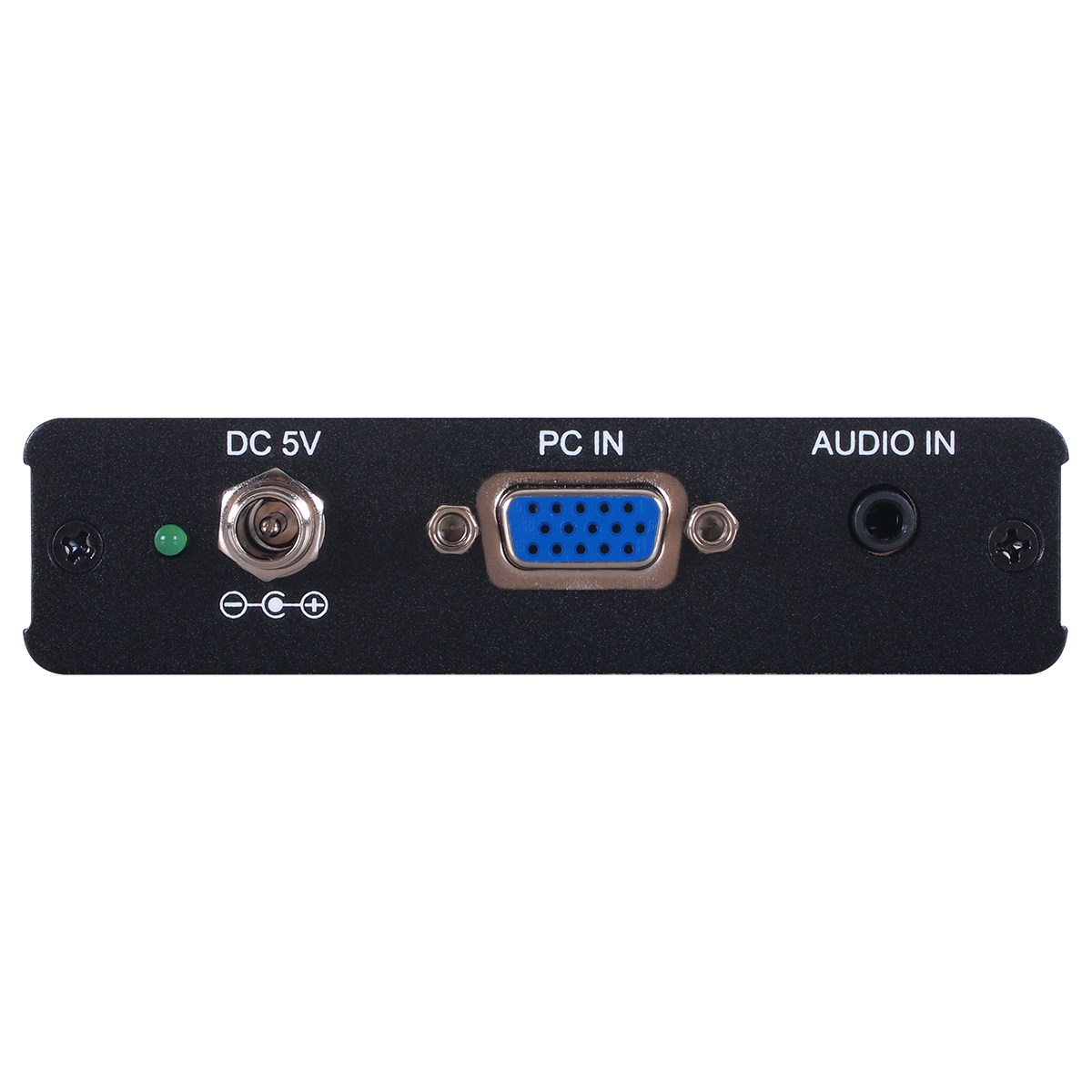

1xVGA, 1xAnalog Stereo(3.5mm)
Output Port Type:
1xHDMI
Power
Current Rating:
2.6A
Dimensions
Width:
10.2cm
Depth:
10.2cm
Height:
2.5cm
Weight:
244g
Other
Voltage Rating:
5V
Voltage Rating:
5V
Standards Met:
UL Listed, CE, FCC Complaint
