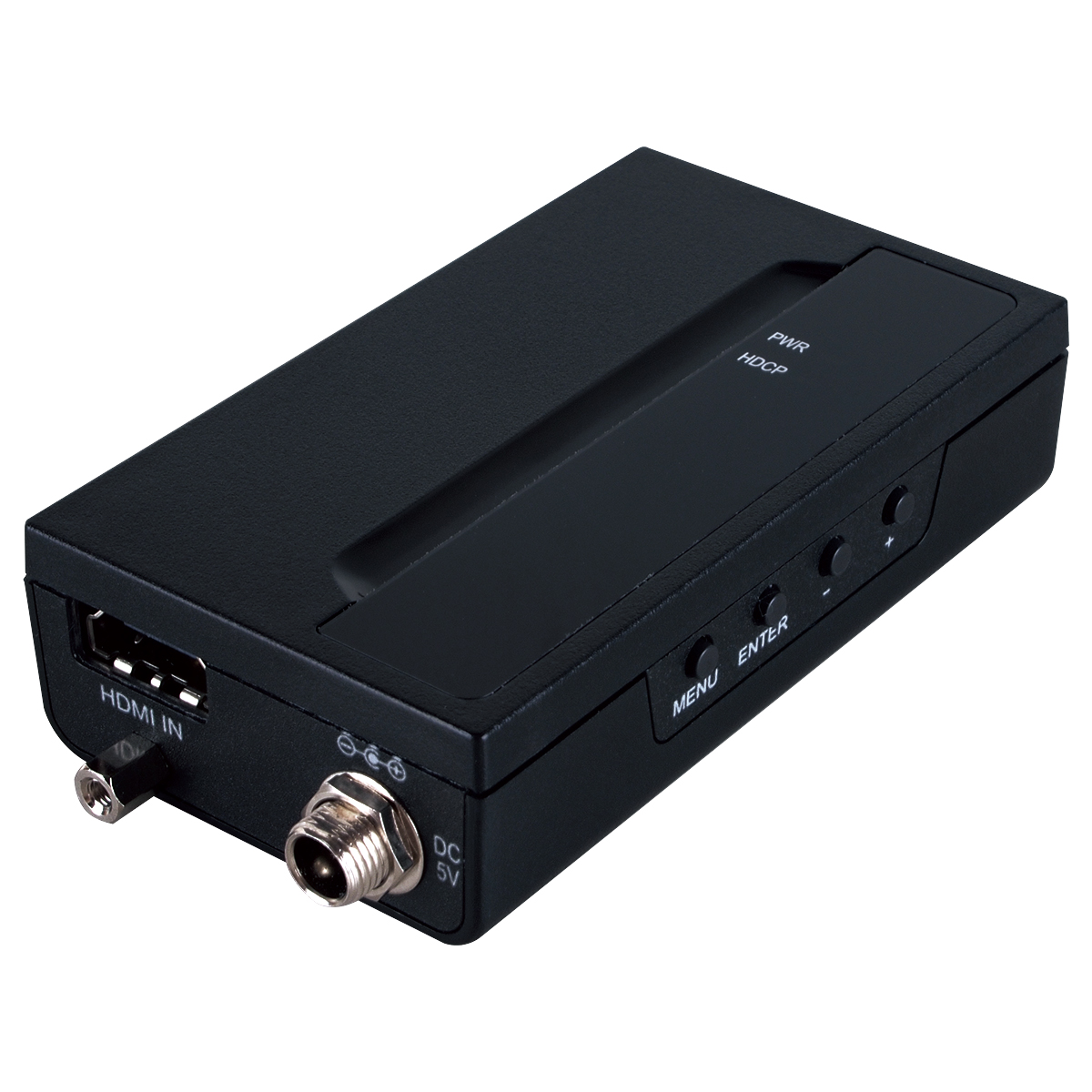

CP-302MN Compact HDMI to HDMI Scaler Box
Please sign in so that we can notify you about a reply

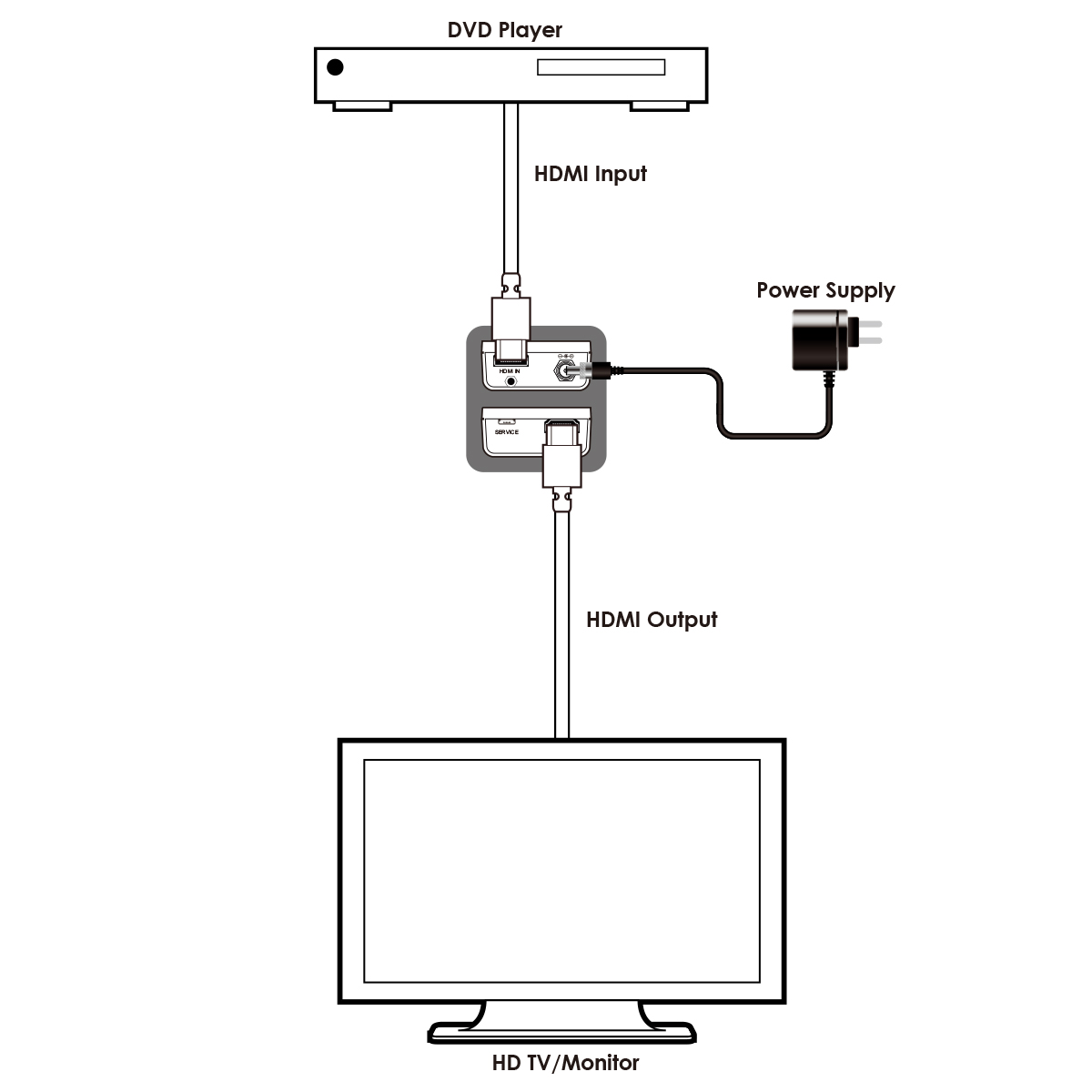

The compact HDMI to HDMI Scaler box is designed to scale HDMI sources, either HD or PC resolution, to an alternative HDMI resolution (HD or PC). Both of maximum support input and output resolution is up to 1920 x 1200. The HDMI, HDCP and DVI are compliant which is perfect solution for the integration of sources where resolution and/or resolution type requires conversion. The video contrast, brightness, hue and saturation are able to be adjusted manually.
Features
- Manual adjustments for contrast, brightness, hue and saturation are achievable
- Free run output mode that provides stable timing once no video input is present
- Maximum pixel rate 165Mhz on output and 225Mhz on input. Support resolution up to 1920x1200@60RB and 1080P@60
- Support LPCM, Bitstream and HD Bitstream audio
- Support audio mute and maximum audio sampling rate of 192kHz
- Supports color space, frame rate and deep color conversion
- Supports CEC bypass
- Supports Native EDID copies from sink device such as TV
- Easily firmware update via USB in field
Brand:
Cypress Technology
Specifications
Product Type:
HDMI to HDMI Scaler
Maximum Operating Temperature:
+40°C
Special Features:
Supports Color Space, Frame Rate and Deep Color Conversion, Supports CEC Bypass, Supports Native EDID Copies From Sink Device Such as TV, Easily Firmware Update Via USB in Field
Power Rating:
2.42W
Chassis Color:
Black
Chassis Material:
Plastic
Applications:
Convert and Integrate HD Resolution Output to PC Systems, Convert and Integrate PC Resolution Output to HD Systems, Downscale Full HD (1080p) Resolution Output for HD Ready Displays
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
HDMI to HDMI Scaler, 1x5V/2.6A DC Power Adaptor, Operation Manual
Performance
Resolution:
HDMI:1080pixels (Input), HDMI:1080pixels (output)
HDMI Compliance Type:
1.3 (DVI 1.0)
HDCP Compliance Type:
1.4
Signal Format:
HDMI
Inputs and Ports

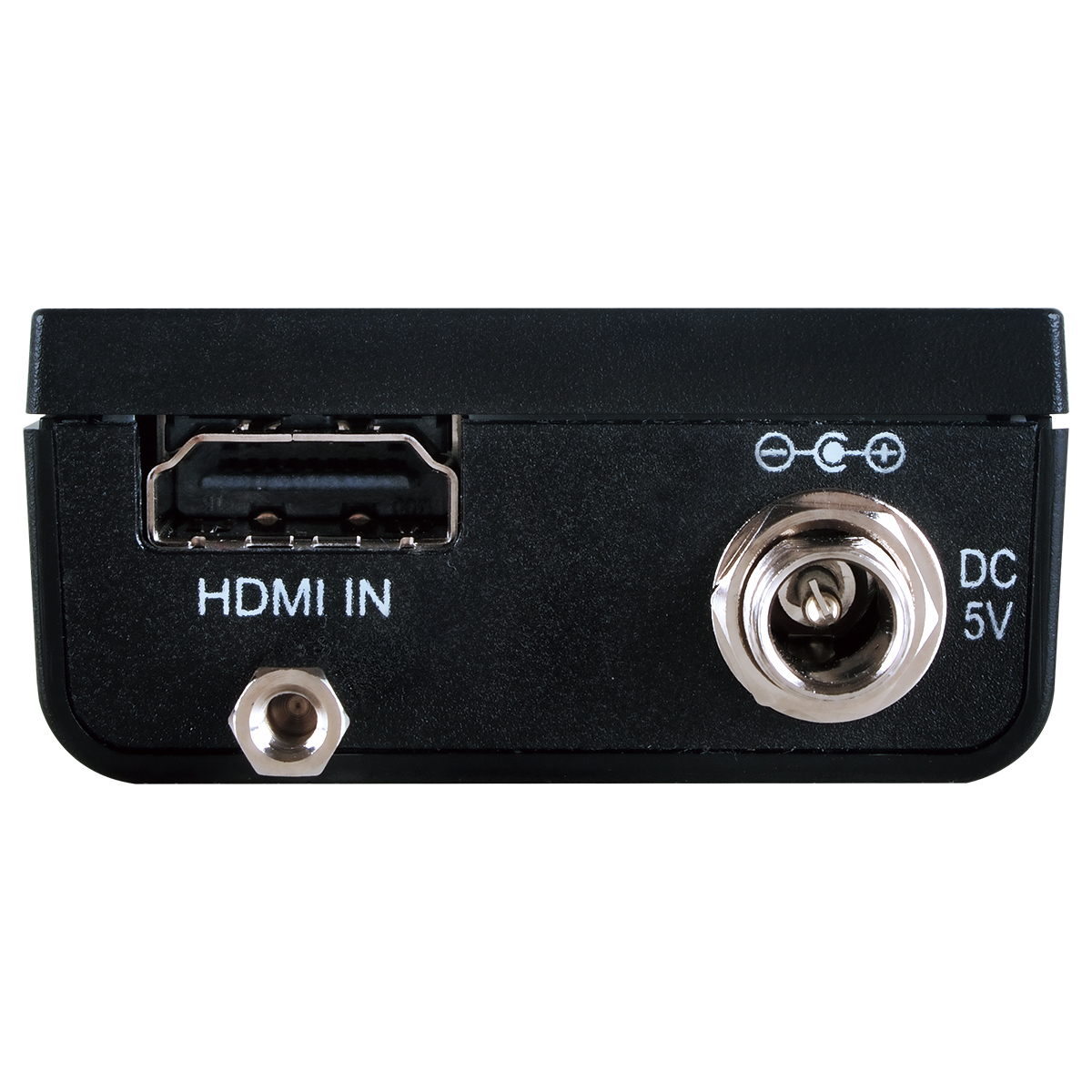

Input Port Type:
1xHDMI, 1xMini USB

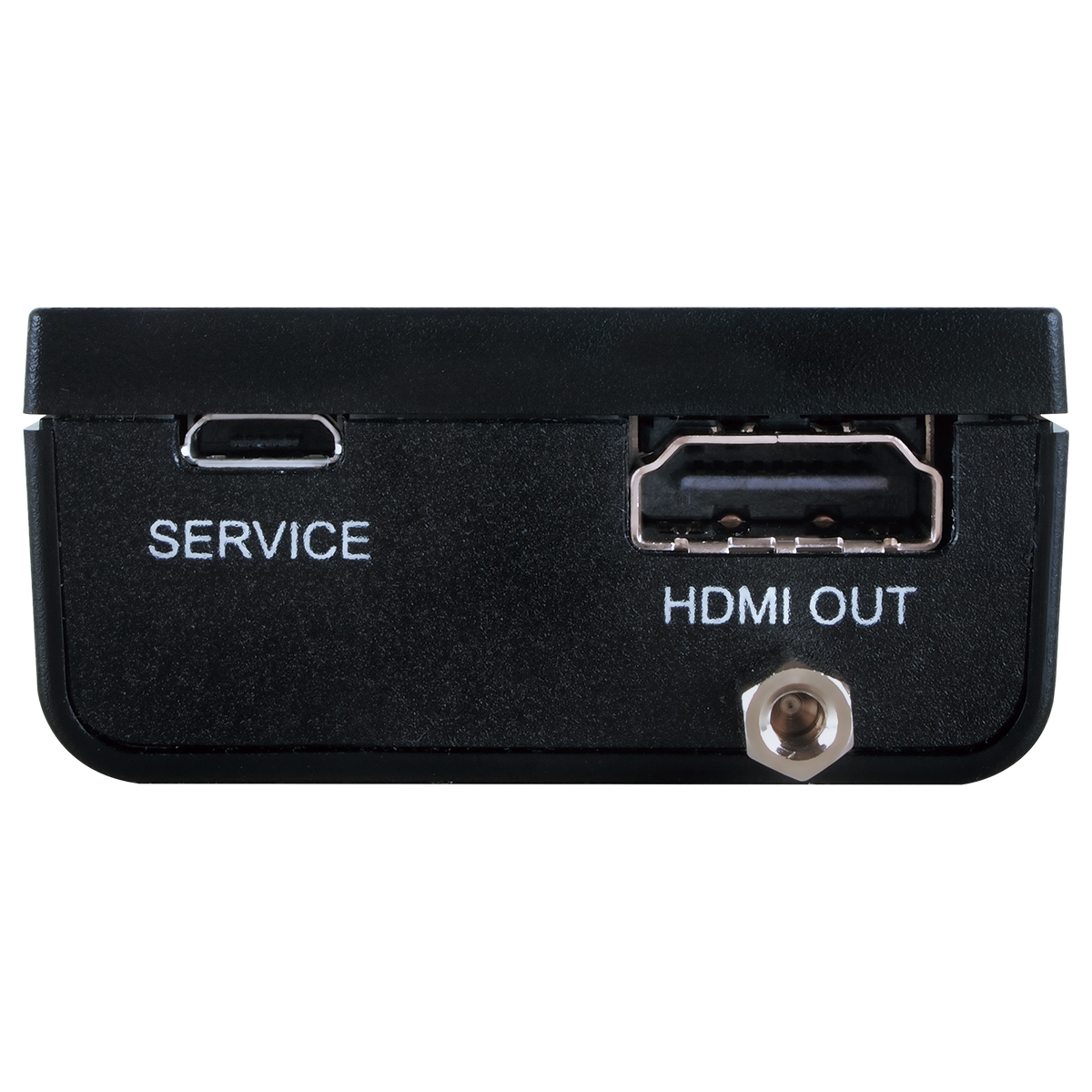

Output Port Type:
1xHDMI
Power
Current Rating:
2.6A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±6kV (Contact Discharge)
Dimensions
Length:
8.5cm
Width:
5cm
Depth:
9.8cm
Height:
2.2cm
Weight:
75g
Other
Voltage Rating:
5V
Voltage Rating:
5V
