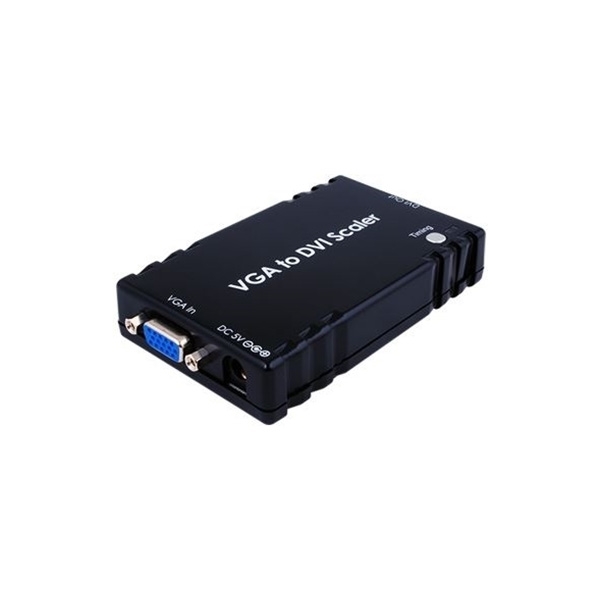

CP-300VD VGA to DVI Scaler
Please sign in so that we can notify you about a reply
This Scaler Box is design to display your VGA image on the DVI monitor with better viewing image. It can upscale VGA input sources to DVI output for wide-range of PC resolution; the resolution supports from VGA to WUXGA. This unit allows user with a variety of output resolutions and adjust for the best picture quality. Move over, with built-in hot-key OSD function and display it helps user to view and select the desire resolution instantly.
Features- Support PC resolution bypass from VGA to WUXGA@60RB
- Supports bypass mode, manual mode and TV native mode
- Auto-Detection and Hot plug
Brand:
Cypress Technology
Product Type:
VGA to DVI Scaler
Specifications
Silkscreen Colour:
Black
Maximum Operating Temperature:
40°C
Colour:
Black (Silkscreen)
Special Features:
Auto-Detection and Hot Plug
Power Rating:
100W
Chassis Material:
Plastic
Applications:
Convert PC Timing into VI Timing, Convert Analog RGB Signal into Digital RGB DVI Signal
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
5V DC Power Adaptor, Operation Manual
Performance
Resolution:
1080Pixel
Inputs and Ports
Input Port Type:
1xVGA
Output Port Type:
1xDVI
Power
Current Rating:
1A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±6kV (Contact Discharge)
Dimensions
Width:
11cm
Depth:
6.2cm
Height:
2cm
Weight:
76g
Other
Voltage Rating:
5V DC
Standards Met:
US, EU, CE, FCC, UL
