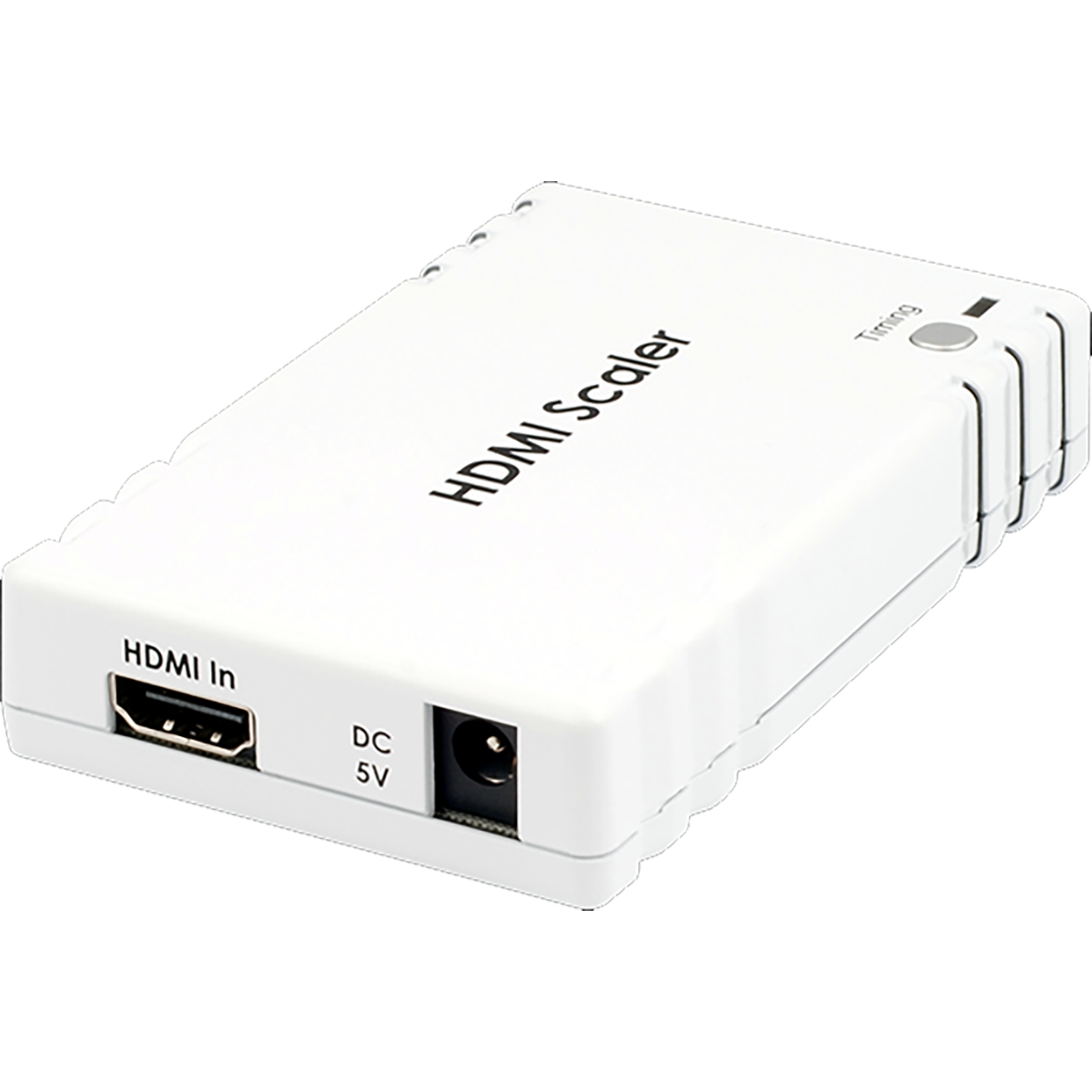

CP-298H HDMI to HDMI Scaler Box
Please sign in so that we can notify you about a reply
This Scaler Box is designed to display your HD images on a HDTV. It can upscale HDMI input sources to HDMI output for a wide-range of HD resolutions; the resolution supported include XGA/UXGA/720p/1080p/1366 x 768/1440 x 900/1400 x 1050. This unit provides you with a variety of output resolutions in order to give you the best picture quality. Move over, with a built-in hot-key OSD this Scaler helps users to view and select the desired resolution instantly.
Features- Input supports HDMI v1.2
- Supports HD resolution input: VGA to WSXGA, WUXGA@60 (Reduce Blanking)/ 1366X768/1440X900/1400X1050/480p@60, 720p@60, 1080p@60
- Fast switch hot key from 720p to 1080p/1280 x 800/1366 x 768/1920 x 1200(RB)
- Interlaced progressive conversion
Brand:
Cypress Technology
Product Type:
HDMI to HDMI Scaler Box
Specifications
Silkscreen Colour:
White
Maximum Operating Temperature:
40°C
Colour:
White (Chassis, Silkscreen)
Special Features:
Auto-Detection and Hot Plug, Interlaced Progressive Conversion with Various Picture Display
Power Rating:
2.7W
Chassis Material:
Plastic
Applications:
PC Timing Converted into HD Timing, HD Timing Converted into PC Timing
Humidity:
20 to 90%
Chassis Colour:
White
Minimum Operating Temperature:
0°C
Includes:
5V DC Power Adaptor, Operation Manual
Performance
Resolution:
1080Pixel (Input HDMI), 1080Pixel (Output HDMI)
Graphic Resolution:
1366X768/1440X900/1400X1050/480Pixel@60, 720Pixel@60, 1080Pixel@60
HDMI Compliance Type:
HDMI 1.2, DVI 1.0
HDCP Compliance Type:
1.4
Signal Format:
HDMI
Inputs and Ports
Input Port Type:
1xHDMI
Output Port Type:
1xHDMI
Power
Current Rating:
1A
Dimensions
Width:
11.4cm
Depth:
6.5cm
Height:
2.6cm
Weight:
78g
Other
Voltage Rating:
5V DC
Standards Met:
US, EU, CE, FCC, UL
