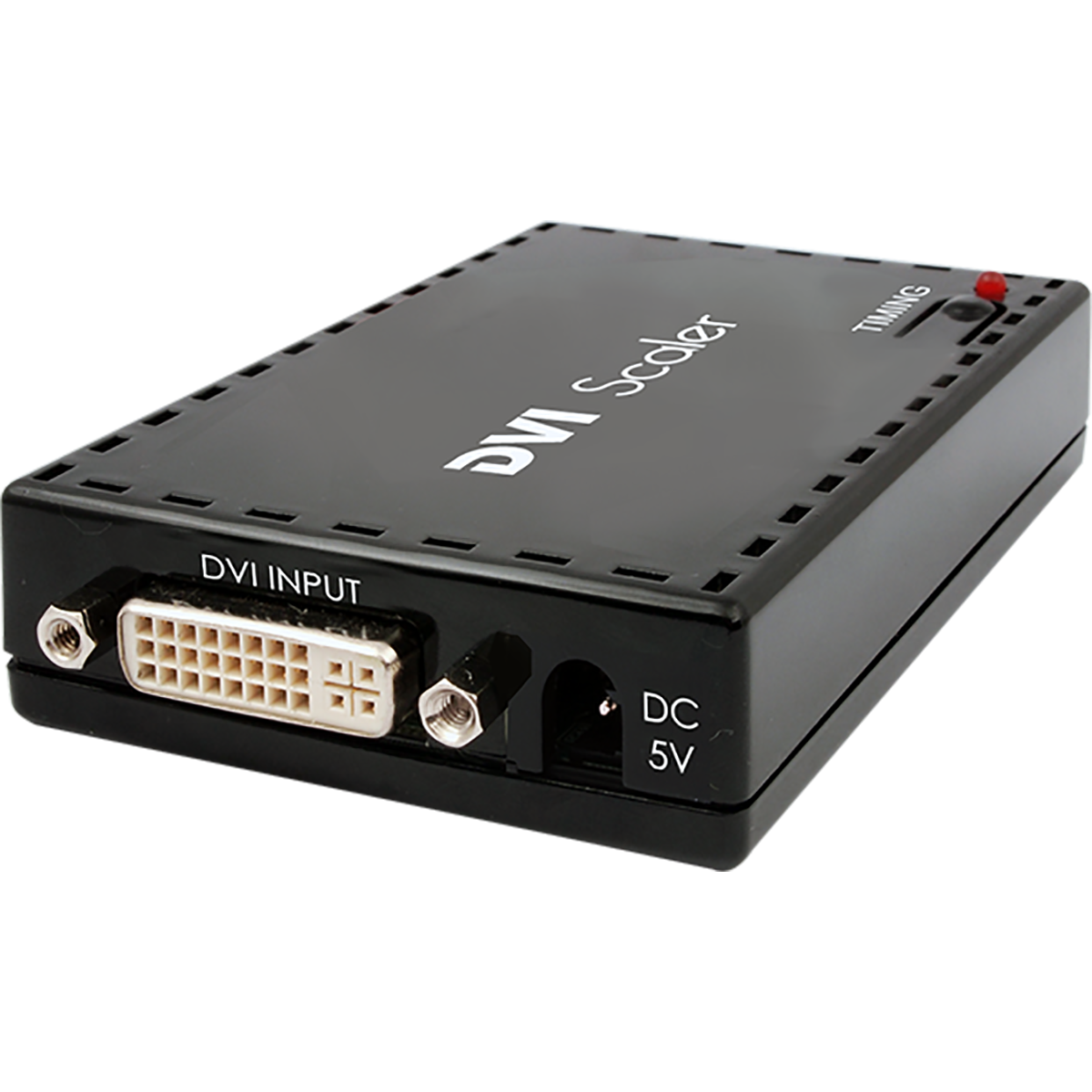

CP-298D DVI to DVI Scaler Box
Please sign in so that we can notify you about a reply
This Scaler Box is design to display your DVI images on the HDTV with better viewing image. It can upscale DVI input sources to DVI output for wide-range of HD resolutions;the resolution support XGA/UXGA/720p/1080p/ 1366 x 768/1440 x 900/1400 x 1050. This unit allows user to with a variety of output resolutions and adjust for the best picture quality. Move over, with built-in hot-key OSD function and display it helps user to view and select the desire resolution instantly.
Features
- Output supports HDMI 1.2, HDCP 1.1 and DVI 1.0 compliant
- HDCP compliant
- Input supports HDMI v1.3 8/10/12-bit deep color mode
- Support HD resolution input: VGA~WSXGA, WUXGA (Reduce Blanking)/ 1366x768/1440x900/1400x1050/480p@60, 720p@60, 1080p@60
- Fast switch hot key from 720p to 1080p/1280x800/1366x768/1920x1200(RB)
- Auto –Detection and Hot plug
- Interlaced to progressive conversion with various picture display supplement
Brand:
Cypress Technology
Product Type:
DVI to DVI Scaler Box
Specifications
Maximum Operating Temperature:
+40°C
Silkscreen Color:
Black
Special Features:
Auto-Detection and Hot Plug, Interlaced to Progressive Conversion with Various Picture Display Supplement
Power Rating:
2.7W
Chassis Material:
Plastic
Applications:
Convert HD Timing Into PC Timing, Convert PC Timing into HD Timing
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
DVI to DVI scaler box, 5V DC Power Adaptor, Operation Manual
Performance
Resolution:
Support HD Resolution Input: VGA-WSXGA, WUXGA (Reduce Blanking)/ 1366x768/1440x900/1400x1050/480pixels@60Hz, 720pixels@60Hz, 1080pixels@60Hz
HDMI Compliance Type:
1.2
HDCP Compliance Type:
1.1
Signal Format:
HDMI
Inputs and Ports

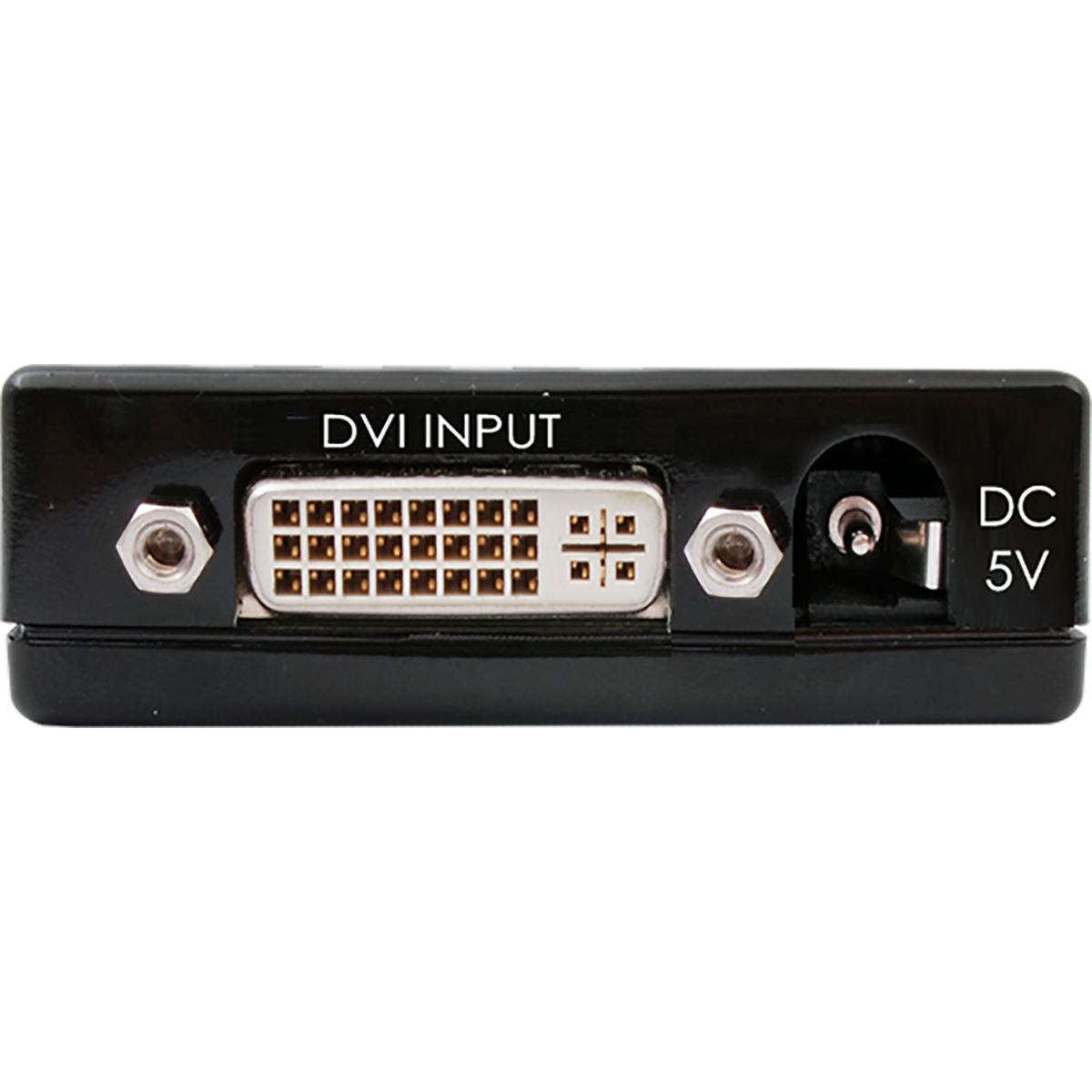

Input Port Type:
1xDVI

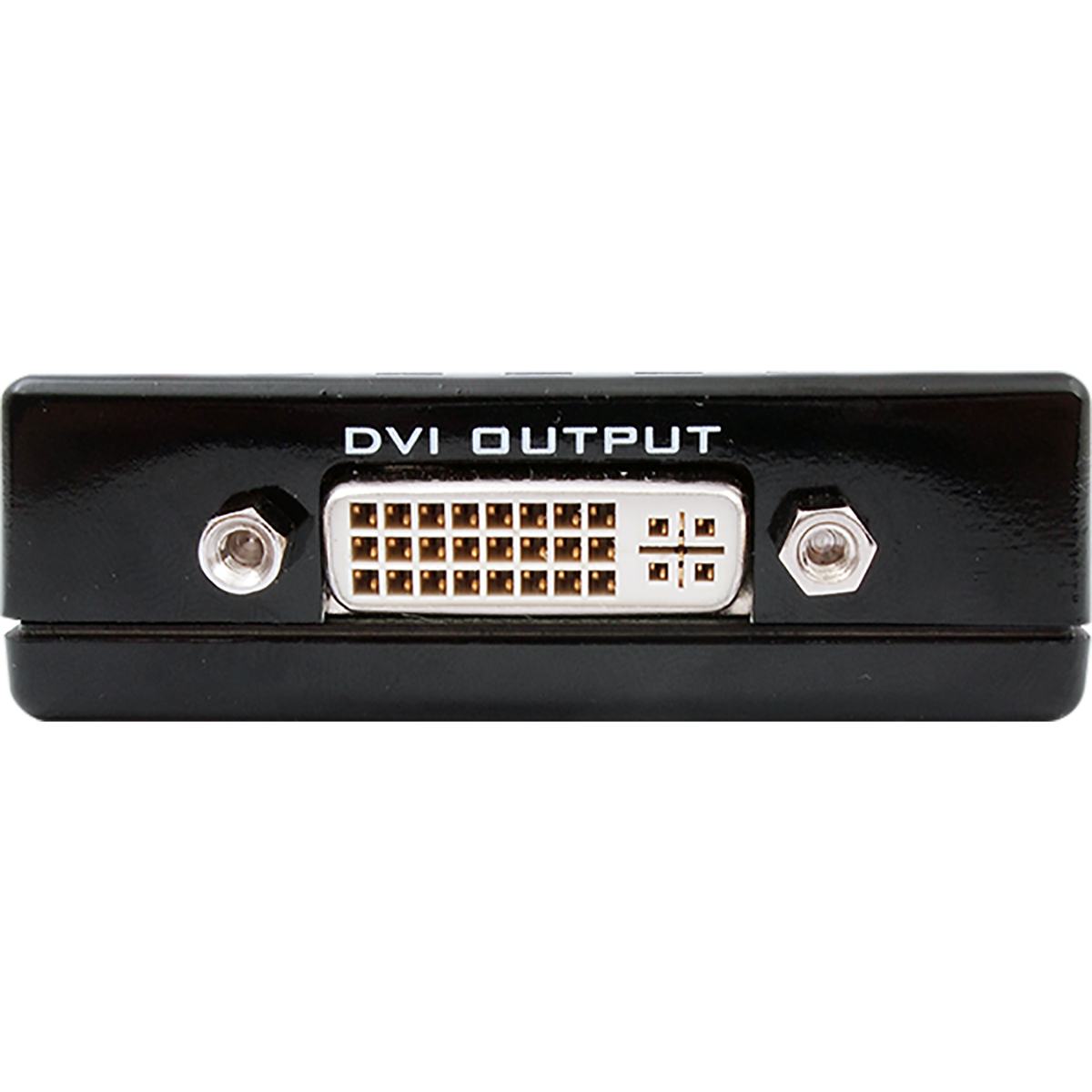

Output Port Type:
1xDVI
Power
Current Rating:
1A
Dimensions
Width:
11.4cm
Depth:
6.5cm
Height:
2.6cm
Weight:
88g
Other
Voltage Rating:
5V
Voltage Rating:
5V
Standards Met:
UL Listed, CE, FCC Complaint
