CP-295NN CV/SV to HDMI Scaler
Please sign in so that we can notify you about a reply
Brand:
Cypress Technology
Product Type:
CV/SV to HDMI Scaler
Specifications
Silkscreen Colour:
Black
Maximum Operating Temperature:
40°C
Colour:
Black (Chassis, Silkscreen)
Control Port Type:
1xUSB2.0 (Type A)
Special Features:
Supports 50/60Hz Frame Rate Conversion, Supports Full Range of Video Resolution From NTSC, NTSC4, PAL, PAL-M, PAL-N and SECAM
Power Rating:
4.1W
Chassis Material:
Aluminium
Applications:
Displaying Video Contents on to HDMI Display, Analog Video Signal Enlargement on to HD Screen, Lecture Room, Showroom, Meeting Room, Classroom Signal Display
Humidity:
20 to 90%
Chassis Colour:
Black
Minimum Operating Temperature:
0°C
Includes:
(1) Stereo Audio Cable (2RCA), (1) Composite Video Cable, (1) 5V/2.6A DC Power Adaptor, Operation Manual
Performance
Resolution:
480i@60/576i@50Hz (Input CV/SV), 1080Pixel@60Hz (Output HDMI)
Graphic Resolution:
1080Pixel
HDMI Compliance Type:
HDMI 1.3
HDCP Compliance Type:
1.4
Video Bandwidth:
225MHz / 6.75Gbps
Signal Format:
HDMI
Inputs and Ports

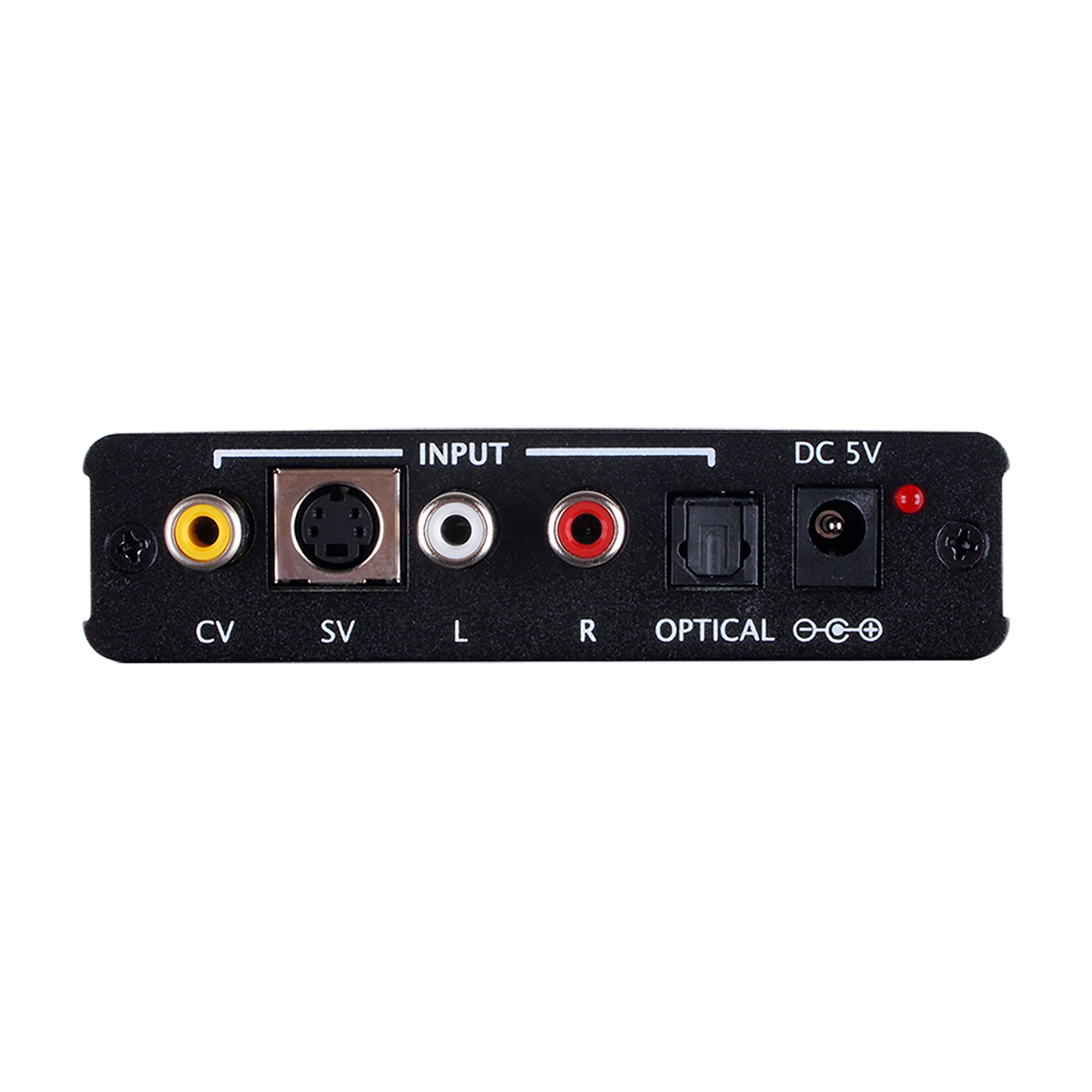

Input Port Type:
1xCV (RCA), 1xSV (4 Pin Mini-DIN), 1xAnalog Stereo (RCA), 1xOptical (TOSLINK)

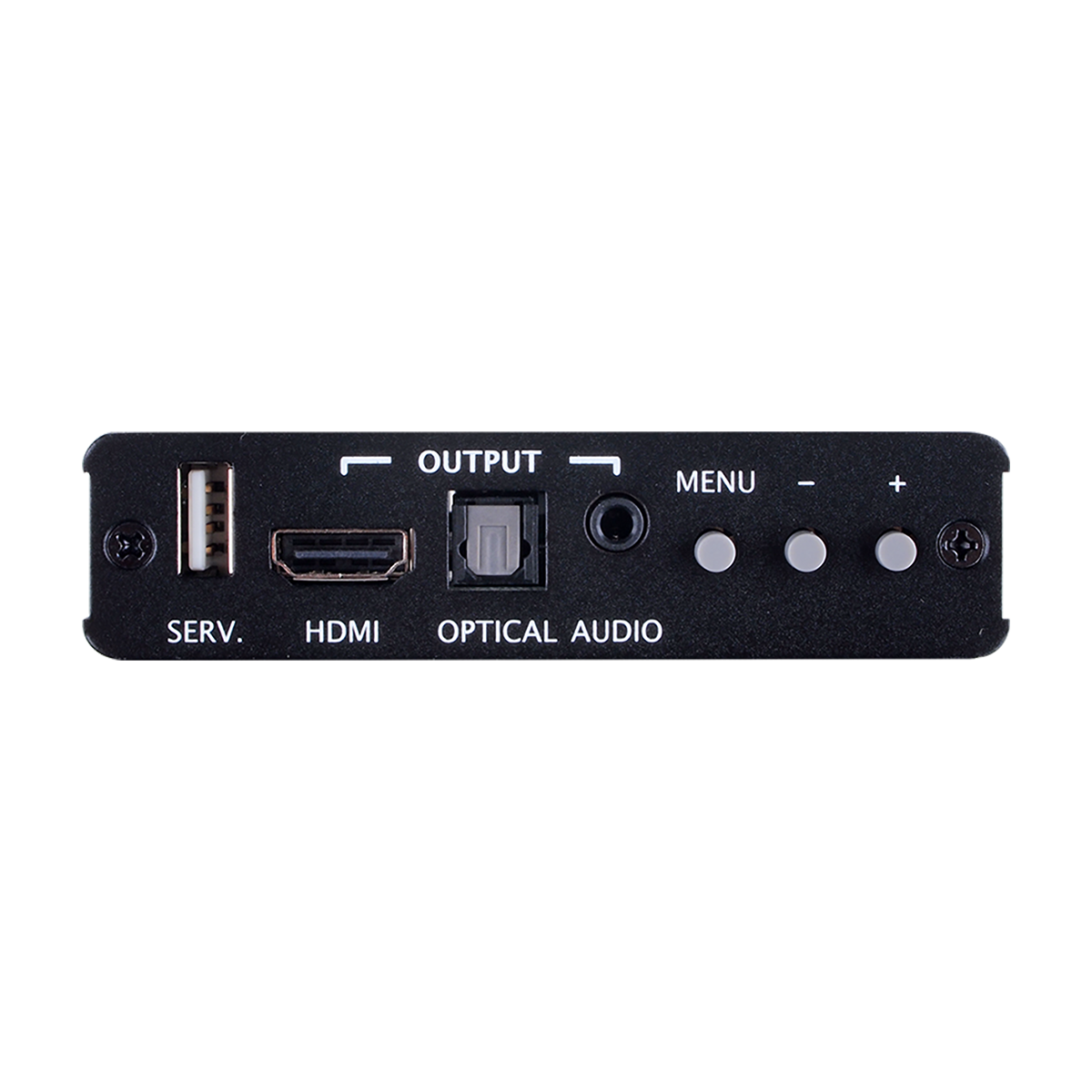

Output Port Type:
1xHDMI (Type-A), 1xAnalog Stereo (RCA), 1xOptical (TOSLINK)
Power
Current Rating:
2.6A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±6kV (Contact Discharge)
Dimensions
Width:
10.2cm
Depth:
2.5cm
Height:
18.6cm
Weight:
396g
Other
Voltage Rating:
5V DC
Standards Met:
US, EU, CE, FCC, UL
