CP-294 CP-294 HD to HDMI 1080p Scaler Box
Please sign in so that we can notify you about a reply
This Scaler Box is designed to upscale digital video signal from HD input source to digital HDMI output of wide-range HDTV and PC resolutions, up to 1080p/WUXGA. Besides HD upscaling, the scaler box also converts digital/analog audio signal to digital/analog format, then output to HDMI combining with the video, TOSLink (Optical fiber), and phone jack (L/R audio) simultaneously. This unit has a comprehensive OSD menu that allows user to select a variety of output resolutions and adjust for best picture quality.
Features
- HDMI 1.2, HDCP 1.1 and DVI 1.0 compliant.
- Scales any HD resolutions to PC (VGA ~ WUXGA)/ HD (480i ~ 1080p) resolutions.
- Automatically detect the factory setting of the connected display and output the corresponding resolution and refresh rate, when the NATIVE output is selected.
- Provides output picture adjustment on contrast, brightness, hue, saturation, sharpness, RGB (color tone) level and aspect ratio size.
- Supports high resolution output (See section “6.2. Supports Resolution” for reference.): PC: VGA, SVGA, XGA, SXGA, UXGA, WXGA, WSXGA, WUXGA. SD/HD: 480i, 576i, 480p, 576p, 720p, 1080i and 1080p
- Supports stereo LPCM analog/digital audio input and stereo LPCM analog/digital output. Simply select among the audio input sources in the OSD menu, then output the audio to HDMI, TOSLink and phone jack simultaneously.
Brand:
Cypress Technology
Specifications
Product Type:
HDMI Scaler
Maximum Operating Temperature:
+40°C
Silkscreen Color:
Silver
Special Features:
Provides Picture Adjustment on Contrast, Brightness, Hue, Saturation, Sharpness, RGB (colour Tone) Level and Aspect Ratio Size
Chassis Material:
Aluminium
Applications:
Supports Stereo LPCM Analog/Digital Audio Input and Stereo Lpcm analog/Digital Output
Minimum Operating Temperature:
0°C
Includes:
HD to HDMI 1080p Scaler Box, 5VDC Power Supply Adaptor, Operation Manual
Performance
Resolution:
PC:VGA, SVGA, XGA, SXGA, UXGA, WXGA, WSXGA, WUXGA. SD/HD: 480i, 576i, 480pixels, 576pixels, 720pixels, 1080i and 1080pixels
HDMI Compliance Type:
1.2
HDCP Compliance Type:
1.1
Signal Format:
HDMI
Inputs and Ports
Input Port Type:

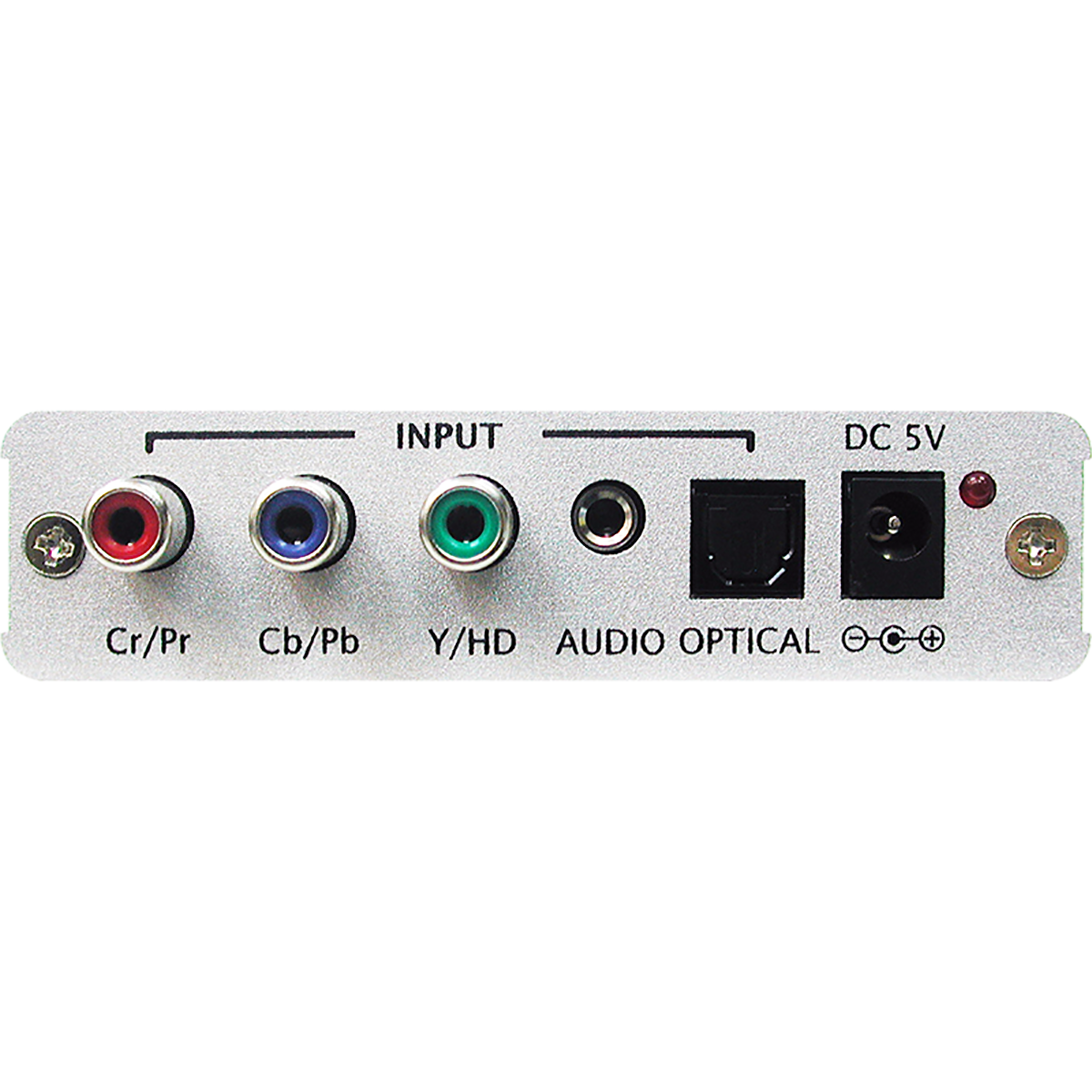

1xComponent (Cr/Pr, Cb/Pb, Y/HD), 1x3.5mm Phone Jack/1xTOSLink (Optical Fibre)
Output Port Type:

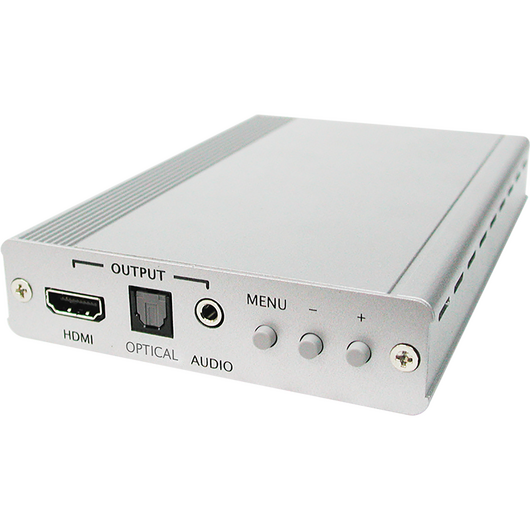

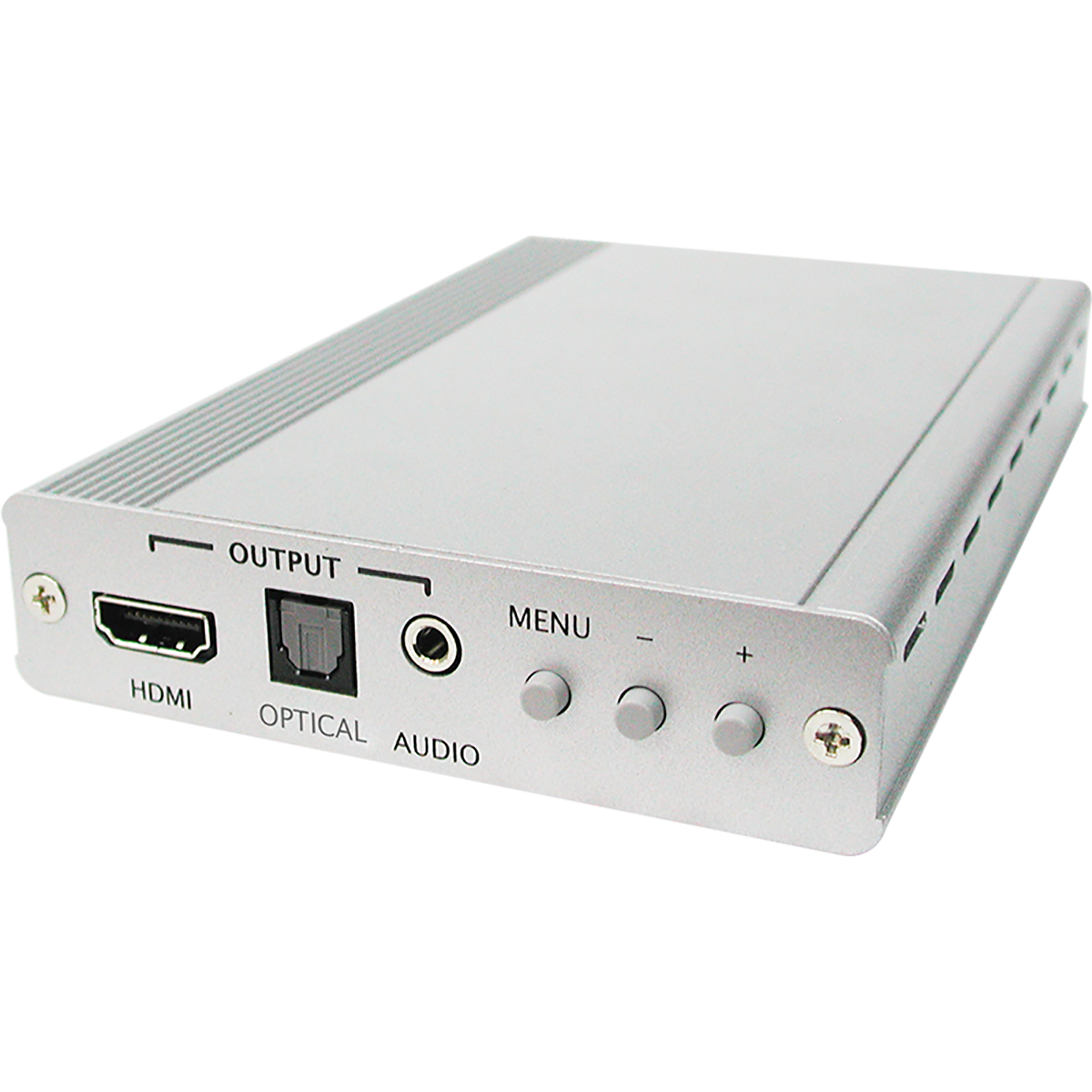

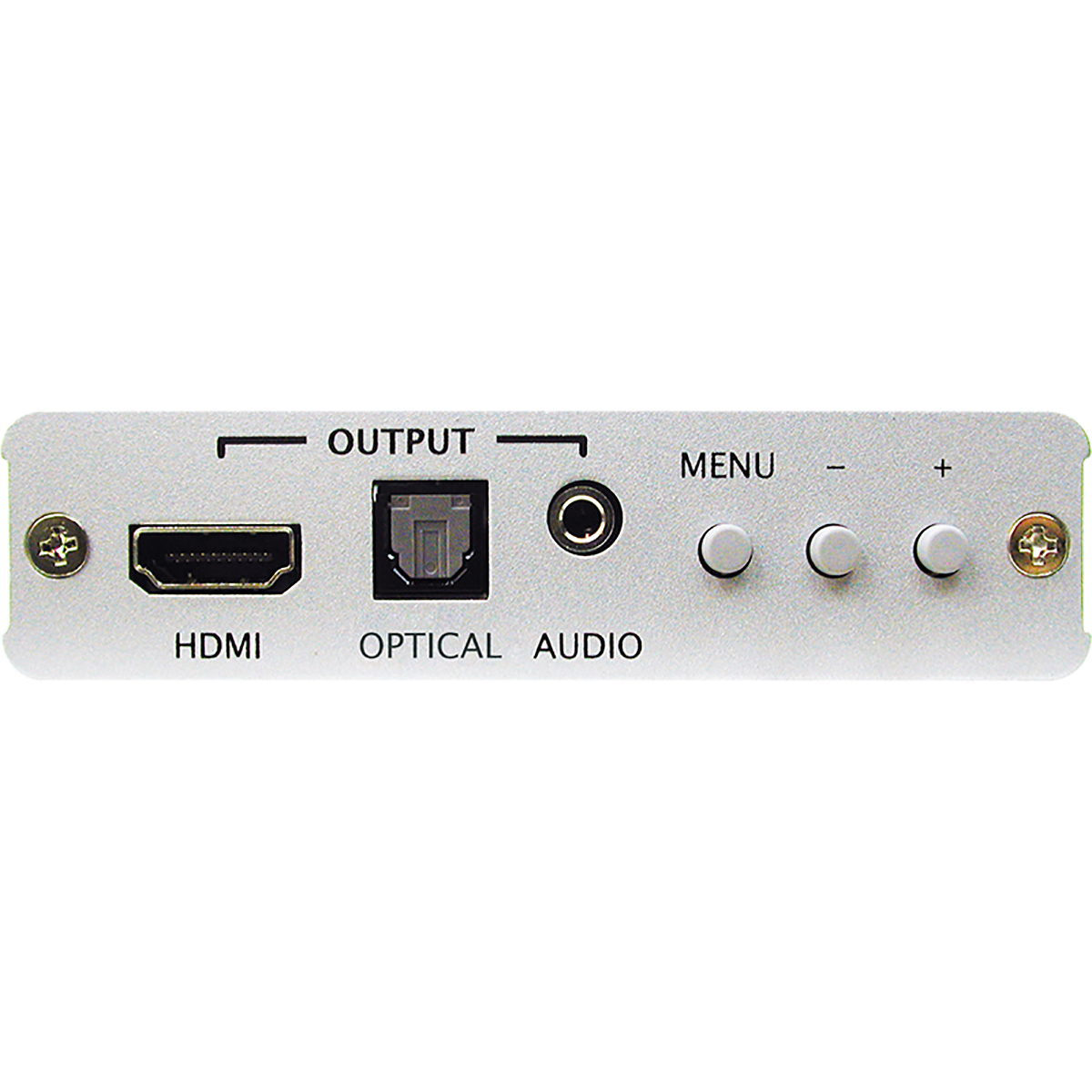

1xHDMI, 1x3.5mm Phone Jack, 1xTOSLink (optical fiber)
Power
Current Rating:
2.6A
Dimensions
Width:
15.4cm
Depth:
10cm
Height:
2.5cm
Weight:
340g
Other
Voltage Rating:
5V
Voltage Rating:
5V
Standards Met:
UL Listed, CE, FCC Complaint
