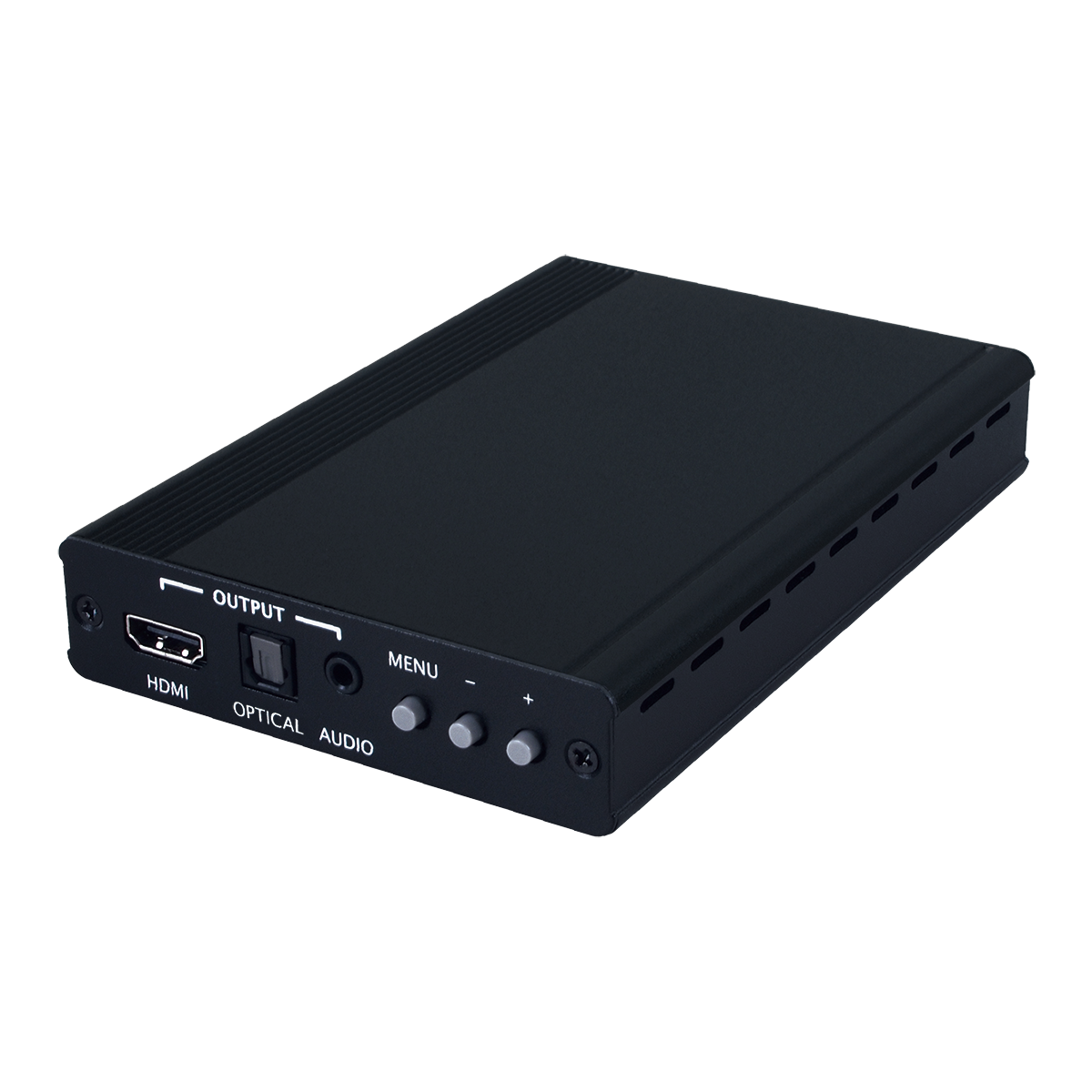

CP-293 PC/HD to HDMI Scaler
Please sign in so that we can notify you about a reply
Brand:
Cypress Technology
Product Type:
PC/HD to HDMI Scaler
Specifications
Silkscreen Colour:
Black
Maximum Operating Temperature:
40°C
Colour:
Black (Chassis, Silkscreen)
Special Features:
Supports Stereo LPCM Analog/Digital Audio Input and Stereo LPCM Analog/Digital Output by Selecting Among the Audio Input Sources in the OSD Menu and Simultaneously Output to HDMI, Optical and Phone Jack
Power Rating:
4.8W
Chassis Material:
Aluminium
Applications:
Displaying PC Contents on to HDMI Display, Household PC Signal Enlargement on to TV, Lecture Room, Showroom, Meeting Room, Classroom Signal Display
Humidity:
20 to 90%
Chassis Colour:
Black
Minimum Operating Temperature:
0°C
Includes:
(1) D-Sub to D-Sub Cable, (1) 3.5mm to L/R Cable, (1) 5V/2.6A DC Power Adaptor, Operation Manual
Performance
Resolution:
WUXGA & 1920x1200Pixel@60RB, (Input VGA), 1080Pixel & WUXGA@60RB (HDMI Output)
Graphic Resolution:
1080Pixel
HDMI Compliance Type:
HDMI 1.3, DVI 1.0
HDCP Compliance Type:
1.4
Video Bandwidth:
225MHz/6.75Gbps
Signal Format:
HDMI
Inputs and Ports
Input Port Type:

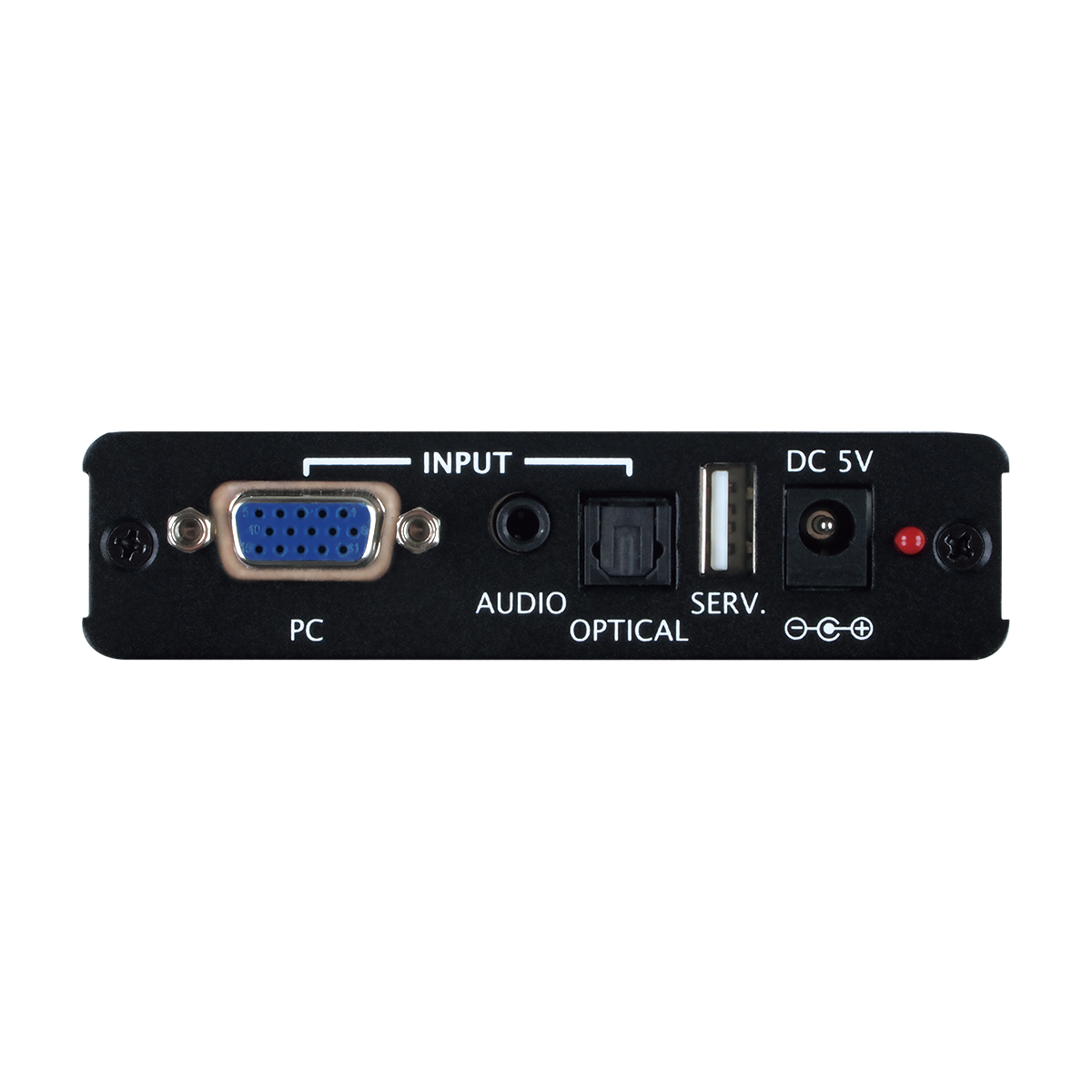

1xD-Sub 15-pin, 1xAnalog Stereo (3.5mm), 1xOptical, 1xUSB (Service Only)
Output Port Type:

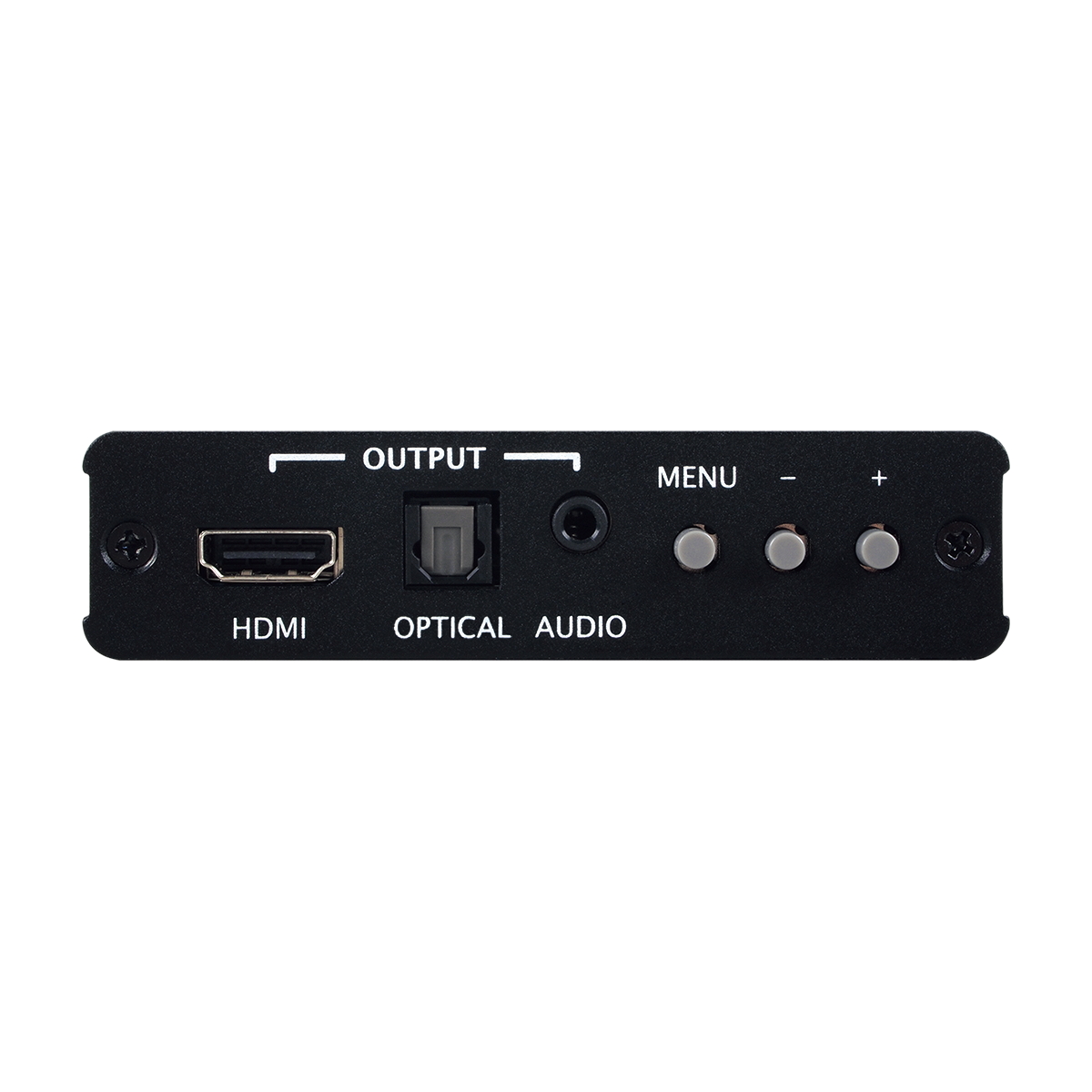

1xHDMI, 1xOptical, 1xAnalog Stereo (3.5mm)
Power
Current Rating:
2.6A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±6kV (Contact Discharge)
Dimensions
Width:
10.2cm
Depth:
15.7cm
Height:
2.5cm
Weight:
340g
Other
Voltage Rating:
5V DC
Standards Met:
US, EU, CE, FCC, UL
