CP-290 HD/PC/DVI/HDMI to HDMI Scaler Box
Please sign in so that we can notify you about a reply
This Scaler Box is design to display your PC/HD images on the LCDTV with better viewing image. It can upscale PC/DVI input sources to HDMI output for wide-range PC/HD resolutions; PC/DVI/HD/HDMI Supports XGA/UXGA/720p/1080p. This unit allows user to select a variety of output resolutions/format, color space and adjust for the best picture quality. Further, it also transfer sounds through HDMI for users to enjoy both HD images and sounds consistently.
Features
- HDMI 1.3, HDCP 1.1 and DVI 1.0 compliant.
- Supports PC/HD resolution input:
HDMI: 480p~1080p50/60
DVI : VGA~WUXGA
PC : VGA~WUXGA
HD : 480i~1080p50/60Hz
- Scale PC/HD/DVI/HDMI resolutions to XGA/UXGA/720p/1080p resolutions.
- Supports PC/HD&DVI/HDMI to HDMI output.

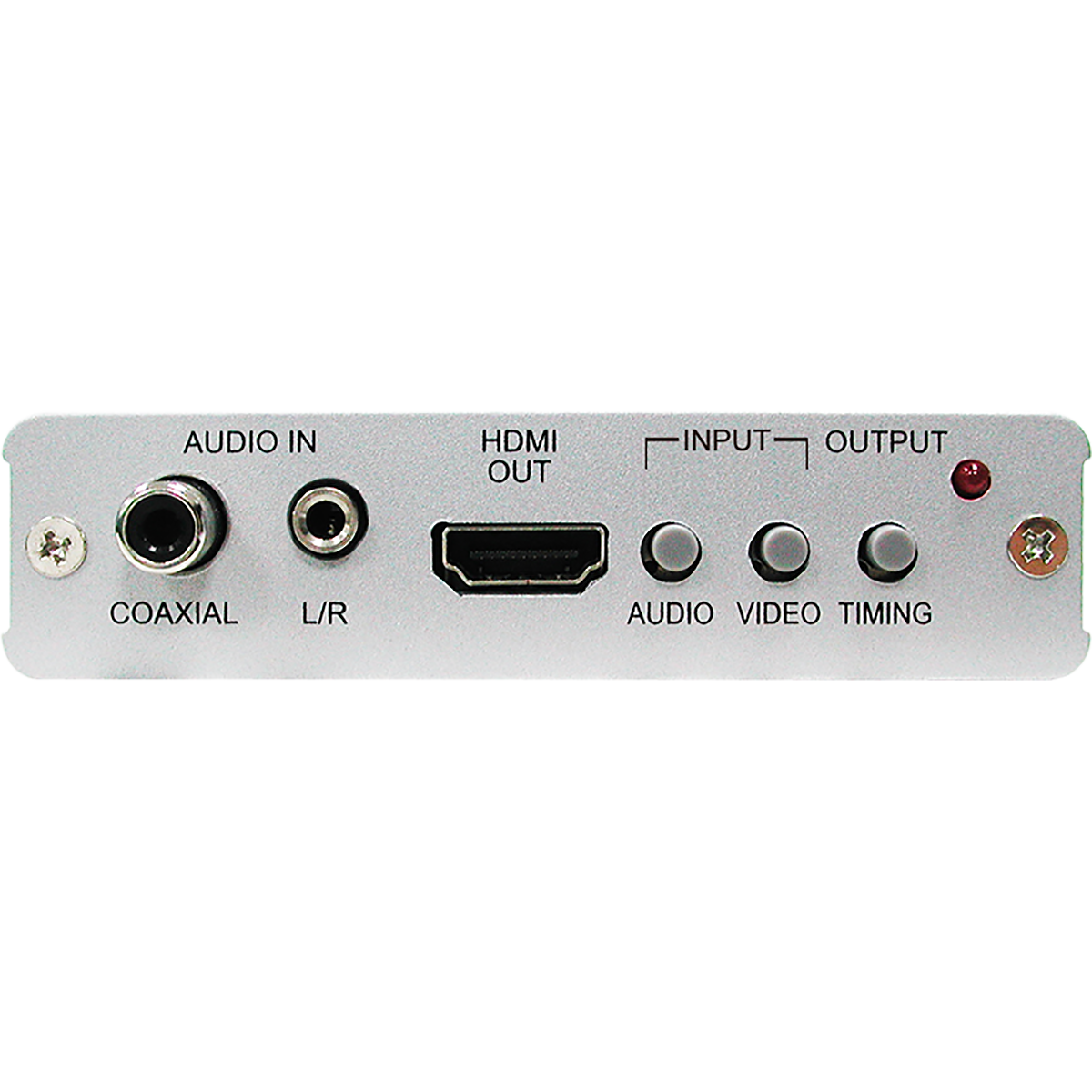

- Transfer L/R and coaxial sounds to HDMI.
- Input and output selection botton's for quick and easy function choose.
Brand:
Cypress Technology
Product Type:
Multi Format HDMI Scaler
Specifications
Maximum Operating Temperature:
+40°C
Special Features:
Transfer L/R and Coaxial Sounds to HDMI
Power Rating:
3.5W
Chassis Color:
Silver
Chassis Material:
Aluminium
Applications:
Integrated EDID and HDCP management
Minimum Operating Temperature:
0°C
Includes:
HD/PC/DVI/HDMI to HDMI/DVI Scaler Box, Power Adaptor, Operation Manual
Performance
Resolution:
HDMI:4096x2160pixels@60Hz (Input), HDMI:4096x2160pixels@60Hz (Output)
HDMI Compliance Type:
1.3
HDCP Compliance Type:
1.1
Signal Format:
HDMI
Inputs and Ports

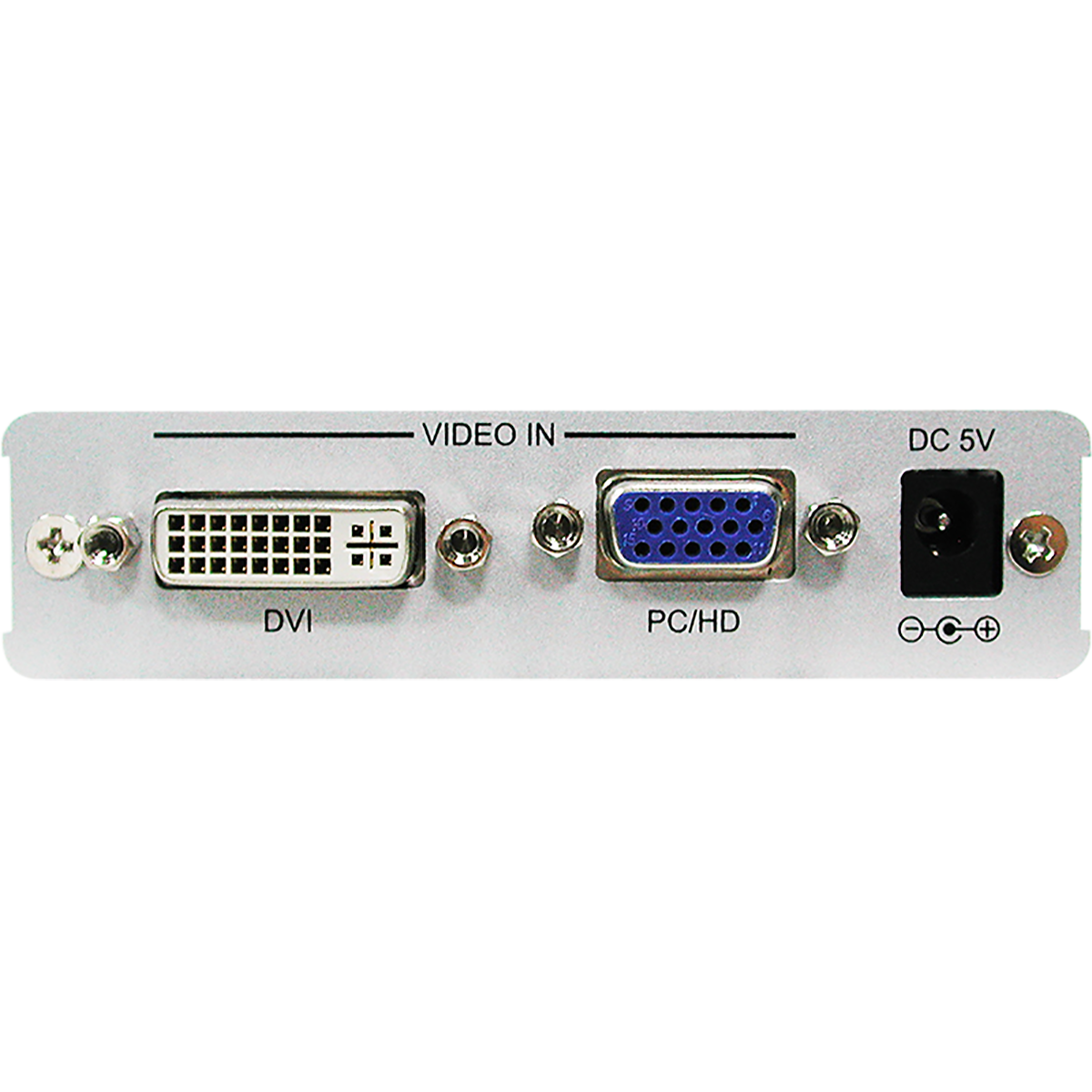

Input Port Type:
1xDVI-I [1xDVI-I], 1xHD-15 [1xPC/HD RGBHV / YCbCr Component], 1xRCA [1xCOAX 2 Channel LPCM], 1x3.5mm [1xStereo(L/R)]
Output Port Type:
1xHDMI [1xUncompressed AV and Data]
Power
Current Rating:
3A
Dimensions
Width:
10.2cm
Depth:
10.2cm
Height:
2.5cm
Weight:
332g
Other
Voltage Rating:
12V
Voltage Rating:
12V
Standards Met:
UL Listed, CE, FCC Complaint
