CP-259HN HDMI to HDMI Scaler, 5 V DC, 2.6 A, 5.5 W
Please sign in so that we can notify you about a reply
This is a compact yet versatile HDMI to HDMI Scaler Box. It accepts HDMI input with a separate Toslink or analog audio and scale it to HDMI output (at a number of selectable resolutions) with additional Toslink and analog audio output. This Scaler Box has a comprehensive OSD menu that allows user to select a variety of output resolutions and adjust for best picture quality. It is ideal for using between incompatible HDMI source and display by changing picture resolution and frame rate of HDMI source to match the native resolution of the HDMI display.
Features- Supports full range of PC resolution from VGA to WUXGA (RB) and HD resolution from 480i to 1080p
- Automatically detect the factory setting of the connected display and output the corresponding resolution and refresh rate, when the NATIVE output is selected
- Supports 50/60Hz frame rate conversion
- Supports 3-D motion video adaptive, 3-D de-interlacing, and 3:2/2:2 pull-down detection and recovery
- Provides output picture adjustment on contrast, brightness, hue, saturation, sharpness, RGB (color tone) level and aspect ratio size
Brand:
Cypress Technology
Specifications
Product Type:
HDMI to HDMI Scaler
Silkscreen Colour:
Black
Maximum Operating Temperature:
40°C
Colour:
Black (Chassis, Silkscreen)
Special Features:
Supports 50/60Hz Frame Rate Conversion, Automatically Detect the Factory Setting of the Connected Display and Output the Corresponding Resolution and Refresh Rate When the Native Output is Selected
Power Rating:
5.5W
Chassis Material:
Aluminium
Applications:
Displaying HDMI Contents on to HDMI Display, Household HDMI Signal Enlargement on to HDTV and Audio Equipment, Lecture Room, Showroom, Meeting Room, Classroom Signal Display
Humidity:
20 to 90%
Chassis Colour:
Black
Minimum Operating Temperature:
0°C
Includes:
(1) 5V/2.6A DC Power Adaptor, Operation Manual
Performance
Resolution:
1920x1080Pixel@60Hz (HDMI Input), 1920×1200Pixel@60RB (HDMI Input), 1920×1080Pixel@60Hz (HDMI Output), 1920×1200Pixel@60RB (HDMI Output)
Graphic Resolution:
480i to 1080Pixel
HDMI Compliance Type:
HDMI 1.3, DVI 1.0
HDCP Compliance Type:
1.4
Video Bandwidth:
225MHz/6.75Gbps
Signal Format:
HDMI
Inputs and Ports
Input Port Type:

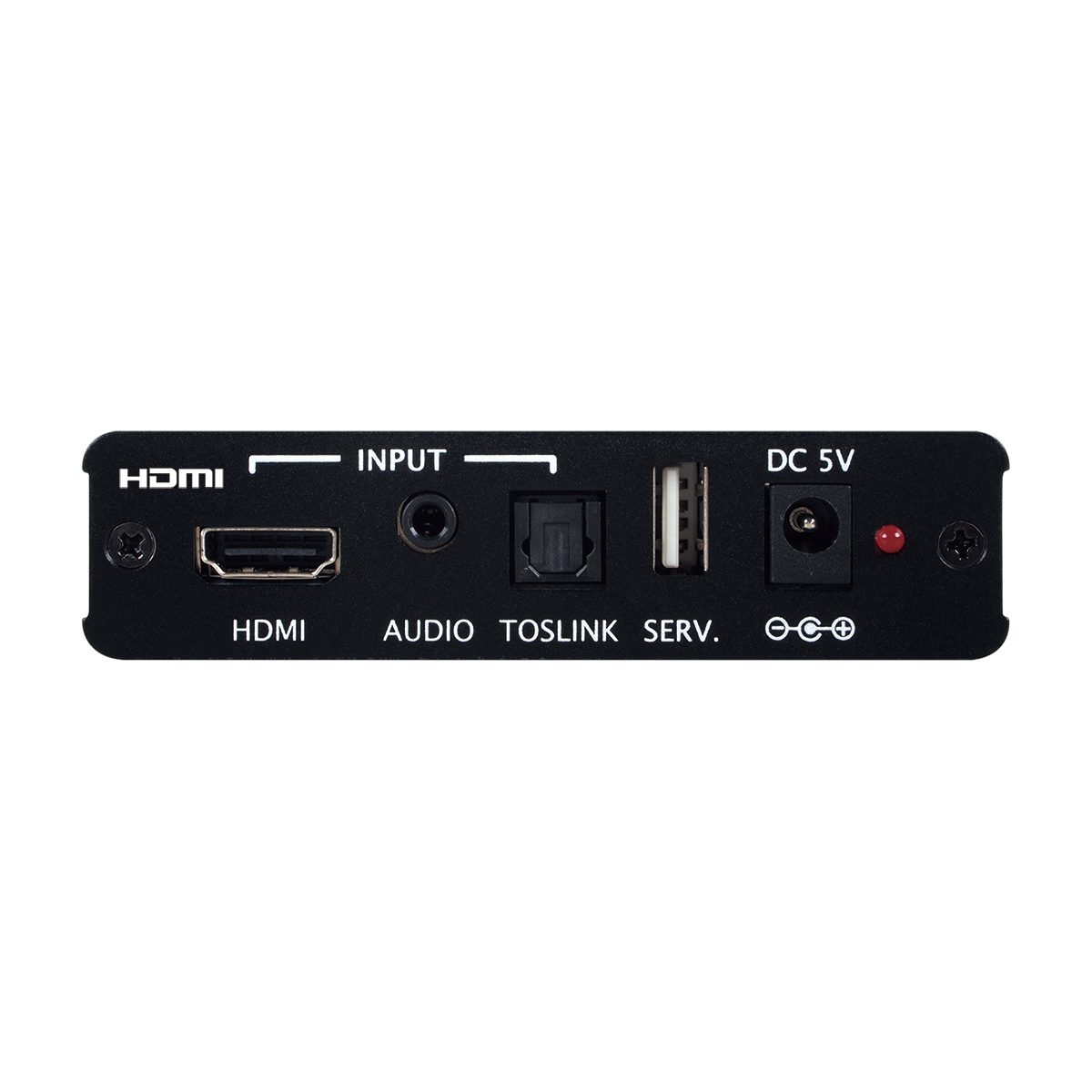

1xHDMI, 1xAnalog Stereo (3.5mm), 1xTOSLINK (Optical), 1xUSB (Service Only)
Output Port Type:

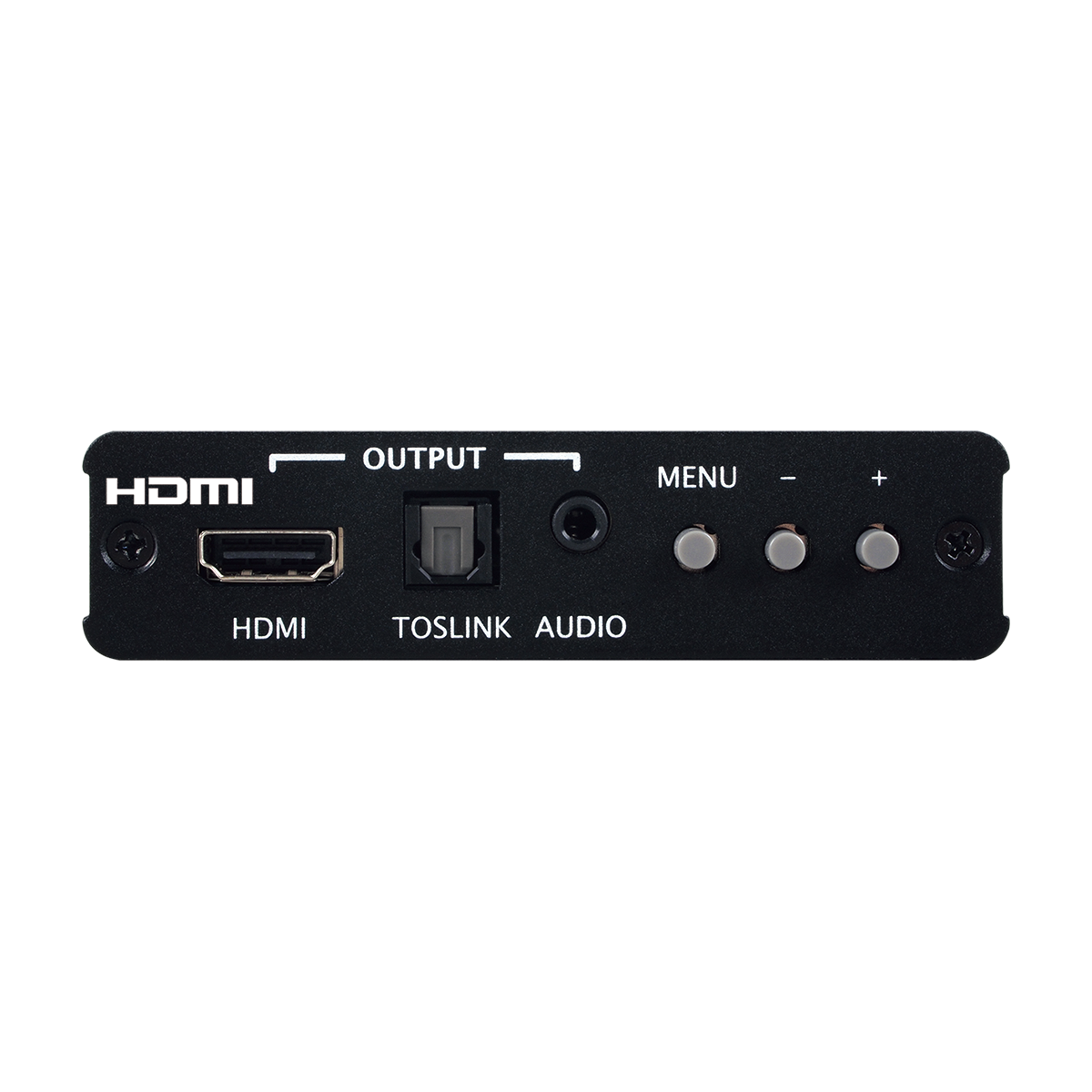

1xHDMI, 1xTOSLINK (Optical), 1xAnalog Stereo (3.5mm)
Power
Current Rating:
2.6A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±6kV (Contact Discharge)
Dimensions
Width:
10.2cm
Depth:
15.5cm
Height:
2.5cm
Weight:
338g
Other
Voltage Rating:
5V DC
Standards Met:
US, EU, CE, FCC, UL
