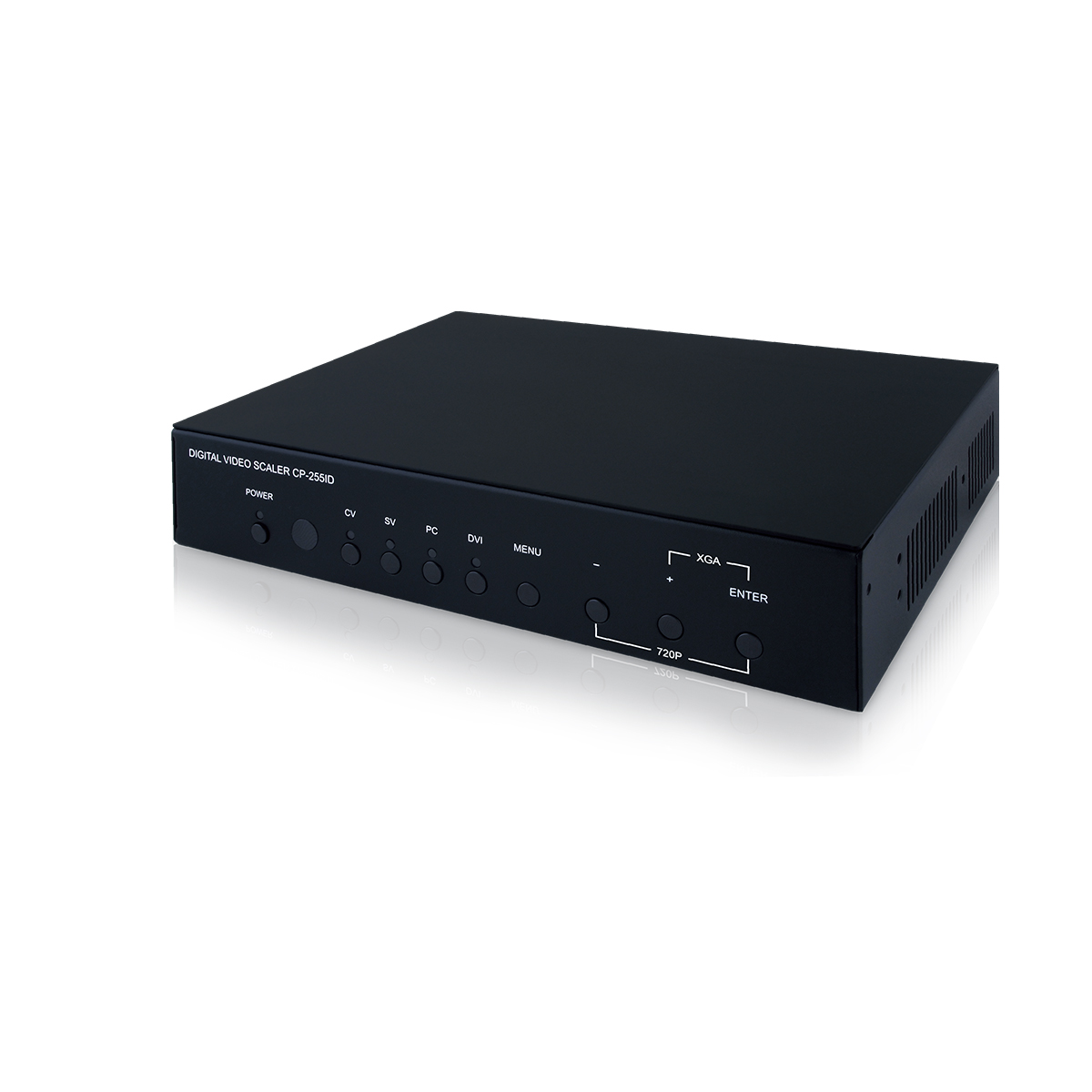

CP-255ID Multi-Format to DVI Scaler
Please sign in so that we can notify you about a reply

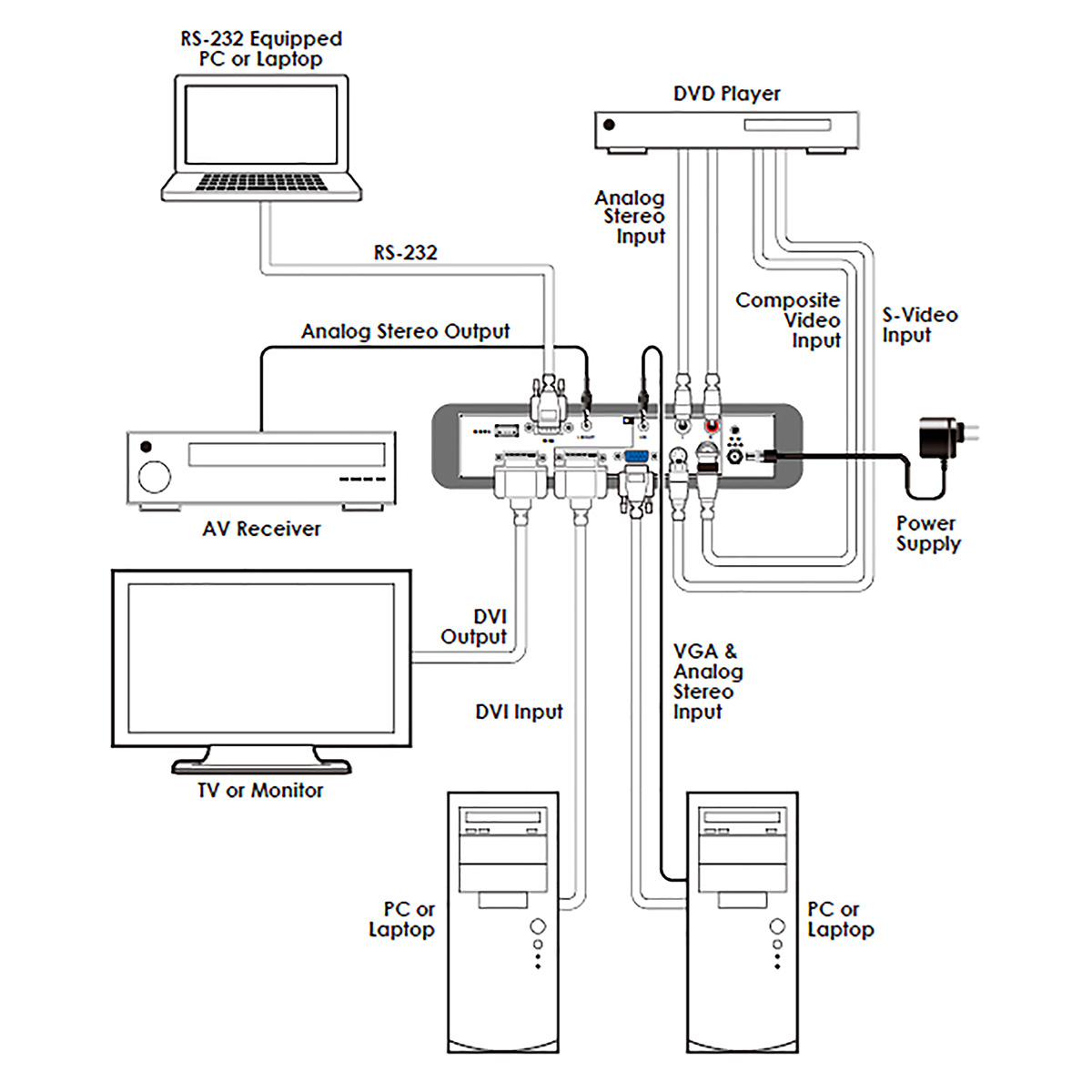

This Multi-Format to DVI Scaler is capable of scaling and switching from Composite Video, S-Video, PC (VGA) and DVI input signals to a DVI output. A corresponding analog stereo audio input can be switched and sent to the stereo audio output with the video source selection. It has the added benefit of control through front panel buttons, IR remote, or RS-232, and there is on-screen menu (OSD) providing setting selection and system information. The device provides a full range of output resolutions, up to 1080p for HDTV resolutions, and WUXGA (RB) for PC resolutions.
Features
- Supports the conversion of multiple video and audio formats to DVI
- Supports synchronized output for input video and output audio signals
- Supports 3D de-interlacing, noise reduction and Comb filter
- Supports frame rate conversion

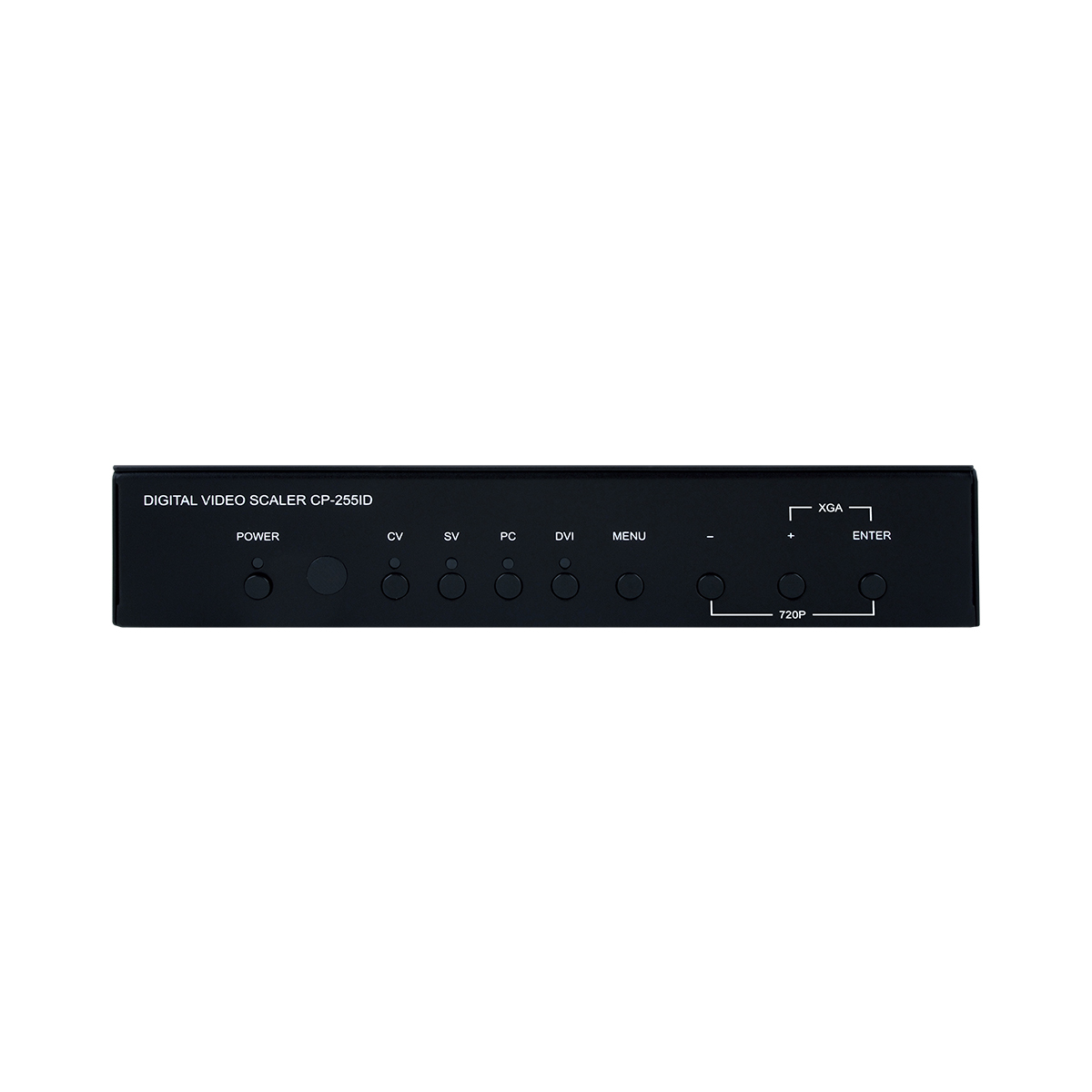

- Supports control via RS-232, IR Remote handset and front panel
Brand:
Cypress Technology
Product Type:
DVI Scaler
Specifications
Maximum Operating Temperature:
+40°C
Colour:
Black
Special Features:
Supports 3D De-Interlacing, Noise Reduction and Comb Filter, Supports Frame Rate Conversion
Power Rating:
5.7W
Chassis Material:
Metal
Applications:
The Conversion of Multiple Video and Audio Formats to DVI
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
Multi-Format to DVI Scaler, Remote Control (CR-118), 5V/2.6A DC Power Adaptor, Operation Manual
Performance
Resolution:
Input:Up to 1080pixels & WUXGA (RB), Output:Up to 1080pixels & WUXGA (RB)
HDMI Compliance Type:
DVI 1.0, 1.3
Signal Format:
HDMI

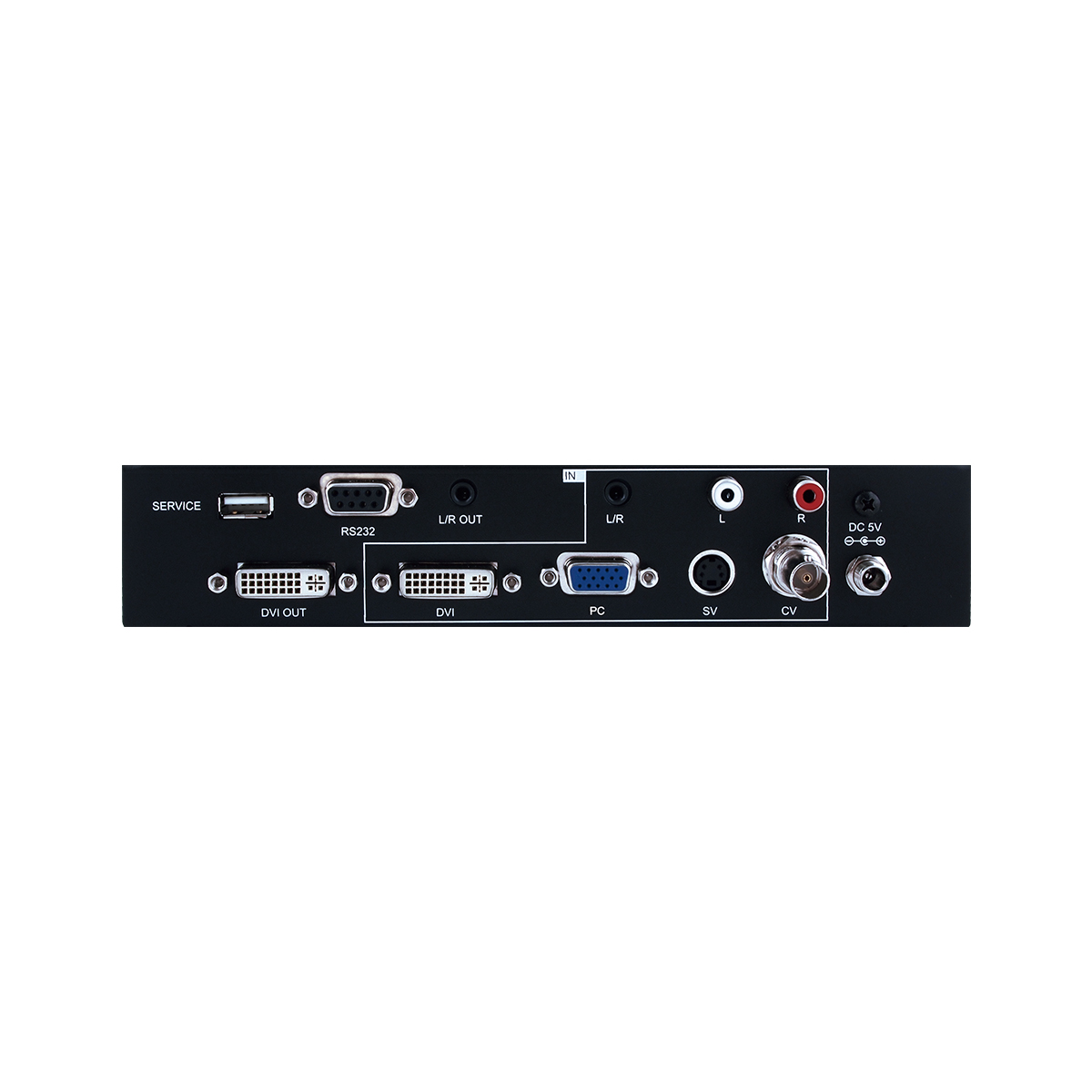

Inputs and Ports
Input Port Type:
1xDVI, 1xVGA, 1xS-Video, 1xComposite Video (BNC), 1xAnalog Stereo (3.5mm), 1xRS-232, 1xUSB
Output Port Type:
1xDVI, 1 Analog Stereo (3.5mm)
Power
Current Rating:
2.6A
Dimensions
Width:
21.5cm
Depth:
16.5cm
Height:
4.7cm
Weight:
970g
Other
Voltage Rating:
5V
Voltage Rating:
5V
Standards Met:
UL Listed, CE, FCC Complaint
