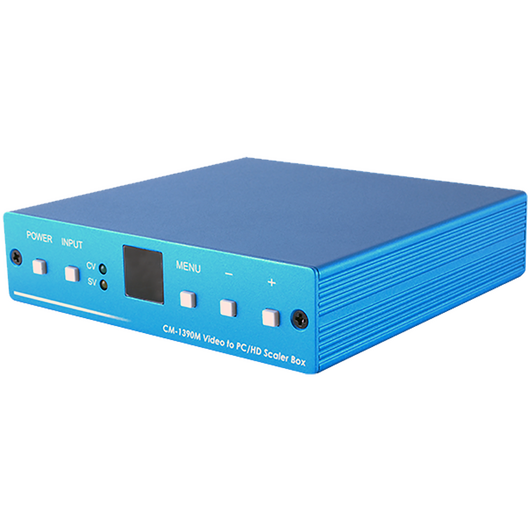

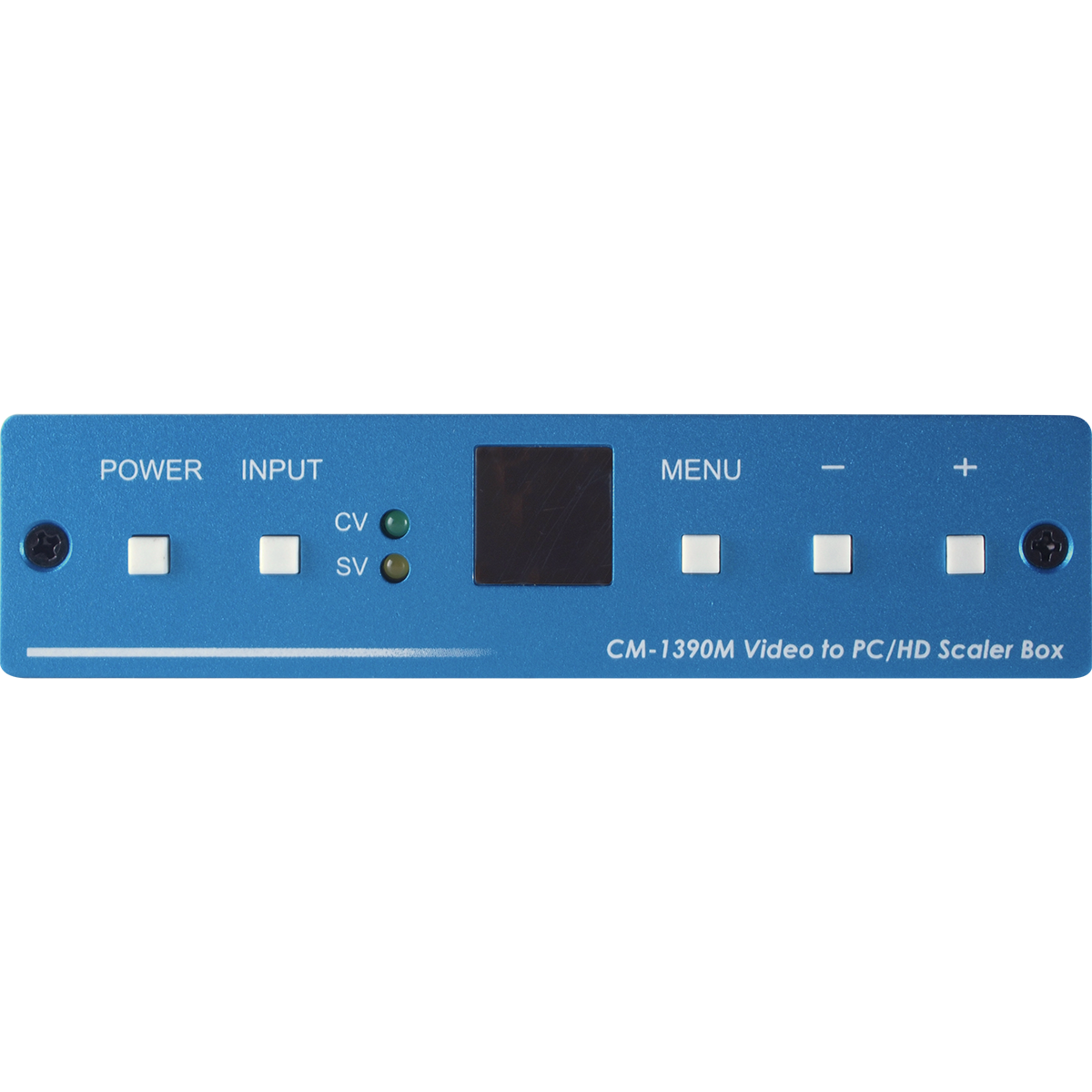

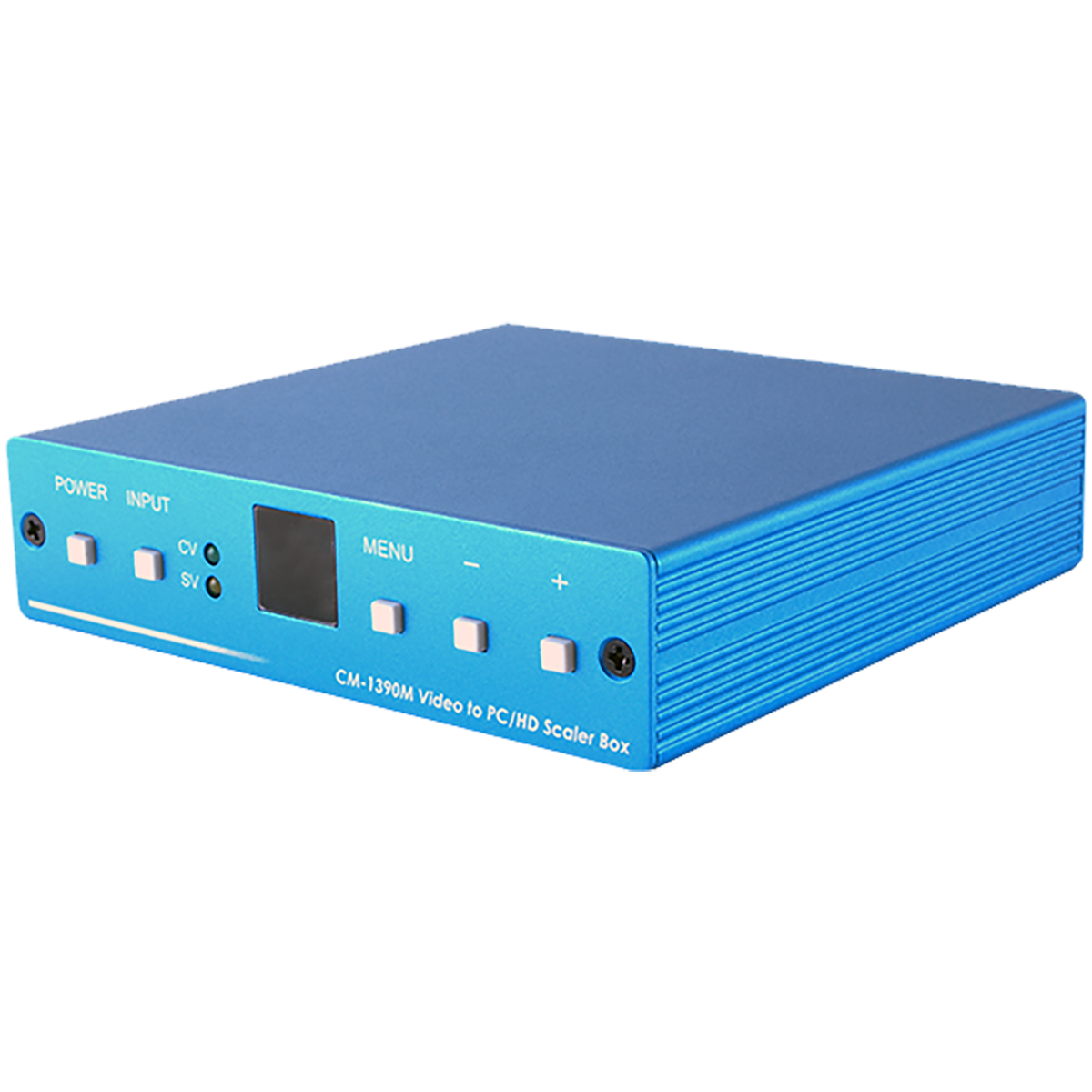

CM-1390M YPbPr Scaler Box
Please sign in so that we can notify you about a reply
This professional video scaler is designed to convert Composite and S-Video signal into PC(RGB) or HD(YPoPr) format, scales it up to a maximum output of WUXGA 1920 x 1200 @60RB (when used with a PC monitor) or 1080p resolution (when used with an HDTV display). Capable of handling NTSC and PAL TV standards, this device has many features to enhance the quality of your video.
Features- Advanced 3D motion adaptive de-interlace and frame based noise reduction
- Automatic 2:2/3:2 film mode detection
- Video quality improvement: DCTI (Digital Chroma Transient Improvement), DLTI (Digital Luminance Transient Improvement) Black level extension
- Average Picture Level (APL), Automatic Contrast Limiter (ACL) function supported
Brand:
Cypress Technology
Product Type:
YPbPr Scaler Box
Specifications
Silkscreen Colour:
Blue
Maximum Operating Temperature:
40°C
Colour:
Blue (Chassis, Silkscreen)
Special Features:
Automatic 2:2/3:2 Film Mode Detection, OSD Menu for Picture Quality Adjustment, Advanced 3D Motion Adaptive De-Interlace and Frame Based Noise Reduction
Power Rating:
4.5W
Chassis Material:
Metal
Applications:
Showroom Environment, Education Demo, Installation Usage
Humidity:
20 to 90%
Chassis Colour:
Blue
Minimum Operating Temperature:
0°C
Includes:
VGA to YPbPr/3RCA Cable, 5V DC Power Supply Adaptor, Operation Manual, Remote Control
Performance
Resolution:
480i@60/576i@50Hz (Input CV/SV), 1920×1080Pixel@60Hz (Output VGA), 1920×1200Pixel@60RB (Output VGA)
Graphic Resolution:
1080Pixel
Signal Format:
YPoPr - YPbPr

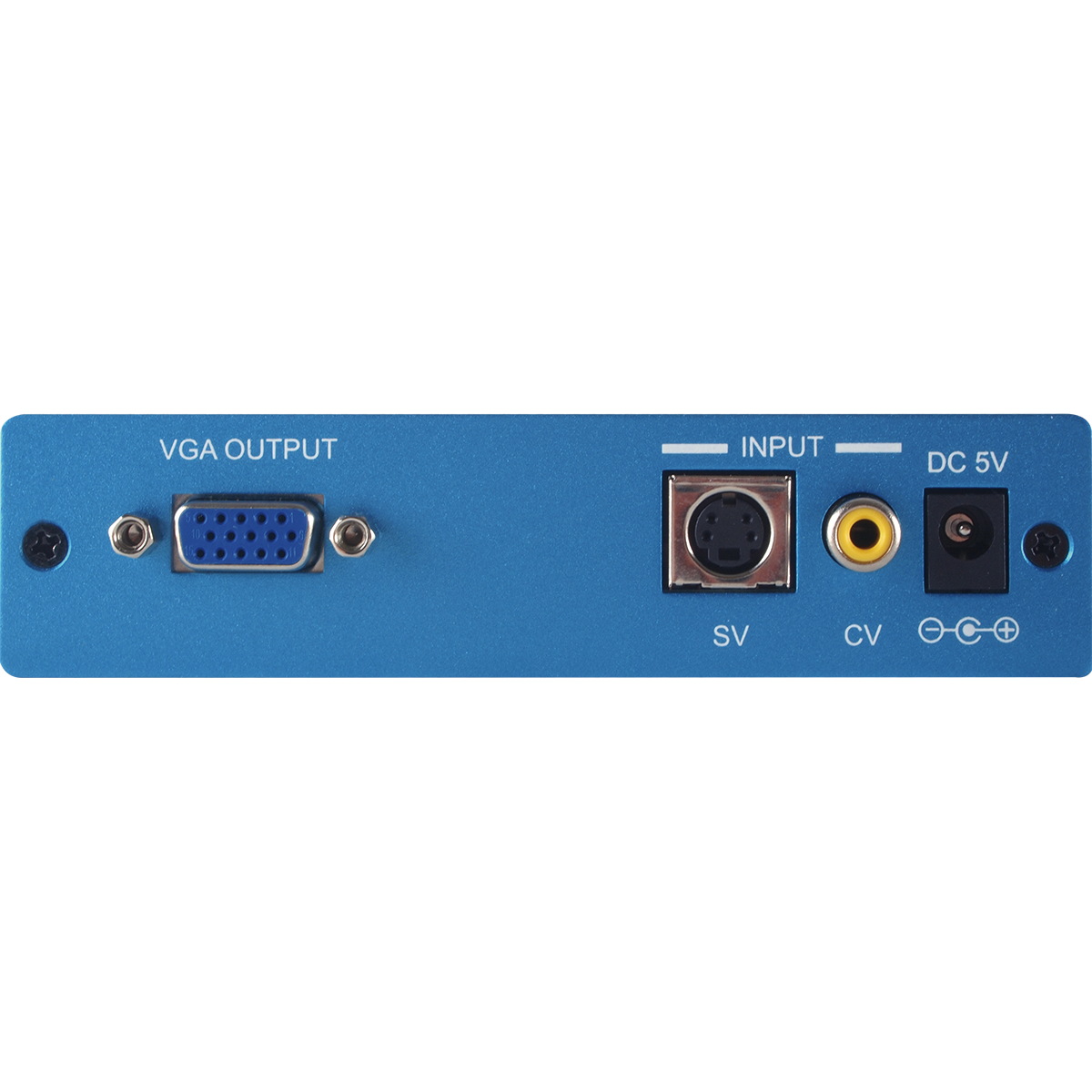

Inputs and Ports
Input Port Type:
1xComposite Video, 1xS-Video
Output Port Type:
1xVGA
Power
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Width:
12.5cm
Depth:
12.3cm
Height:
3cm
Weight:
400g
Other
Voltage Rating:
5V DC (Power Jack)
