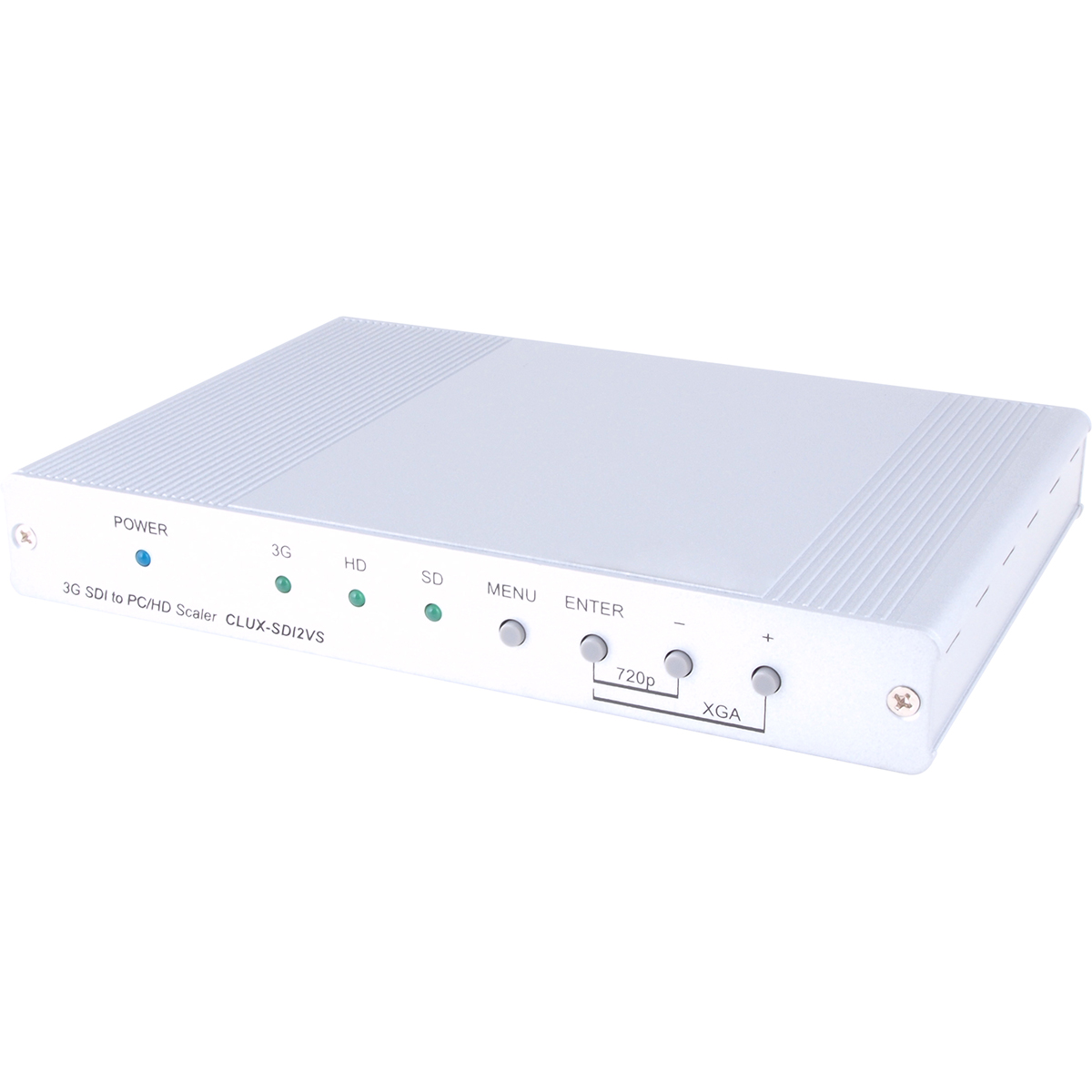

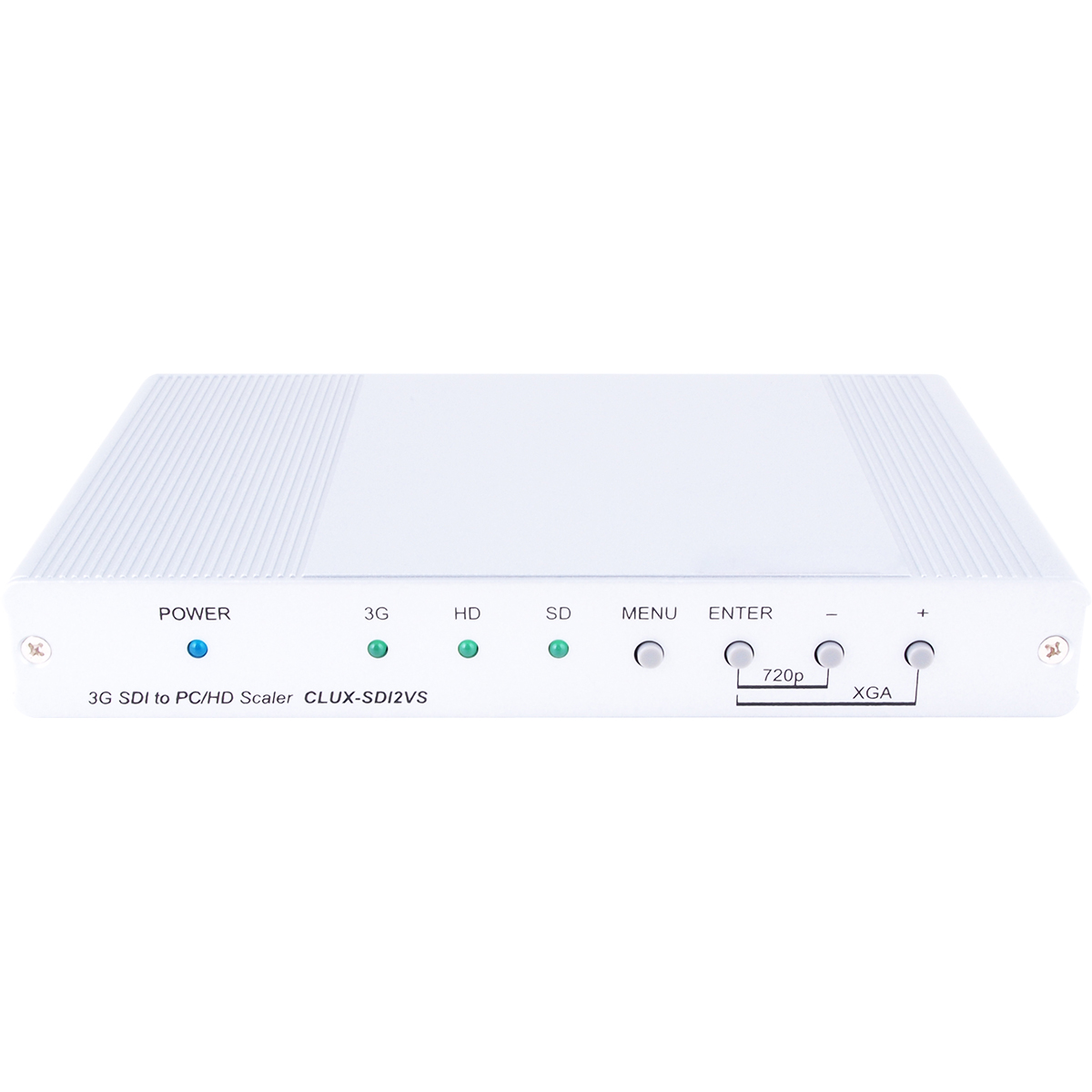

CLUX-SDI2VS SDI to PC/HD Scaler with Audio
Please sign in so that we can notify you about a reply
The SDI to VGA Scaler allows SD, HD and 3G-SDI signals to be shown on PC/HD display. This means that it is now easier for professionals to distribute and extend their SDI signal while giving the ability to display work on PC/HD display. Furthermore, thanks to coaxial (S/PDIF) and L/R audio outputs users can output audio in both digital and analog formats while the loop-through 3G-SDI design benefits users by letting them simultaneous show content on both SDI and PC/HD displays.
Features
- Supports SD-SDI, HD-SDI and 3G-SDI input signals with auto-detection
- Supports PC/HD and SDI (bypass) output simultaneously
- SDI interface operates at bitrates of 2.970 Gbit/s, 2.970/1.001 Gbit/s, 1.485 Gbit/s, 1.485/1.001 Gbit/s and 270 Mb/s
- Supports SDI input/output distance up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI)
- Scale any SDI signal to PC/HD:
1. PC timings: VGA@60 Hz ~ WUXGA@60 Hz (RB)
2. HDTV timings: 480i/576i ~ 1080p@50/60 Hz
- Supports SDI input modes:
1. SD-SDI (SMPTE 259M-C, at bitrates of 270 Mbit/s)
2. HD-SDI (SMPTE 292M, at bitrates of 1.485 Gbit/s and 1.485/1.001 Gbit/s)
3. 3G-SDI (SMPTE 424M/425M-AB, at bitrates of 2.970 Gbit/s and 2.970/1.001 Gbit/s)
- Equalized and re-clocked loop output
- Alternative audio output to coaxial and analog 2CH
Brand:
Cypress Technology
Product Type:
SDI to VGA Scaler
Specifications
Maximum Operating Temperature:
+40°C
Silkscreen Color:
Silver
Special Features:
Supports SD-SDI, HD-SDI and 3G-SDI Input Signals with Auto-Detection, Supports HDMI and SDI (bypass) Output Simultaneously, SDI Interface Operates At Bitrates of 2.970 G, 2.970/1.001 G,1.485 G, 1.485/1.001 G and 270Mbps, Scale any SDI Input Signal to HDMI
IR Frequency:
60Hz
Power Rating:
9.3W
Chassis Material:
Aluminium
Applications:
Broadcast Video Signal Sending to SDI Display, 3G-SDI Signal Convert Into PC/HD Signal
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
SDI to CV/SV Scaler with Audio, 5V/2.6A DC Power Adaptor, Operation Manual
Performance
Signal Format:
SD, HD, 3G-SDI
Inputs and Ports

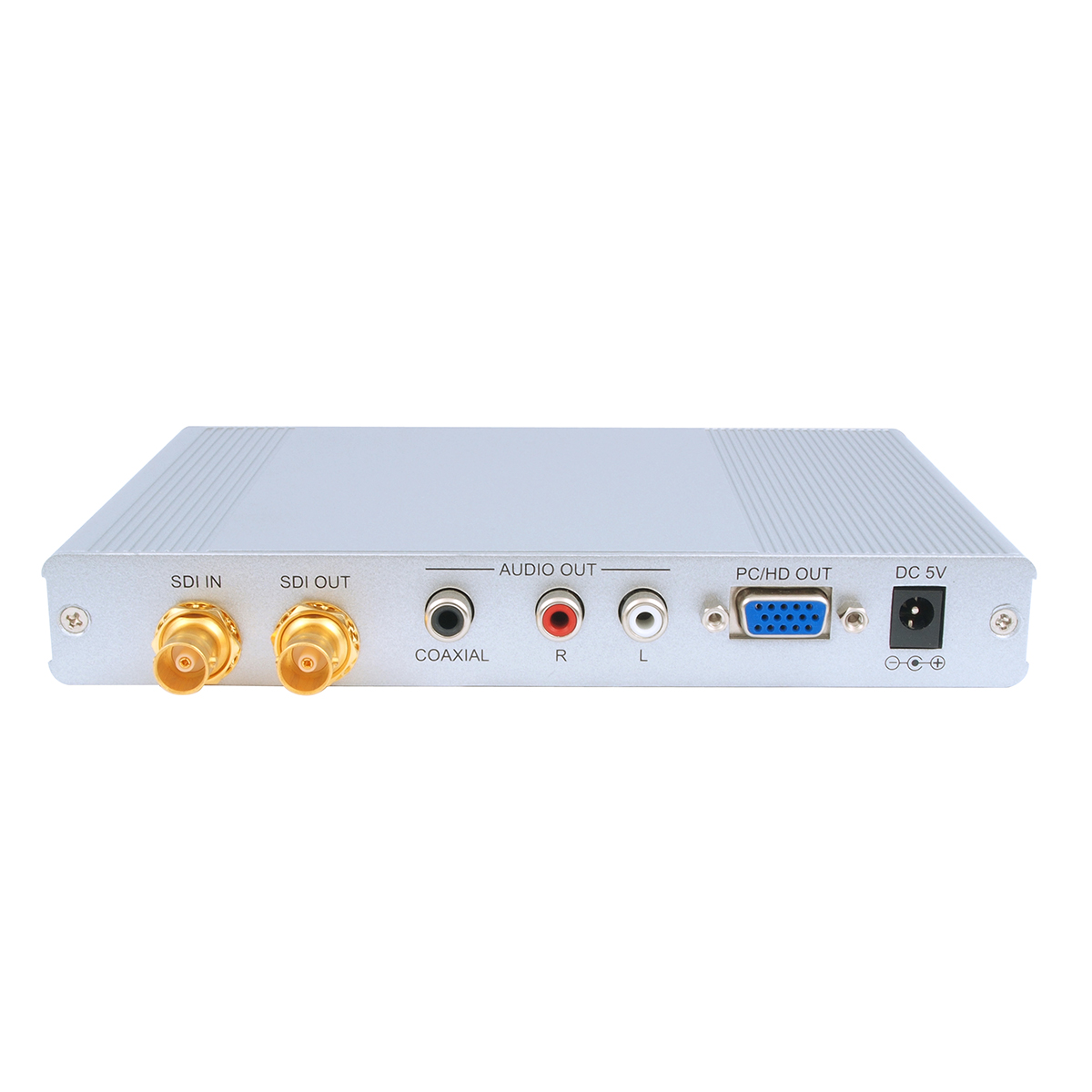

Input Port Type:
1xBNC (SD/HD/3G-SDI)
Output Port Type:
1xBNC (SD/HD/3G-SDI Bypass), 1xCV, 1xSV, 1xCoaxial, 1xR/L RCA Jack
Power
Current Rating:
2.6A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Width:
18cm
Depth:
14.2cm
Height:
2.5cm
Weight:
460g
Other
Voltage Rating:
5V DC
Voltage Rating:
5V DC
Standards Met:
UL Listed, CE, FCC Complaint
