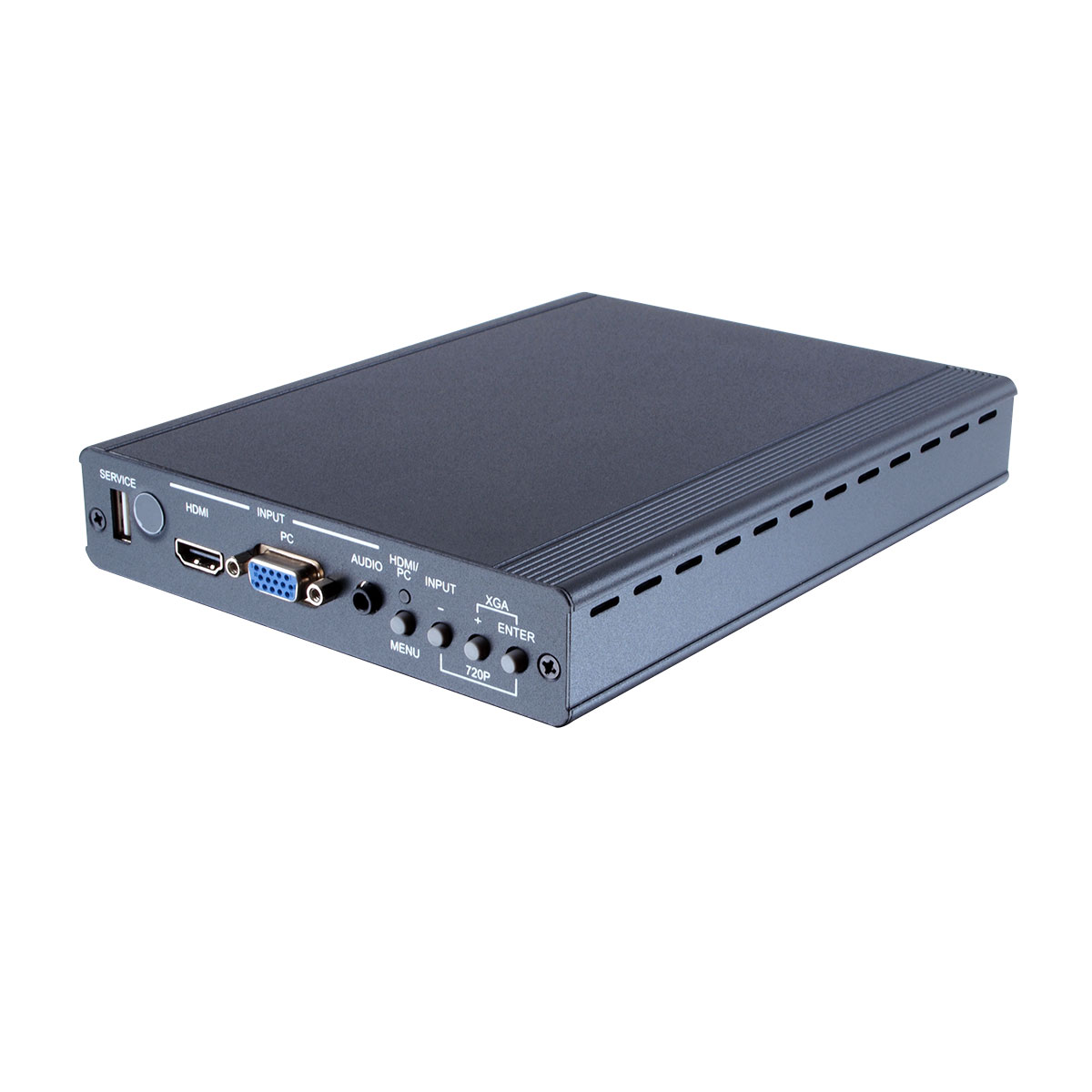

CH-520TXAHS HDMI/PC Video Scaler over CAT5e/6/7 with LAN/IR/RS-232/Bidirectional PoE Transmitter
Please sign in so that we can notify you about a reply
The HDMI/PC video scaler with LAN/IR/RS-232/Bidirectional PoE over Single CAT5e/6/7 transmitter can send uncompressed audio/video over a single run of CAT5e/6/7 cable up to 100 m with Bidirectional PoE feature. The system supports various ways of control that can be done through on-panel buttons, IR remote, RS-232, and OSD. The device provides full range of output resolutions through CAT5e/6/7 up to 1080p for HDTV timing and WUXGA(RB) for PC timing.
Features- Supports HDMI/PC input scaler to full range of HDTV and PC output resolutions through CAT5e/6/7
- Transmission of uncompressed data over a single 100 m/328 ft CAT5e/6/7 cable
- 5Play™ convergence: Video, Audio, LAN, Bidirectional PoE & Control (IR & RS-232 bypass)
- Supports IR, Remote control, RS-232 (bypass) and on-panel controls
- Supports OSD (On Screen Display) selection and display system information
- Provides 24V DC power to or received from compatible PoE Receiver through CAT5e/6/7
- Supports Ethernet transmission rate up to 100Mbps
Brand:
Cypress Technology
Product Type:
HDMI/PC Scaler
Specifications
Silkscreen Color:
Black
Power Rating:
17W
Chassis Material:
Aluminium
Performance
Resolution:
HDMI-1920x1080pixels@60Hz 1920x1200pixels@60HzRB (Input), VGA-1920x1200RB@60Hz (Output), HDBaseT-1920x1080pixels@60Hz 1920x1200pixels@60HzRB (Output)
Signal Format:
HDMI
Inputs and Ports
Input Port Type:

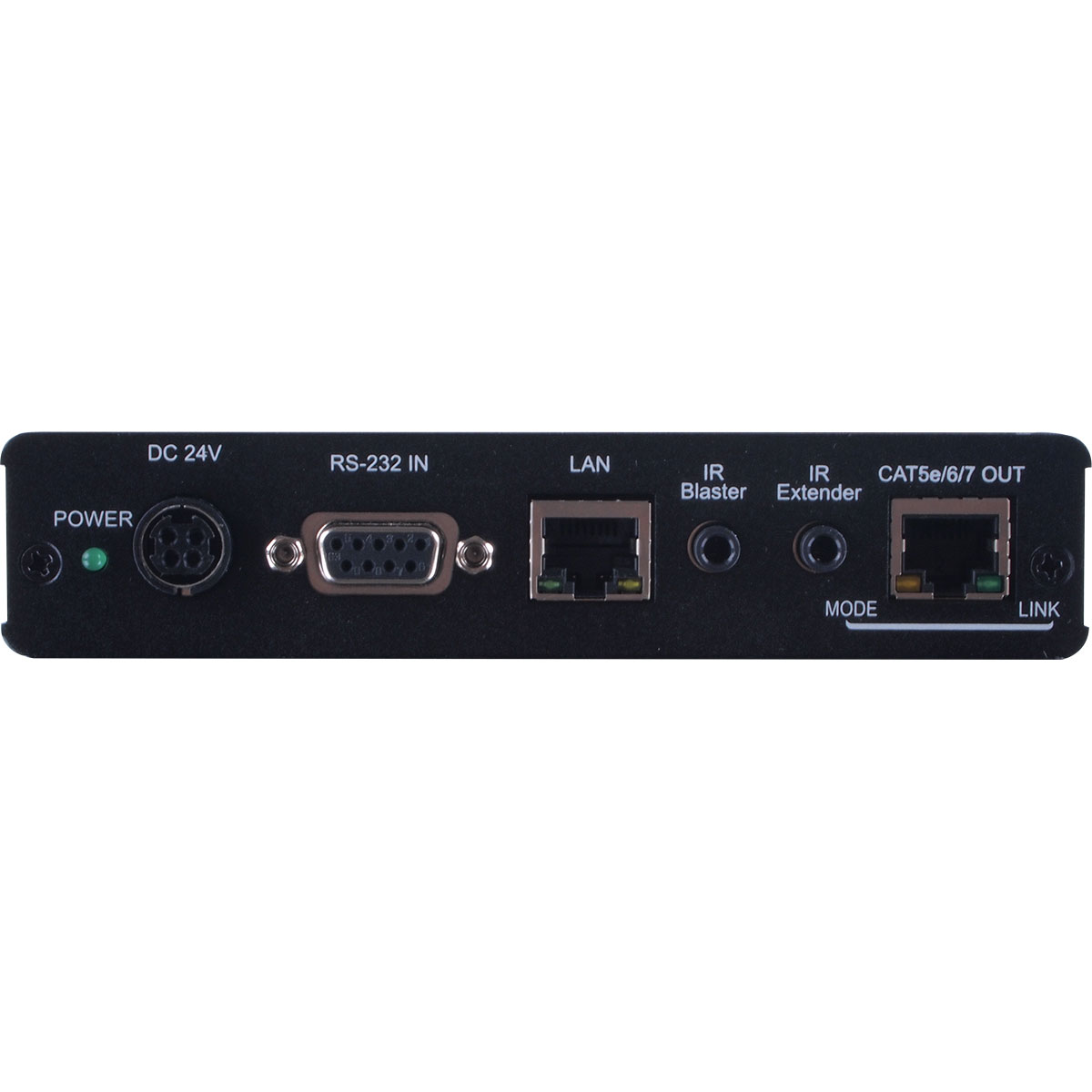

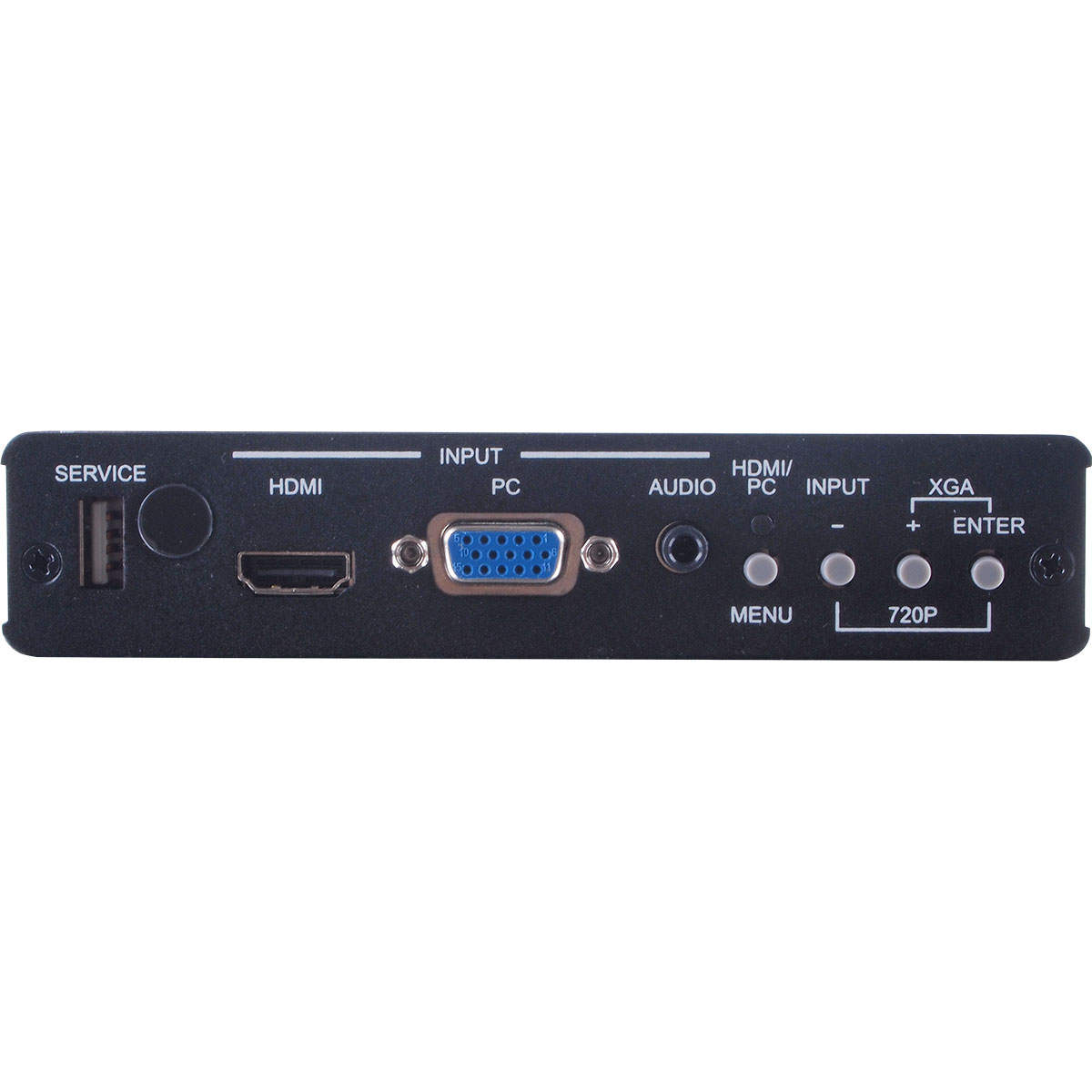

1xHDMI Type A, 1xVGA(HD-15), 1x3.5mm Stereo Audio, 1xRS-232 (DE-9), 1xLAN (RJ45), 1xIR 3.5mm Extender
Output Port Type:
HDBaseT (RJ45), IR Blaster(3.5mm
Power
Current Rating:
2.7A
Dimensions
Width:
14.5cm
Depth:
19.2cm
Height:
3cm
Weight:
608g
Other
Voltage Rating:
24V
Voltage Rating:
24V
Standards Met:
UL Listed, CE, FCC Complaint
