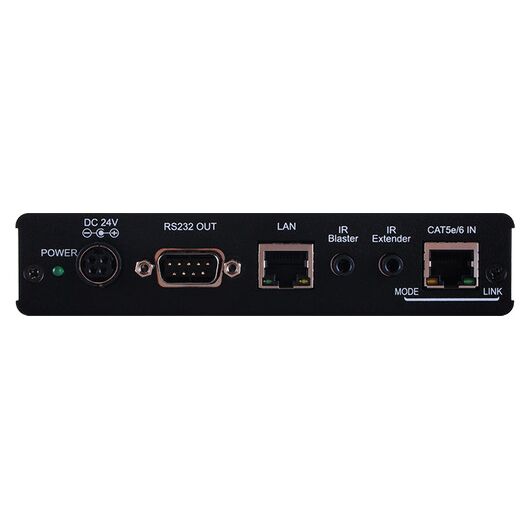

CH-517RXHS HDMI Scaler over CAT5e/6/7 Receiver
Please sign in so that we can notify you about a reply
The CH-517RXHS is an HDBaseT Receiver Scaler designed to scale the incoming video signal first, before outputting to its HDMI port. There is an Optical port providing additional audio extraction feature. Besides video and audio from the Transmitter, it also takes in 2-way IR, RS-232 and bidirectional LAN serving, over a single run of CAT5e/6/7 cable at a distance up to 100 meters. Control is via on-panel buttons or IR remote control and there is an On-screen Display (OSD) providing selection and system information. The device provides a full range of output resolutions, up to 1080p and WUXGA (RB). The bidirectional Power over Ethernet (PoE) function provides greater flexibility in installations.
Features- Supports HDMI scaling to a wide range of HDTV or PC resolutions up to 1080p and WUXGA (RB)
- Reception of uncompressed data over a single CAT5e/6/7 cable up to 100m/328ft
- 5Play convergence: uncompressed high definition Video and Audio, LAN serving, Bidirectional Power over Ethernet (PoE) and controls (IR & RS-232 bypass)
- Supports IR, Remote control, RS-232 (bypass) and on-panel controls
- Supports Ethernet transmission rates up to 100 Mbps
- Provides bidirectional 24V DC power to or receive from compatible PoE Transmitter through CAT5e/6/7 cable
- Supports HDMI, Optical (S/PDIF) audio sampling rates up to 48kHz
- Supports HDMI and Optical (S/PDIF) audio up to LPCM 2CH
Brand:
Cypress Technology
Specifications
Product Type:
HDMI Scaler over CAT5e/6/7 Receiver
Maximum Operating Temperature:
40°C
Colour:
Black
Control Port Type:
RS-232
Special Features:
Supports Ethernet Transmission Rates up to 100 Mbps, Supports HDMI, Optical (S/PDIF) Audio Sampling Rates up to 48kHz, Supports HDMI and Optical (S/PDIF) Audio up to LPCM 2CH
IR Frequency:
30 to 50kHz
Power Rating:
14W
Chassis Material:
Aluminium
Applications:
Up-Scale HDMI Output to HDTV/PC Resolutions, Up-Scale Standard Definition Video to High-Definition TVs/Displays, Extend the Operating Distance of an HDMI Signal, Lecture Room, Showroom, Meeting Room, Classroom Display and Control
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
(1) IR Receiver, (1) IR Blaster, 24V/2.7A DC Power Adaptor, Remote Control (CR-128), Operation Manual
Performance
Resolution:
HD: Up to 1080Pixel@60 Hz PC: Up to WUXGA (RB)
Video Bandwidth:
300MHz/10.2Gbps (Input), 165MHz/1.65Gbps (Output)
Baud Rate:
9600bps
Inputs and Ports
Input Port Type:
1xCAT5e/6/7, 1xIR Extender
Output Port Type:
1xHDMI, 1xIR Blaster, 1xOptical, 1xRS-232, 1xLAN
Power
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Width:
14.5cm
Depth:
20.2cm
Height:
3cm
Weight:
608g
