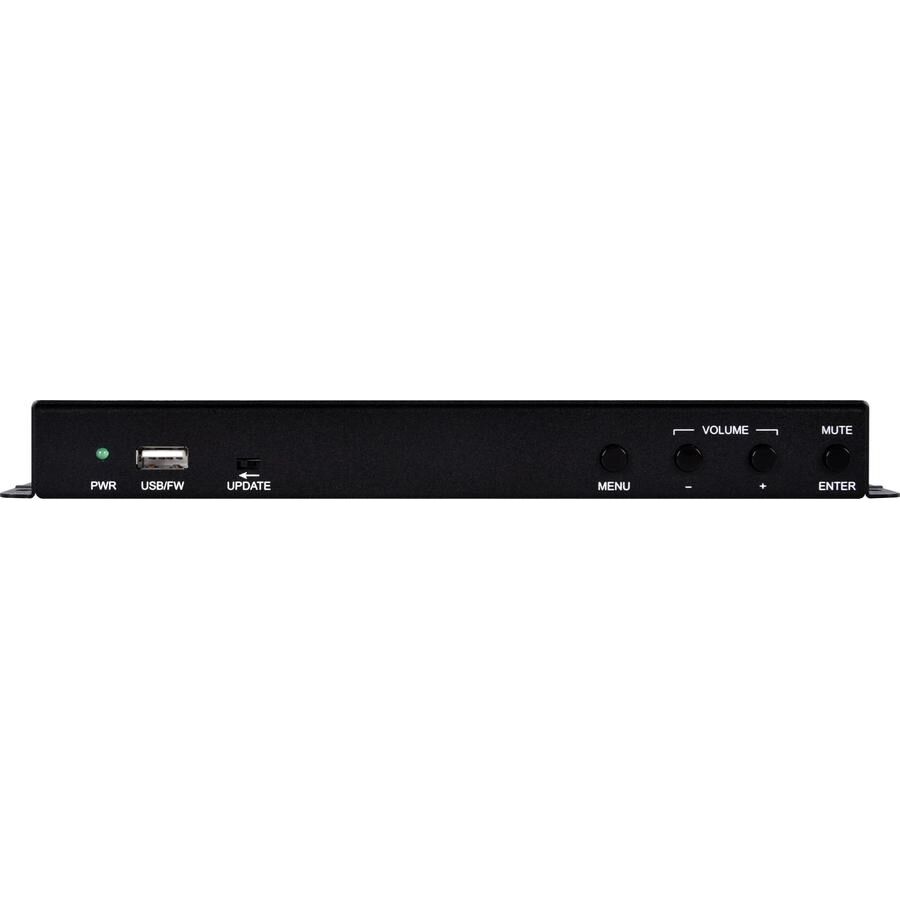

CH-2607RXPL UHD+ HDBaseT Receiver with Amplifier
Please sign in so that we can notify you about a reply
CH-2607RXPL is a 4K/30 (4:4:4, 8bit) HDMI receiver/scaler with HDCP 1.x/2.2 over a CAT5e/6/7 twisted pair cable. PoH (Power over HDBaseT) for a compatible transmitter. 1080p signal transmission distance up to 60 m, 4K signal transmission distance up to 35 m. It has is an audio de-embedder (miniJack 3.5 mm), 4 relay outputs, a built-in 2x20 W/4 Ohm stereo amplifier. The device is controlled via IR, RS-232 and IP (Telnet, web-interface) or via the 8-button panel CDPS-TG2.
Brand:
Cypress Technology
Product Type:
HDBaseT Receiver
Specifications
Special Features:
Simultaneous Transmission Of Uncompressed Video, Audio and Data Over a Single 60m CAT.5e/6/7cable At 1080p and 35m At 4K, The Transmitter is Powered Via 48v Poh (PD) From the Hdbaset Receiver, (Pse) Hdbaset Feature Support: Hd Video and Audio, 48v Poh, On
Power Rating:
97.02W
Chassis Color:
Black
Chassis Material:
Metal (Case), Plastic (Face Plate)
Performance
Resolution:
HDMI:4096x2160pixels@60Hz (Input), VGA:1920x12060pixels@60HzRB (Input), HDBaseT:4096x2160pixels@30Hz (Output)
HDMI Compliance Type:
2.0
HDCP Compliance Type:
2.2
Signal Format:
HDMI
Inputs and Ports
Input Port Type:
1xHDBaseT (RJ45)
Output Port Type:
1xHDMI-Type A, 1xStereo Audio (3.5mm), 1xStereo Audio (2x2-Pin Terminal Block)
Power
Current Rating:
3.75A
Dimensions
Width:
23.2cm
Depth:
2.5cm
Height:
10.8cm
Weight:
700g
Other
Voltage Rating:
24V
Voltage Rating:
24V
