CH-2538STXWPEUK UHD 2x1 HDMI/VGA over HDBaseT Wallplate Scaler (EU 2-Gang)
Please sign in so that we can notify you about a reply

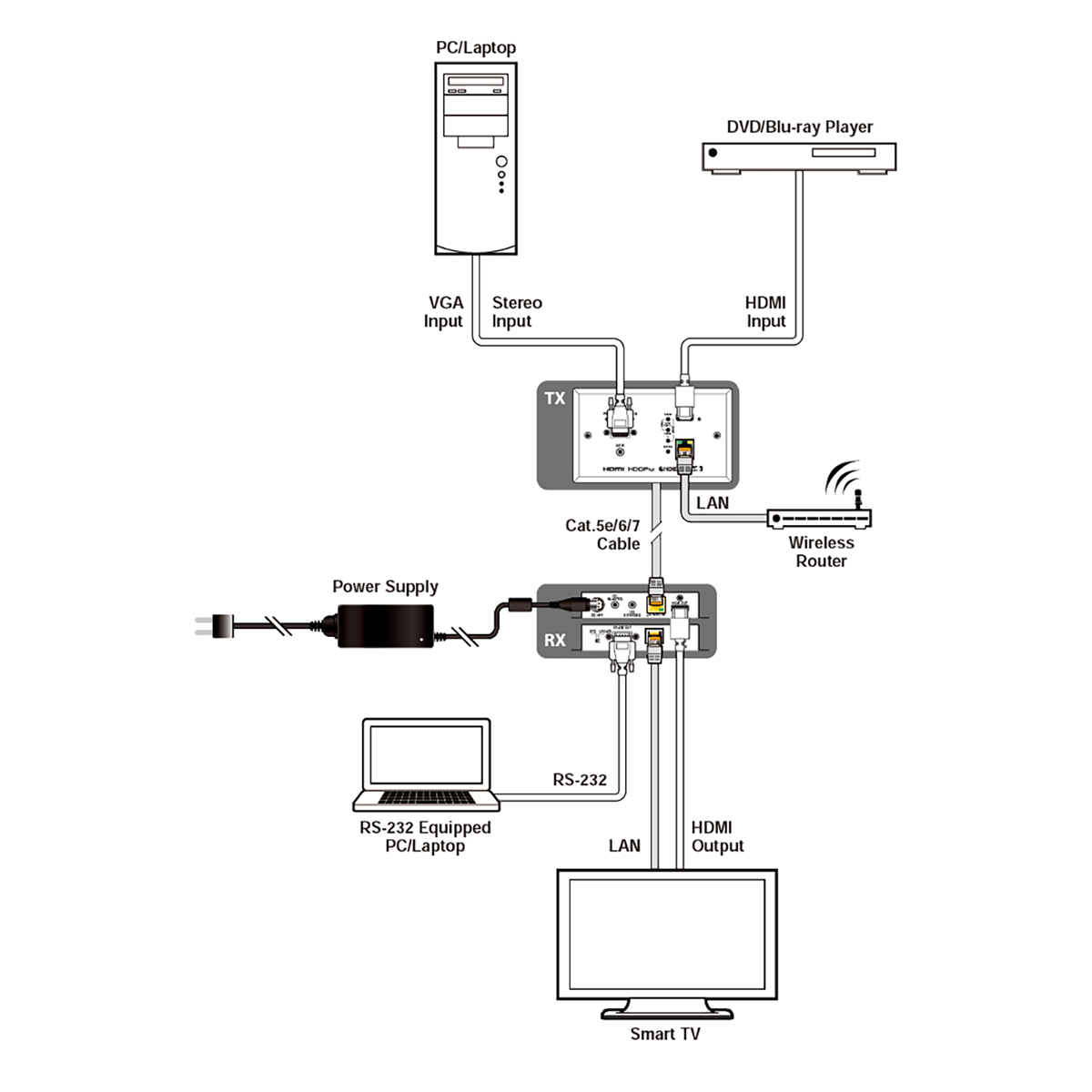

This UHD Wallplate Scaler is an HDMI/VGA switch with audio embedding and scaled HDBaseT output. The wall plate is designed for use with EU or UK twogang sized enclosures. It is suitable for various installation requirements with aesthetic considerations. The HDMI input supports resolutions up to 4K@60Hz (4:4:4, 8-bit). The VGA input supports resolutions up to WUXGA (RB) and with the use of the associated 3.5mm audio input, stereo audio may be embedded as well. To provide maximum compatibility with a wide range of display types, all sources are scaled to a user-selected resolution and timing (up to 4K@30Hz) for transmission over HDBaseT. This unit also supports automatic input selection between the HDMI and VGA inputs, with hot plug detection, enabling hands-free operation. Additionally, the unit may be powered locally or via 48V PoH (Power over HDBaseT) from a compatible HDBaseT Receiver, which allows for greater flexibility in installations. The unit is controllable via front panel controls with an OSD or RS-232 (via the RS-232 port on a compatible Receiver).
Features
- Supports VGA input resolutions up to WUXGA (RB)
- Simultaneous transmission of uncompressed video, audio and data over a single 100m
- Cat.5e/6/7 cable at 1080p and 70m at 4K
- Automatic input selection with hot plug detection enabling hands- free operation

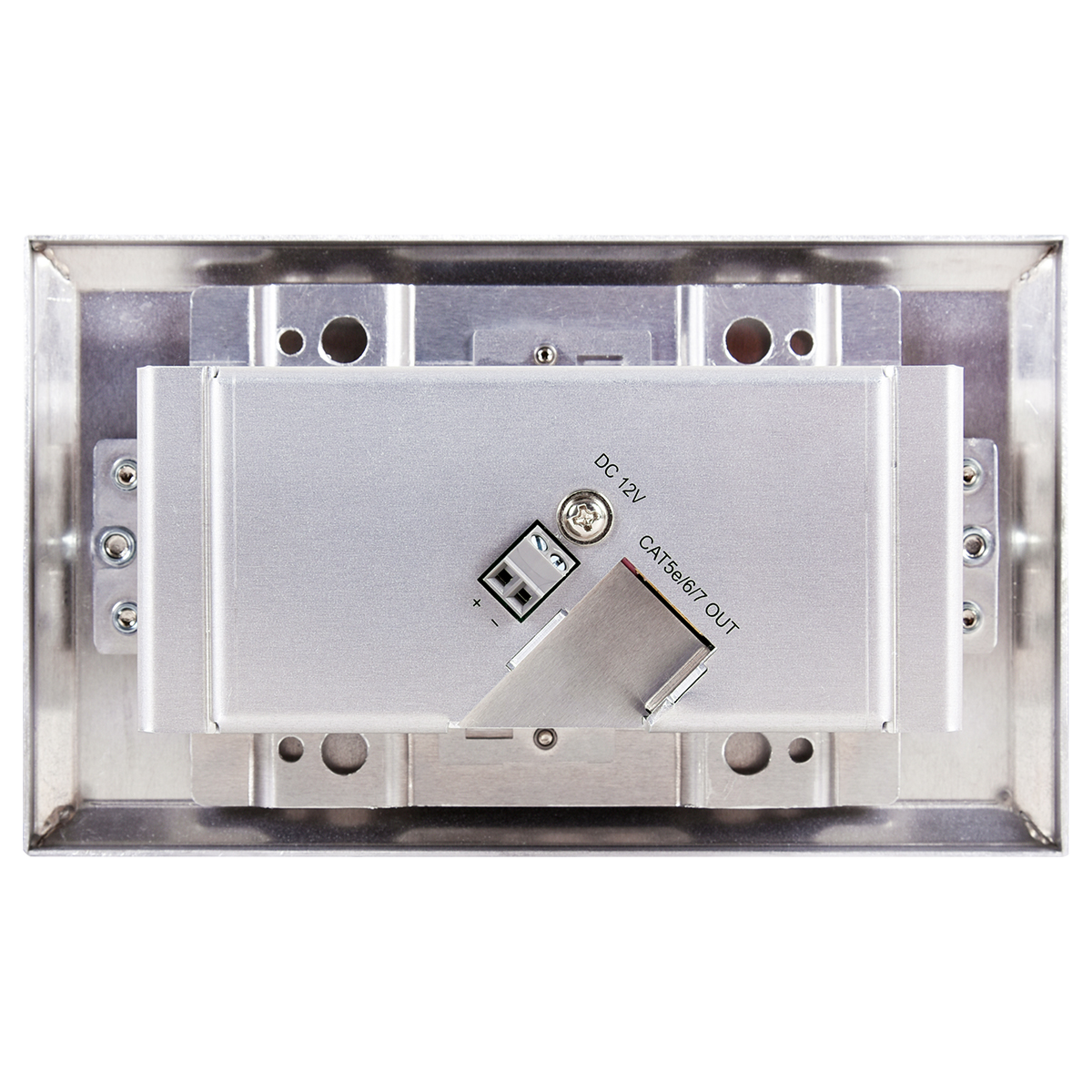

- Unit may be powered locally or via 48V PoH (PD) from a compatible
- HDBaseT Receiver (PSE) Wall plate is designed for EU two-gang sized enclosures

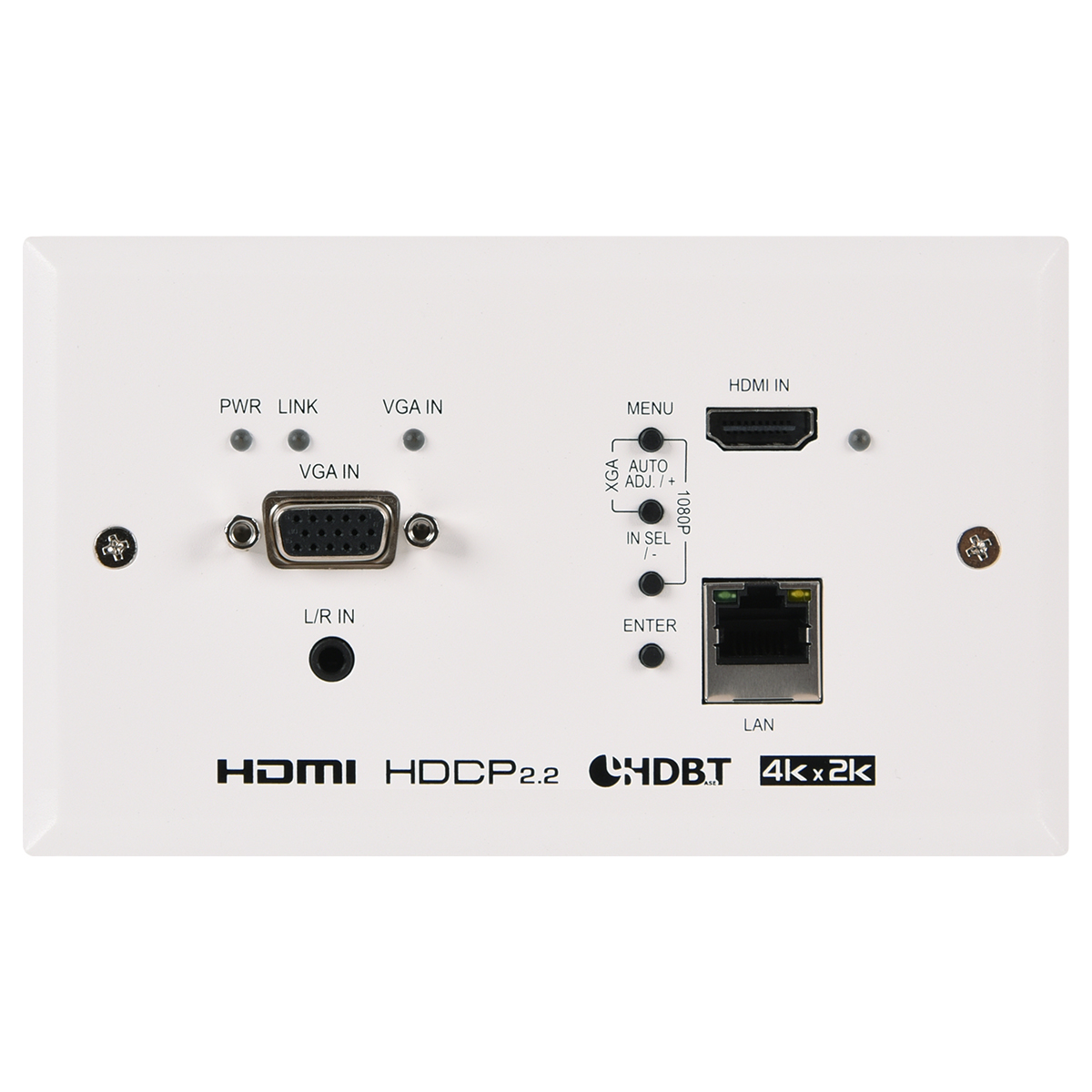

- Front panel LEDs indicate input selection, power and link status
Brand:
Cypress Technology
Product Type:
HDMI/VGA to HDBaseT Scaler
Specifications
IR Frequency:
60Hz
Power Rating:
22W
Chassis Color:
White
Chassis Material:
Aluminium
Includes:
1xUHD 2x1 HDMI/VGA Over HDBaseT Wallplate Scaler (EU 2-gang box, UK Faceplate), 1xOperation Manual
Performance
Resolution:
HDMI-4096x2160pixels@30Hz (Input), VGA-1920x1200@60Hz(RB)(Input), HDBaseT-4096x2160pixels@30Hz (Output)
HDMI Compliance Type:
2.0 (DVI 1.0)
HDCP Compliance Type:
2.x
Signal Format:
HDMI
Inputs and Ports
Input Port Type:
1xHDMI-Type A, 1xVGA(HD-15), 1xStereo Audio (3.5mm)
Output Port Type:
1xHDBaseT (RJ45)
Dimensions
Width:
14.7cm
Depth:
4.2cm
Height:
8.7cm
Weight:
264g
Other
Voltage Rating:
48V
Voltage Rating:
48V
