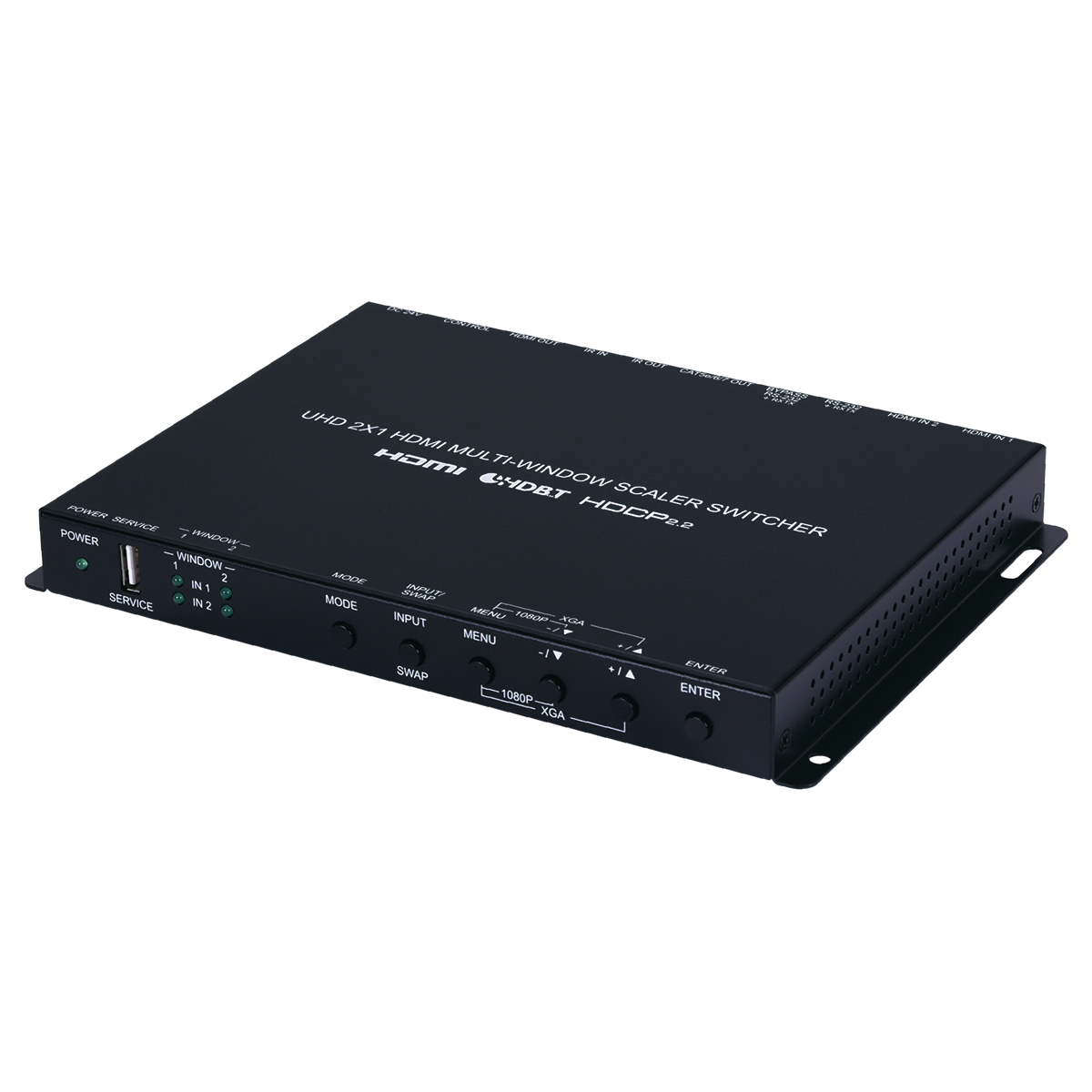

CDPS-U2HPIP UHD 2x1 HDMI Multi-Window Scaler Switcher
Please sign in so that we can notify you about a reply

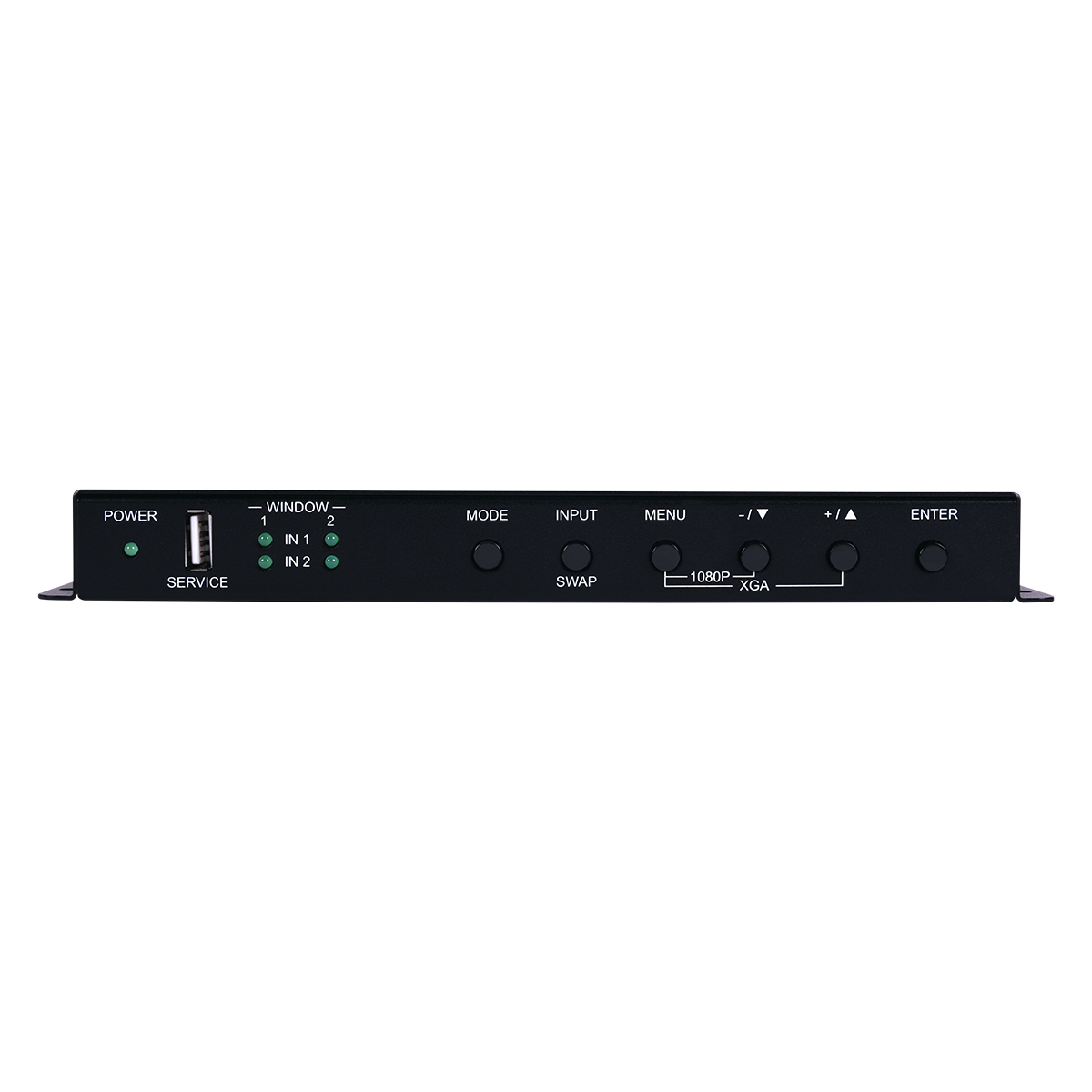

This 2 by 1 HDMI Multiviewer is a high performance HDMI switch with integrated scaling and multi-windowing technology. It is an ideal solution for monitoring or displaying multiple sources simultaneously for use in control rooms, conference rooms or classrooms. Video resolutions up to 4K@30Hz with seamless switch on input and this unit is fully compatible with the HDCP 1.x and 2.2 standards.Any of 2 different HDMI sources may be displayed individually, full screen, or they can be displayed using a variety of multi-window modes including PiP, PoP or Custom with the output being sent to 1 HDMI and 1 mirrored HDBaseT outputs Management of input/window routing, position and sizing can be controlled easily by use of the front panel controls as well as by WebGUI, RS- 232, Telnet options.

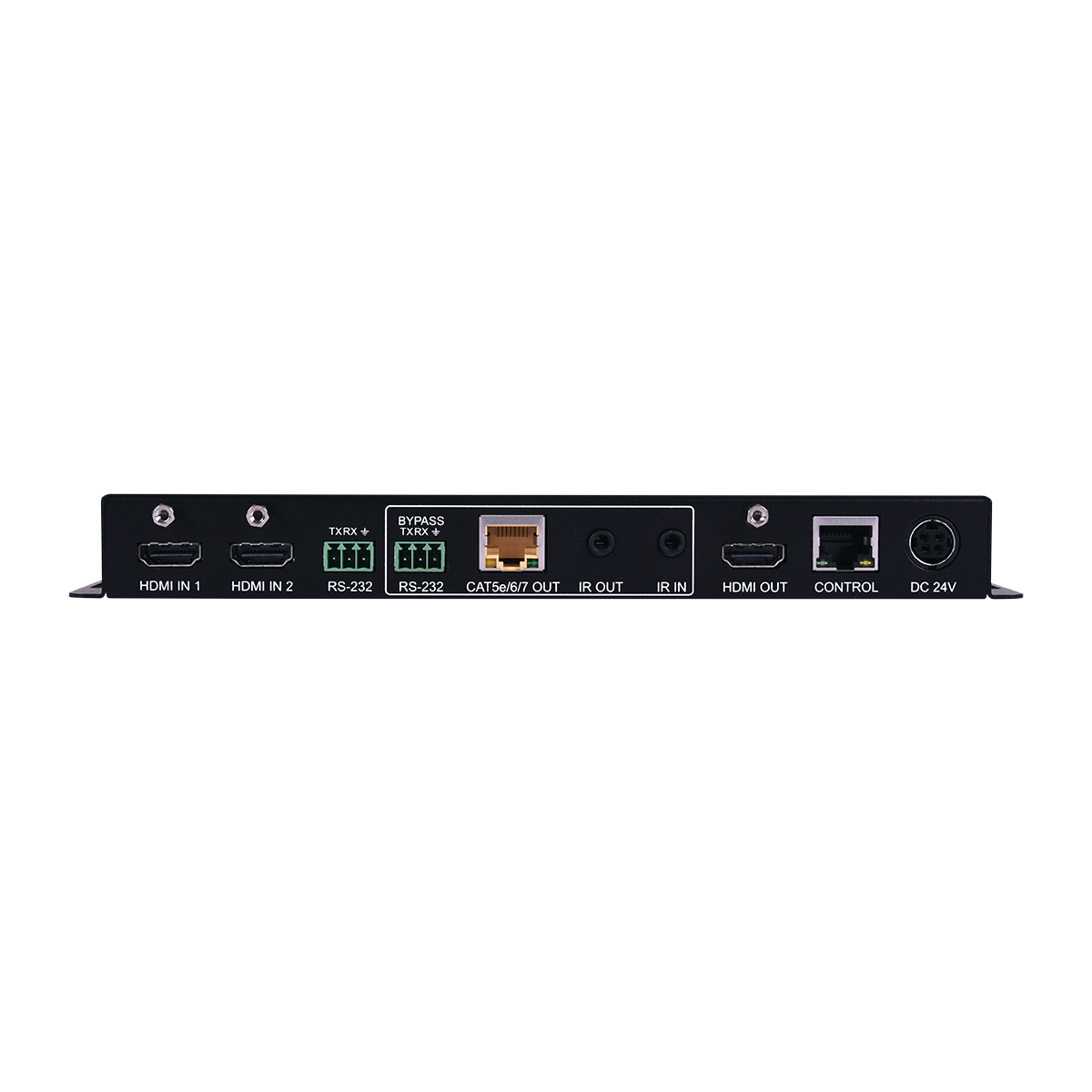

Features- Supports 2 HDMI inputs, 1 HDMI & 1 HDBaseT mirror outputs
- HDBaseT output is PSE (Power Sourcing Equipment) and supplies power to a receiver
- Supports 2 video windows
- Input seamless switch (Seamless switch mode in Switcher video mode)
- Color YCbCr444 process (Fast switch mode in Switcher video mode)
- Custom Aspect ratio, custom Zoom ratio adjustment
- Logo shows in RGB 24bit bitmap
- Supports user source timing from nonstandard video timing
Brand:
Cypress Technology
Product Type:
HDMI Scaler
Specifications
Special Features:
Supports 2 HDMI Inputs, 1 HDMI & 1 HDBaseT Mirror Output, HDBaseT Output is PSE (Power Sourcing Equipment) and Supplies Power to a Receiver Supports 2 Video Windows, Input Seamless Switch (Seamless Switch Mode in Switcher Video Mode), Color YCbCr444 Proce
IR Frequency:
30Hz
Power Rating:
20.17W
Chassis Color:
Black
Chassis Material:
Steel
Applications:
For Monitoring or Displaying Multiple Sources Simultaneously for Use in Control Rooms, Conference Rooms or Classroom
Includes:
1x4K UHD 2x1 HDMI Multi-Window Scaler Switcher, 1x24V/2.7A DC Power Adapter, 2x3-Pin Terminal Block, 1x3.5mm to IR Extender Cable, 1x3.5mm to IR Blaster Cable, 1xOperation Manual
Performance
Resolution:
HDMI-4096x2160pixels@30Hz (Input), CAT5e/6/7-4096x2160pixels@30Hz (Output)
HDCP Compliance Type:
2.x
Signal Format:
HDMI
Inputs and Ports
Input Port Type:
2xHDMI-Type A
Output Port Type:
1xHDMI-Type A, 1 CAT5e/6/7 (RJ45)
Power
Current Rating:
6.25A
Dimensions
Width:
23.2cm
Depth:
16.3cm
Height:
2.5cm
Weight:
966g
Other
Voltage Rating:
24V
Voltage Rating:
24V
