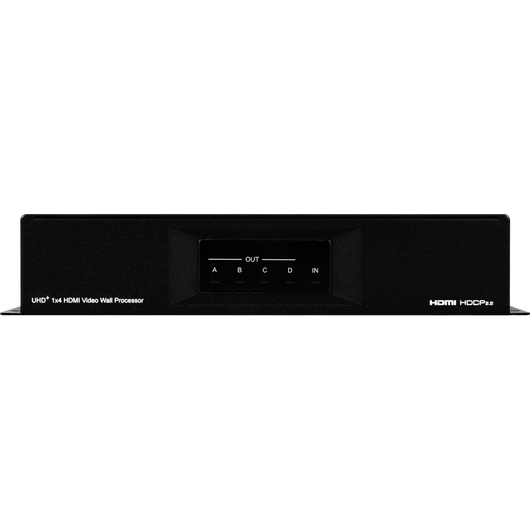

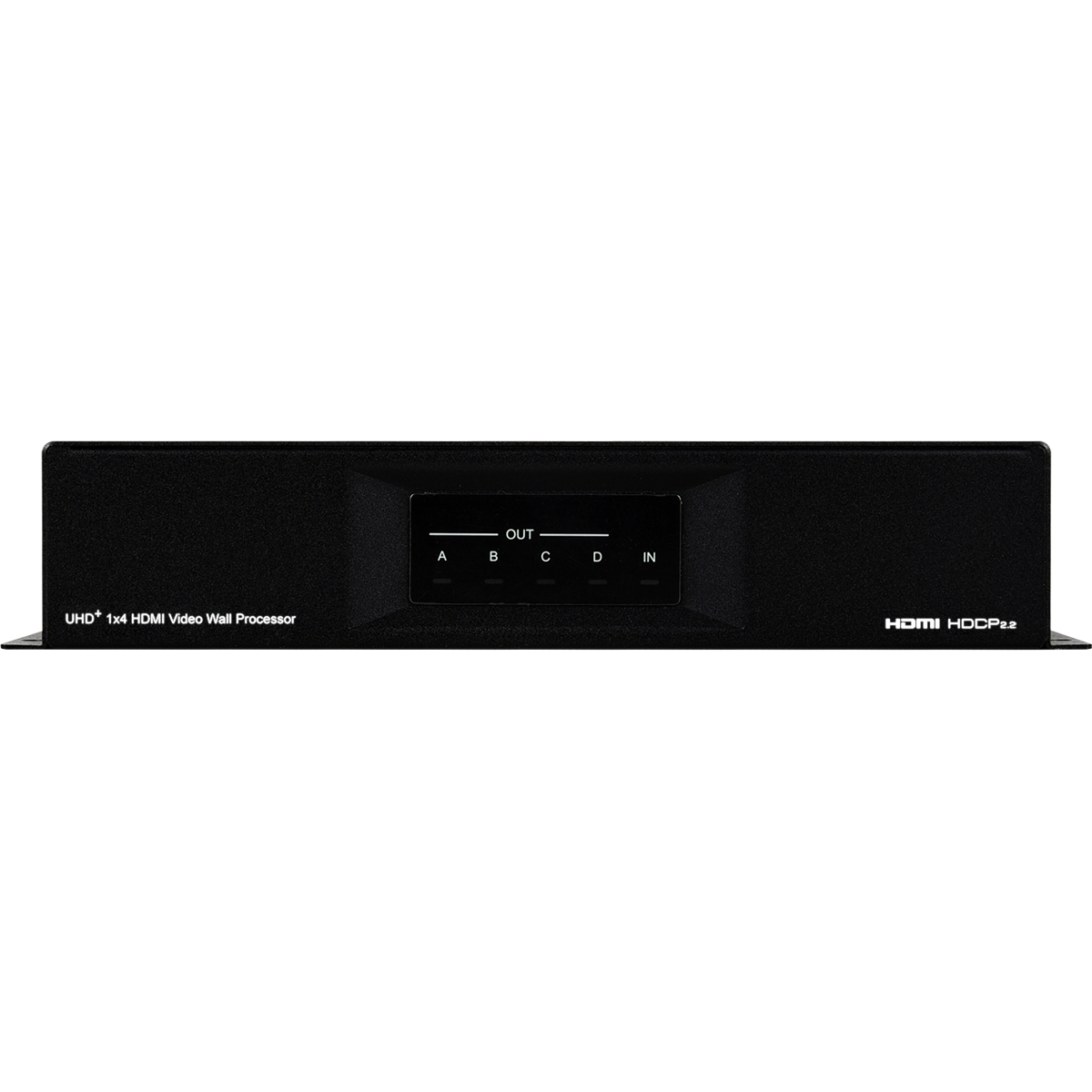

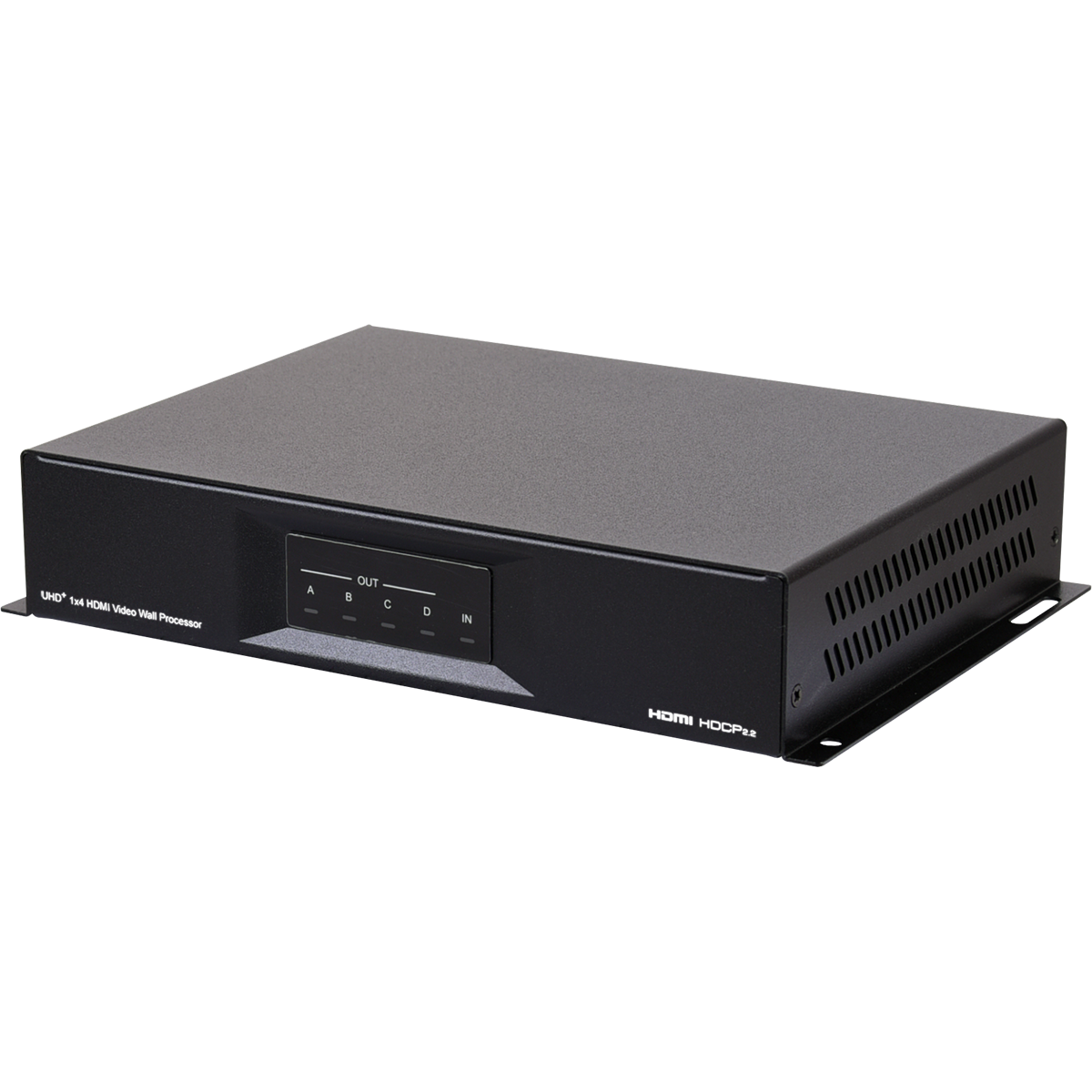

CDPS-4KQ UHD+ 1x4 HDMI Video Wall Processor

Write a review
CDPS-4KQ
Cypress Technology
Out of stock
Log in to see price Add to wish list

This unit can take any standard 4K UHD source from HDMI and generate a high quality 2×2 video wall with bezel compensation and full audio bypass. Input supports 4K UHD HDMI video, up to and including 4K@60Hz (4:4:4, 8-bit) as well as 10/12-bit. Each of the 4 outputs supports resolutions fixed 1080p@60Hz to generate a true 4K video wall with an RS-232 port support for event-triggered commands to be sent via RS-232. Built in advanced EDID management options including Internal, External, and User configurations as well as advanced HDCP processing allows this video wall unit to handle almost any source situation. A dedicated PC application allows the user to fully customize the video wall and associated features. Multiple control interfaces are available including OSD, RS-232, Telnet and PC tool.

Features
  • 1 HDMI input supports sources up to 18Gbps (600MHz) 4K UHD
  • 4 HDMI output support output resolutions fixed 1080p@60Hz
  • Input supports UHD resolutions up to 4096×2160@60Hz (4:4:4, 8-bit)
  • Input supports 4K at 24Hz (4:4:4) and 60Hz (YUV 4:2:0) with up to 12-bit color (HDR is automatically converted to SDR for 1080p output)
  • Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream
  • Basic signal event automation (via RS-232) to connected HDMI display
  • Dedicated PC application for easy control of the unit
Brand:
Cypress Technology
Specifications
Product Type:
Multiviewer
Silkscreen Colour:
Black
Maximum Operating Temperature:
40°C
Colour:
Black (Chassis, Silkscreen)
Control Port Type:
1xRS-232 (DE-9), 1xControl (RJ-45)
Special Features:
Basic Signal Event Automation (via RS-232) to Connected HDMI Display, Dedicated PC Application for Easy Control of the Unit
IR Frequency:
30 to 50Hz
Power Rating:
9.5W
Chassis Material:
Steel
Applications:
Public Advertisements, Digital Presentations, Hypermarket Displays, Stock Market Displays
Humidity:
20 to 90%
Chassis Colour:
Black
Minimum Operating Temperature:
0°C
Includes:
(1) 24V/1.25A DC Power Adapter, (1) Shockproof Feet (Set of 4), (1) Operation Manual
Performance
Resolution:
4096×2160Pixel@60Hz (Input HDMI), 1920x1080Pixel@60Hz (Output HDMI)
HDMI Compliance Type:
HDMI 2.0, DVI 1.0
HDCP Compliance Type:
2.x
Video Bandwidth:
18Gbps
Signal Format:
HDMI
Baud Rate:
19200bps

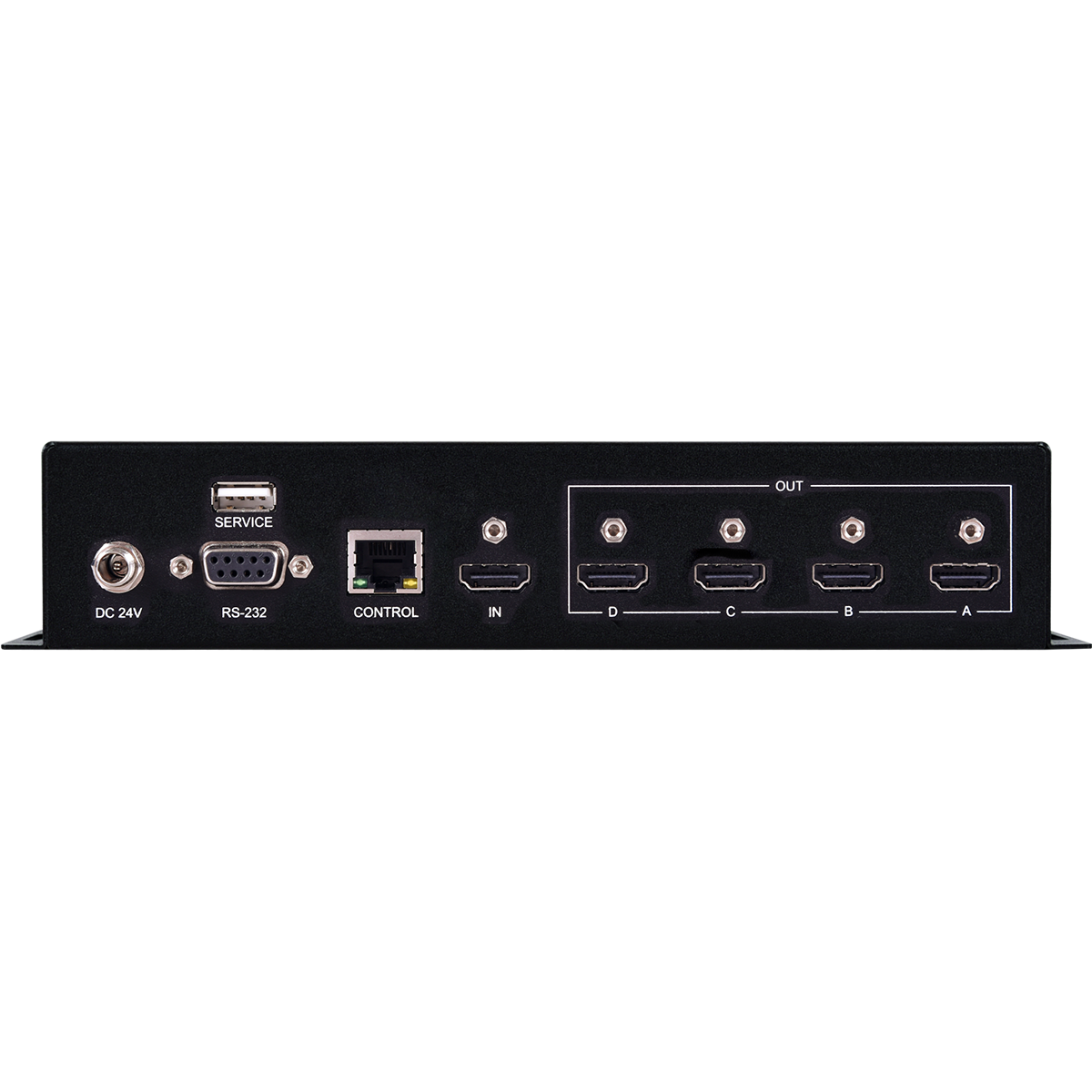

Inputs and Ports
Input Port Type:
1xHDMI (Type-A)
Output Port Type:
4xHDMI (Type-A)
Power
Current Rating:
1.25A
ESD Protection Rating:
±8kV (Air Discharge), ±4kV (Contact Discharge)
Dimensions
Width:
21.5cm
Depth:
15.8cm
Height:
4.7cm
Weight:
652g
Other
Voltage Rating:
24V DC
Standards Met:
US, EU, CE, FCC, UL
