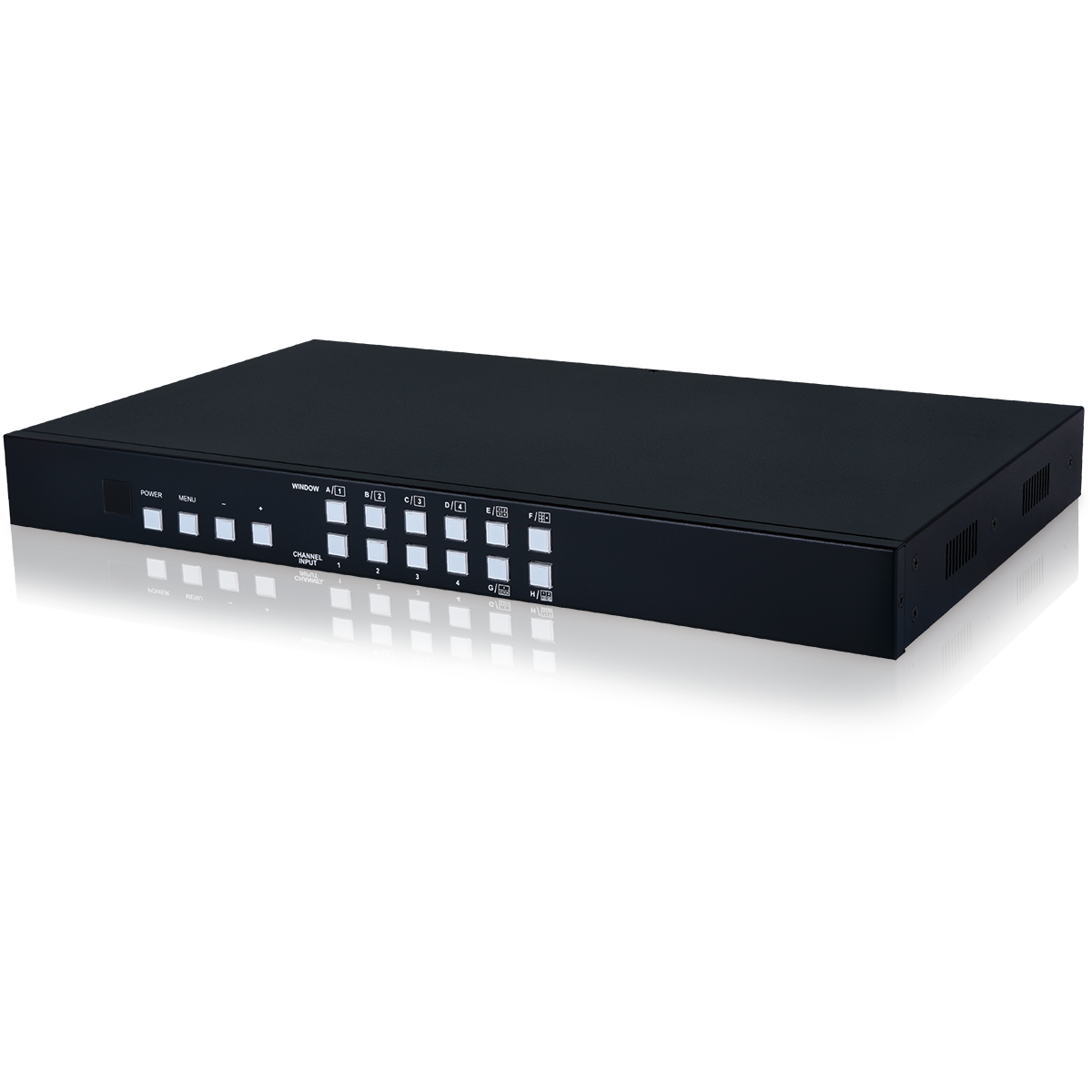

CDPS-41SQ 4×1 HDMI Multiviewer
Please sign in so that we can notify you about a reply
This HDMI Switcher is a high performance, low latency, multi-windowing system that can be easily configured for a variety of professional video processing tasks. Up to 4 different input sources may be freely selected and arranged and output to a single display. When switched into single window mode the unit can be a seamless switcher with cross-fade support, or two sources can be combined with the use of chroma keying. 90-degree rotation is also supported when outputting a single full screen window. Additionally, the unit supports the option of uploading a graphic logo for display over the top of the output video. Video resolutions up to 1080p60 and PC resolutions up to WUXGA are supported along with audio up to 192kHz, 7.1 channel, LPCM for both inputs and output. The unit can be controlled in a wide variety of ways, including via front panel buttons with OSD menu, WebGUI, Telnet, RS-232, and IR remote.
Features- Seamless switching between sources and windows
- Supports PiP, PoP, and multi-window display
- Easy individual window size and position and layer priority adjustment
- Enlarge or shrink up to 4 input windows
- Crossfade, chroma key, mirror, and rotation (90˚ left/right and 180˚) functions
- Supports the uploading of a user customizable graphic for display over the top of video output

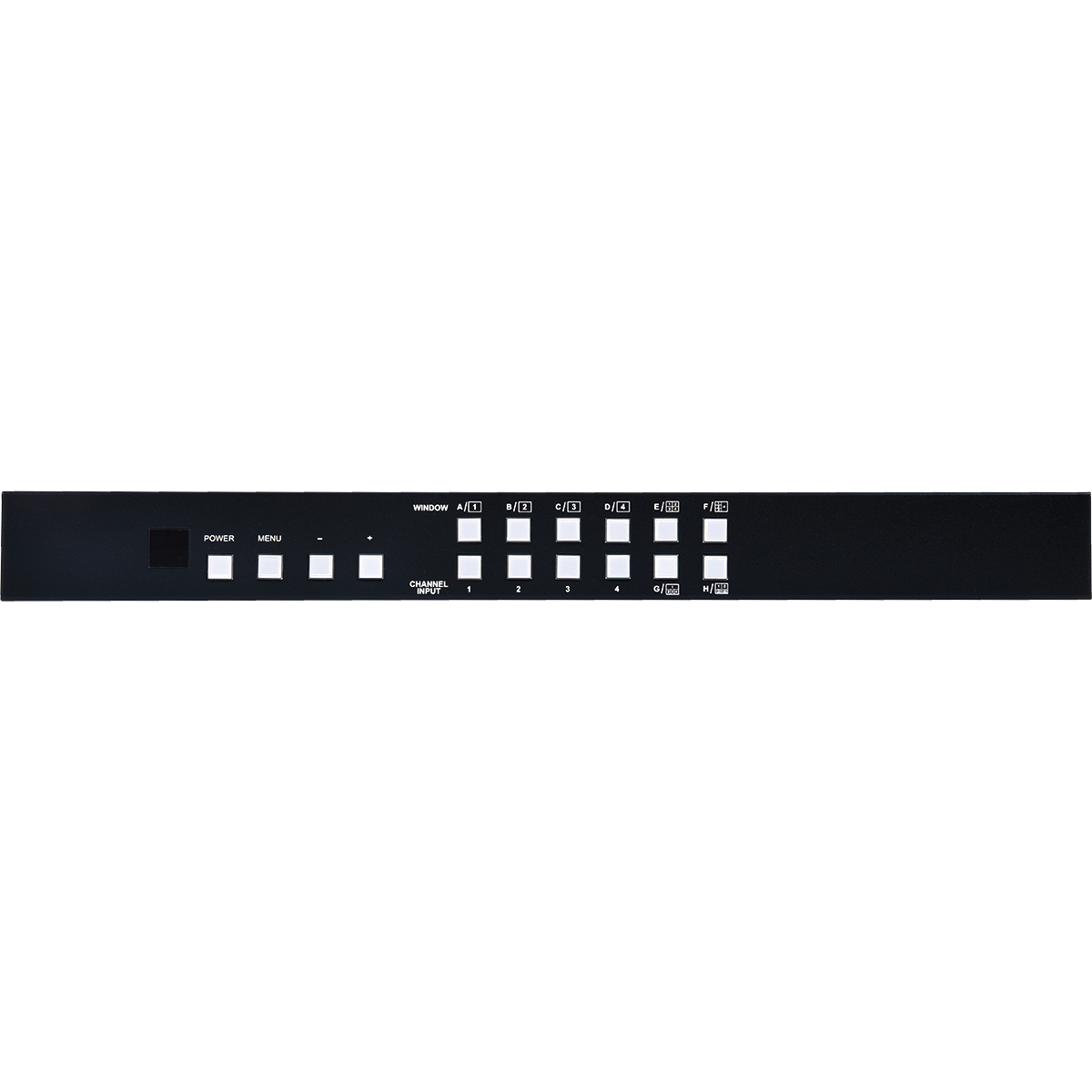

- 8 hot keys dedicated to window and source selection, 4 customizable window layout hot keys, and 4 software-only hot keys for additional stored window layout configurations
Brand:
Cypress Technology
Product Type:
4×1 HDMI Multiviewer
Specifications
Silkscreen Colour:
Black
Maximum Operating Temperature:
40°C
Colour:
Black (Chassis, Silkscreen)
Control Port Type:
1xRS-232 (DE-9), 1xLAN (RJ-45)
Special Features:
Seamless Switching Between Sources and Windows, Supports PiP, PoP, and Multi-Window Display
Power Rating:
18W
Chassis Material:
Steel
Applications:
Broadcasting Control Rooms, Surveillance Rooms, Public Commercial Displays, Video Conference and Digital Presentation Boardrooms
Humidity:
20 to 90%
Chassis Colour:
Black
Minimum Operating Temperature:
0°C
Includes:
Via Front Panel Buttons with OSD Menu, WebGUI, Telnet, RS-232, and IR Remote
Performance
Resolution:
1920x1200Pixel@60Hz (HDMI Input), 1920x1200Pixel@60Hz (HDMI Output)
Graphic Resolution:
640x480Pixel@60Hz (Video Graphics Array), 1920×1200Pixel@60Hz (WUXGA Wide Ultra Extended Graphics Array)
HDMI Compliance Type:
HDMI 1.3, DVI 1.0
HDCP Compliance Type:
1.4
Video Bandwidth:
225MHz/6.75Gbps
Signal Format:
HDMI
Baud Rate:
115200bps

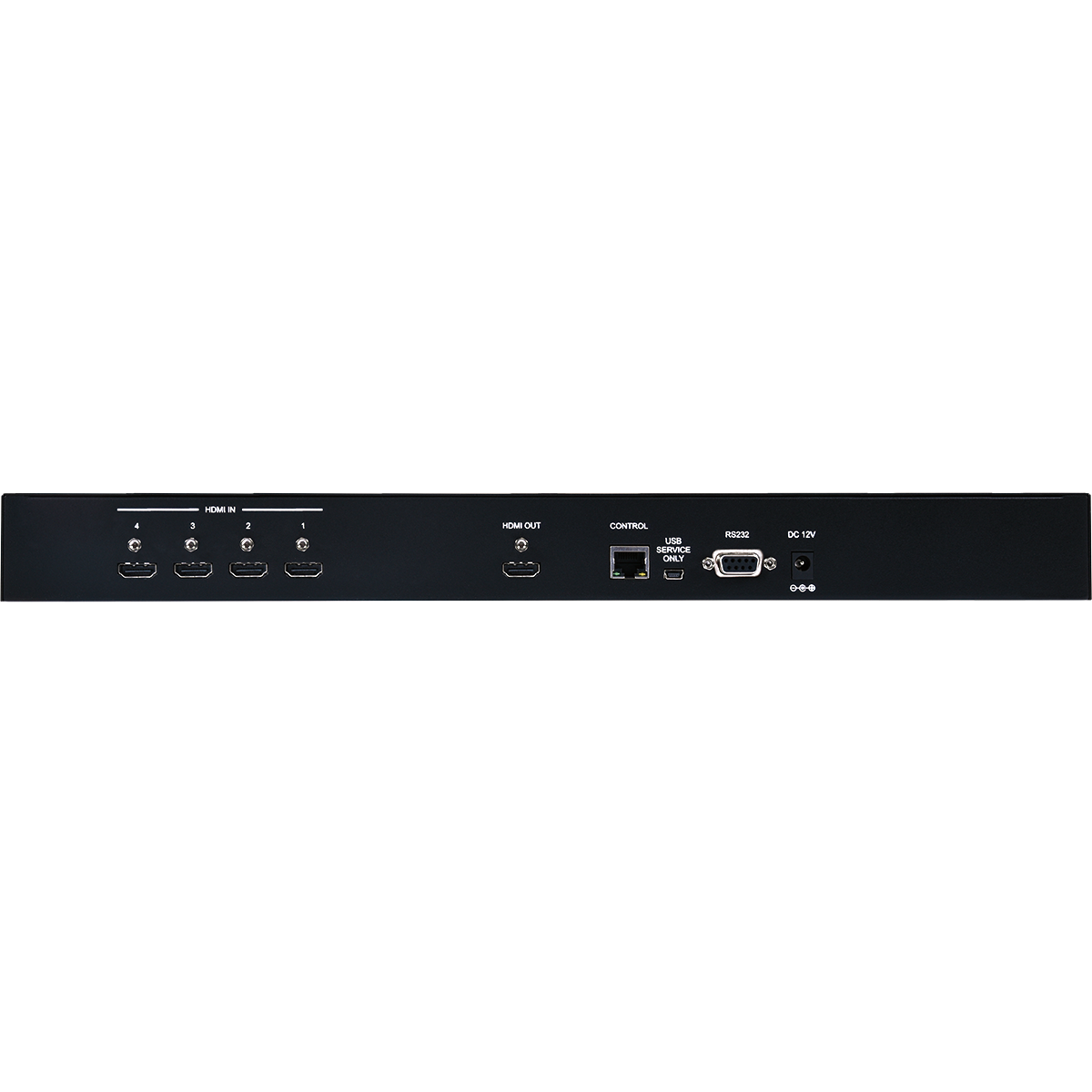

Inputs and Ports
Input Port Type:
4xHDMI (Type-A)
Output Port Type:
1xHDMI (Type-A)
Power
Current Rating:
3A
ESD Protection Rating:
±12kV (Air Discharge), ±8kV (Contact Discharge)
Dimensions
Width:
43.6cm
Depth:
25.6cm
Height:
4.9cm
Weight:
2200g
Other
Voltage Rating:
12V DC
Standards Met:
US, EU, CE, FCC, UL
