WP-2UT/R-KIT USB 2.0 PoC Wall-Plate Extender Kit over Extended-Reach CAT
Please sign in so that we can notify you about a reply

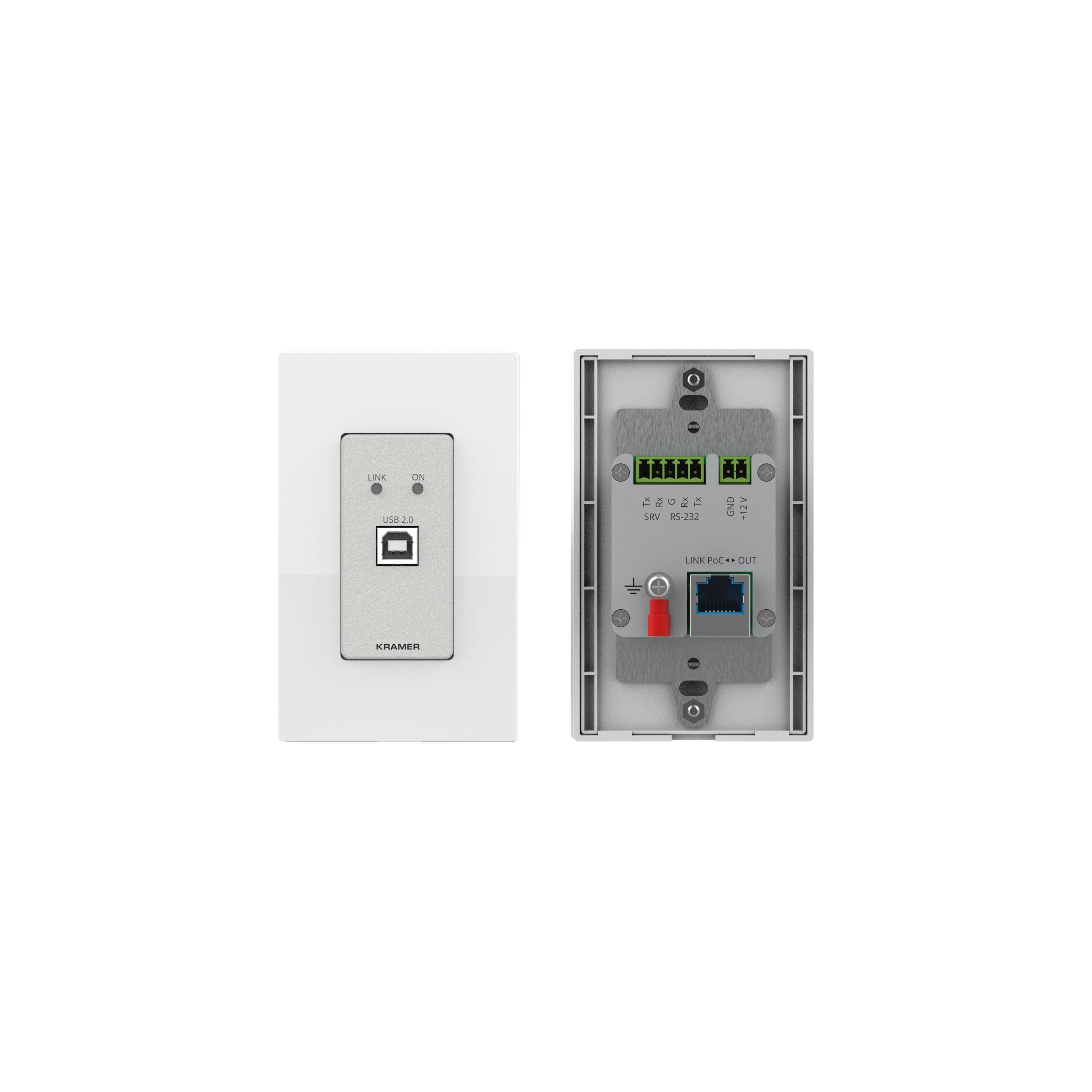

WP−2UT/R−KIT is a comprehensive, extended−reach CAT extender kit for USB 2.0, RS−232 and 2−way powering over twisted pair. WP−2UT/R−KIT includes a wall−plate transmitter and compact, mountable receiver. The WP−2UT wall−plate transmitter converts the USB input signal into a CAT signal. The PT−2UR receiver converts the transmitted CAT signal into a USB signal.
Features
- Comprehensive USB Extender — Plug & play USB extender kit for providing extended–reach CAT signals and 2–way power over twisted pair copper infrastructures. A local USB host is auto–connected to remote–connected USB devices employing either interrupt, bulk or isochronous USB 2.0 standard data transfer communication.
- Flexible USB Connectivity — Wide Variety of USB peripheral devices can be extended including cameras, touch screens, smart boards, hard drives, game controllers, audio devices, printers, scanners, or HID (Human Interface Devices) devices such as a mouse or keyboard. Dual role and OTG (On The Go ) devices such as smart phones and tablets, connected either to a transmitter–side USB host port or receiver–side USB device port, can communication with a remote host or peripheral pairing device.
- Remote USB Charging — Fast USB charging of peripheral devices when the receiver is powered by a power supply, and standard USB charging when the receiver is powered by the transmitter via CAT.
- Bidirectional RS–232 Extension — Serial interface data flows in both directions, allowing data transmission and device control.
- Cost–Effective Maintenance — Status LED indicators facilitate easy local maintenance and troubleshooting.
- Easy Installation — Single twisted–pair cable for signal and power wiring, the extender kit installation is fast and cost–effective. Transmitter compactly fits into standard US 1–gang in–wall box size, or podium and in–table mounting accessories. Receiver is a compact PicoTOOLS® fan–less enclosure for easy device–adjacent mounting, or side–by–side mounting of 4 units in a 1U rack space with the recommended rack adapter. Compact and flexibly mountable extender kit supports simple decorative integration with room design.
Brand:
Kramer
Part number:
20-80568190
Product Type:
USB 2.0 Poc Wall-Plate Extender kit Over Extended-Reach Cat
Specifications
Special Features:
Comprehensive USB Extender, flexible USB Connectivity, Remote USB Charging, Bidirectional RS-232 Extension, Cost-Effective Maintenance, Easy Installation, Compact PicoTOOLS® fan
Applications:
Online and Hybrid Learning in Classroom and Training Facilities, Room Camera and Soundbar Extension in Online Conference and Meeting Rooms, Any Hi-Quality USB 2.0 Extension in Education, Corporate, Manufacturing and Medical
Includes:
Wall-Plate Transmitter, Compact, Mountable Receiver
Inputs and Ports
Input Port Type:
RJ45 (PT-2UR)
Output Port Type:
1xCAT: on an RJ45 Female Connector for extension line (WP-2UT)
Number of Ports:
4
Dimensions
Width:
6.98cm
Depth:
11.4cm
Weight:
0.3kg
Other
Standards Met:
CE, FCC Compliant
