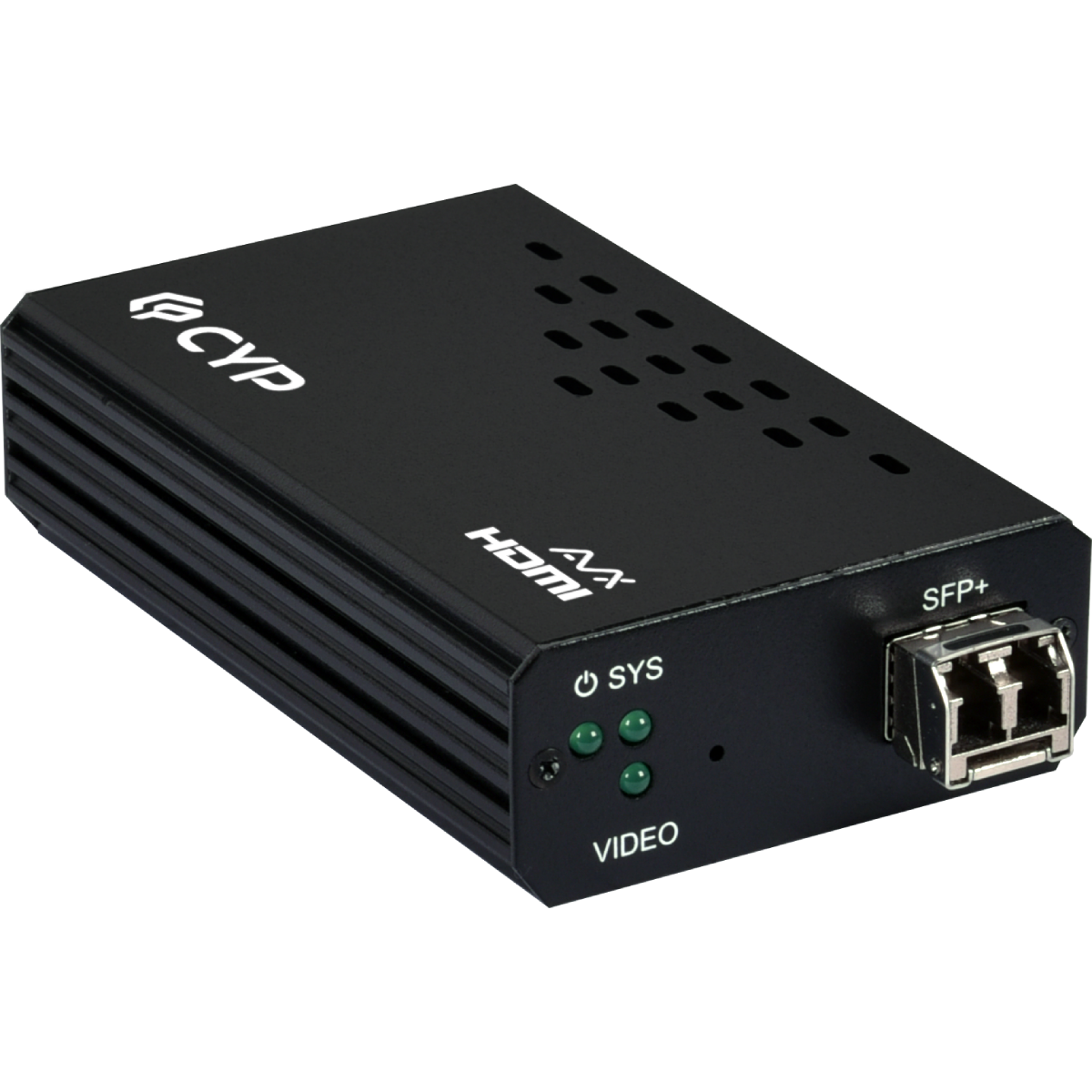

VEX-X1103T-B0F AV over IP Extender, Steel Chassis, 3840×2160p@60 YUV 4:4:4, 7W
Please sign in so that we can notify you about a reply
The end to end Extenders are designed for high-quality, AV extension with minimum latency through 10 Gigabit IP transmit over SFP+ Fiber cable. Small and compact size of Transmitter design, enhancing the flexibility of any installation. With ultra-light compression scheme (lossless for most content) to extending 4K audio/video streams and data under 0.1 milliseconds of matrix switch-like end to end transit. Supports up to 3840x2160@60Hz pass-through including multichannel PCM, Dolby True HD and DTS HD master audio.
Features- Point to point extension of audio, video and control signals
- Full range of formats including 4K60 RGB/4:4:4, HDR10, 3D and broadcast-friendly 4K60 10-bit 4:2:2
- Broadcast quality scaler, programmable to scale up or down any resolutions up to 4K
- Extension up to 30km (maximum distance depends on the SFP+ module and type of fiber used)
- Supports pass-through of 10/12-bit HDR sources
- Signal transmission interfaces with 10-Gigabit Ethernet switches via XFI (IEEE 802.3ae) compatible 10-Gigabit Ethernet connector
Brand:
Cypress Technology
Product Type:
AV over IP Extender
Specifications
Maximum Operating Temperature:
+50°C
Colour:
Black
Special Features:
Supports Pass-Through of 10/12-bit HDR Sources
Power Rating:
7W
Chassis Material:
Steel
Applications:
Household Entertainment, Lecture Halls, Meeting Rooms, and Classrooms, Point-to-Point Secure Video Conferencing
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
1×UHD+USB-C over Fiber Transmitter, 1×5V/2.6A DC Power Adapter, 1×USB-C Cable (2m), 1×Operation Manual
Storage Temperature Range:
-20 to +60°C
Performance
HDMI Compliance Type:
2.0 (DVI 1.0)
HDCP Compliance Type:
2.x
Maximum Input Resolution:
3840×2160pixels@60 YUV (4:4:4)
Maximum Output Resolution:
3840×2160pixels@60 YUV (4:4:4)
Output Signal Type:
4K@60 (YUV (4:4:4))
Inputs and Ports
Input Port Type:
1×USB
Output Port Type:
1xSFP+
I/O Interface Type:
1xUSB
Number of Ports:
2
Input Signal Type:
4K@60 (YUV (4:4:4))
Power
ESD Protection Rating:
±8kV (Air Discharge), ±4kV (Contact Discharge)
Dimensions
Width:
6cm
Depth:
10.3cm
Height:
2.6cm
Weight:
170g
Other
Standards Met:
US/EU Standards, CE/FCC/UL Certified
No reviews found
