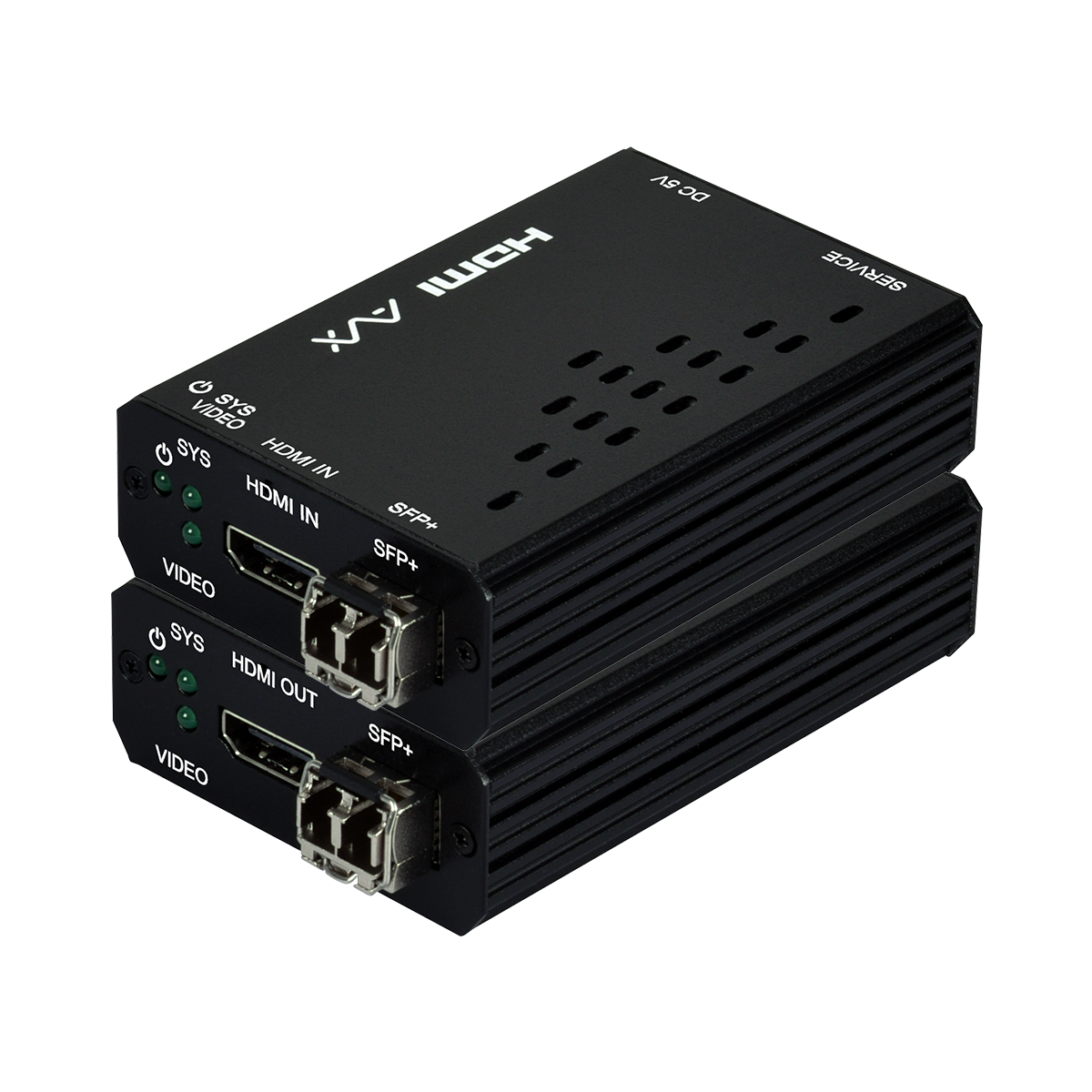

VEX-X1102R-B0F UHD+ HDMI AV over IP Extender
Please sign in so that we can notify you about a reply
the End to End Extenders are Designed for High-Quality, Extension With Minimum Latency Through 10 Gigabit ip Transmit over Sfp+ Fiber Cable. Small and Compact Size of Transmitter and Receiver Design, Enhancing the Flexibility of any Installation. With Ultra-Light Compression Scheme (lossless for Most Content) to Extending 4K audio/Video Streams and Data Under 0.1 Milliseconds of Matrix Switch-Like End to End Transit. Supports all HDMI 2.0 formats Pass-Through Including Multichannel Pcm, Dolby True HD and Dts HD Master audio.
Features
- Point to Point Extension Of audio, Video and Control Signals
- Full Range Of formats Including 4K60 RGB/4:4:4, HDR10, 3D and Broadcast-Friendly 4K60 10-Bit 4:2:2
- Transmitter and Receiver Design
- Extension Up to 30km (maximum Distance Depends On the Sfp+ Module and Type Of Fiber Used)
- Supports Pass-Through Of 10/12-Bit HDR Sources
- Signal Transmission Interfaces With 10-Gigabit Ethernet Switches Via XFI (IEEE 802.3ae) Compatible 10-Gigabit Ethernet Connector
Brand:
Cypress Technology
Specifications
Product Type:
UHD+ HDMI AV Over Fibre Extender
Maximum Operating Temperature:
+50°C
Colour:
Black
Chassis Material:
Metal
Applications:
A/V Extension Without Rf Interference, Long Distance Data and Video Transmission, Household Entertainment, Lecture Halls, Meeting Rooms, Classroom, Point-To-Point Secure Video Conferencing
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Storage Temperature Range:
-20 to +60°C
Performance
HDMI Compliance Type:
2.0 (DVI 1.0)
HDCP Compliance Type:
2.2
Maximum Input Resolution:
4096x2160pixels@60Hz YUV 4:4:4
Maximum Output Resolution:
4096x2160pixels@60Hz YUV 4:4:4
Output Signal Type:
4K@60Hz YUV 4:4:4
Inputs and Ports
Input Port Type:
HDMI-Type A
Output Port Type:
1x10GbE LAN (SFP+)
Input Signal Type:
4K@60Hz YUV 4:4:4
Power
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Width:
6cm
Depth:
8.7cm
Height:
2.06cm
Weight:
139g
Other
Standards Met:
US/EU Standard, CE|FCC Compliant|UL Listed
