PT-871/2XR-KIT 4K HDR HDMI Compact Extender over PoC Long-Reach DGKat 2.0
Please sign in so that we can notify you about a reply

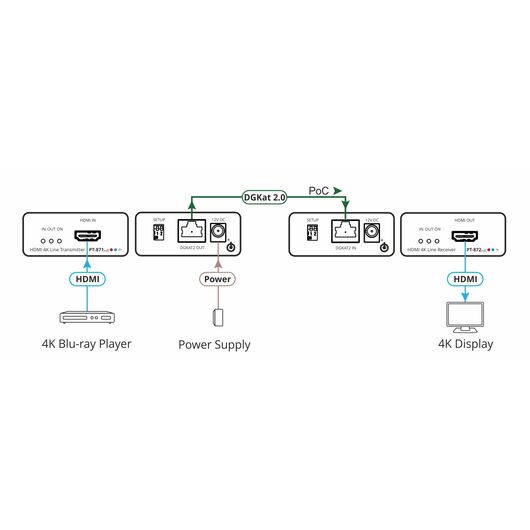

PT−871/2XR−KIT is a high−performance, long−reach DGKat™ 2.0 extender kit for 4K@60Hz (4:4:4) HDR HDMI and HDCP 2.2 signals and 2−way powering over twisted pair. The PT−871XR transmitter converts the HDMI input signal into a DGKat™ 2.0 signal. The PT−872XR receiver converts the transmitted DGKat™ 2.0 signal into an HDMI signal. PT−871/2XR−KIT extends video signals to up to 60m (200ft) at 4K@60Hz (4:4:4) resolution and up to 70m (230ft) at 4K@30Hz (4:4:4) 24bpp resolution over Kramer shielded cables.
Features
- High Performance Extender — Professional DGKat™ 2.0 extender kit for providing long–reach signals and 2–way power over twisted pair copper infrastructures. PT–871/2xr–Kit extender employs low–level video compression technology that delivers visually lossless performance for 4K@60Hz (4:4:4) HDR signals with near–zero latency. PT–871xr converts the HDMI input signal into a DGKat™ 2.0 signal. PT–872xr converts the transmitted DGKat™ 2.0 signal into an HDMI signal. PT–871/2xr–KIT extends video signals to up to 60m (200ft) at 4K@60Hz (4:4:4) resolution and up to 70m (230ft) at 4K@30Hz (4:4:4) 24bpp resolution over Kramer shielded cables.
- HDMI Signal Extension — HDR, HDCP 2.2 compliant. Supports deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0.
- EDID Pass–through — Pass–through algorithm ensures Plug and Play operation for HDMI source and display systems.
- Multi–channel Audio Extension — Up to 32 channels of digital stereo uncompressed signals for supporting studio–grade surround sound.
- Cost–Effective Maintenance — Status LED indicators for HDMI and DGKat™ 2.0 ports facilitate easy local maintenance and troubleshooting.
- Easy Installation — Single twisted–pair cable for signal and power wiring. Compact Pico TOOLS™ fan–less enclosure for device–back mounting, or side–by–side mounting of 4 units in a 1U rack space with the recommended rack adapter.
Brand:
Kramer
Part number:
50-80389390
Product Type:
4K HDR HDMI Compact Poc Extender Over Long-Reach DGKAT 2.0
Specifications
Maximum Operating Temperature:
+40°C
Colour:
Black
Special Features:
High Performance Extender, HDMI Signal Extension, EDID Pass-through'Multi-channel Audio Extension, Cost-effective Maintenance, Easy Installation
Applications:
Long-Distance AV Signal Extension for Large Room Connectivity, AV Extension in Meeting Rooms, Boardrooms, Hotels and Corporate Facility
Humidity:
10 to 90%
Minimum Operating Temperature:
0°C
Includes:
1 Power Adapter with Cord, 2 Bracket Set
Storage Temperature Range:
-40 to +70°C
Performance
HDMI Compliance Type:
2.0
HDCP Compliance Type:
2.2
Maximum Output Resolution:
3840x2160@60Hz (4:4:4) 24bpp
Inputs and Ports
Input Port Type:
HDMI (PT-871xr), 1 DGKAT:RJ45 Female Connector
Output Port Type:
1xHDMI: on An HDMI Female Connector (PT-871xr), 1 DGKAT: on An RJ45 Female Connector for Extension Line (PT-872xr)
Dimensions
Width:
6.22cm
Depth:
5.1cm
Height:
2.4cm
Weight:
0.2kg
Other
Standards Met:
CE, UL Listed, RoHS Compliant, WEEE
